CHAPTER 13-23
STANDARD DRAWINGS; CITY OF FLAGSTAFF

Sections:

3-02-070    Installation of Survey Monument

8-06-010    Standard Valley Gutter

9-01-010    Underground Utilities in Streets Typical Location and Trench Detail

9-01-011    Service Location

9-01-020    Tracer Wire

9-01-030    Trenching and Backfill (Existing Paved Street)

9-01-031    Trenching and Backfill (New Paved Street)

9-01-032    Trenching and Backfill (Unpaved Easement or Street)

9-01-033    Trenching and Backfill (Existing Paved Parking Lot)

9-02-080    Deep Sewer Service

9-02-092    Manhole Base Geometry

9-03-053    End-of-Line Temporary Blow-Off

9-03-054    End-of-Line Permanent Blow-Off

9-03-055    In-Line Blow-Off on Water Line 12" and Smaller

9-03-056    In-Line Blow-Off on Water Line Larger than 12"

9-03-060    Valve Box Adjustment

9-03-061    Valve Extension Stem

9-03-062    Ring, Frame or Cover Installation

9-03-070    Water Service Connection 3/4" and 1"

9-03-071    Water Service Connection 1-1/2" and 2"

9-03-080    Polymer Water Meter Box

9-03-080A    Traffic Rated Water Meter Box

9-03-081    Multiple Meter Manifolds

9-03-082    Compound Meter 3", 4", 6"

9-03-083    Fire Service Meter 6", 8", 10"

9-03-100    Combination Air Release Valve 2"

9-03-101    Air Release Valve 1"

9-06-010    Water/Sewer Line Casing

9-06-030    Non-Shrink Slurry Backfill

9-06-071    Double Check Valve Assembly Installation

9-06-072    Reduced Pressure Assembly (RPA) Installation

9-06-073    Pressure Vacuum Breaker Assembly (PVBA) Installation

9-06-074    Air Gap Backflow Protection for Water Tanks

9-06-075    Fire Hydrant Meter Backflow Protection

10-04-010    Urban Cul-de-sac

10-04-011    Rural Cul-de-sac

10-06-011    Standard Delineator

10-06-012    Stop Ramp Parameters

10-06-013    Detector Loops for Traffic Counters

10-06-014    Median with 90' or 60' Taper

10-09-010    Pavement Structural Section for Streets and Off-Street Parking Lots

10-09-032    Arterial (Major or Minor)

10-09-034    Major Collector

10-09-035    Minor Collector

10-09-036    Commercial Local

10-09-037    Residential Local "Wide"

10-09-038    Residential Local

10-09-040    Major Arterial "Commercial Center"

10-09-041    Minor Arterial "Commercial Center"

10-09-042    Major Collector "Commercial Center"

10-09-043    Minor Collector "Commercial Center"

10-09-044    Commercial Local "Commercial Center"

10-09-045    Rural Arterial

10-09-046    Rural Collector

10-09-047    Rural Local

10-09-048    Rural Local "Narrow"

10-09-049    Shoulder Section

10-09-050    Residential Alley Cross-Section

10-10-010    Parking, Driveway and Aisle Slope Parameters

10-10-019    Bus Pullout

10-10-020    Right Turn Lane for Urban Driveway

10-10-031    Paved Turnouts

10-10-034    Sidewalk Ramp Detail (15' Radius Curb Return)

10-10-038    Apron Joints

10-10-039    Driveway-Pedestrian Ramp Combination (For Use at T-Type Intersection)

10-10-040    Driveway Entrance – Retrofit

10-10-041    Return Type Driveways with Attached Sidewalk

10-10-042    Pavement Edge Tapers for Isolated Street Widenings

10-10-043    Detectable Warning Strip

13-03-011    Fire Hydrant Assembly

13-03-012    Fire Hydrant Protection Post in Paved or Concrete Surface

13-03-013    Shoulder Widening at Fire Hydrants for Uncurbed Roads

13-03-014    Removable Bollard

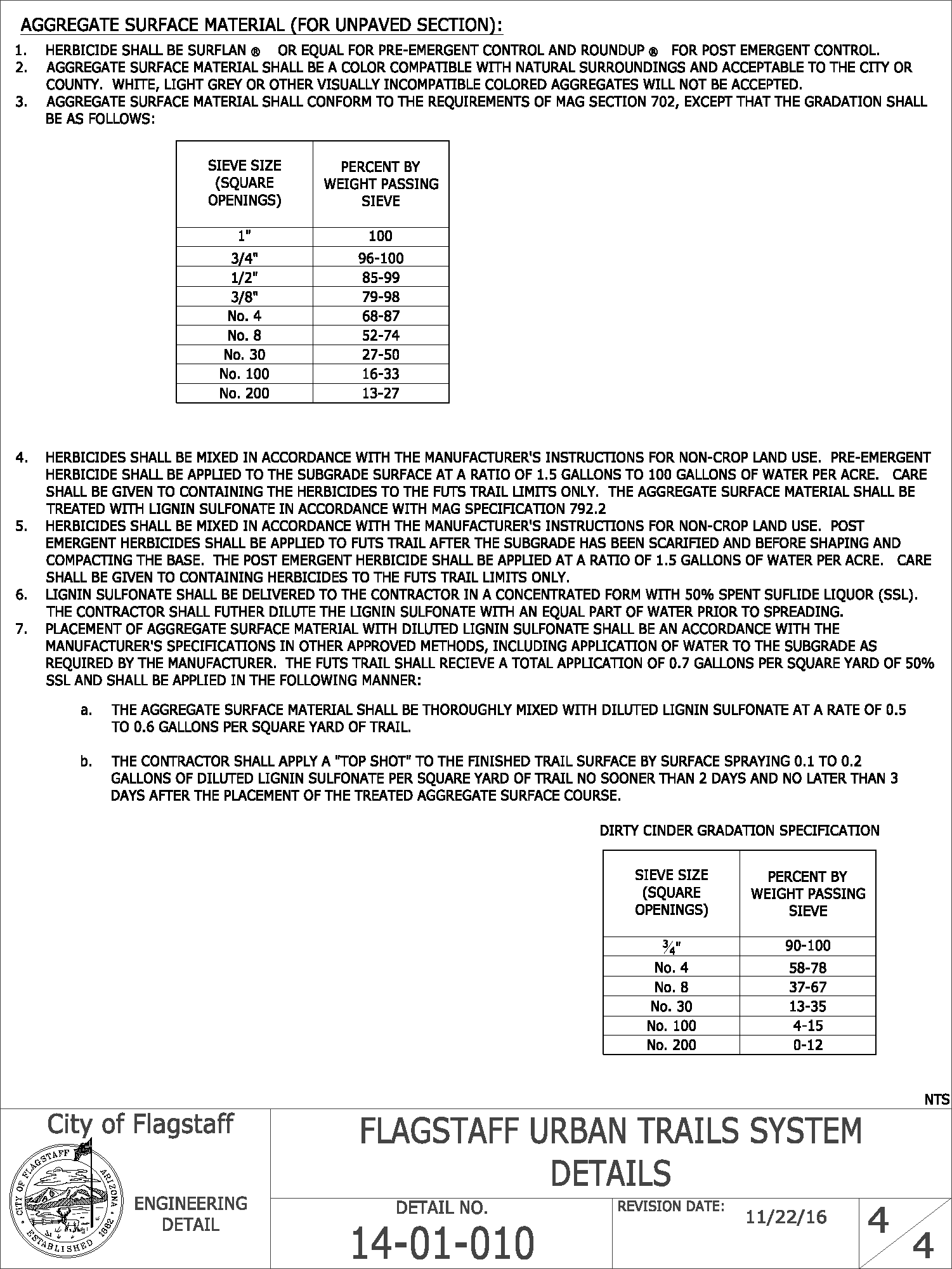

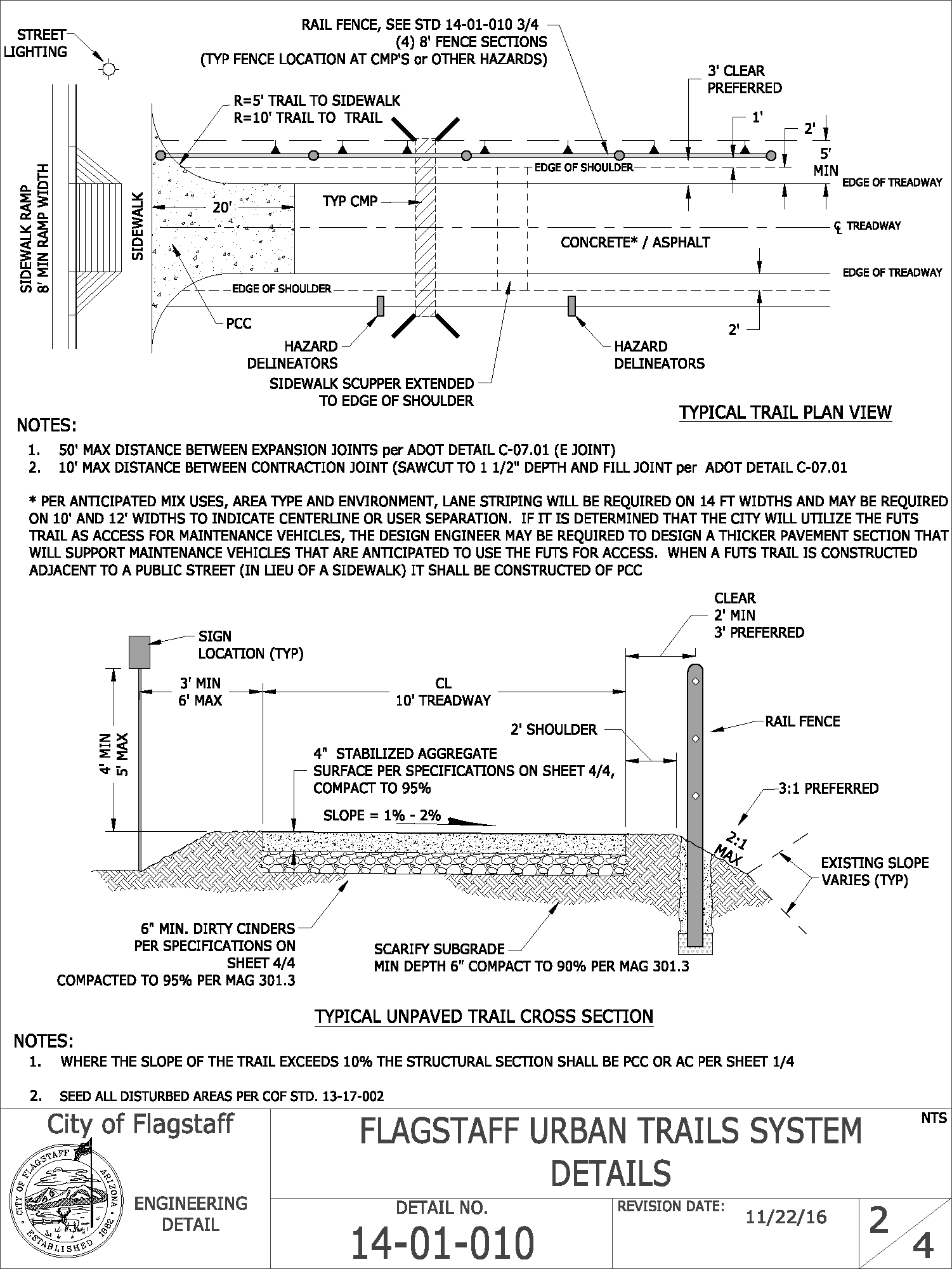

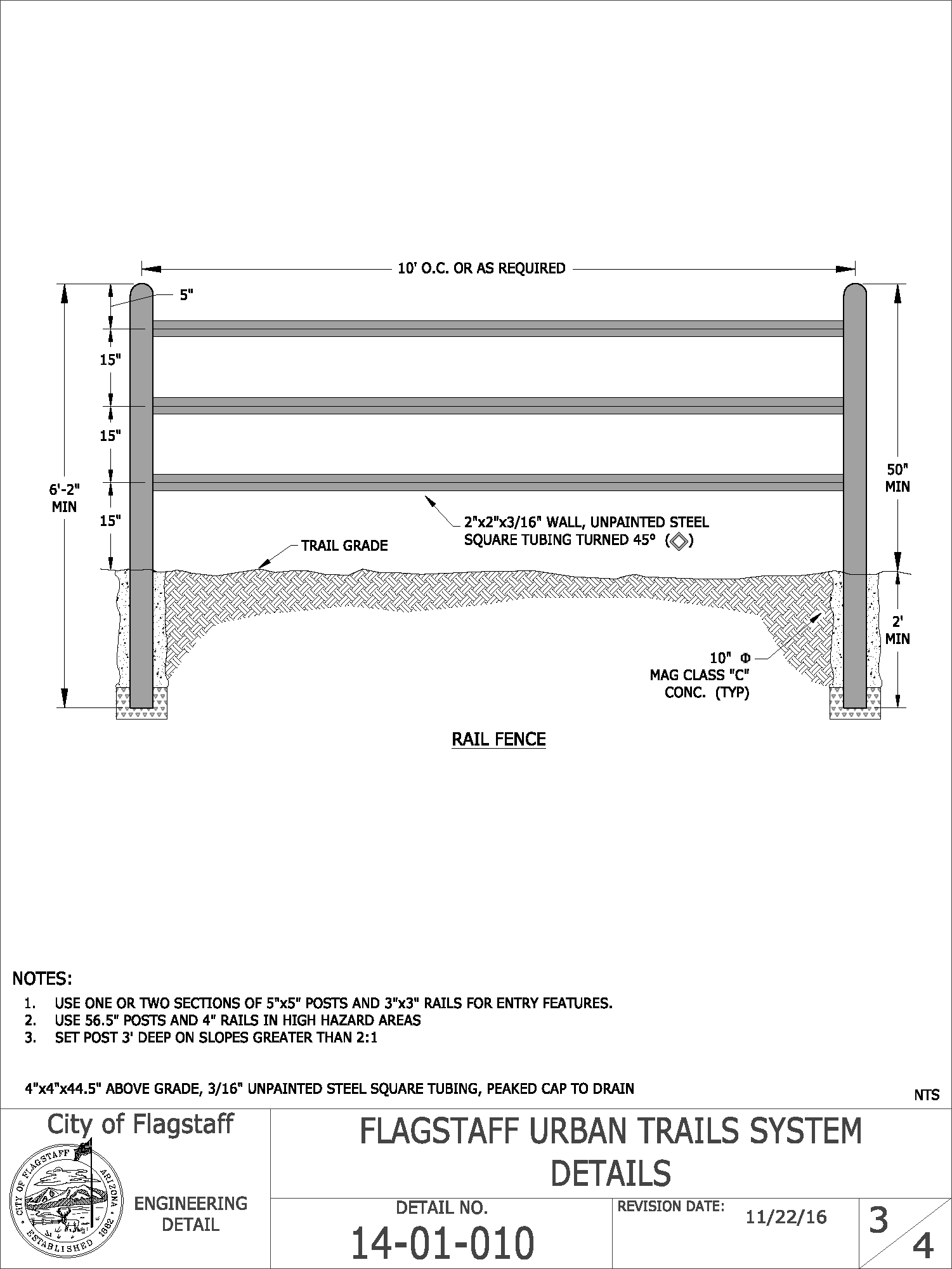

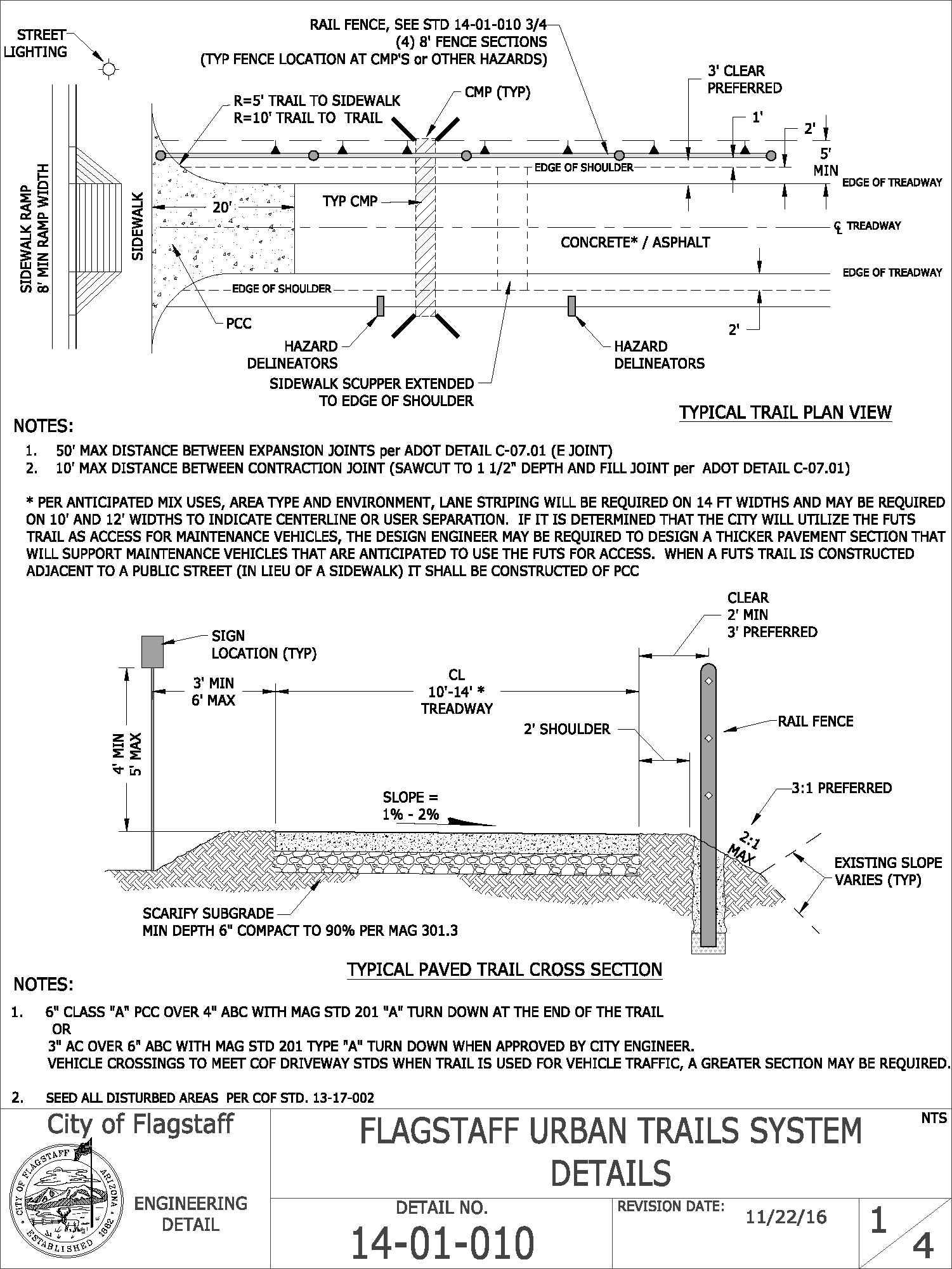

14-01-010    Flagstaff Urban Trails System Details

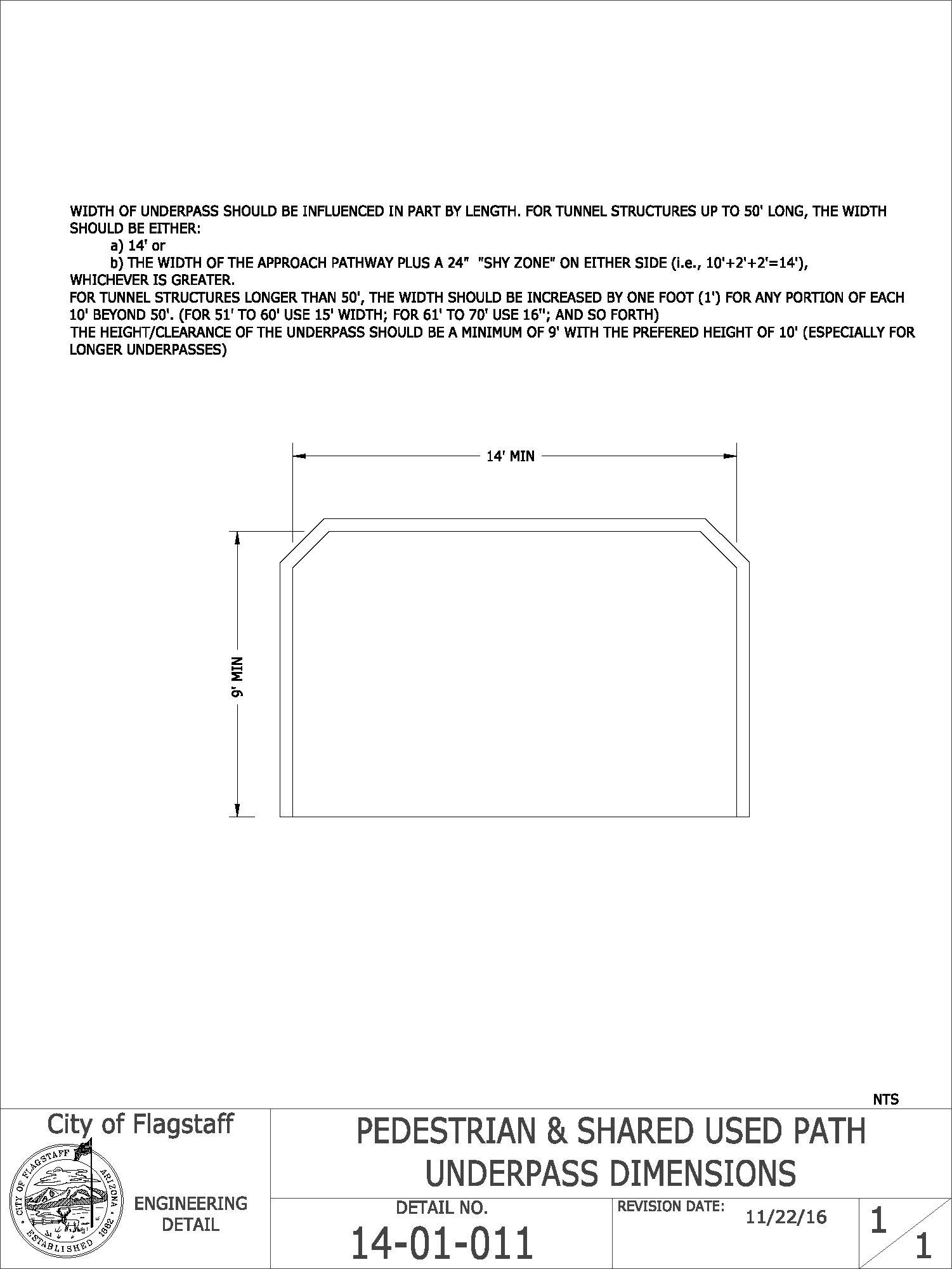

14-01-011    Pedestrian and Shared Use Path Underpass Dimensions

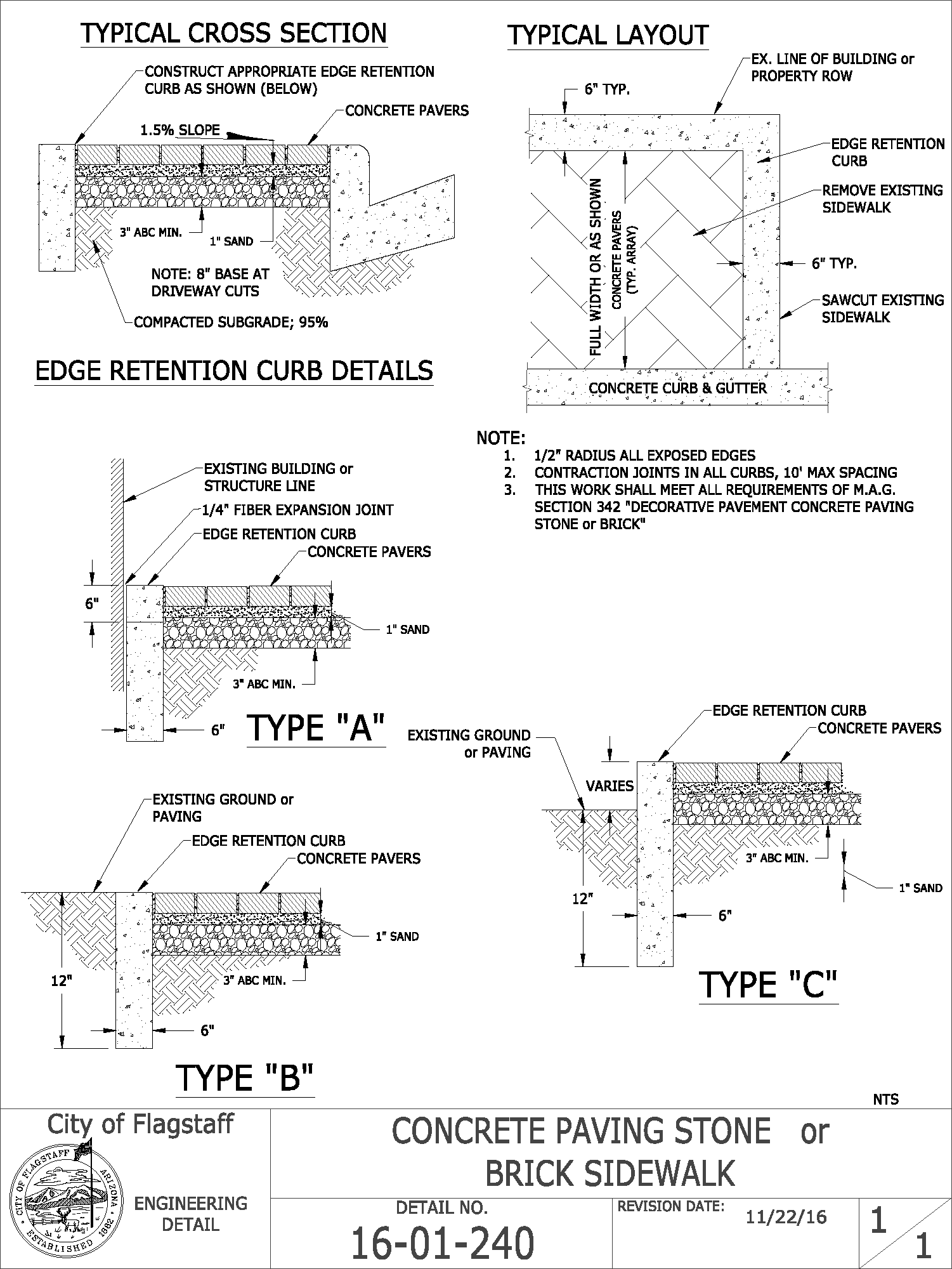

16-01-240    Concrete Paving Stone or Brick Sidewalk

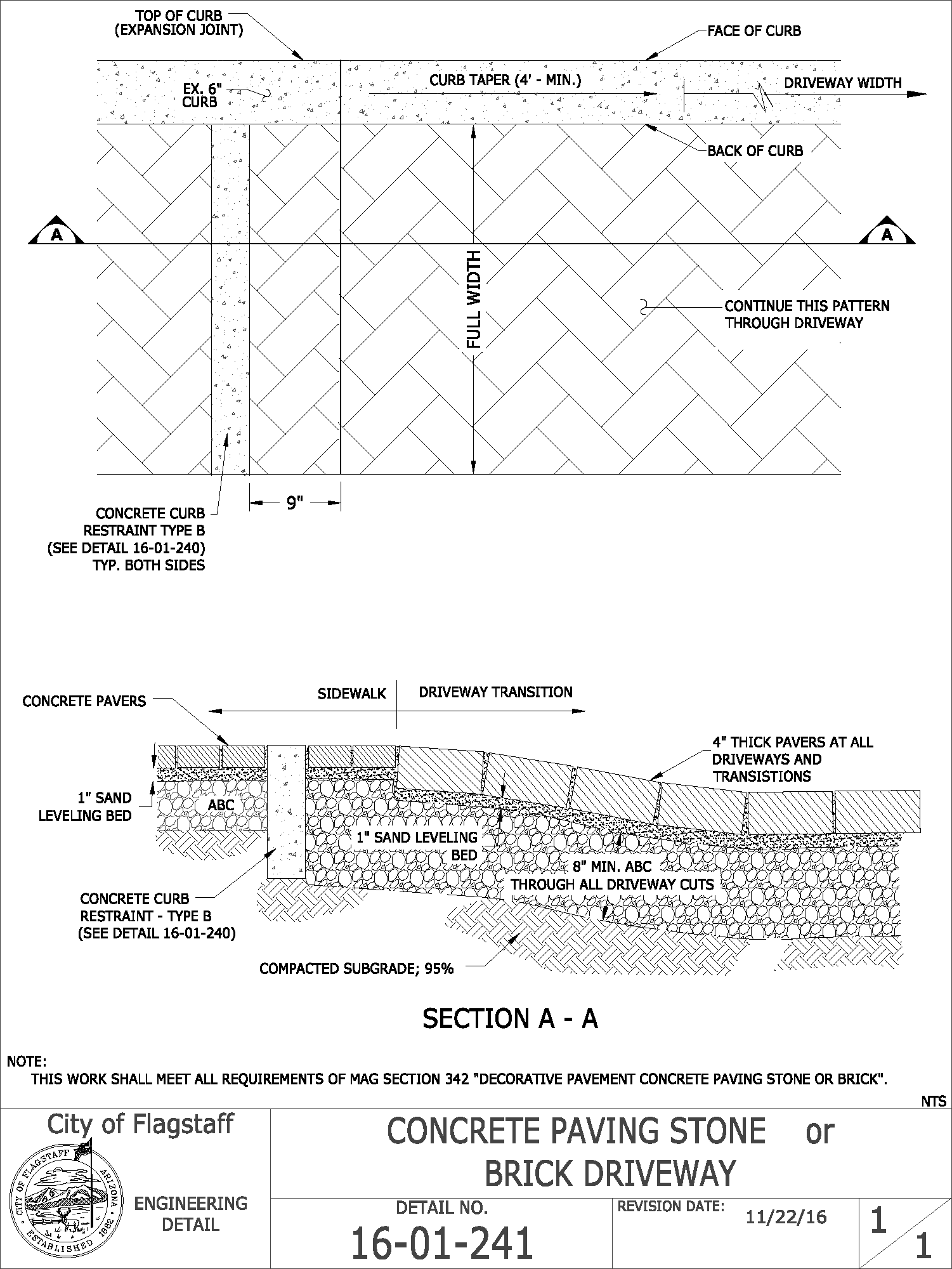

16-01-241    Concrete Paving Stone or Brick Driveway

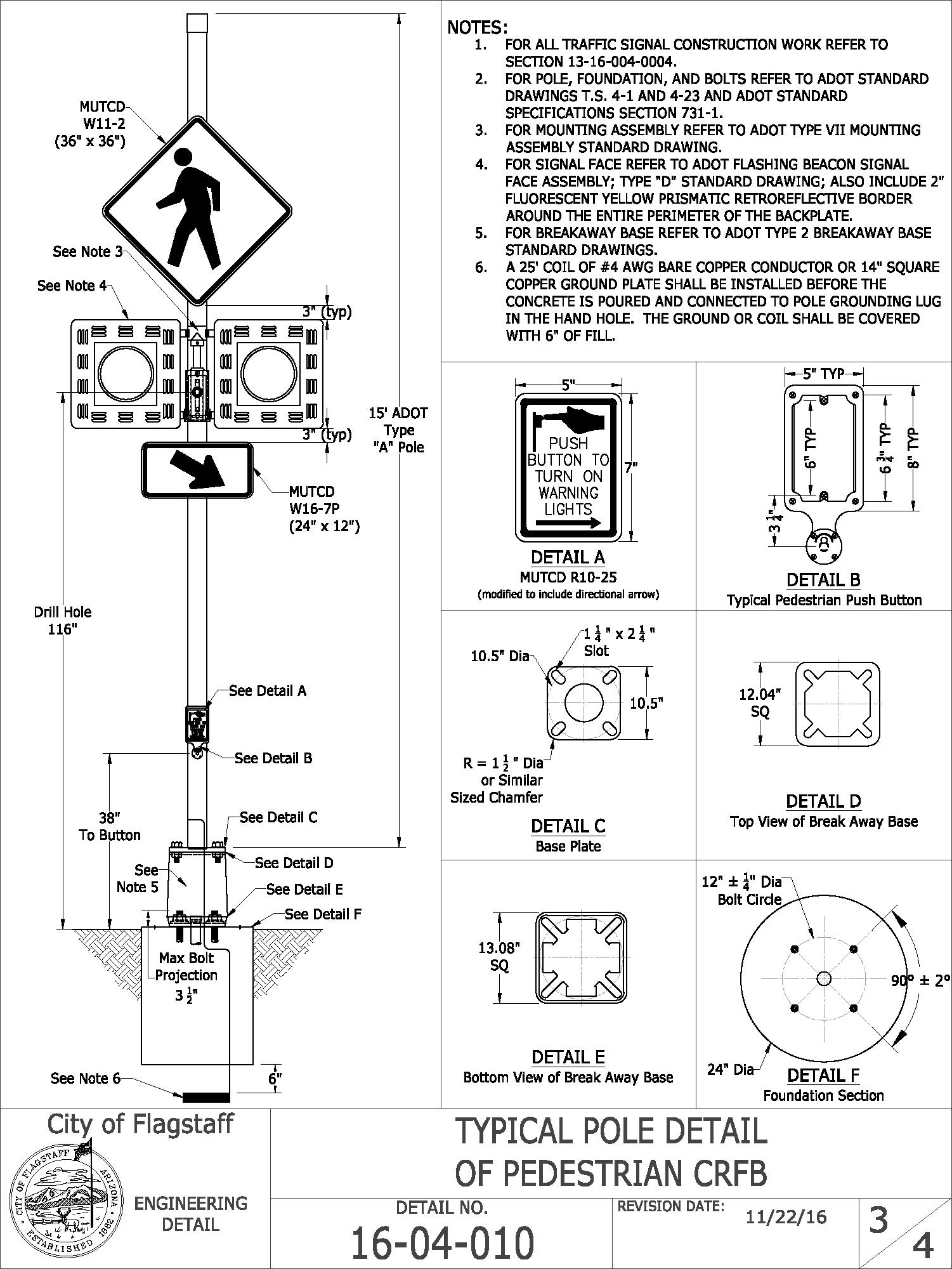

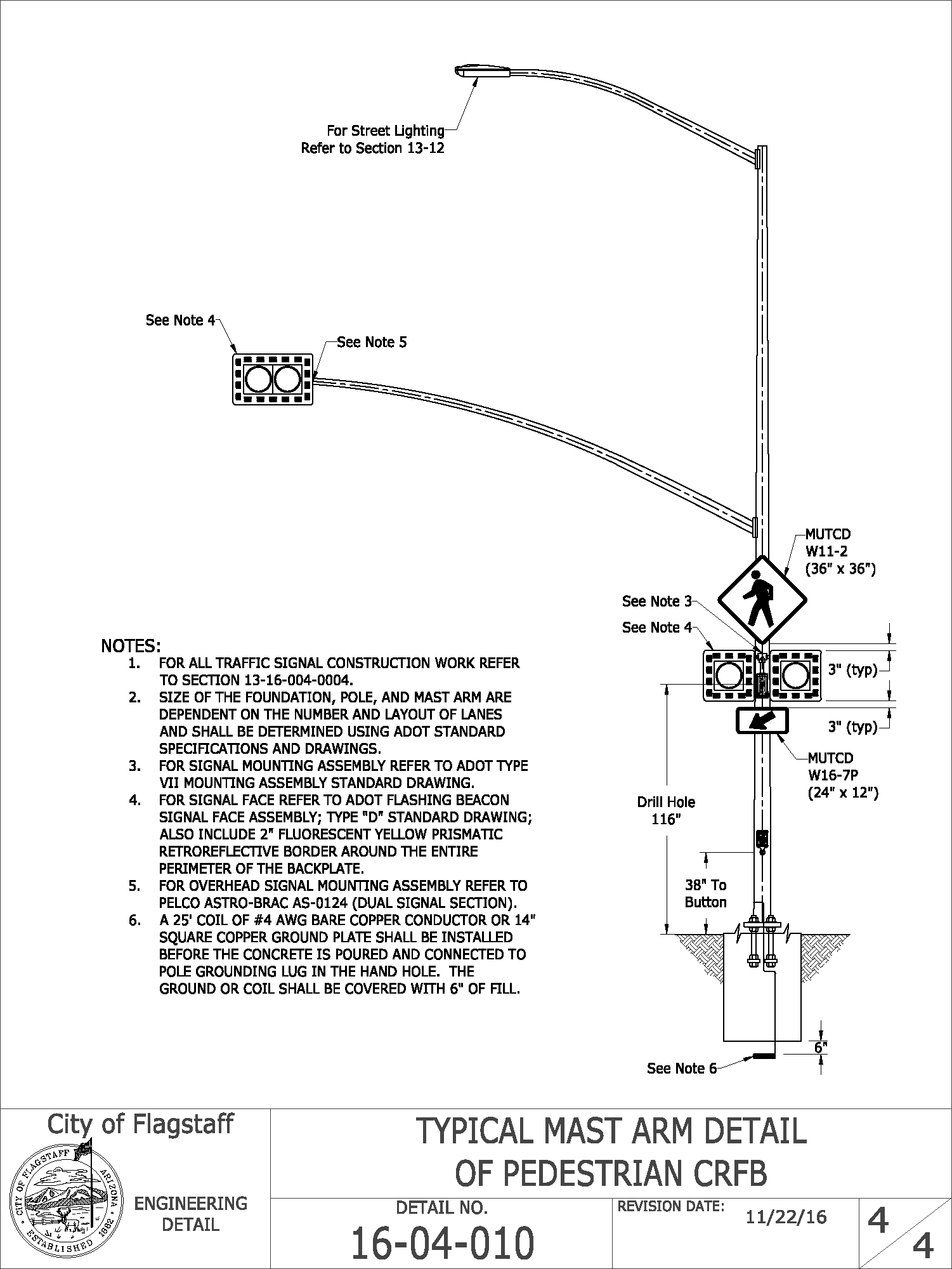

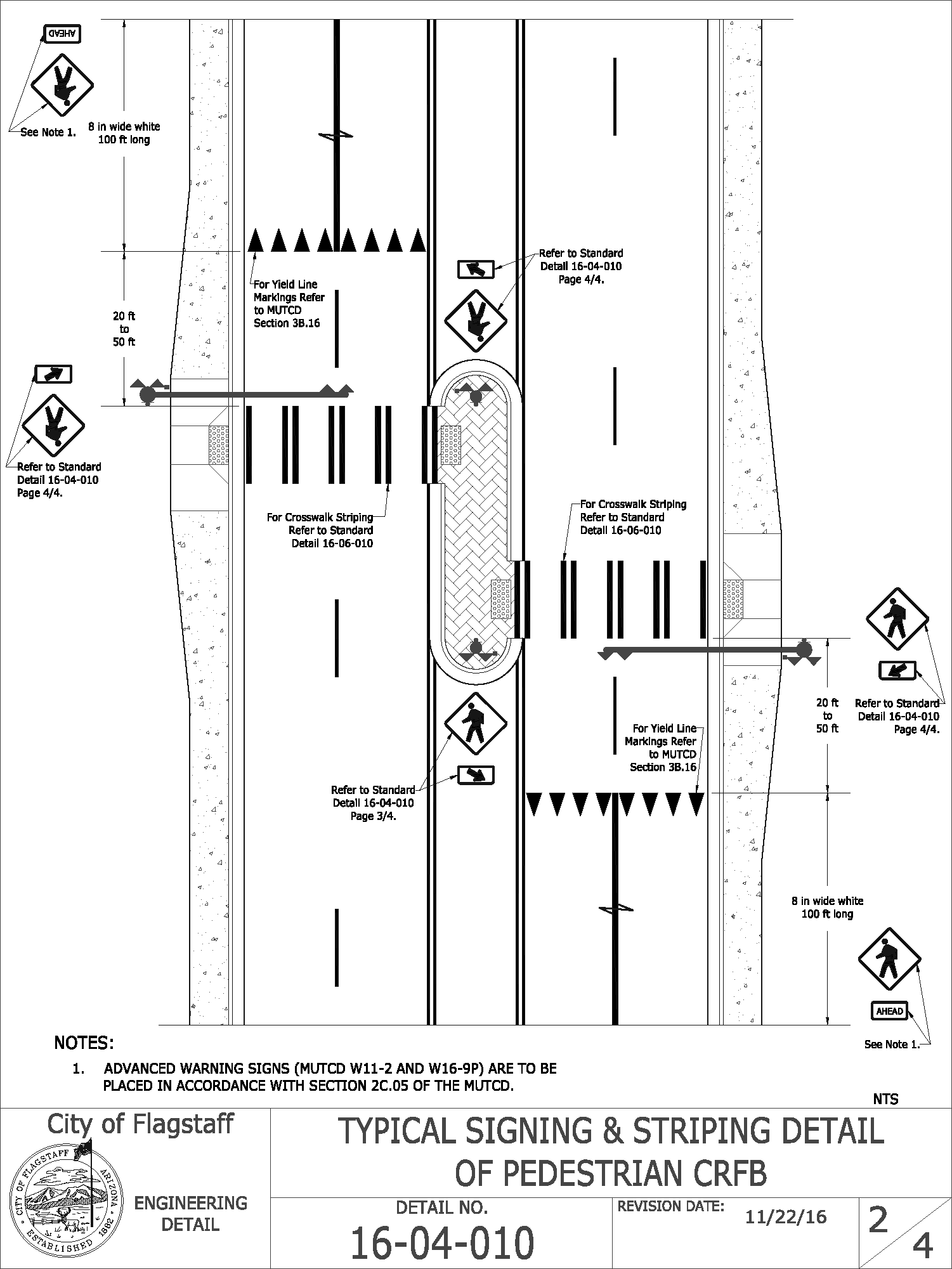

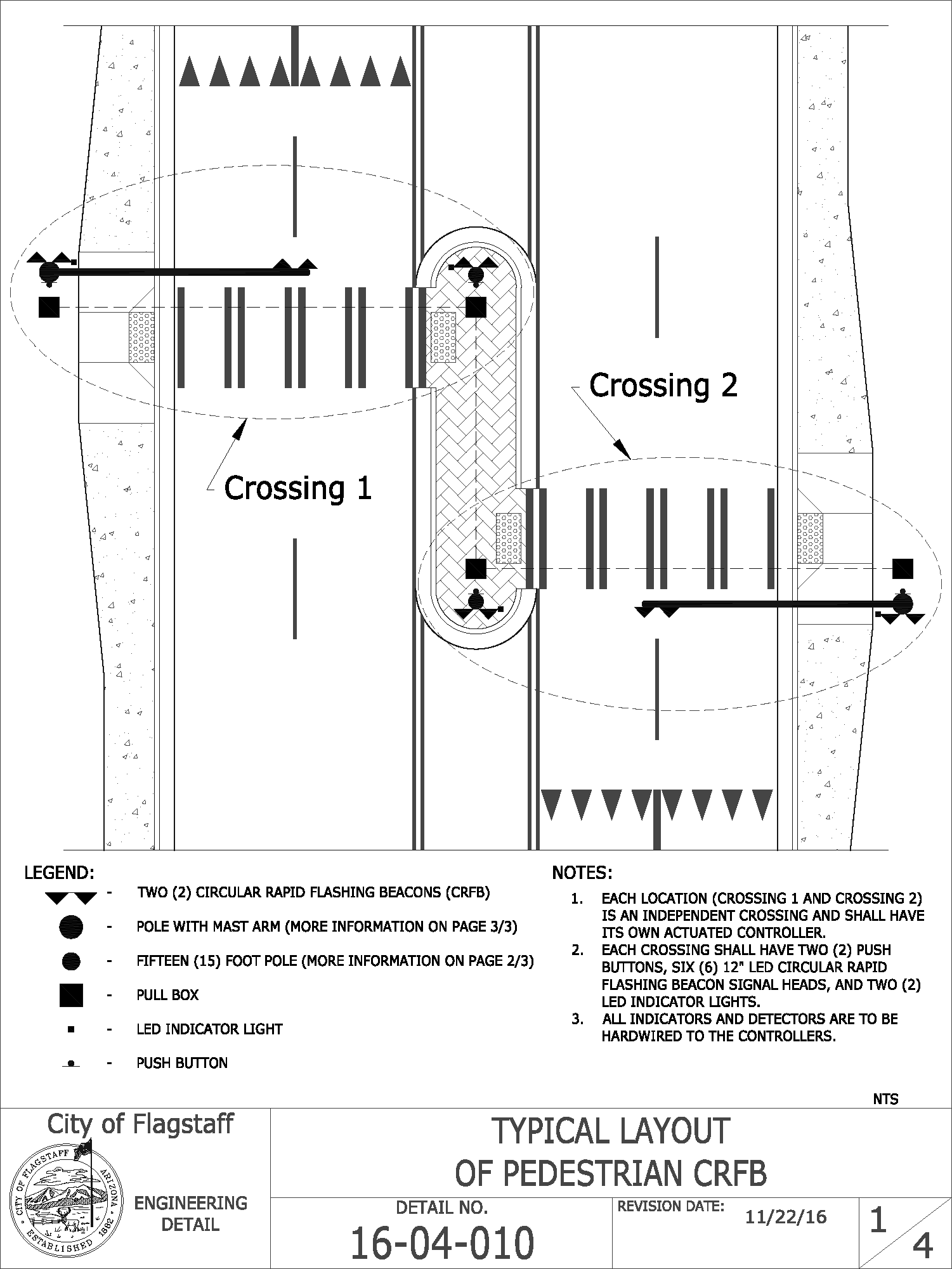

16-04-010    Typical Layout of Pedestrian CRFB

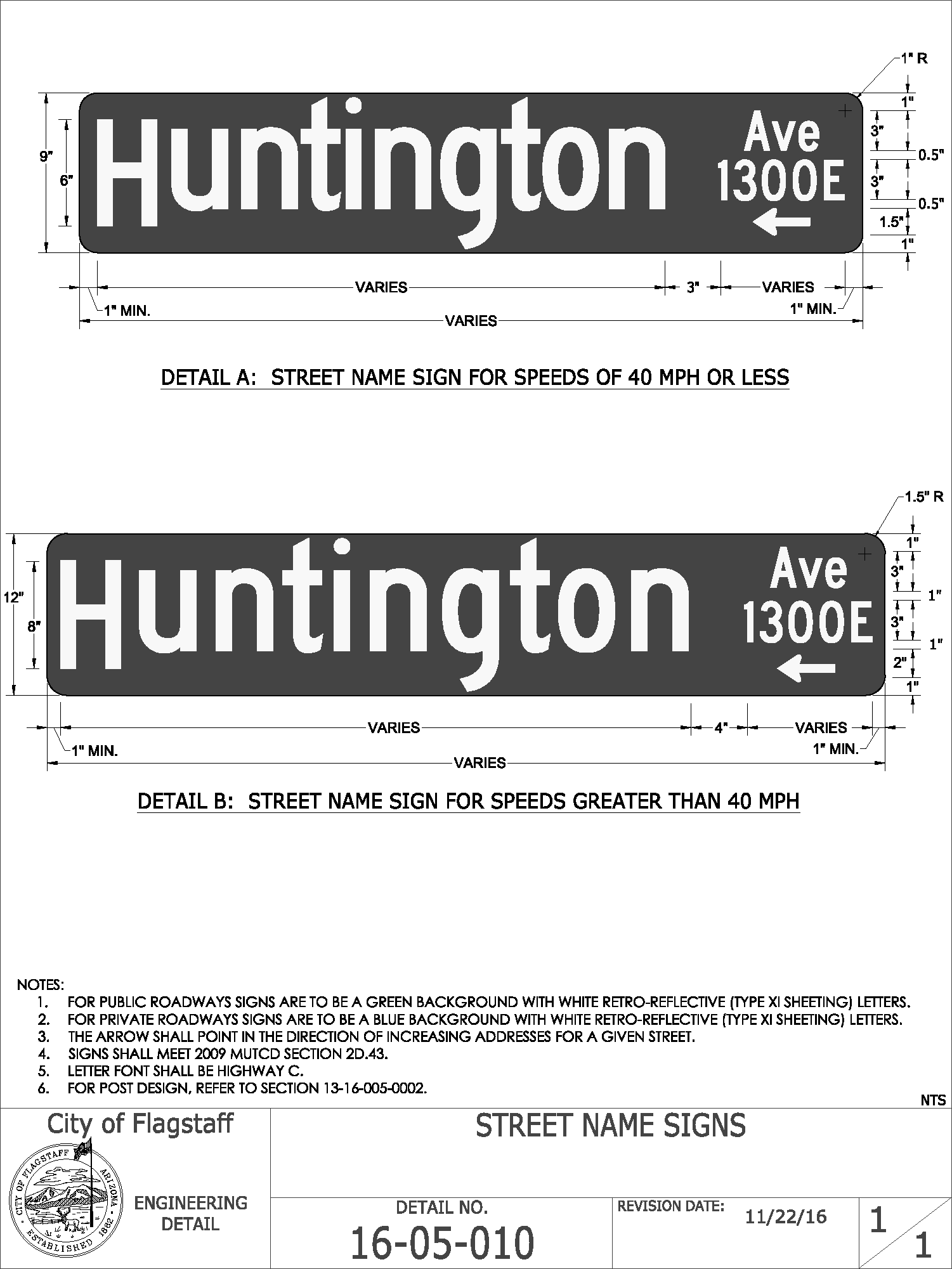

16-05-010    Street Name Signs

16-05-020    Traffic Signal Street Name Signs

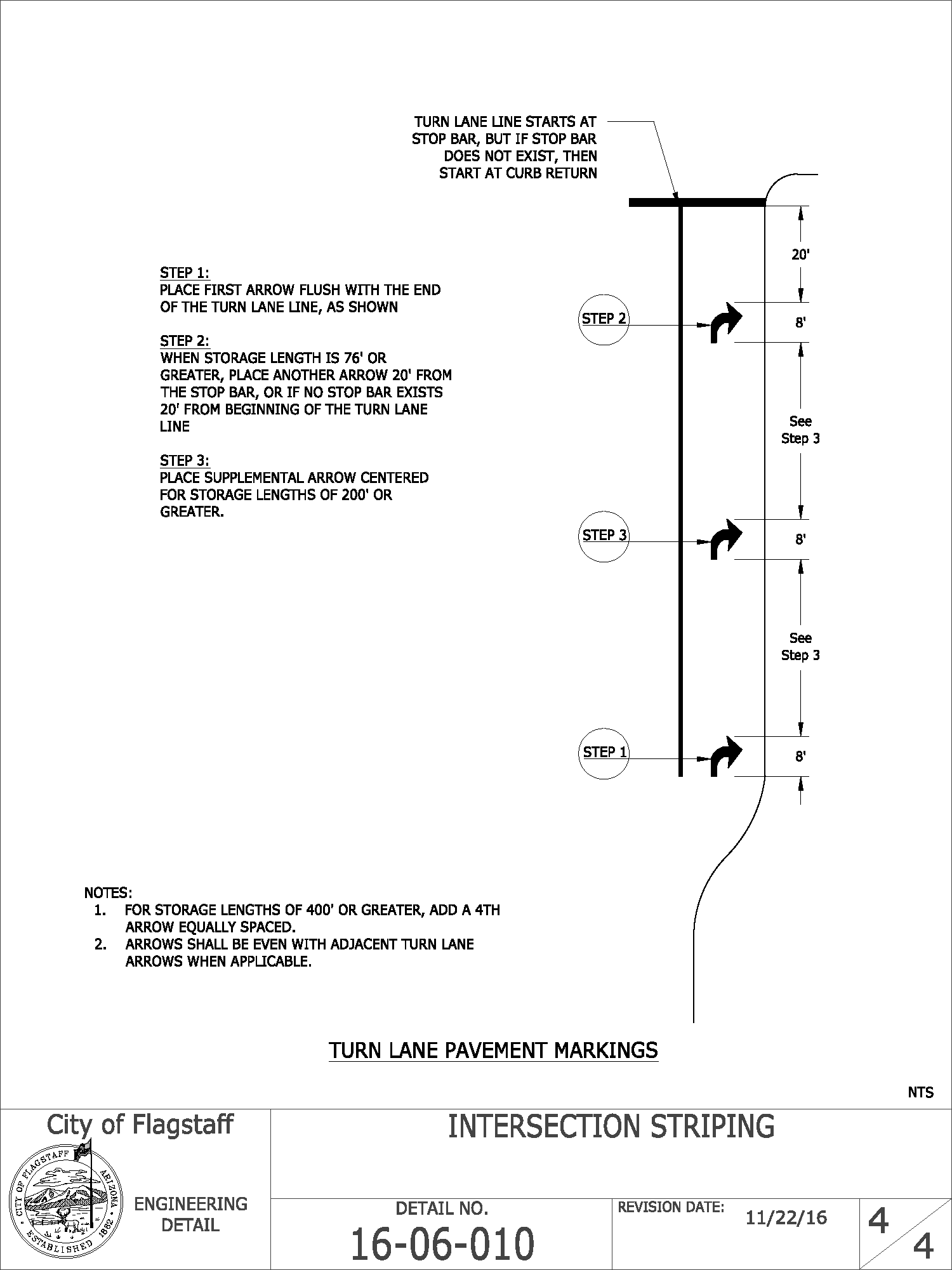

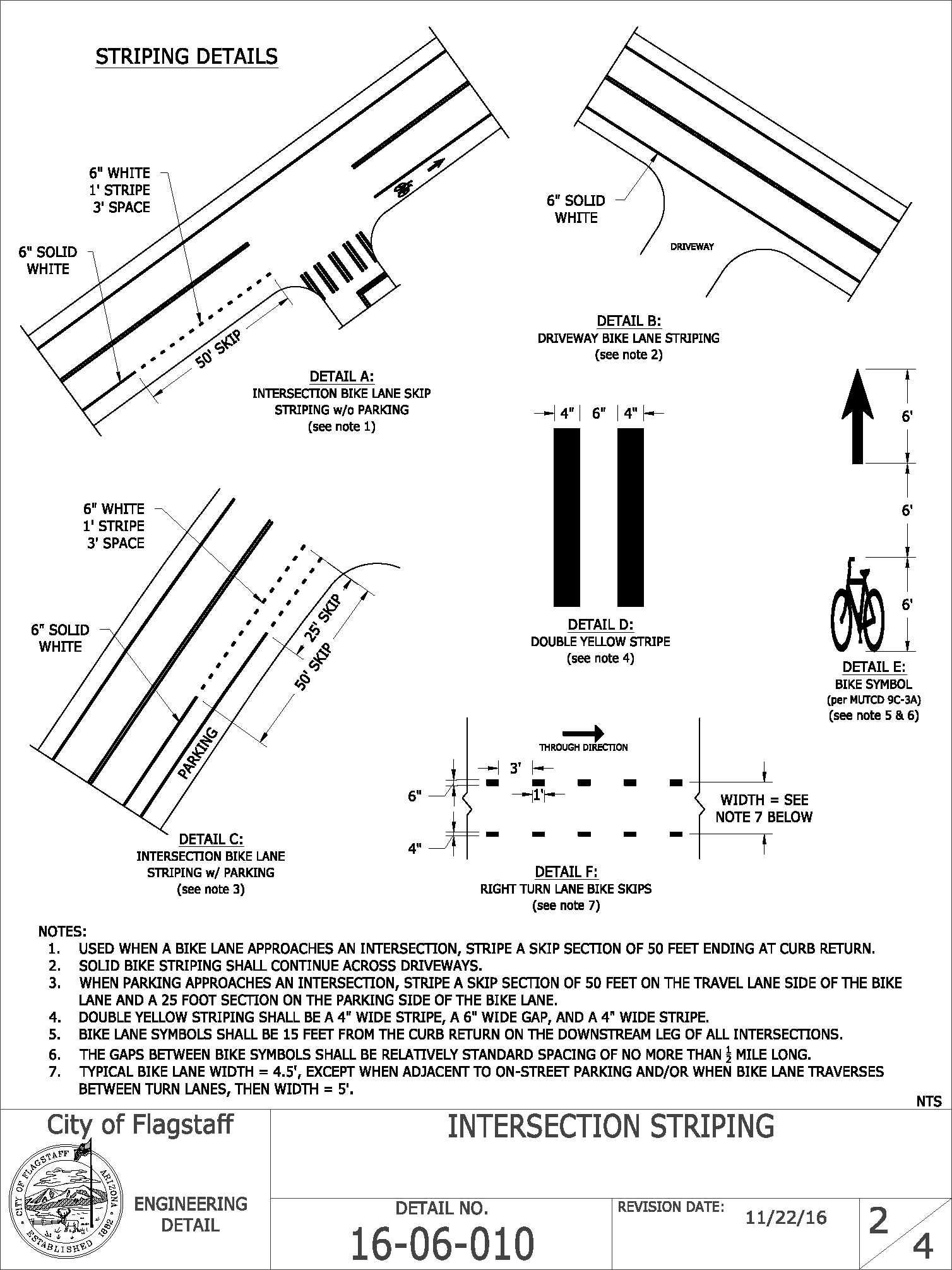

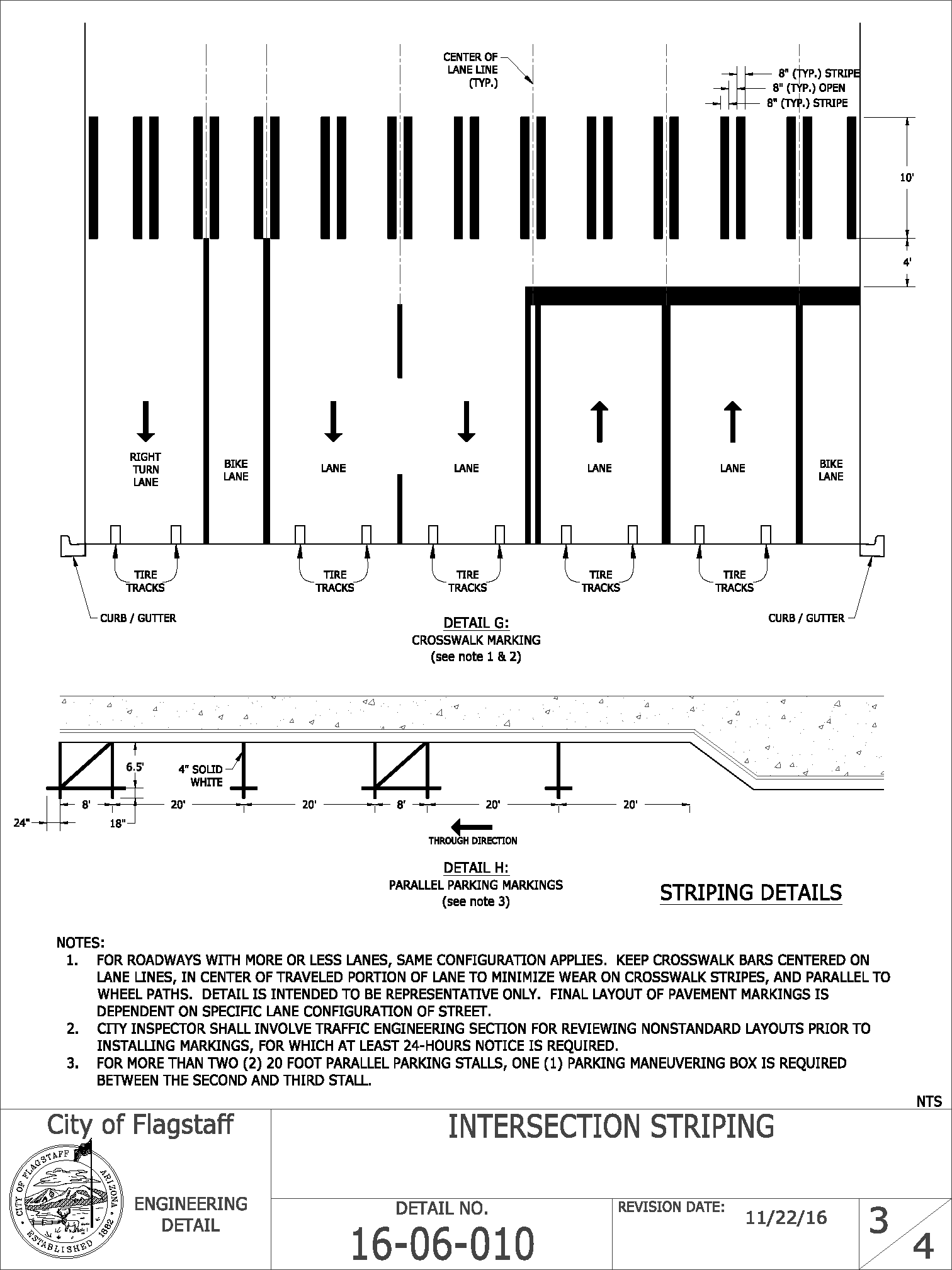

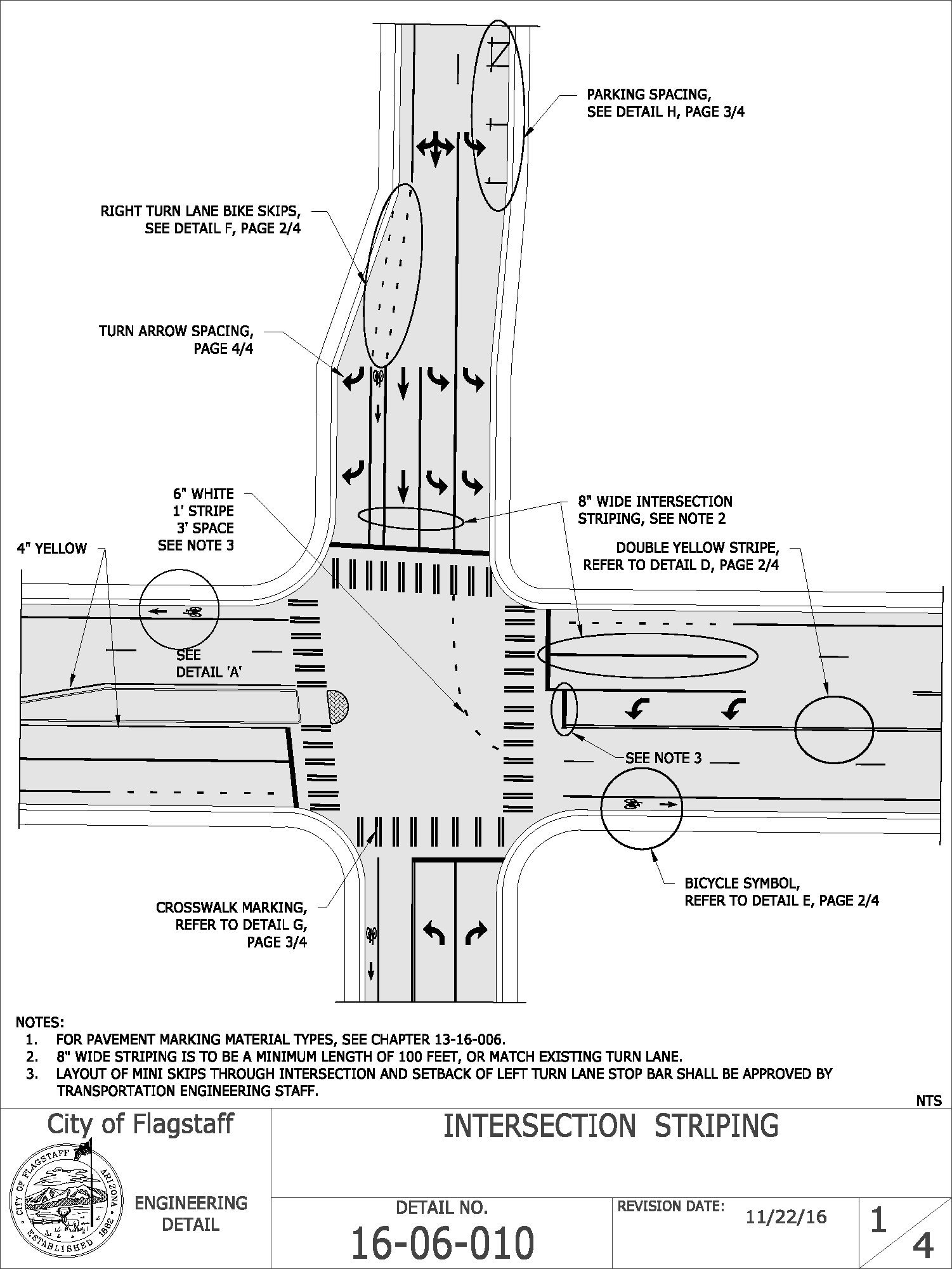

16-06-010    Intersection Striping

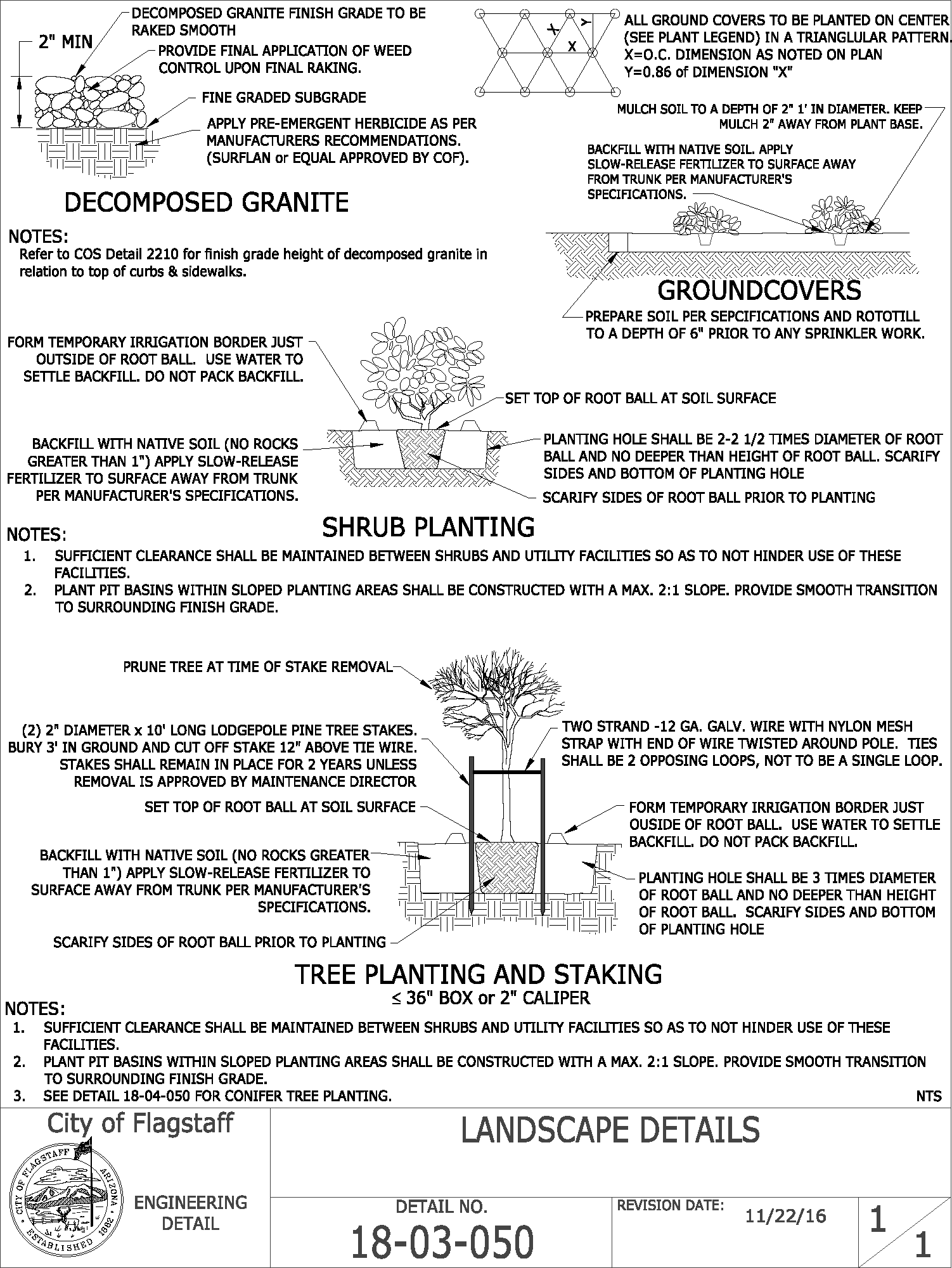

18-03-050    Landscape Details

18-04-050    Conifer Tree Planting

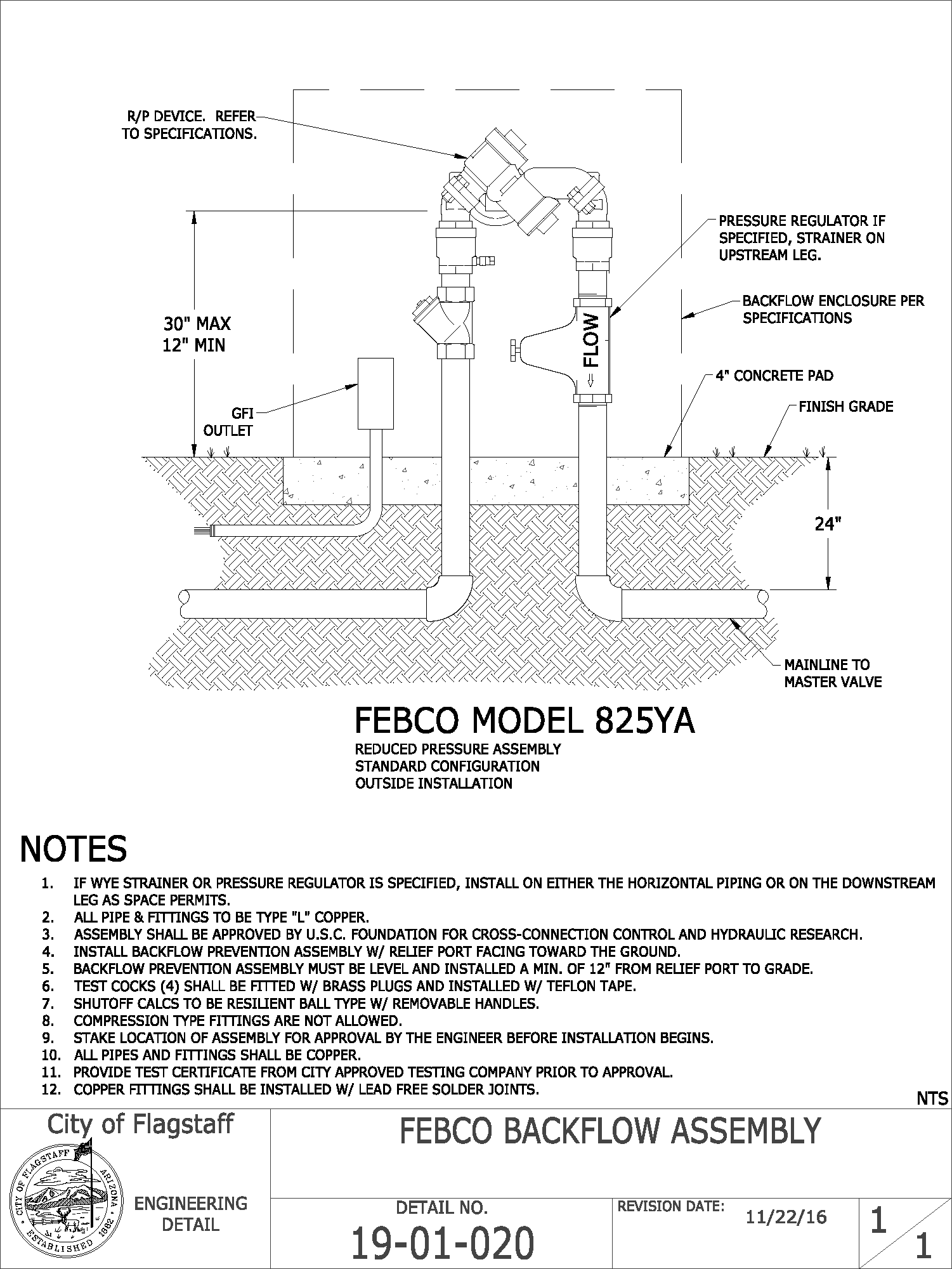

19-01-020    Febco Backflow Assembly

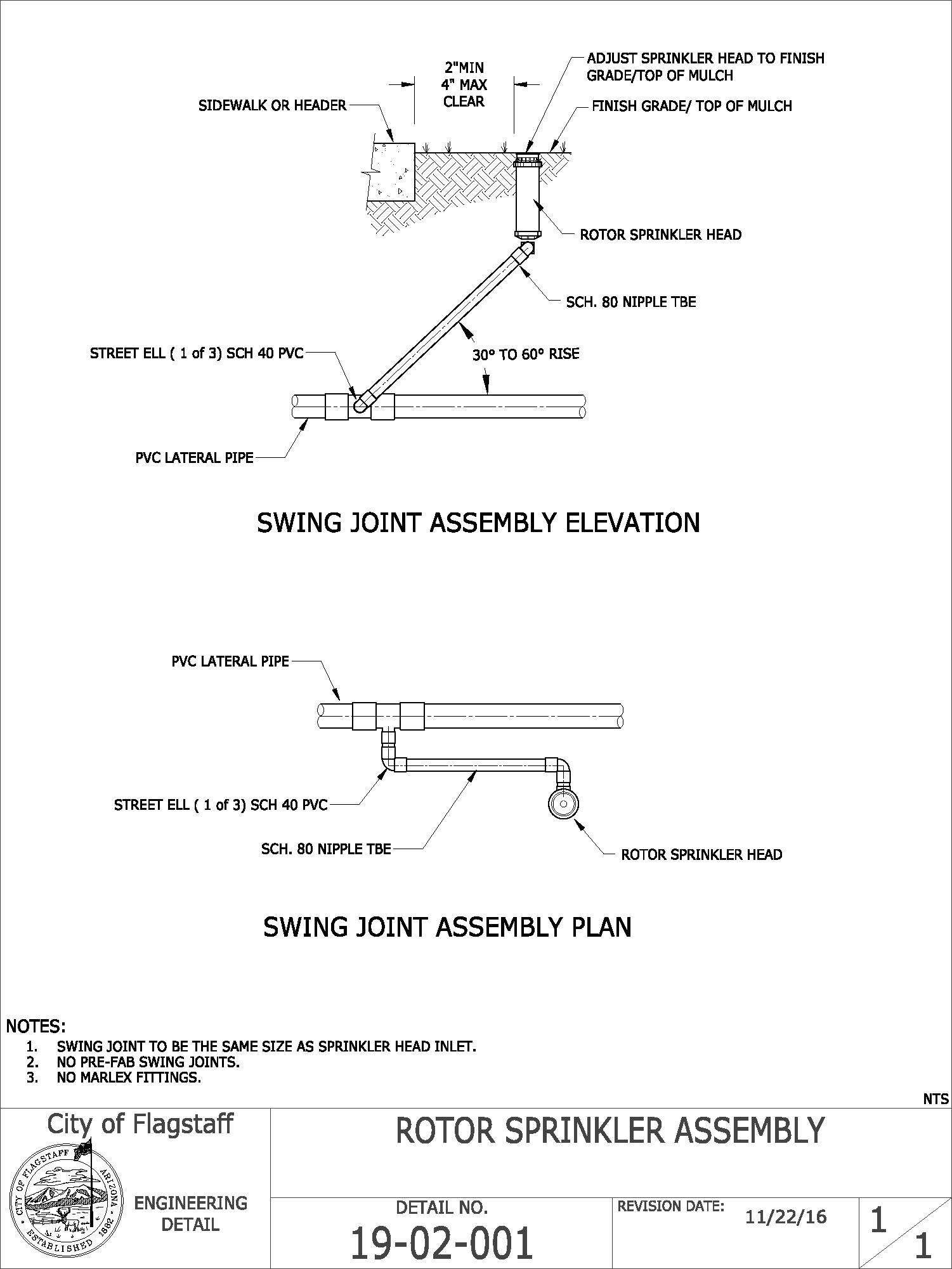

19-02-001    Rotor Sprinkler Assembly

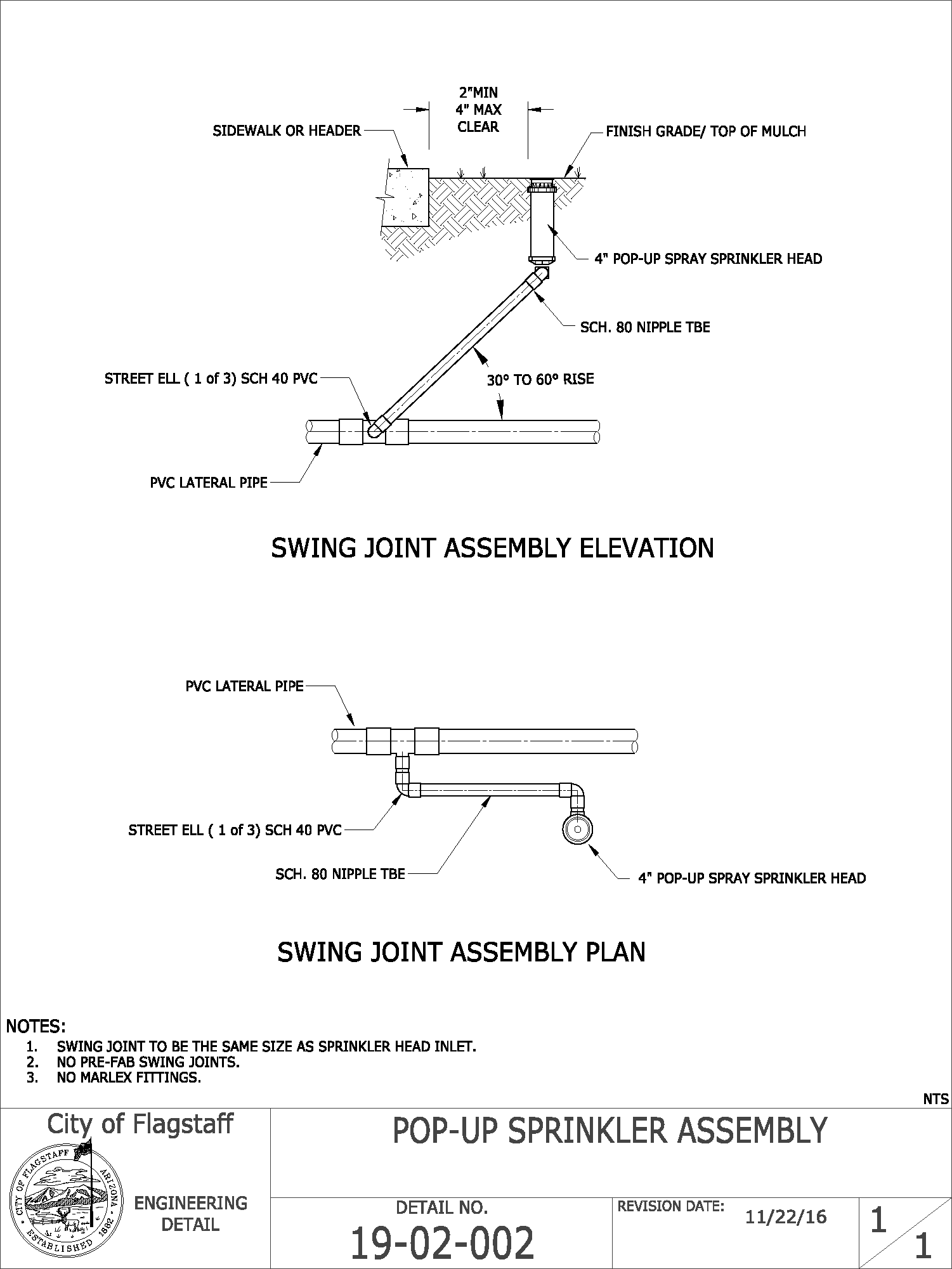

19-02-002    Pop-Up Sprinkler Assembly

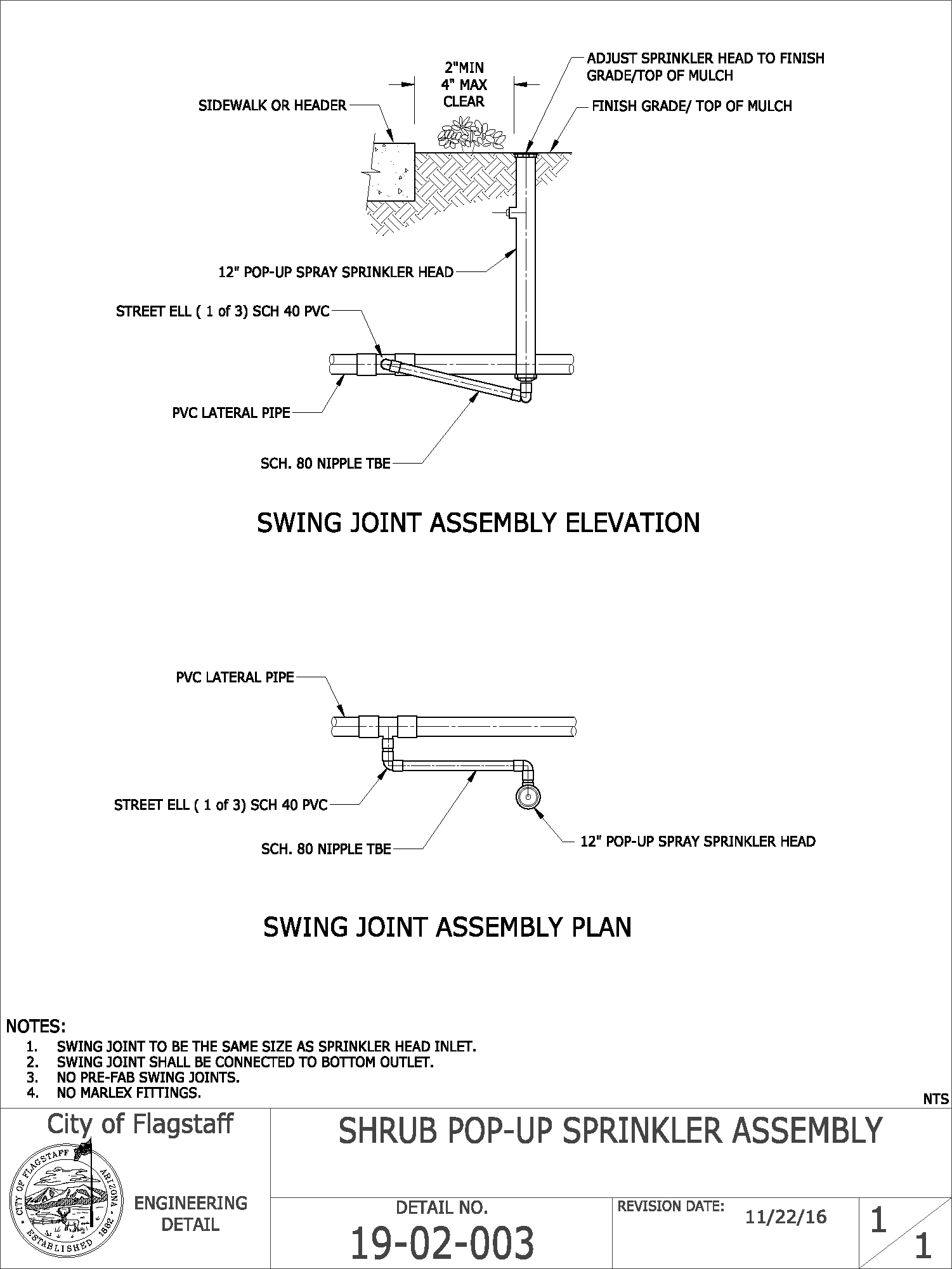

19-02-003    Shrub Pop-Up Sprinkler Assembly

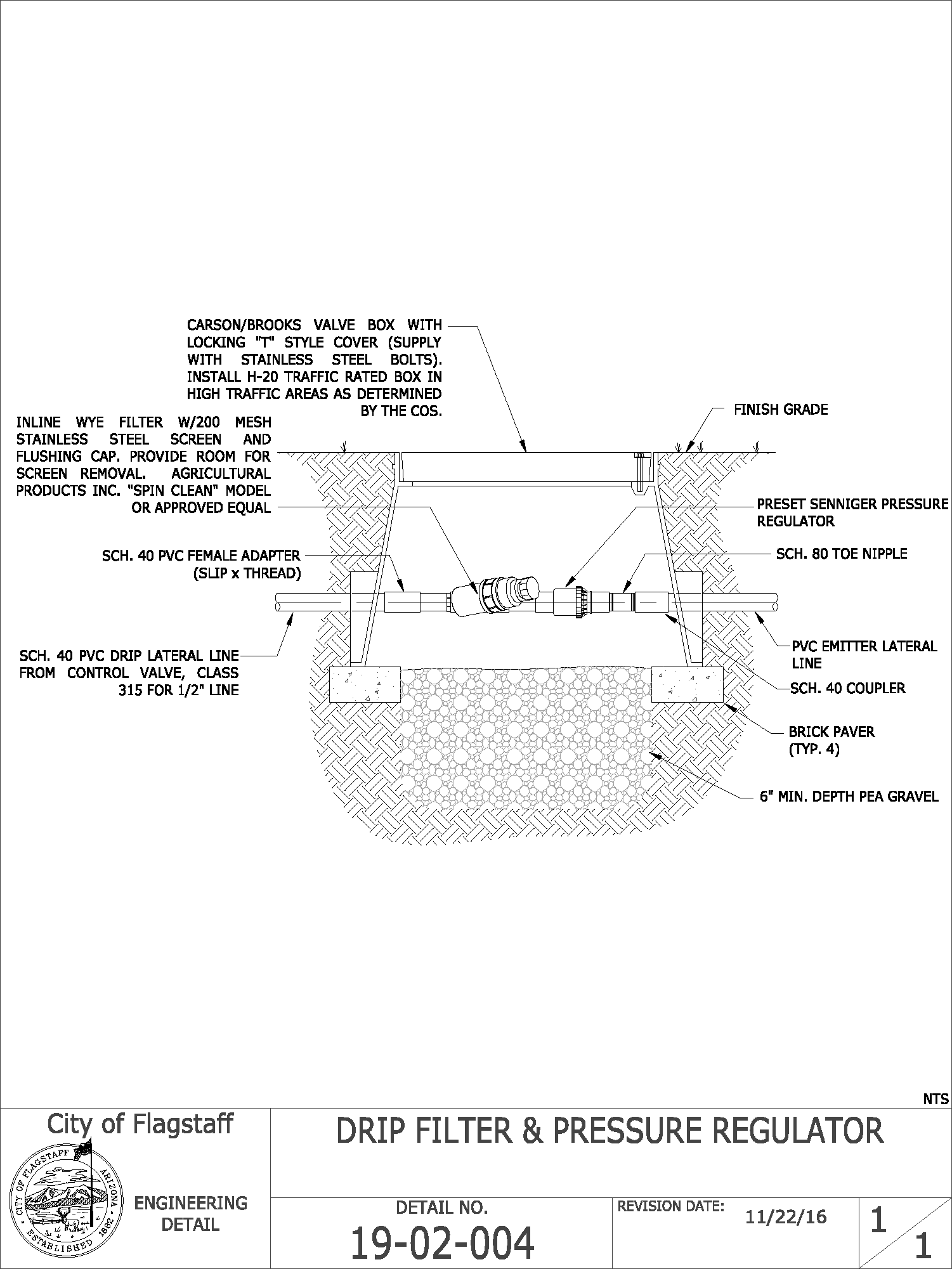

19-02-004    Drip Filter and Pressure Regulator

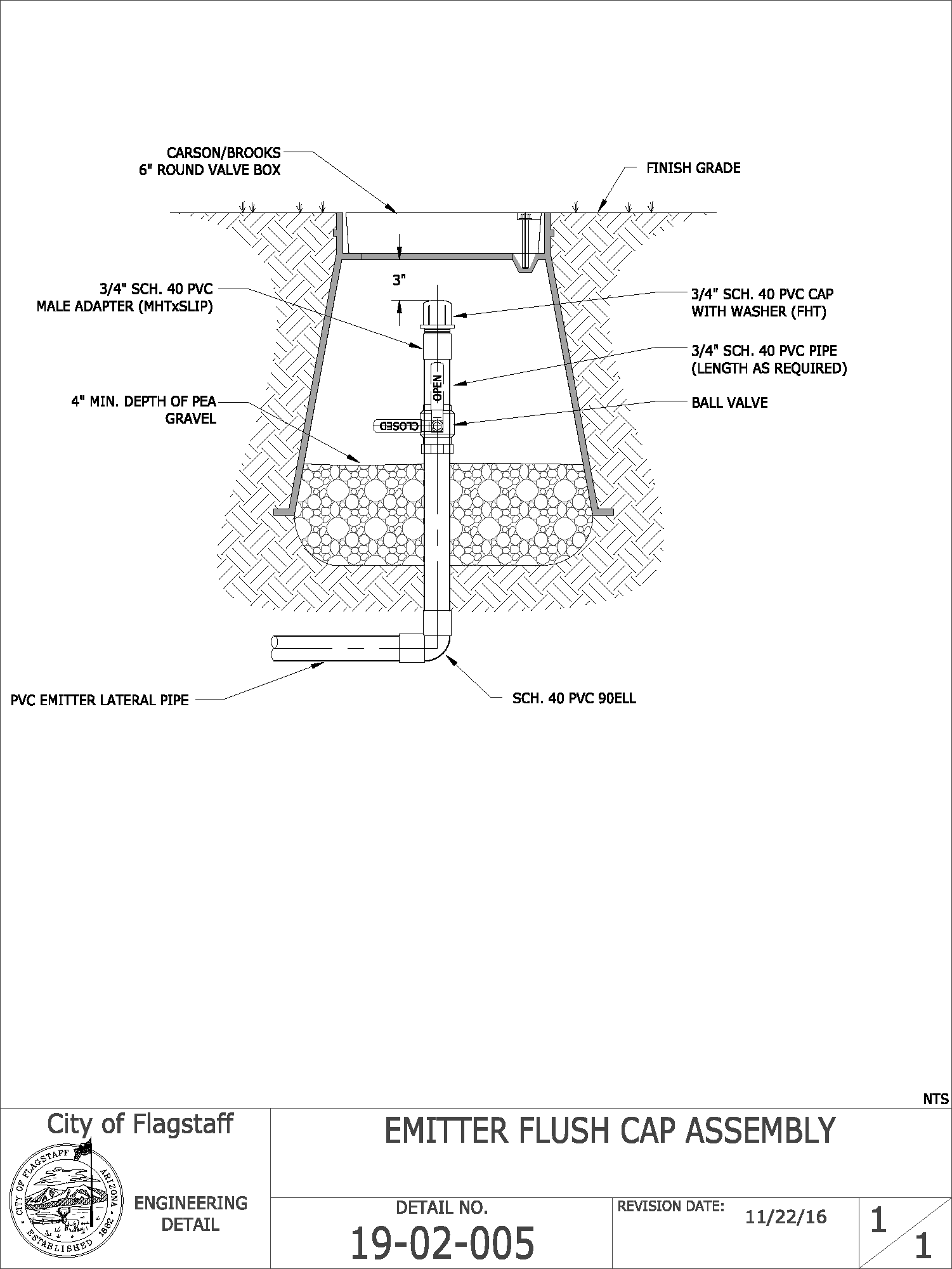

19-02-005    Emitter Flush Cap Assembly

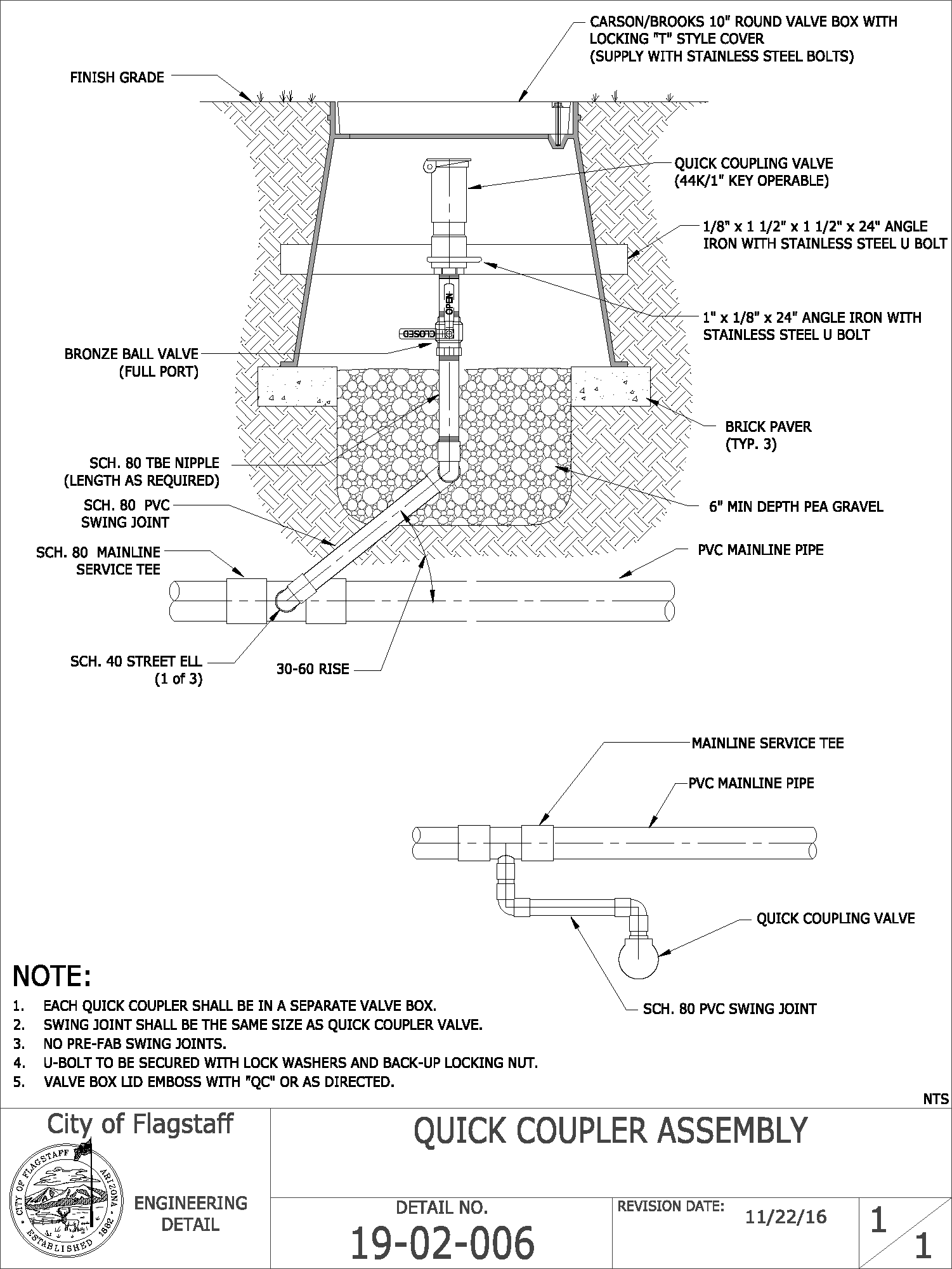

19-02-006    Quick Coupler Assembly

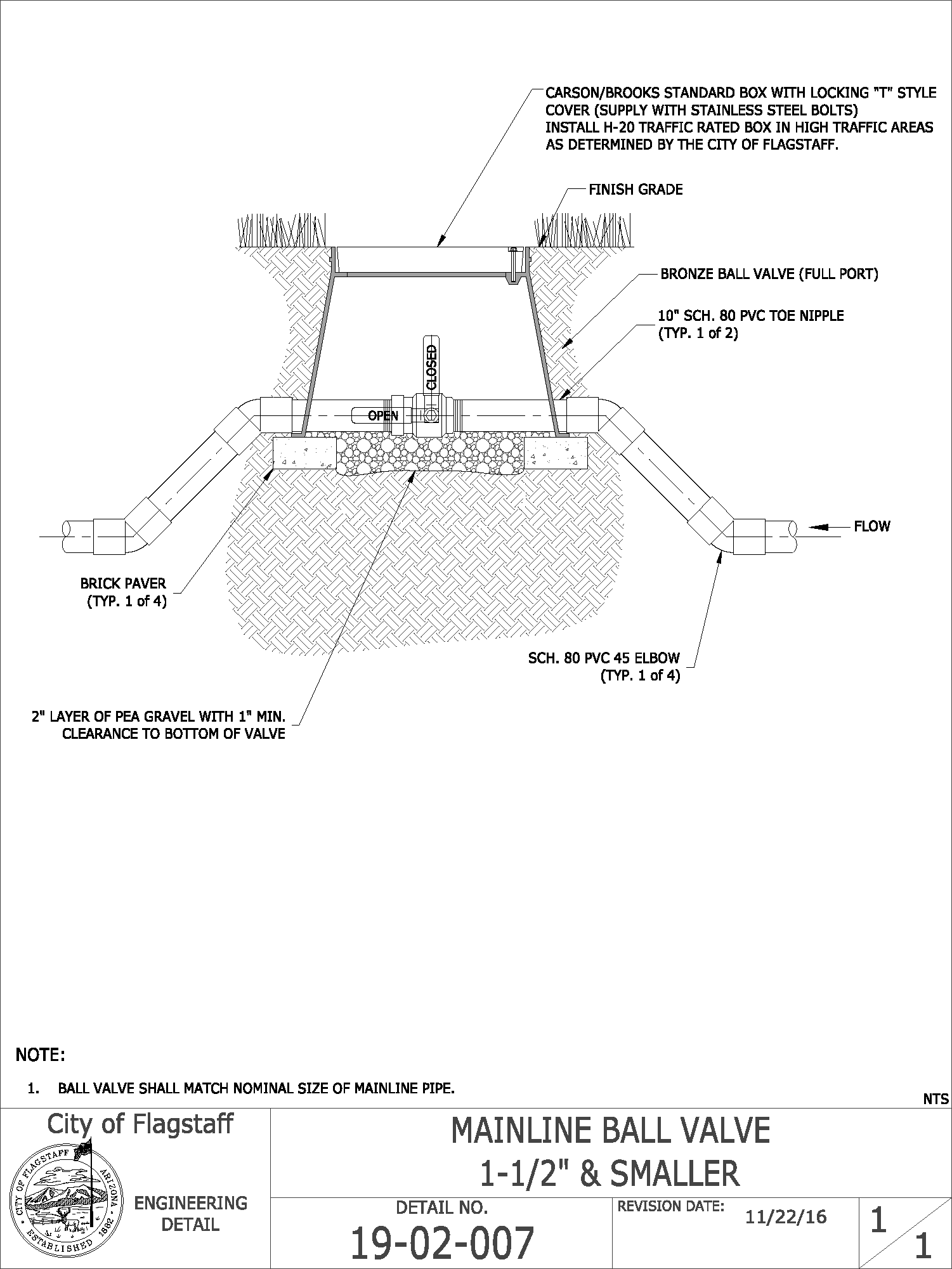

19-02-007    Mainline Ball Valve 1-1/2" and Smaller

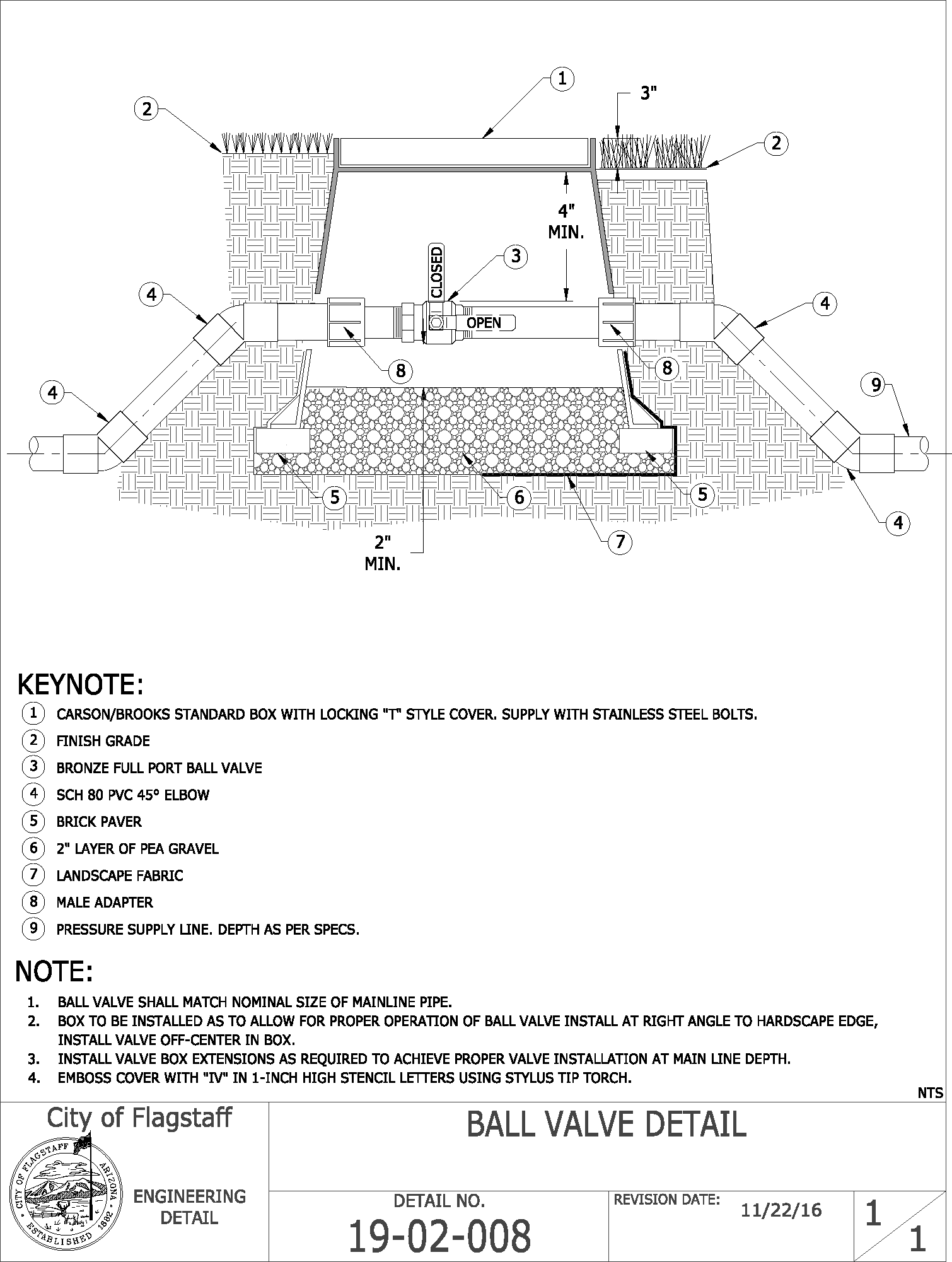

19-02-008    Ball Valve Detail

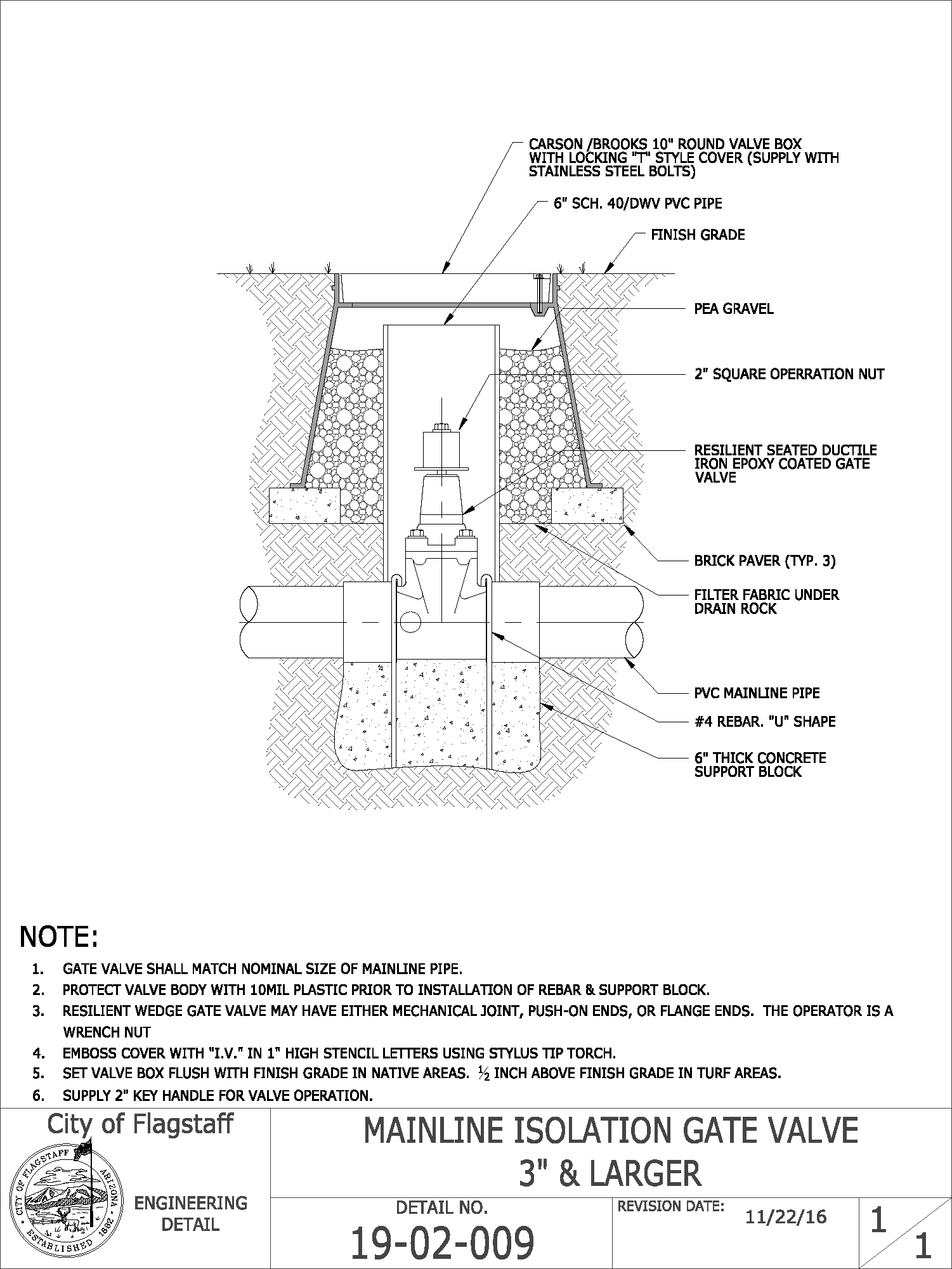

19-02-009    Mainline Isolation Gate Valve 3" and Larger

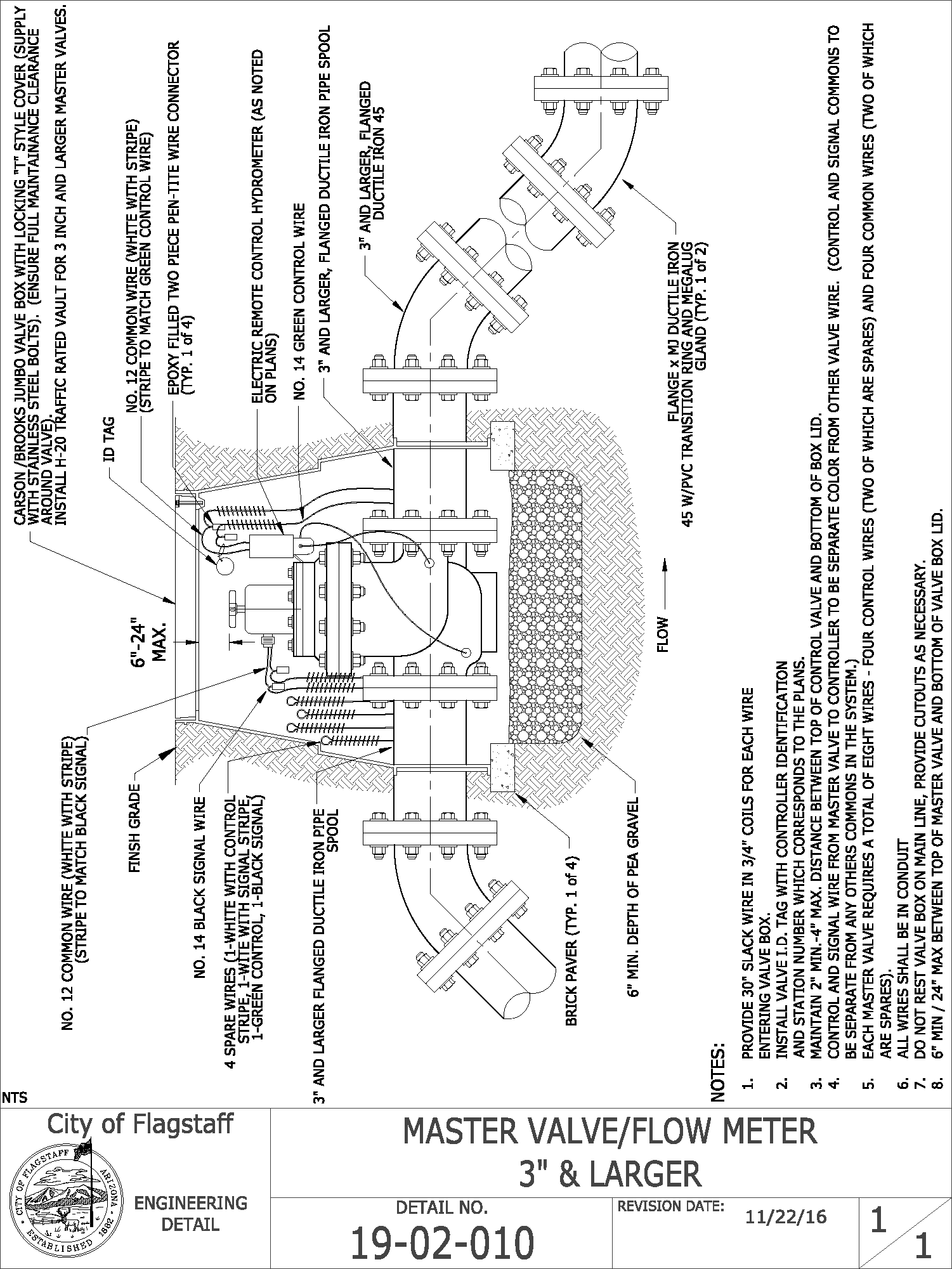

19-02-010    Master Valve/Flow Meter 3" and Larger

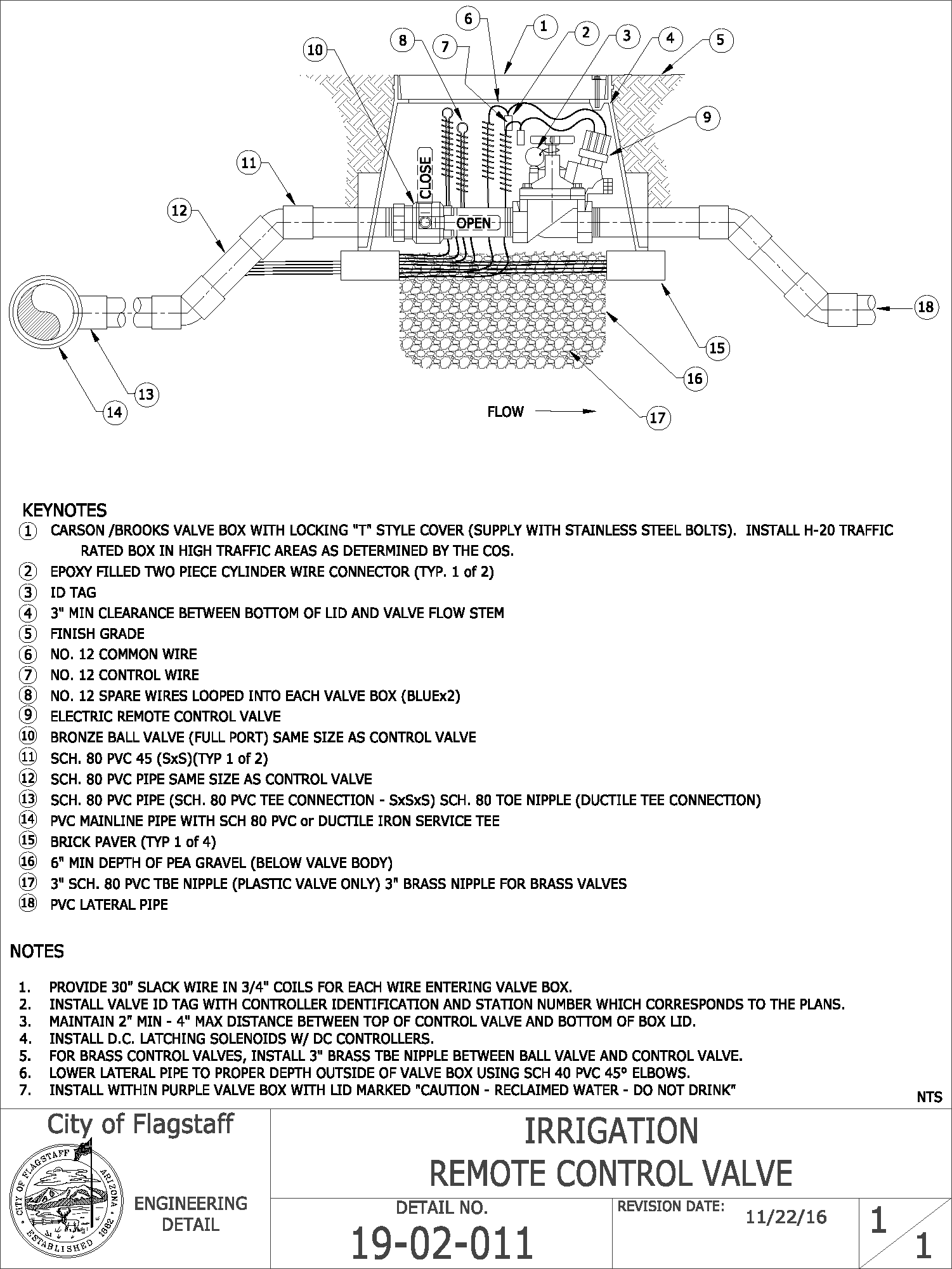

19-02-011    Irrigation Remote Control Valve

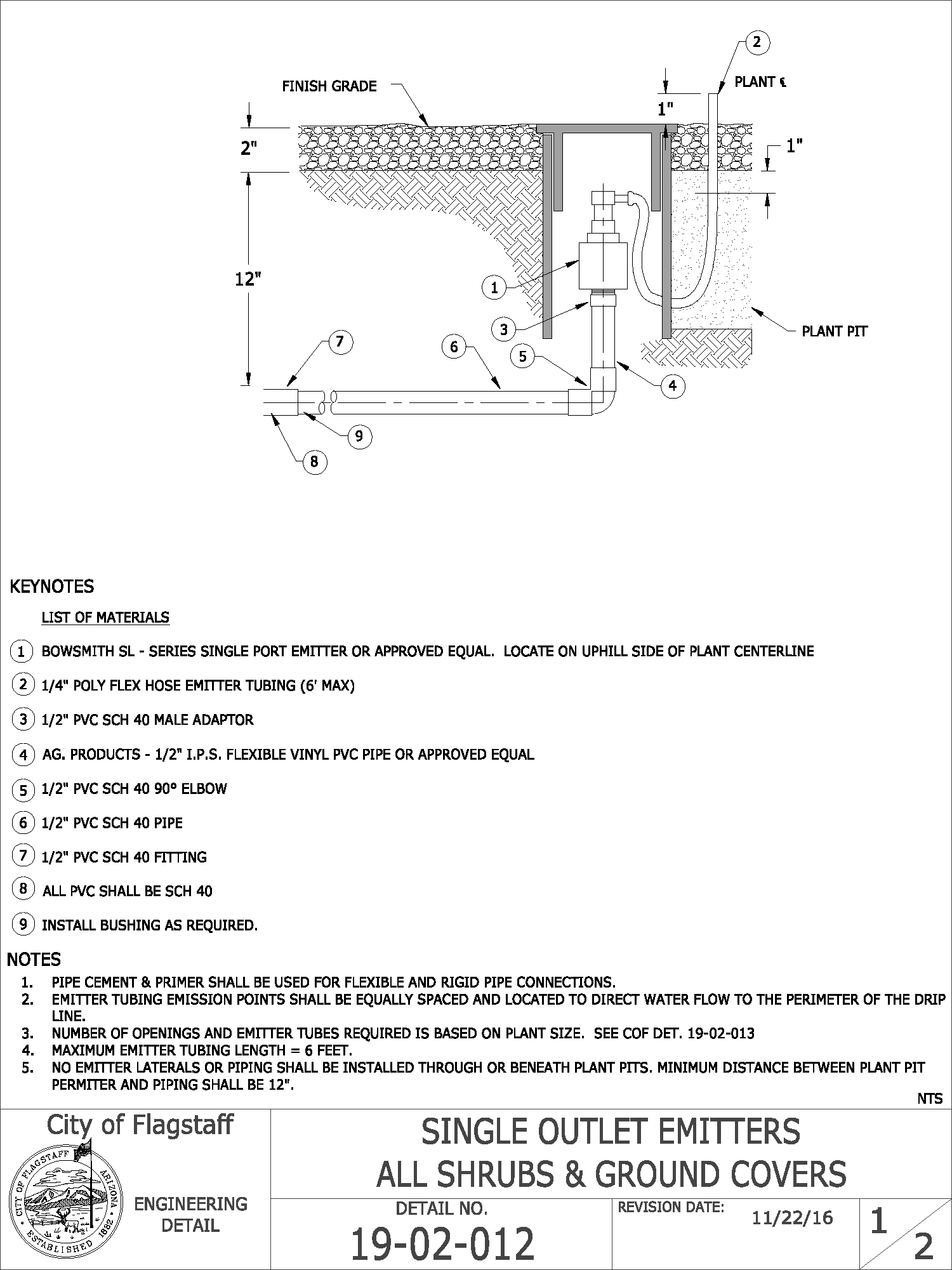

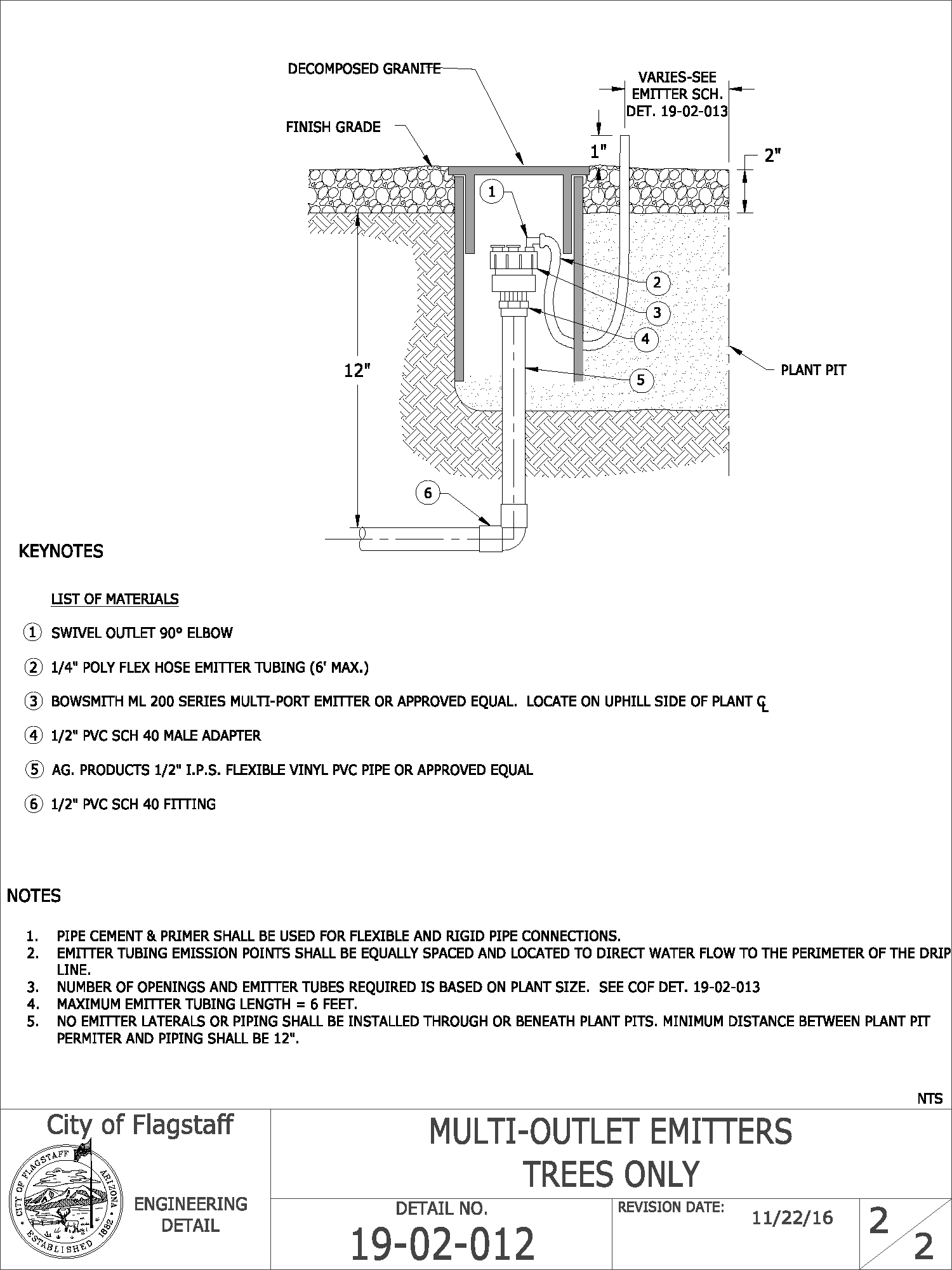

19-02-012    Single Outlet Emitters All Shrubs and Ground Covers

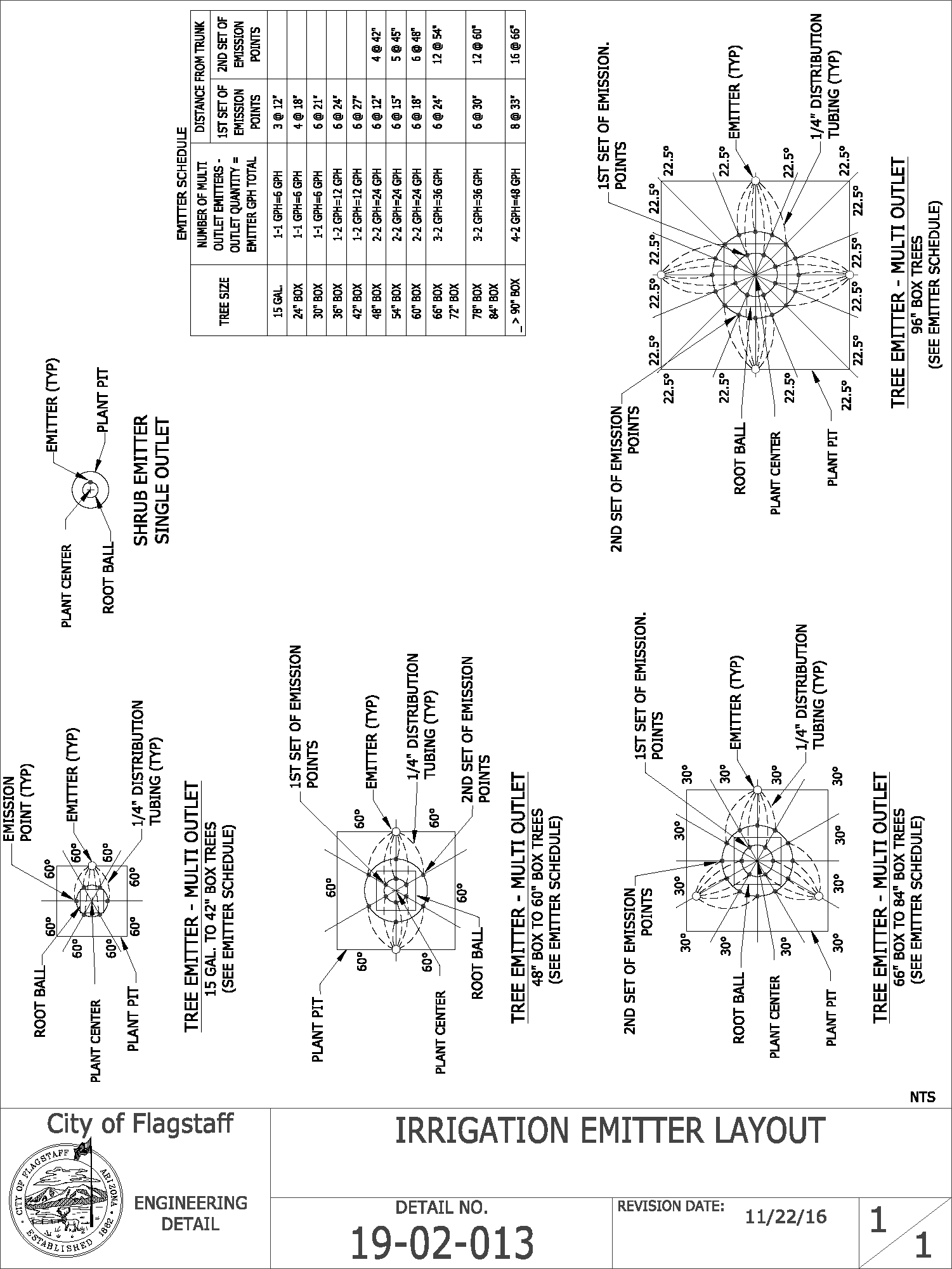

19-02-013    Irrigation Emitter Layout

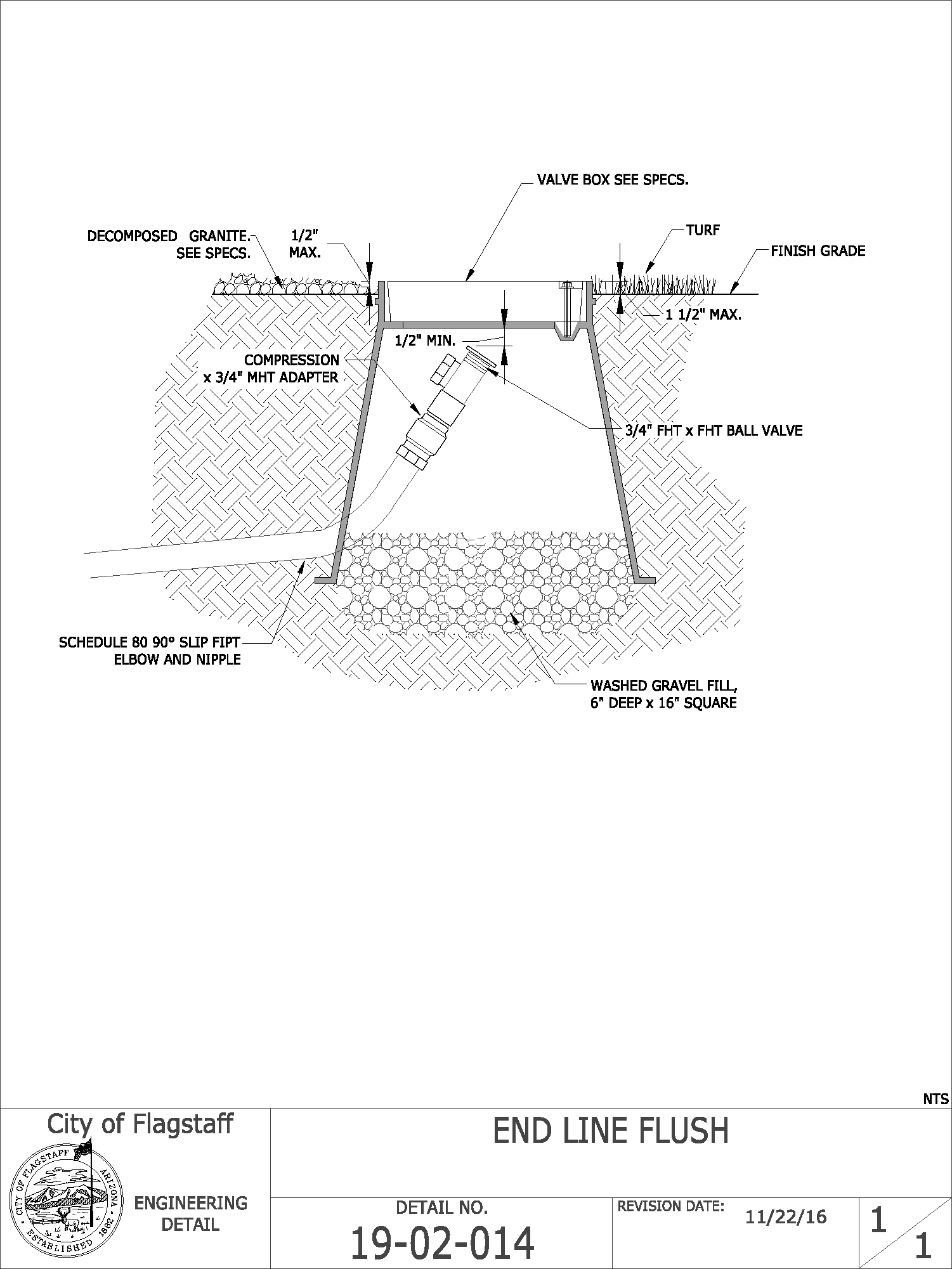

19-02-014    End Line Flush

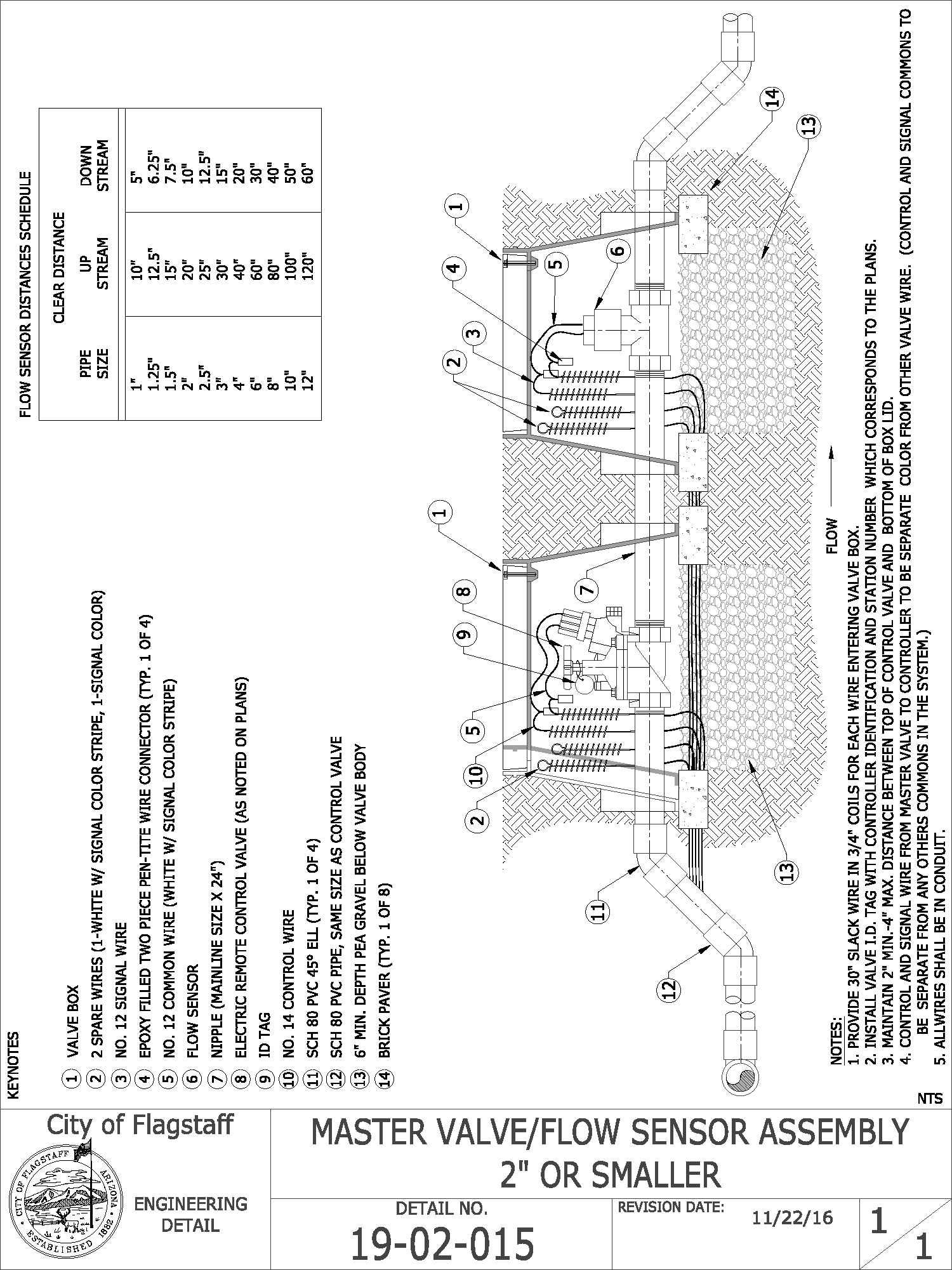

19-02-015    Master Valve/Flow Sensor Assembly 2" or Smaller

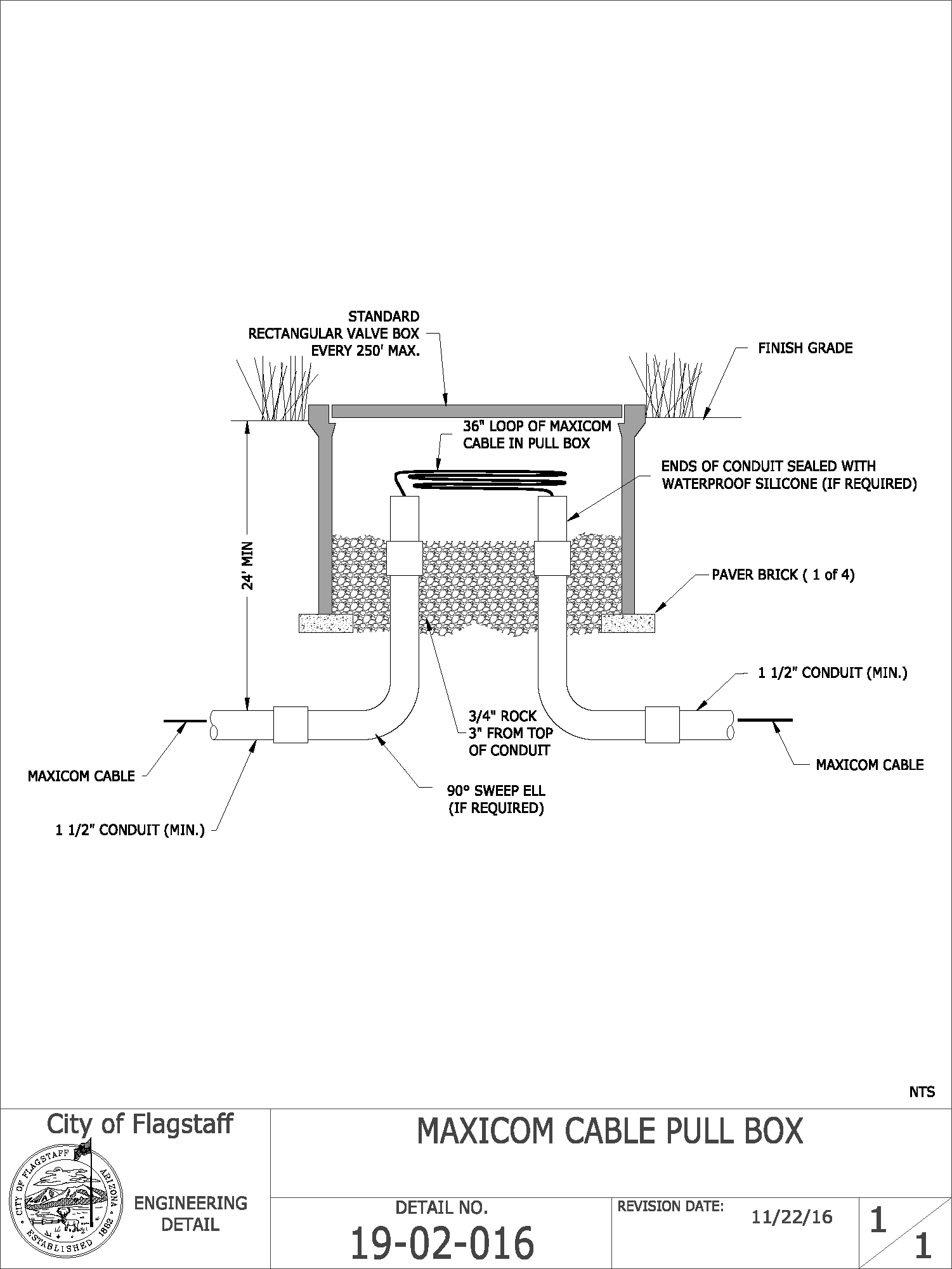

19-02-016    Maxicom Cable Pull Box

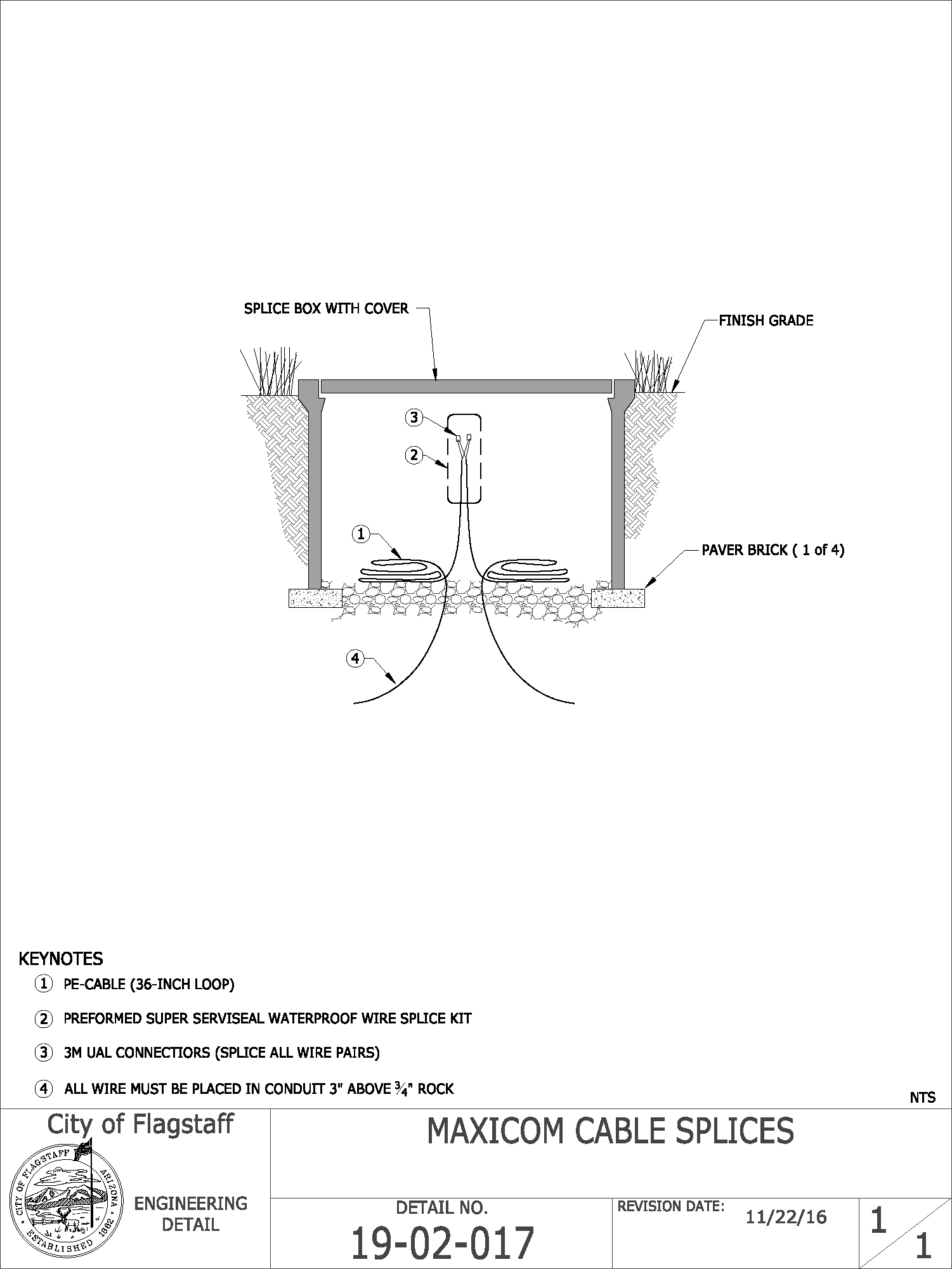

19-02-017    Maxicom Cable Splices

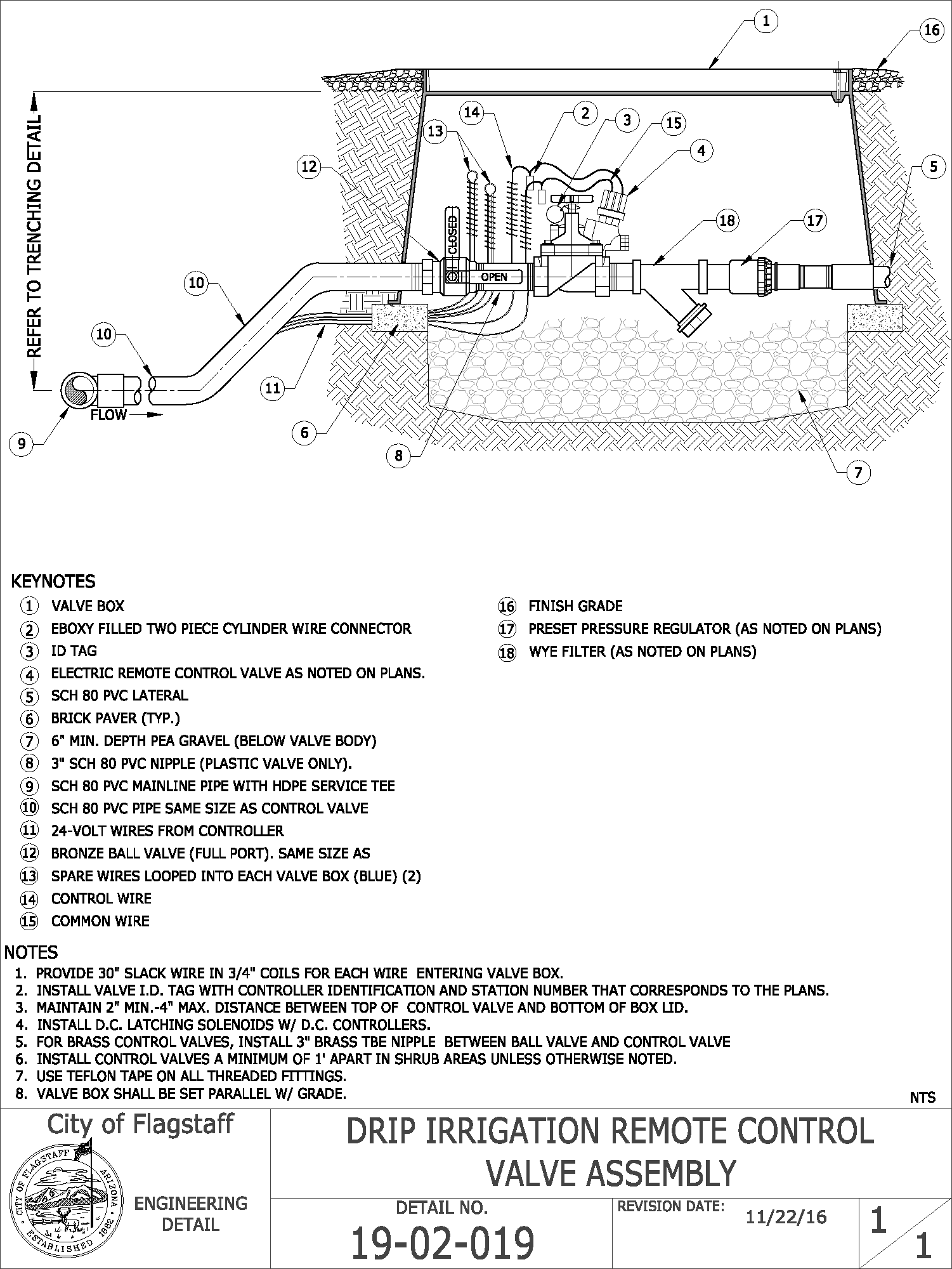

19-02-019    Drip Irrigation Remote Control Valve Assembly

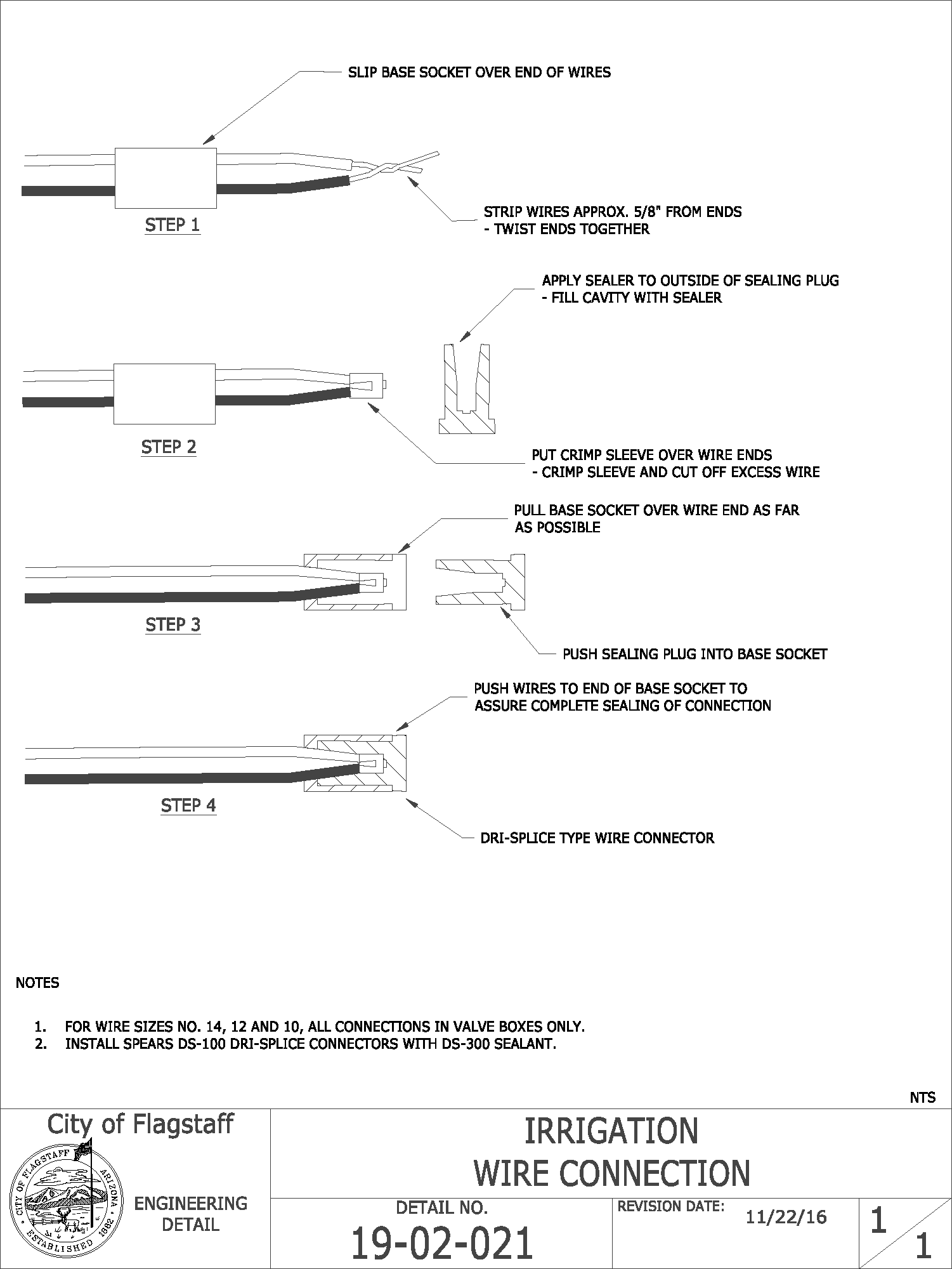

19-02-021    Irrigation Wire Connection

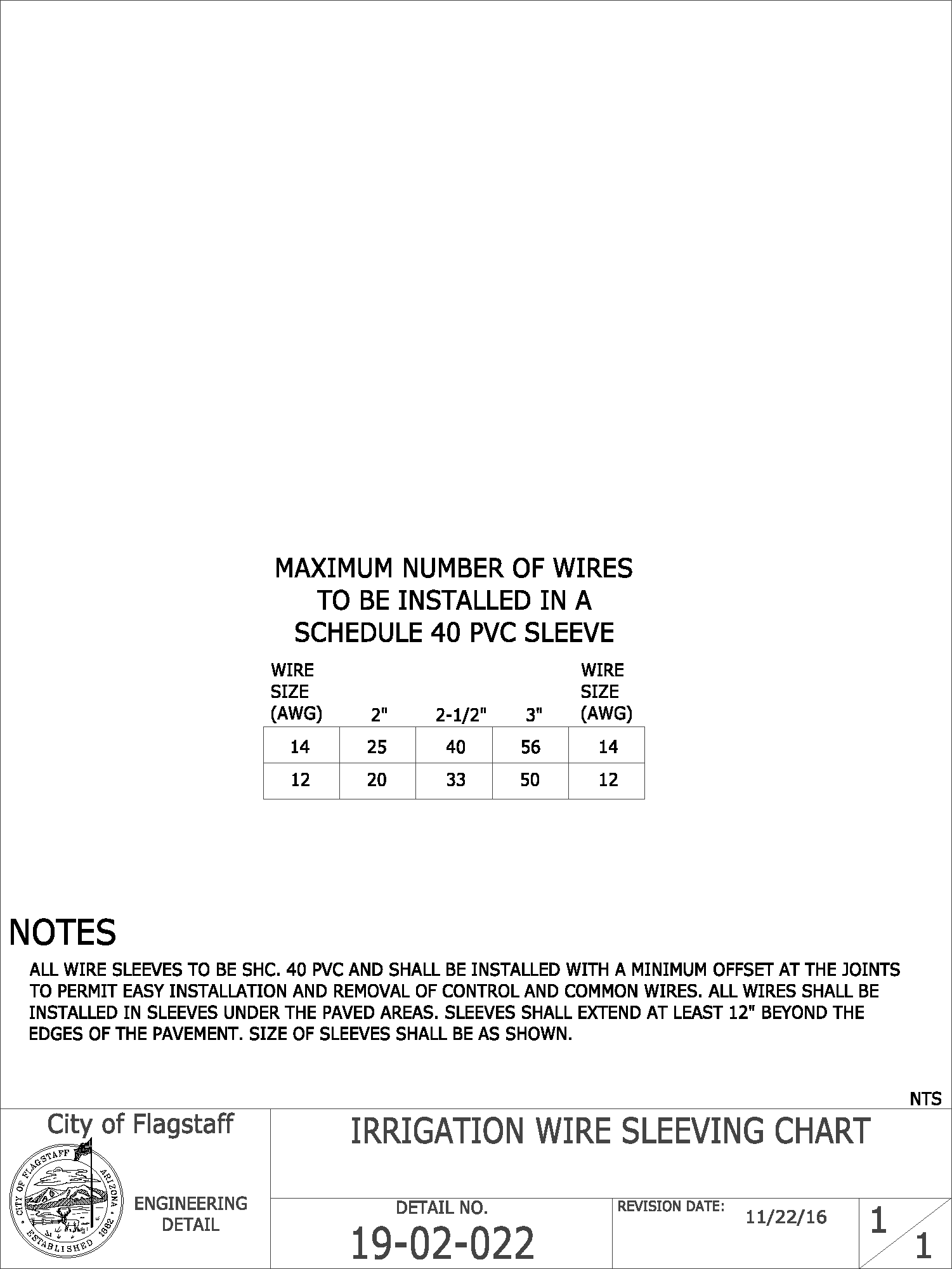

19-02-022    Irrigation Wire Sleeving Chart

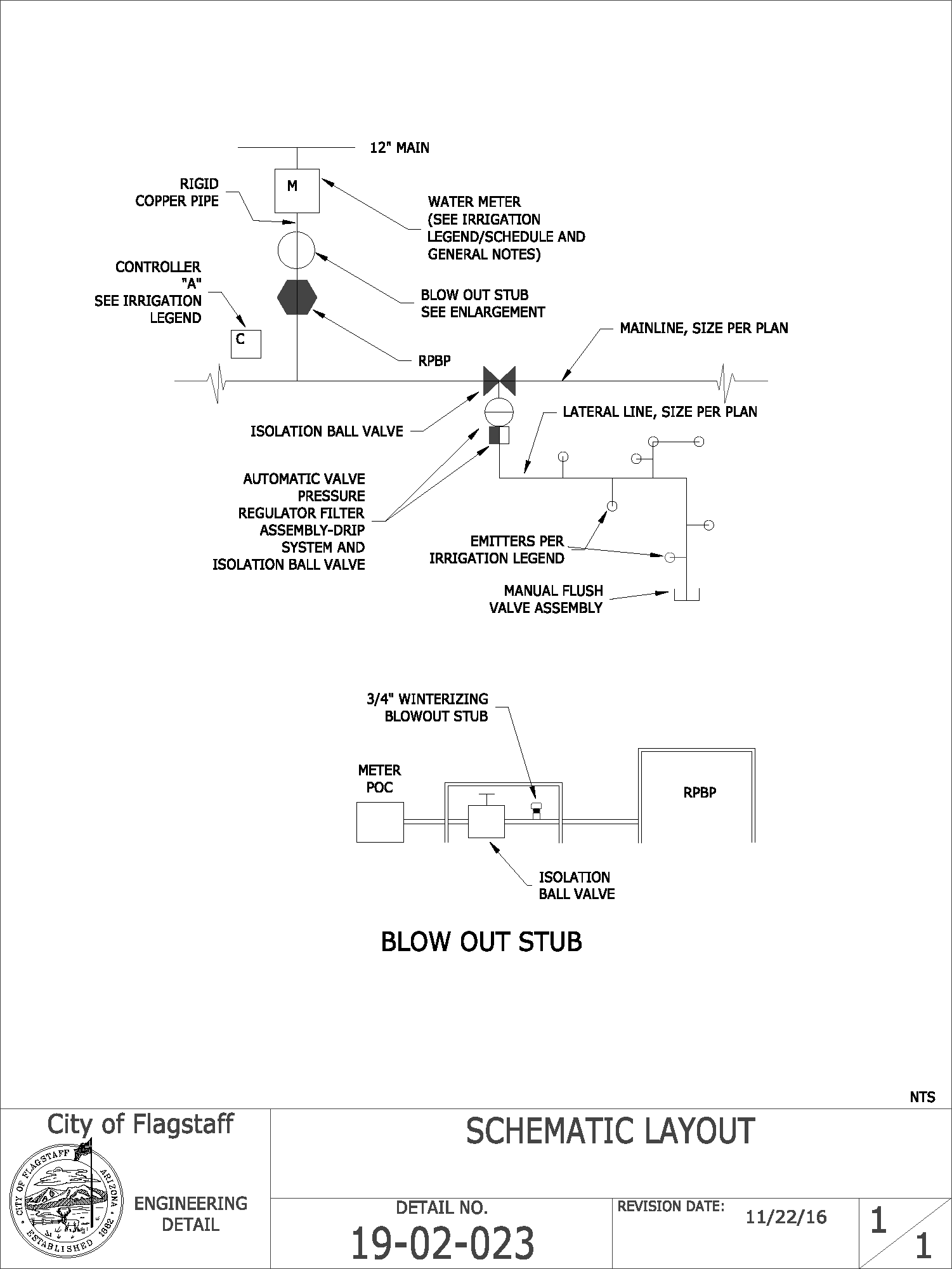

19-02-023    Schematic Layout

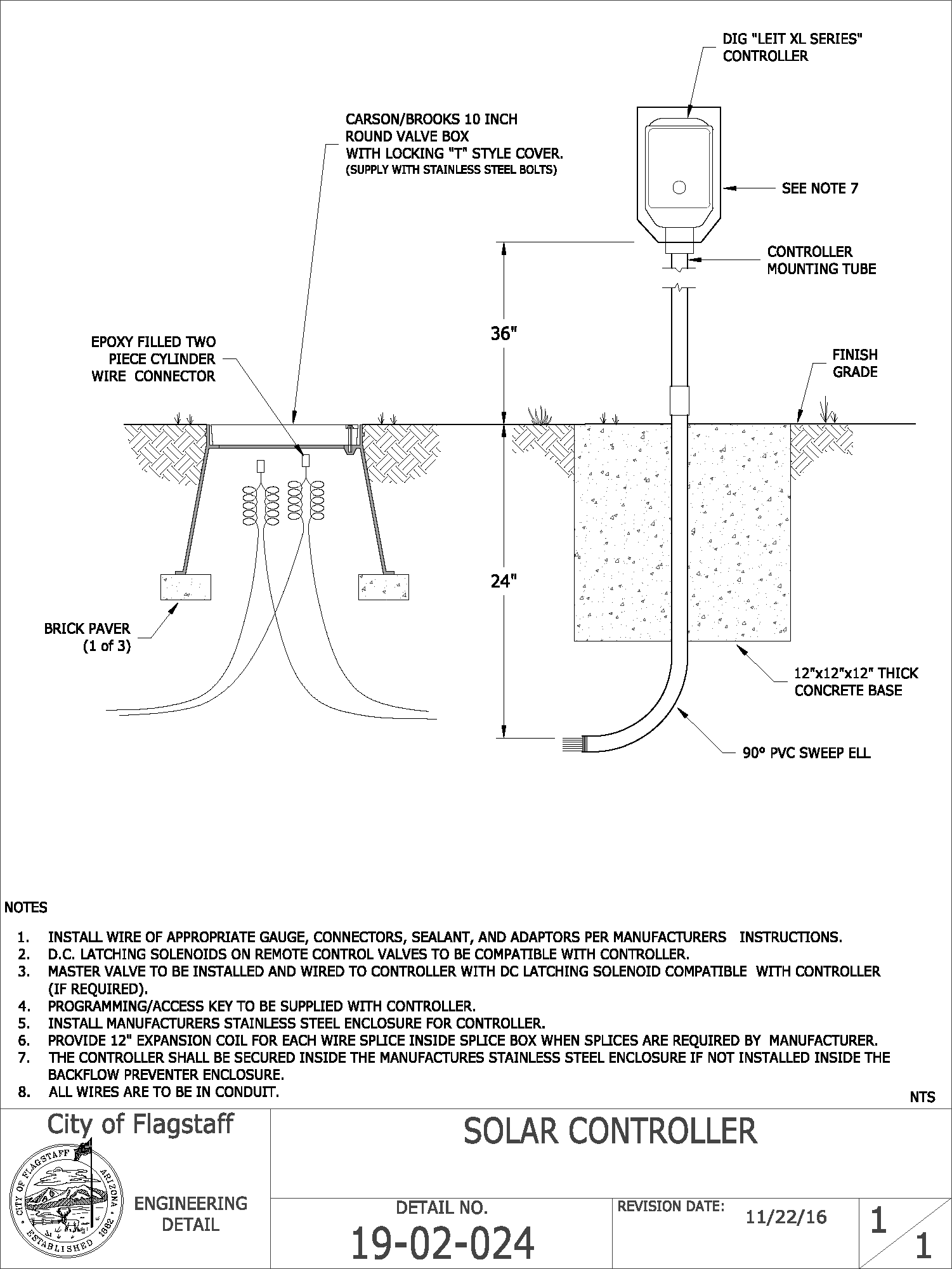

19-02-024    Solar Controller

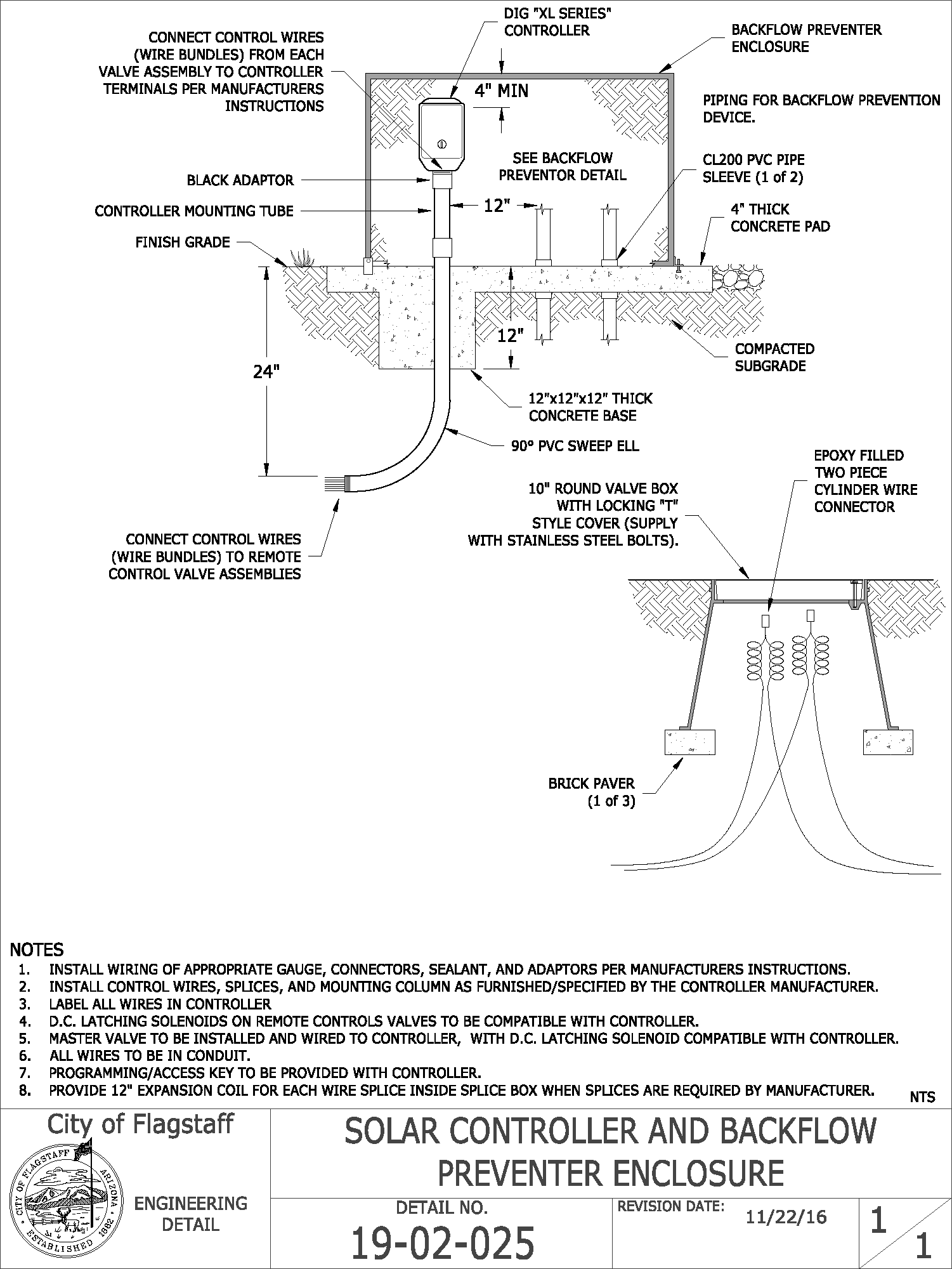

19-02-025    Solar Controller and Backflow Preventer Enclosure

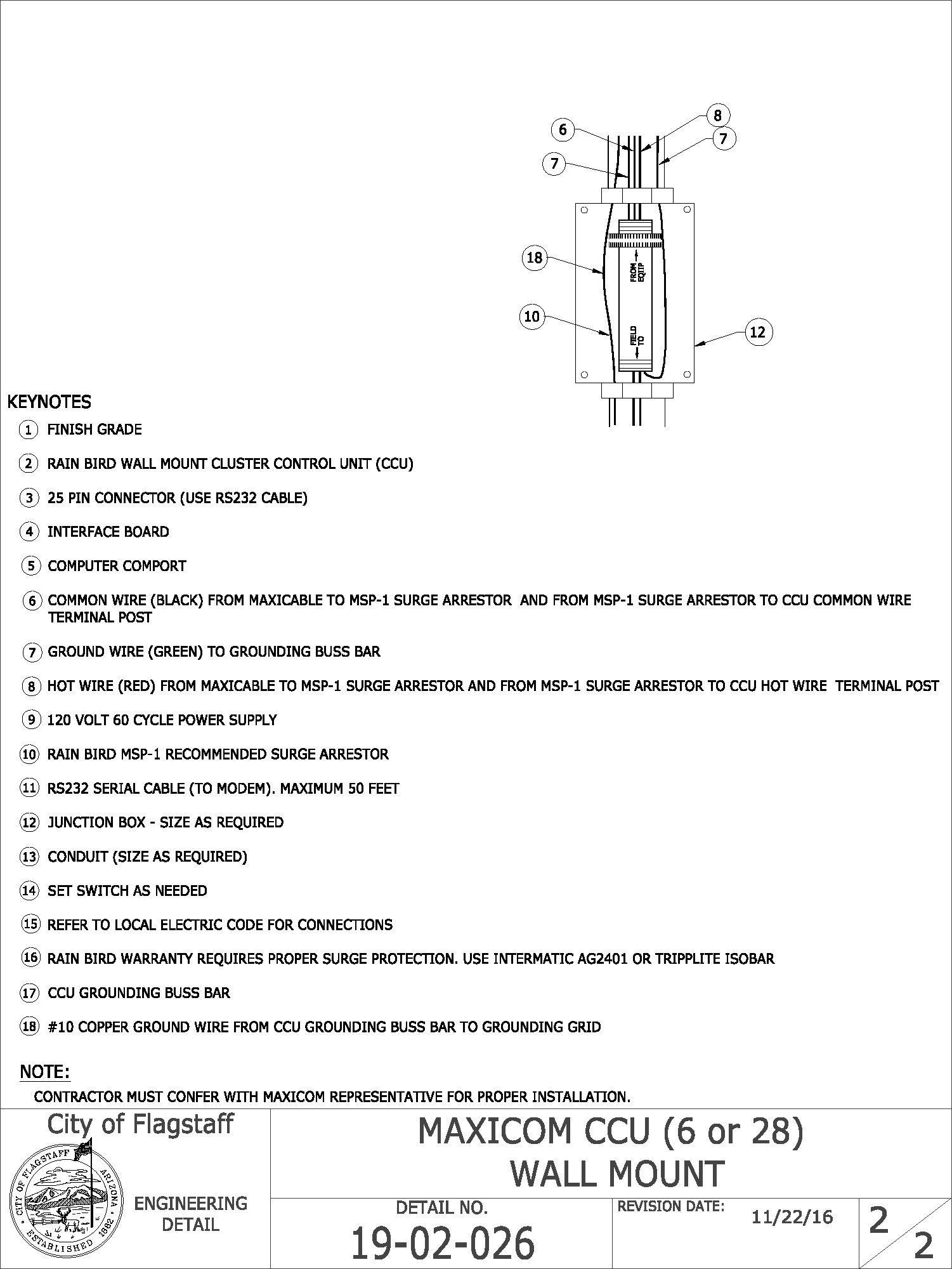

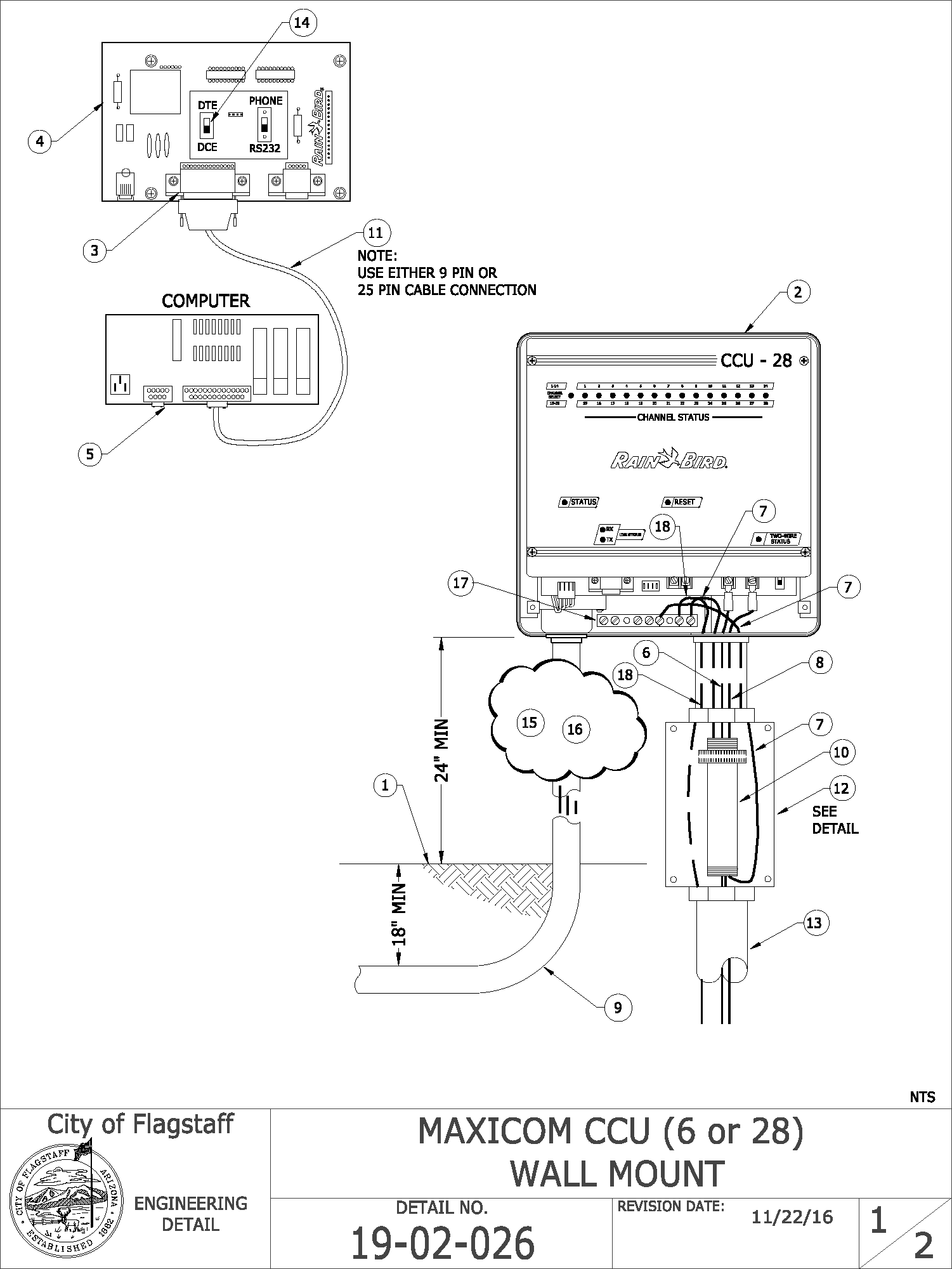

19-02-026    Maxicom CCU (6 or 28) - Wall Mount

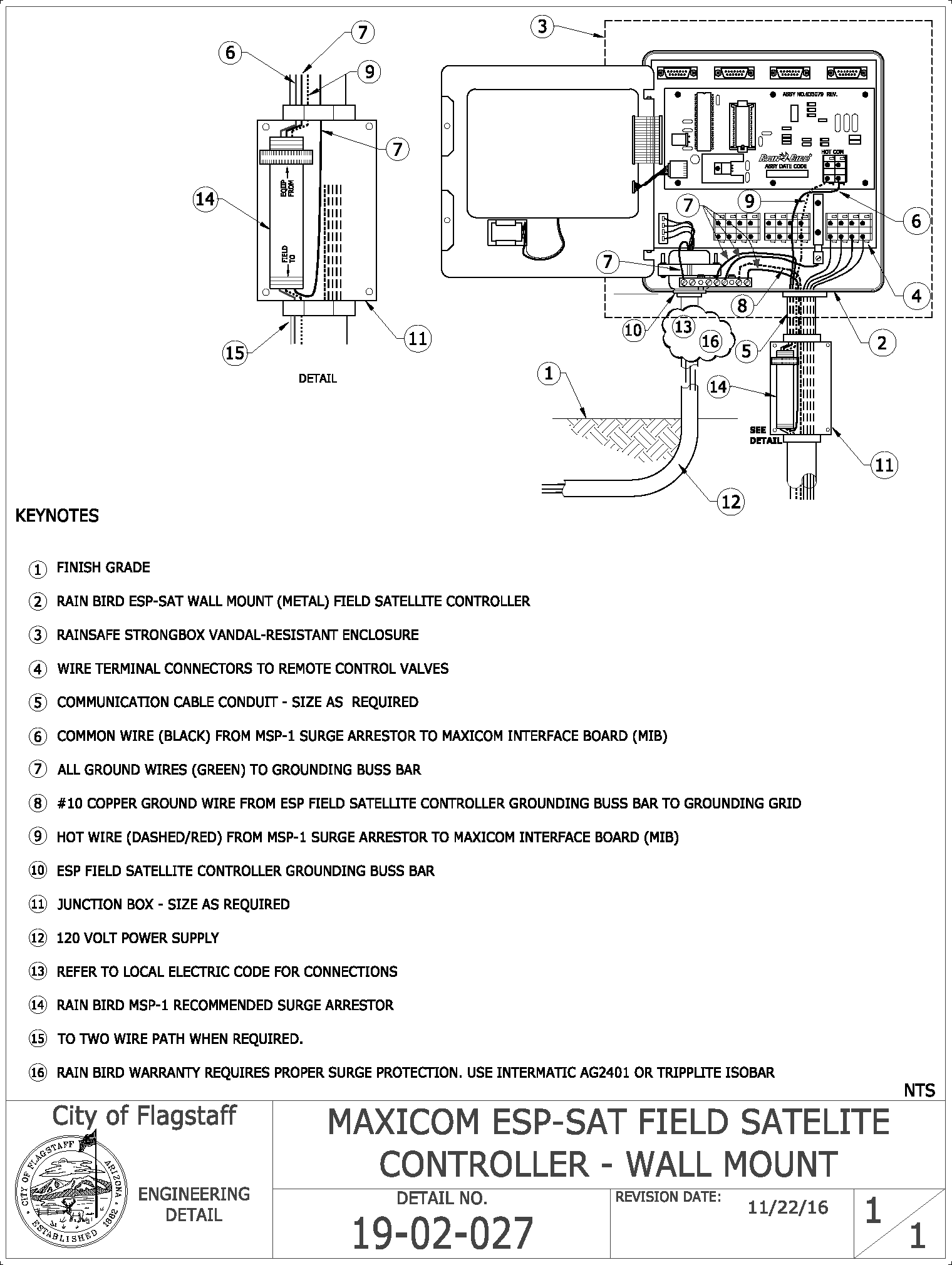

19-02-027    Maxicom Esp-Sat Field Satellite Controller – Wall Mount

19-02-028    Maxicom Esp-Sat Field Satellite Controller Stainless Steel Pedestal

19-02-029    Maxicom Flow Sensor (PT1502)

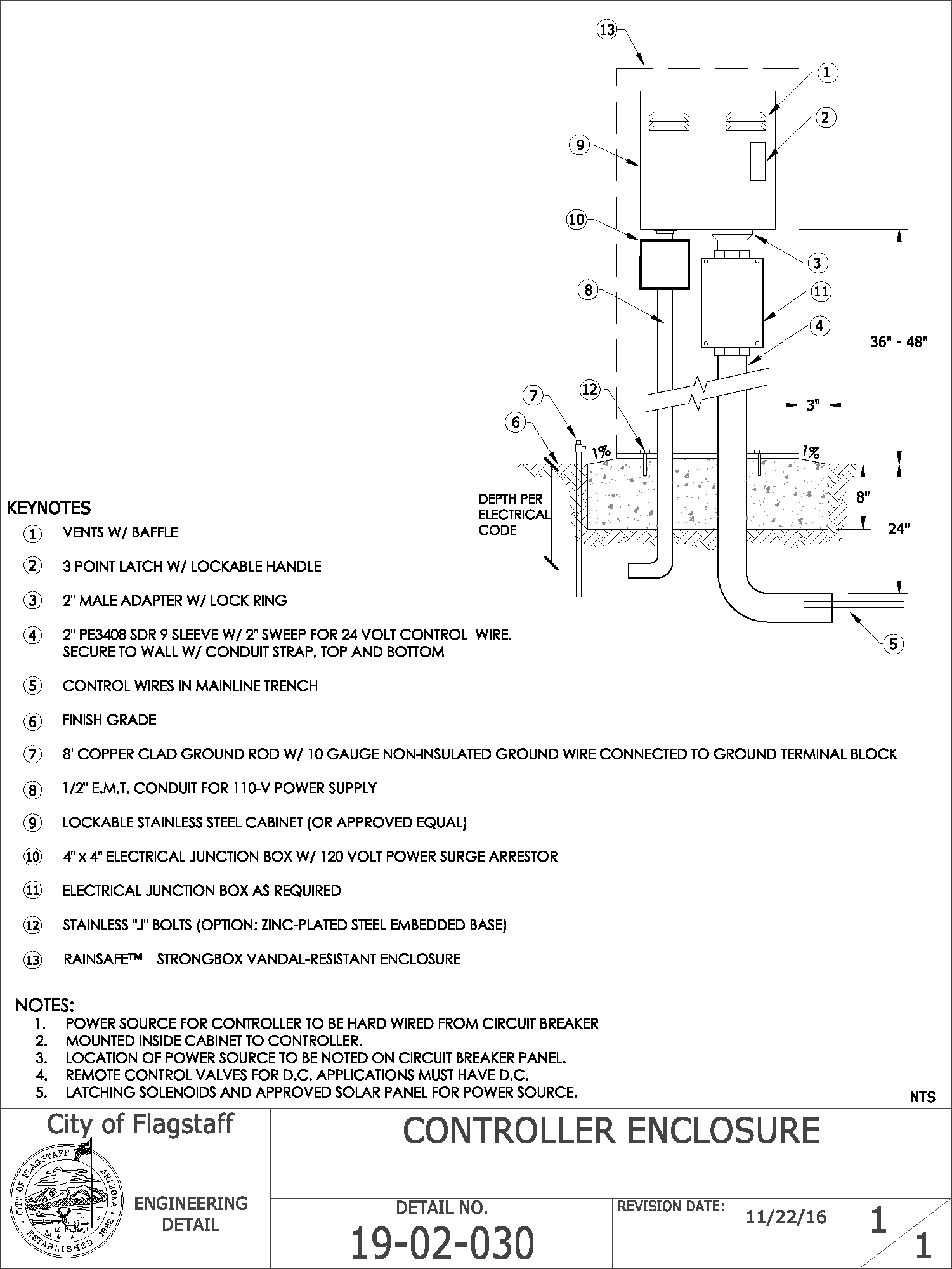

19-02-030    Controller Enclosure

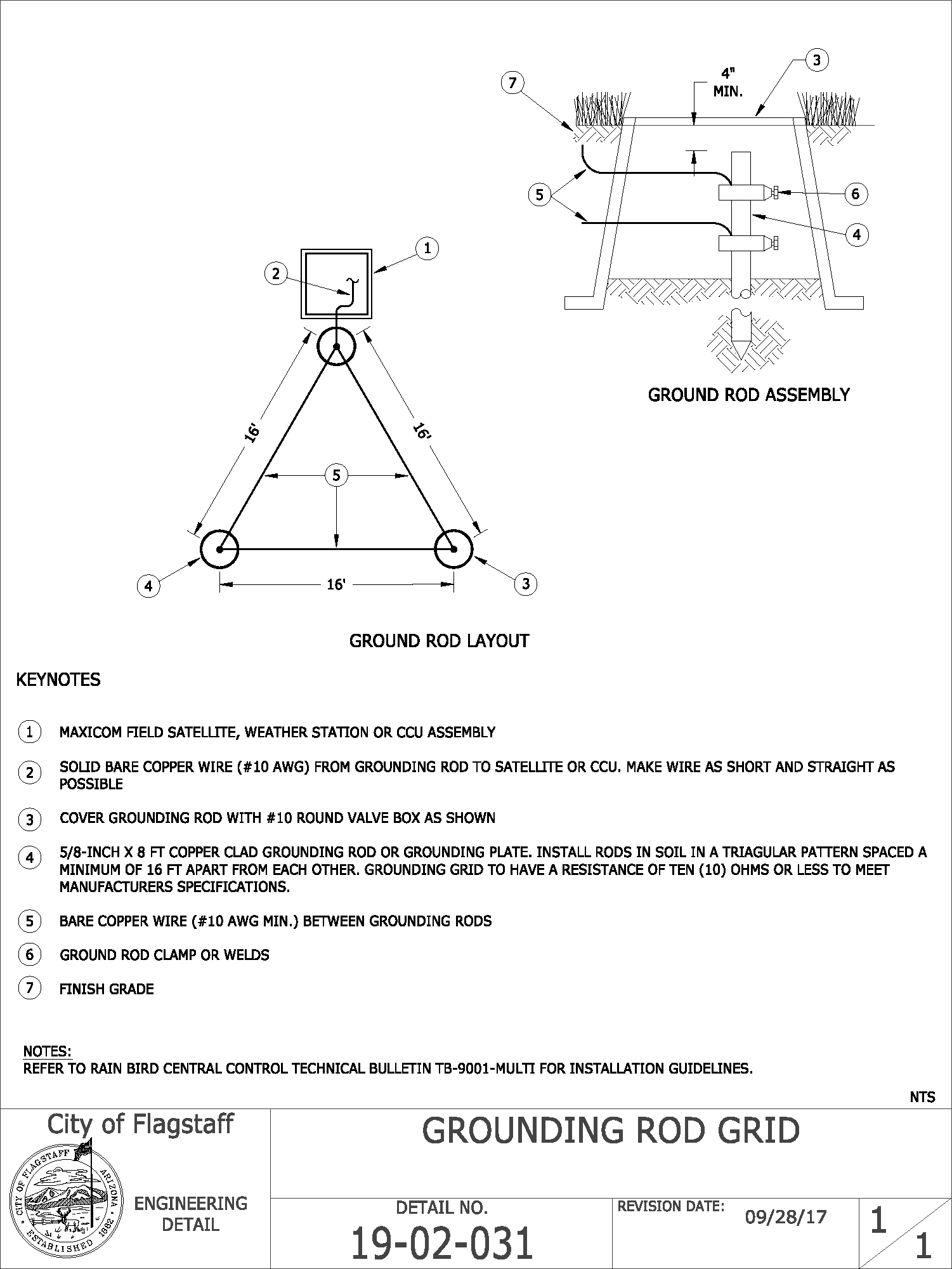

19-02-031    Grounding Rod Grid

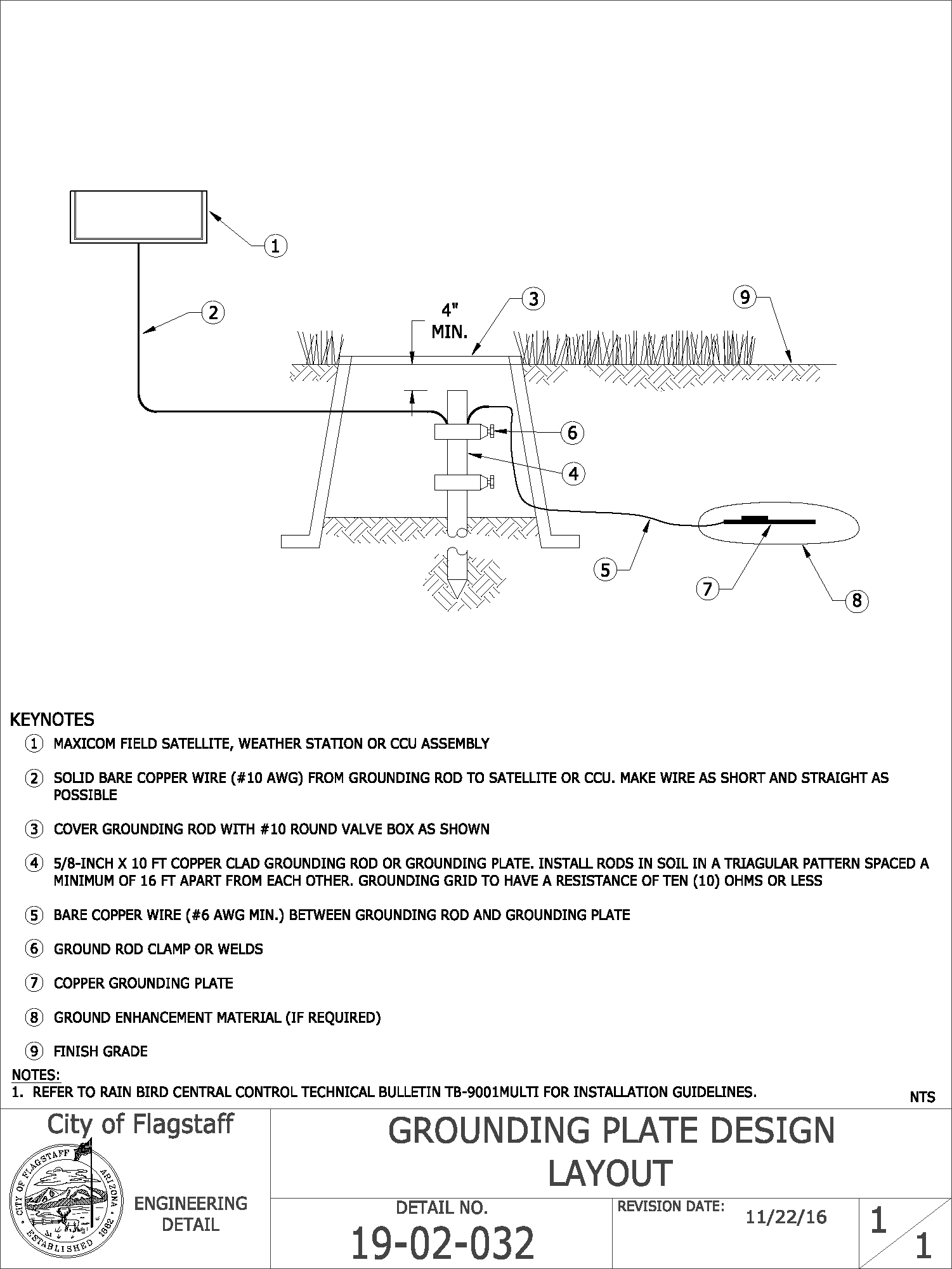

19-02-032    Grounding Plate Design Layout

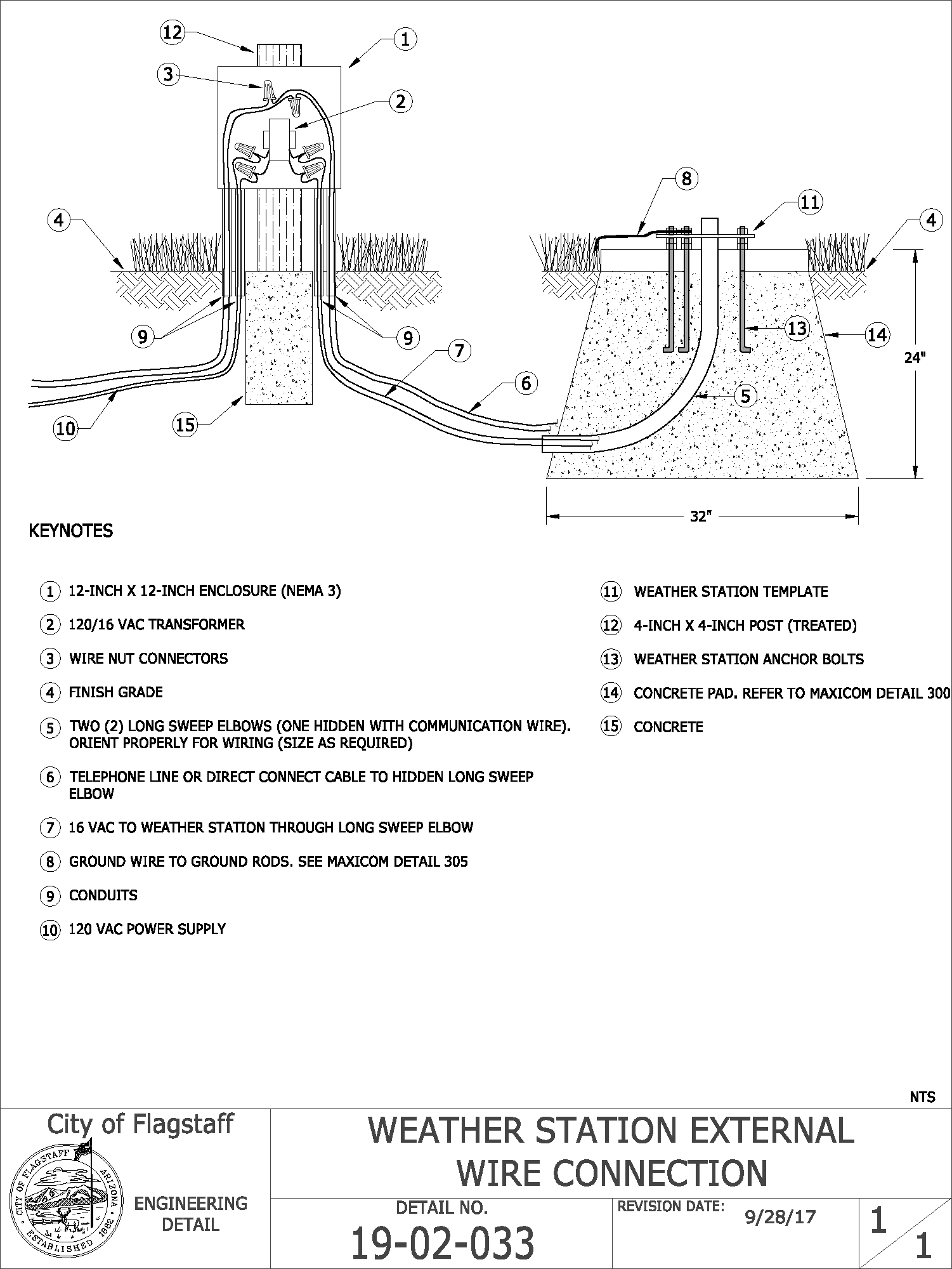

19-02-033    Weather Station External Wire Connection

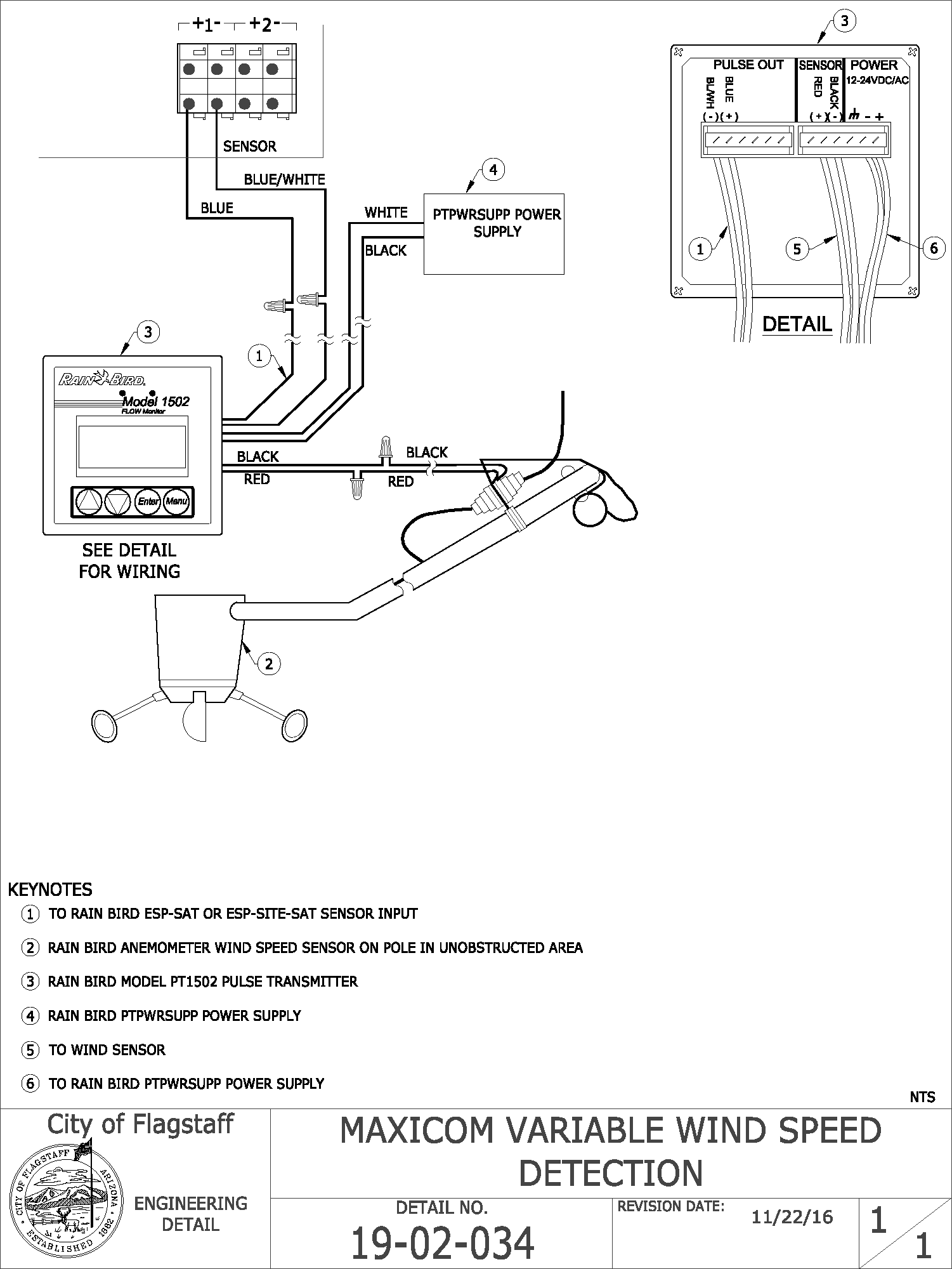

19-02-034    Maxicom Variable Wind Speed Detection

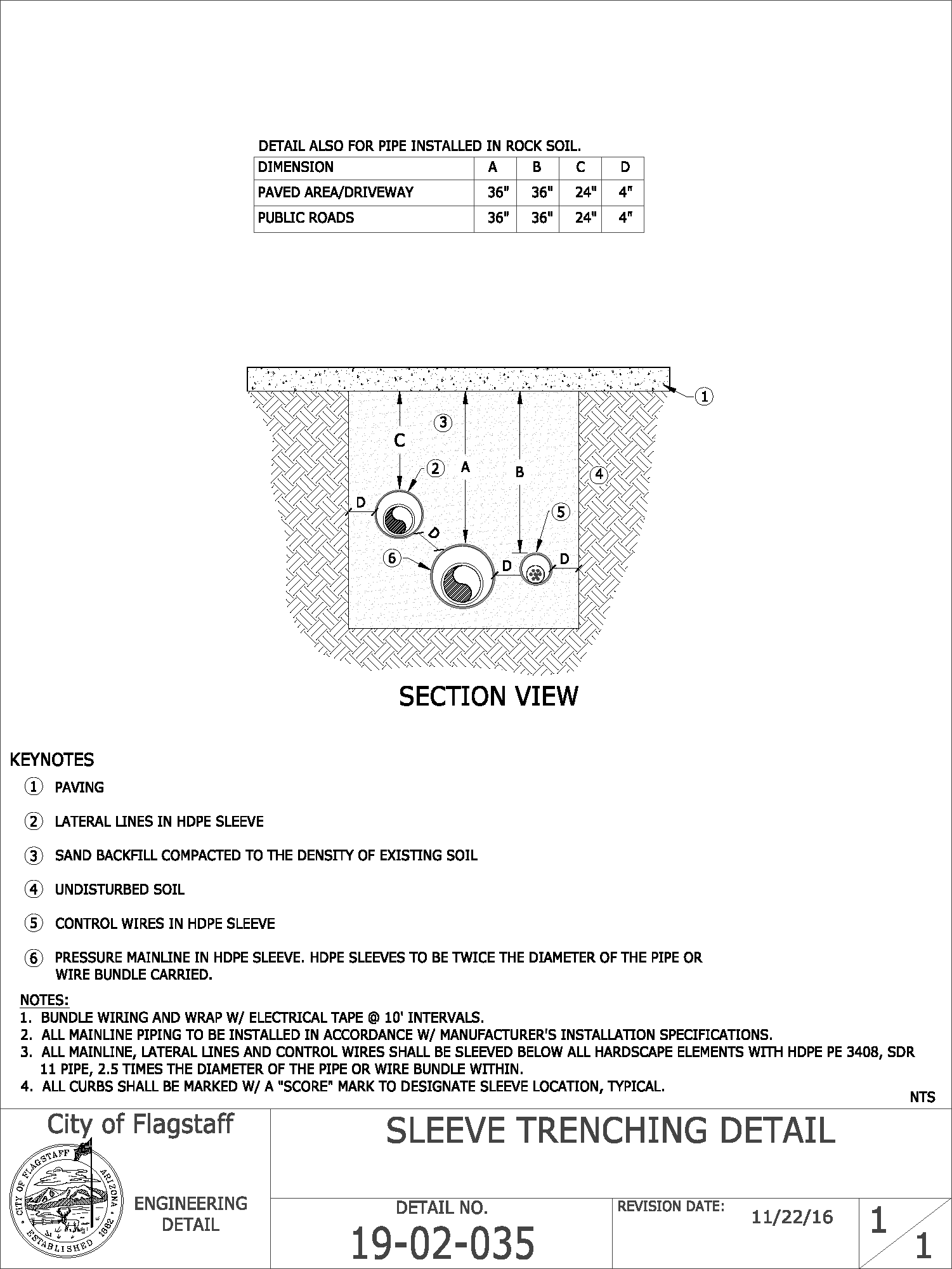

19-02-035    Sleeve Trenching Detail

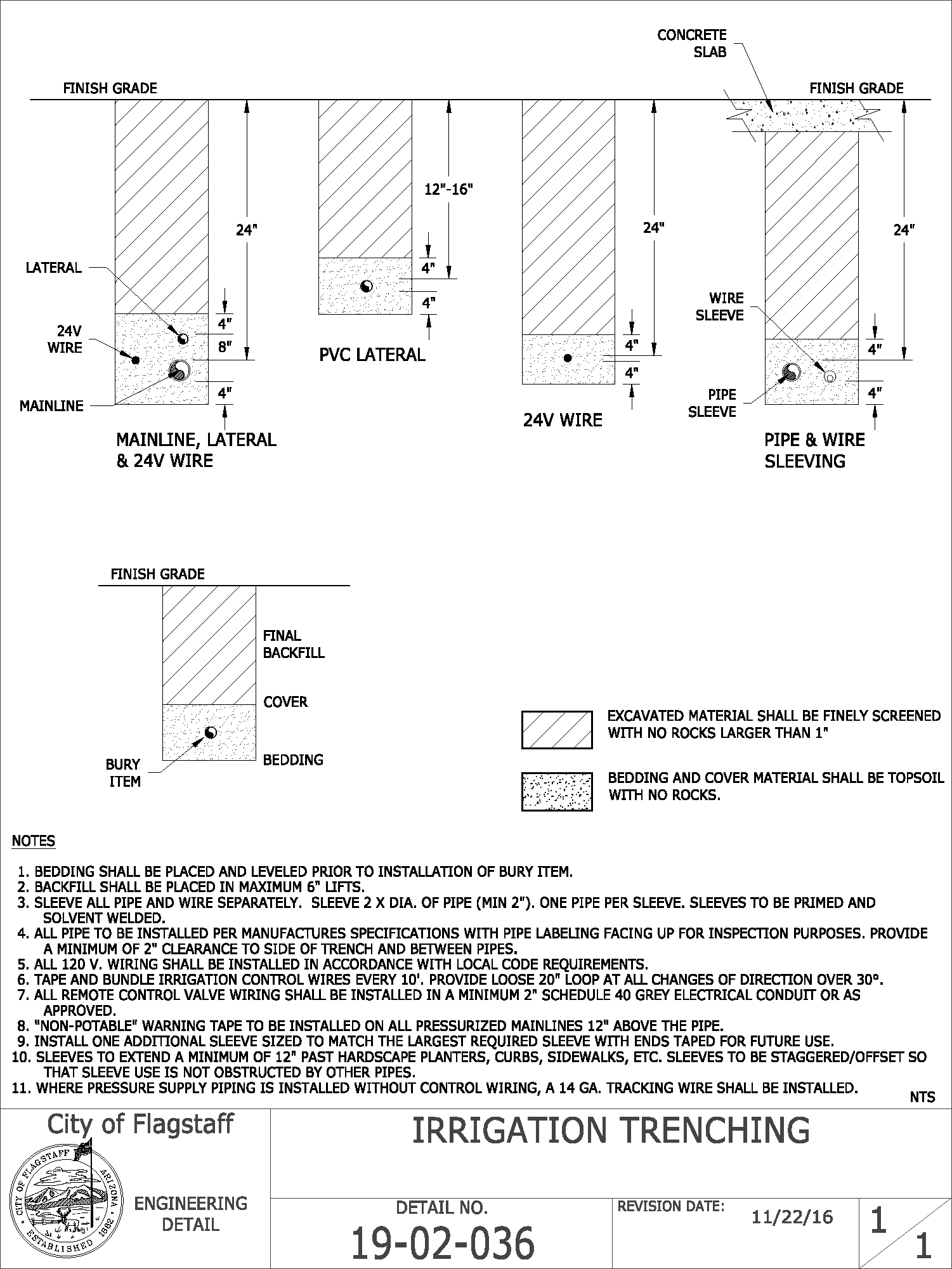

19-02-036    Irrigation Trenching

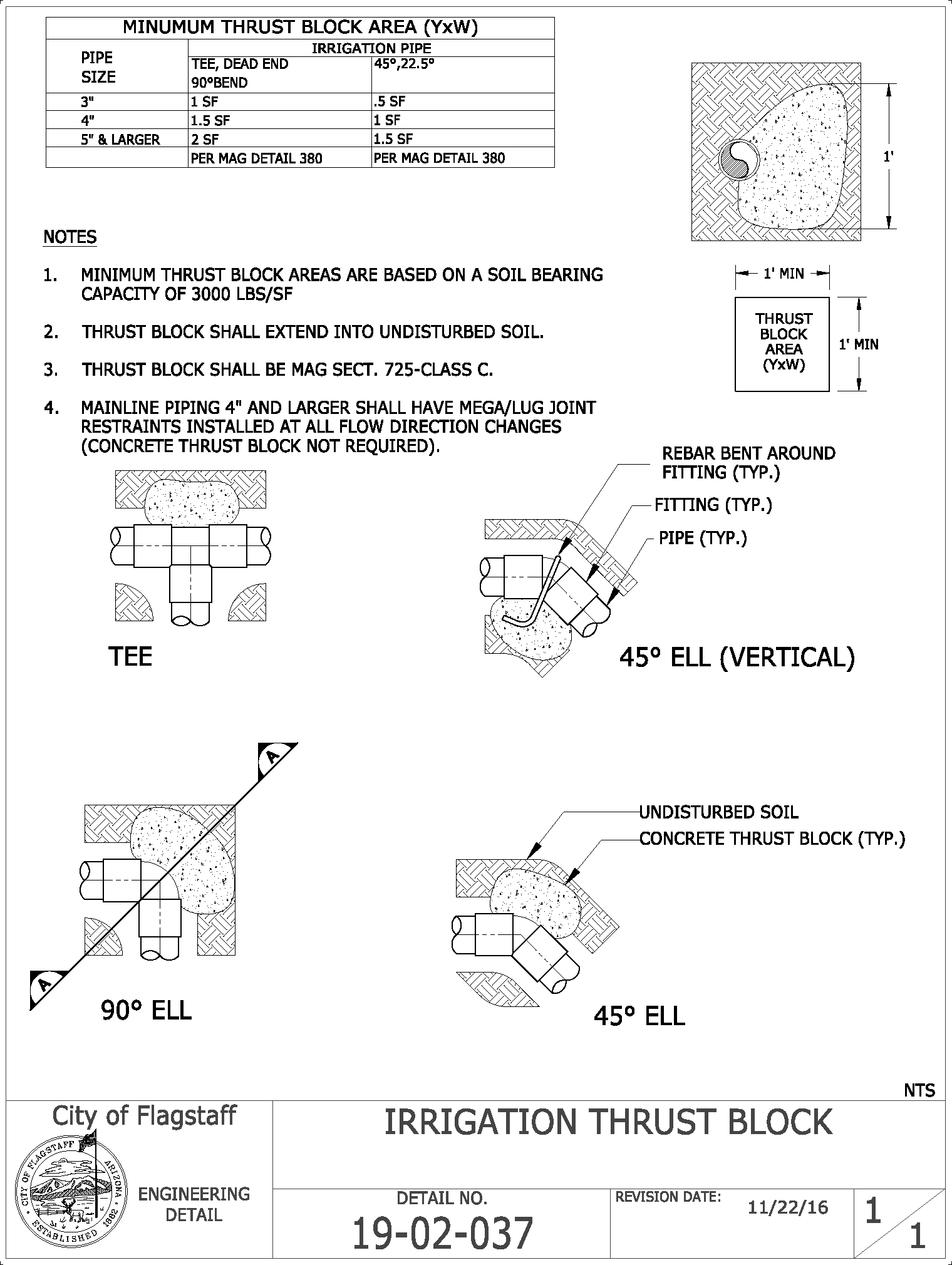

19-02-037    Irrigation Thrust Block

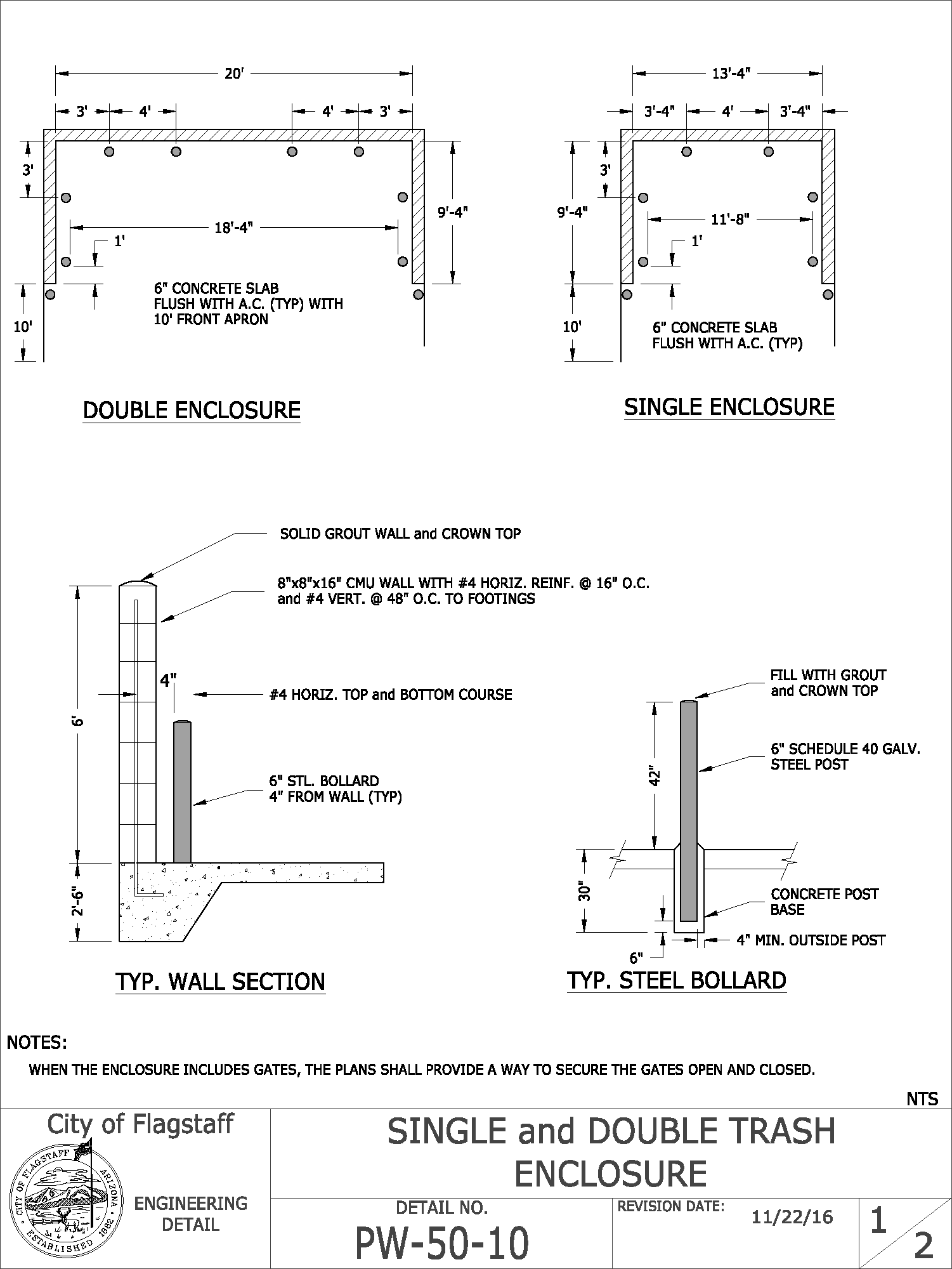

PW    50.10    Single and Double Trash Enclosure

3-02-070 Installation of Survey Monument

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

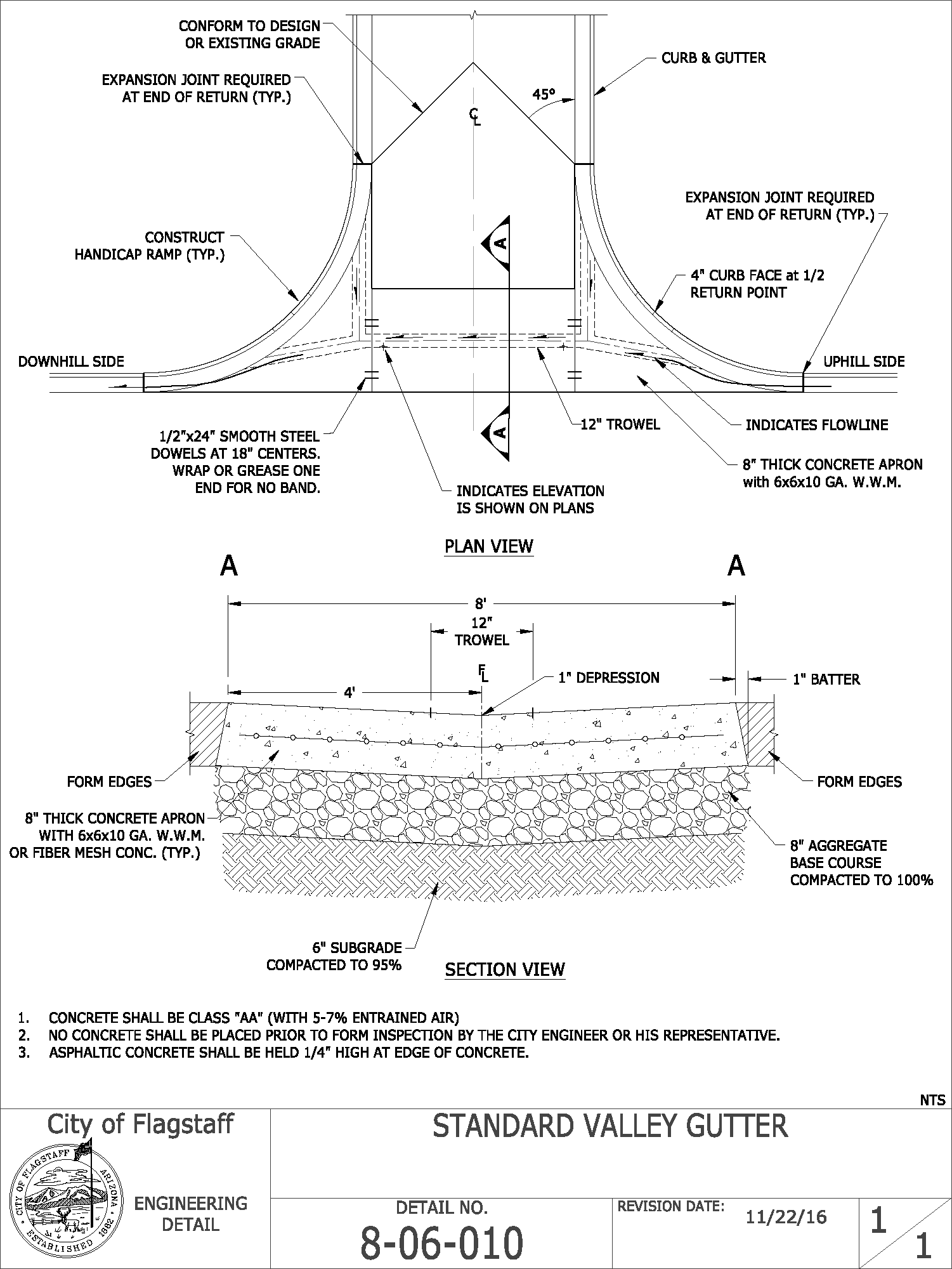

8-06-010 Standard Valley Gutter

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

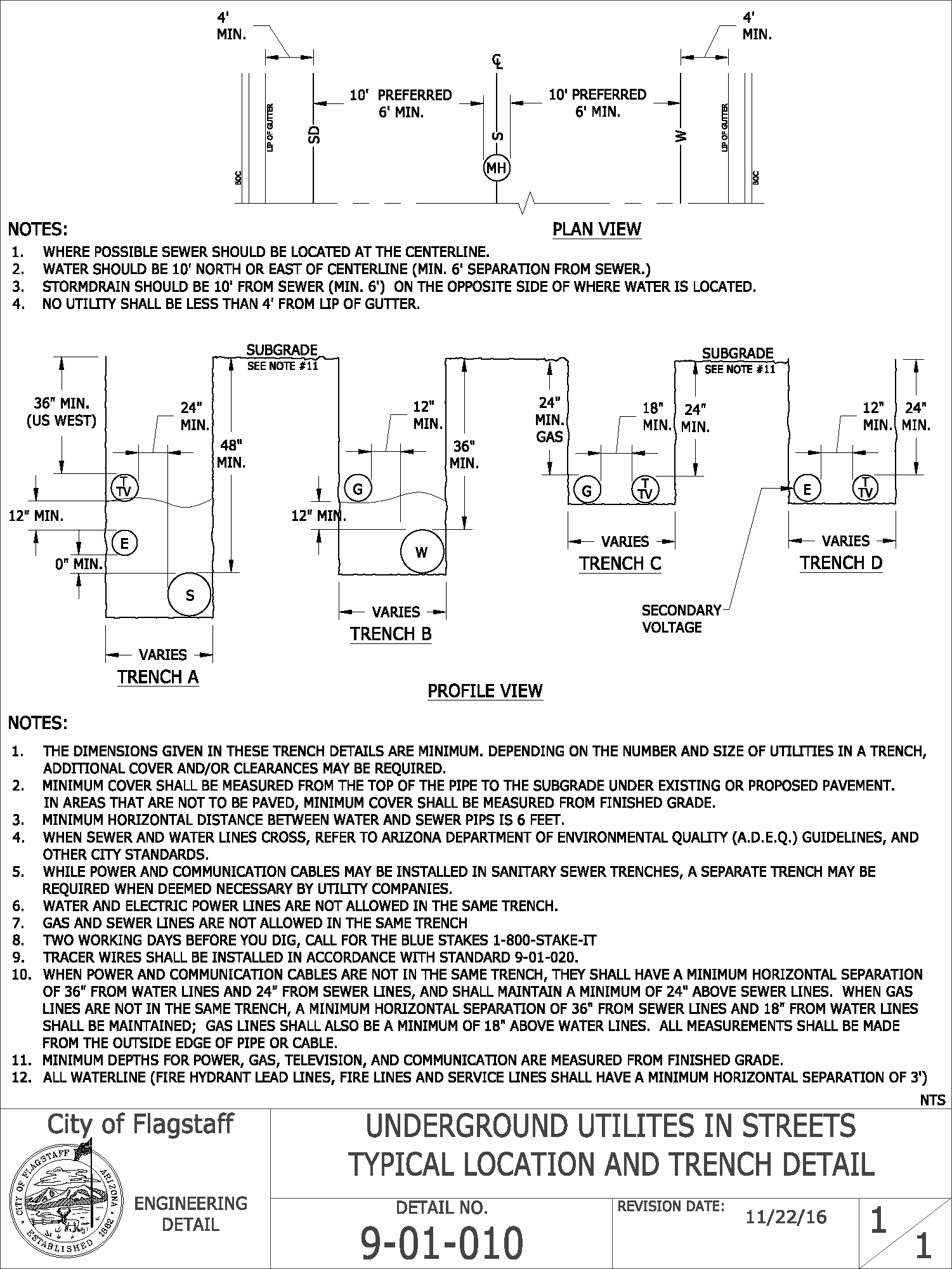

9-01-010 Underground Utilities in Streets Typical Location and Trench Detail

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

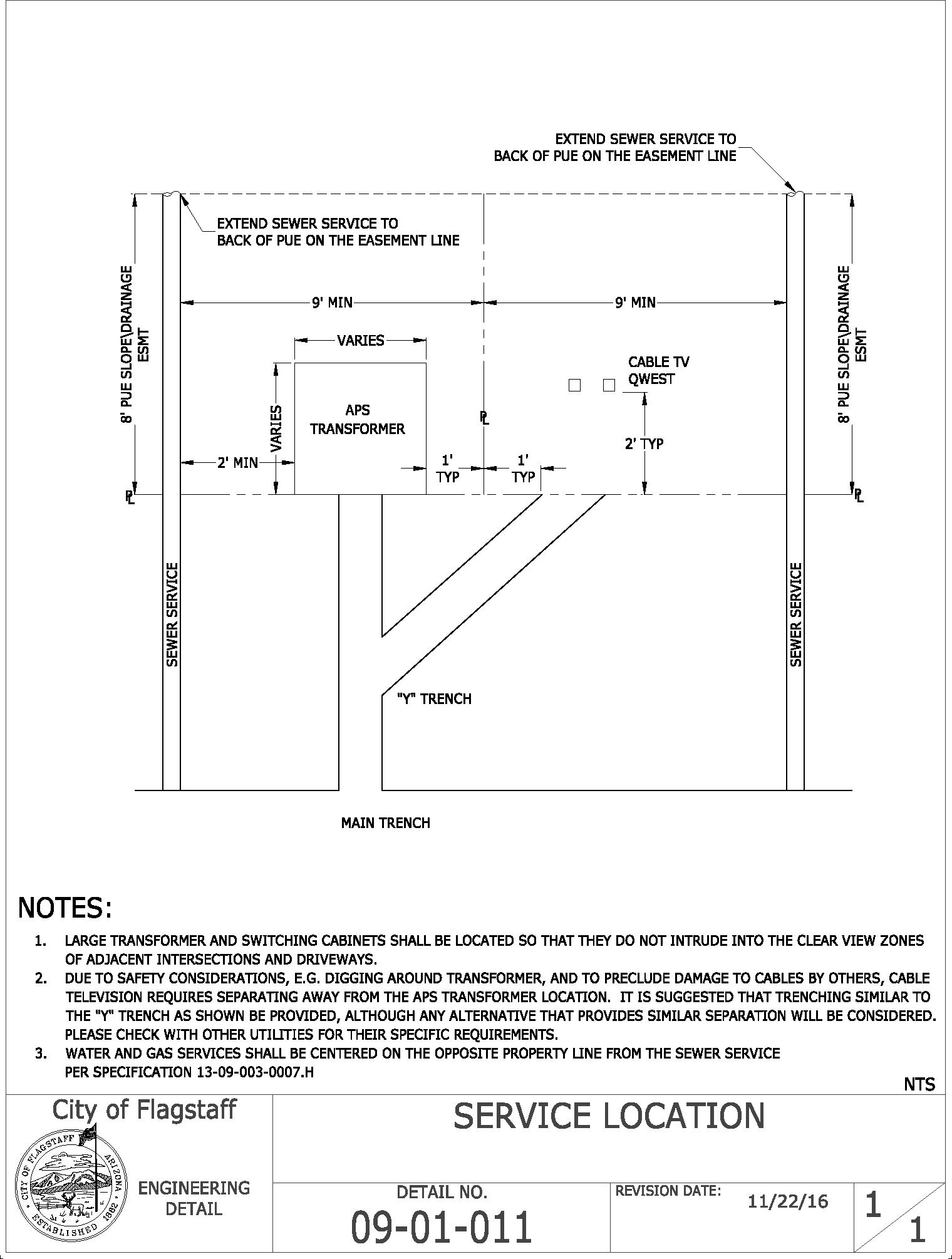

9-01-011 Service Location

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

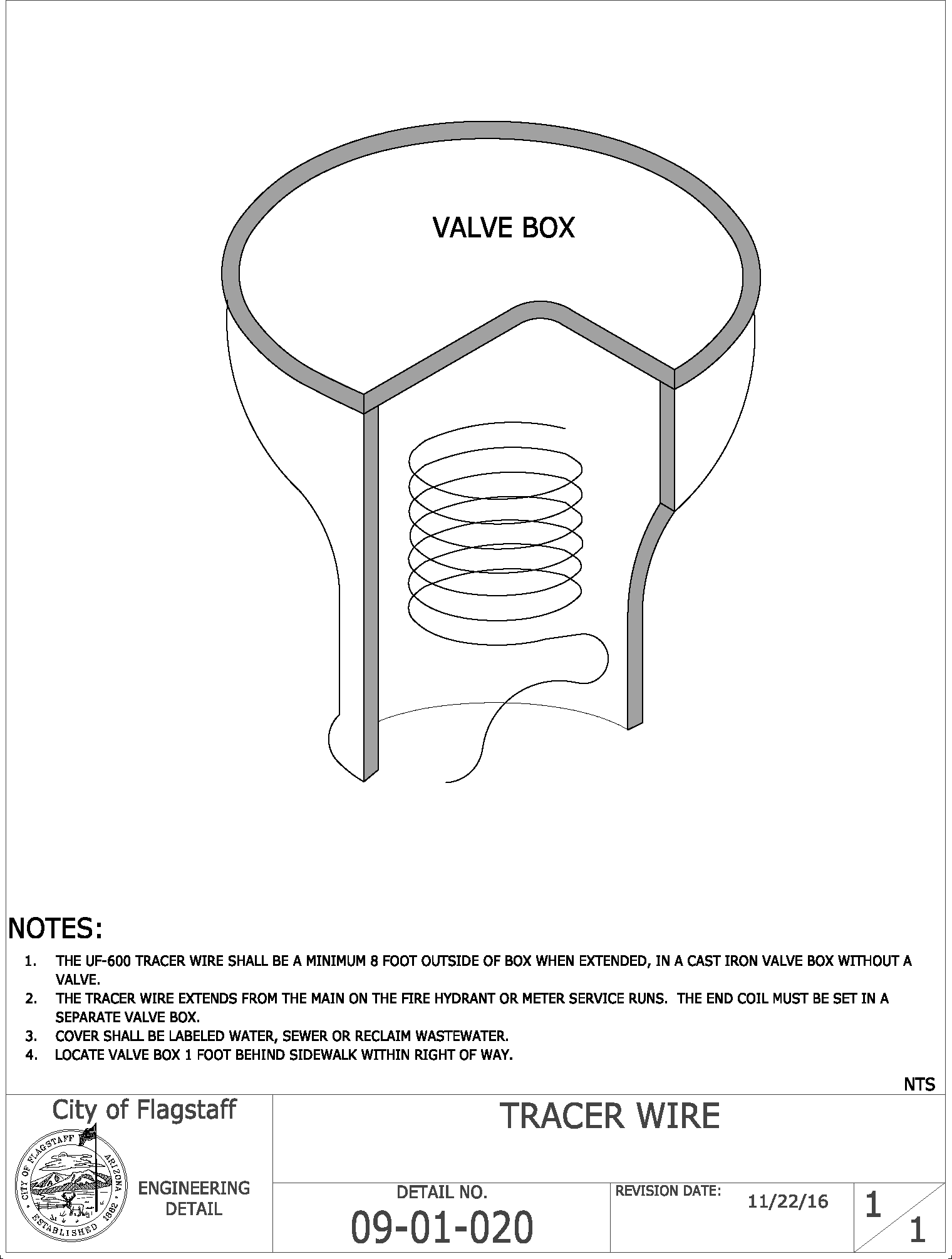

9-01-020 Tracer Wire

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

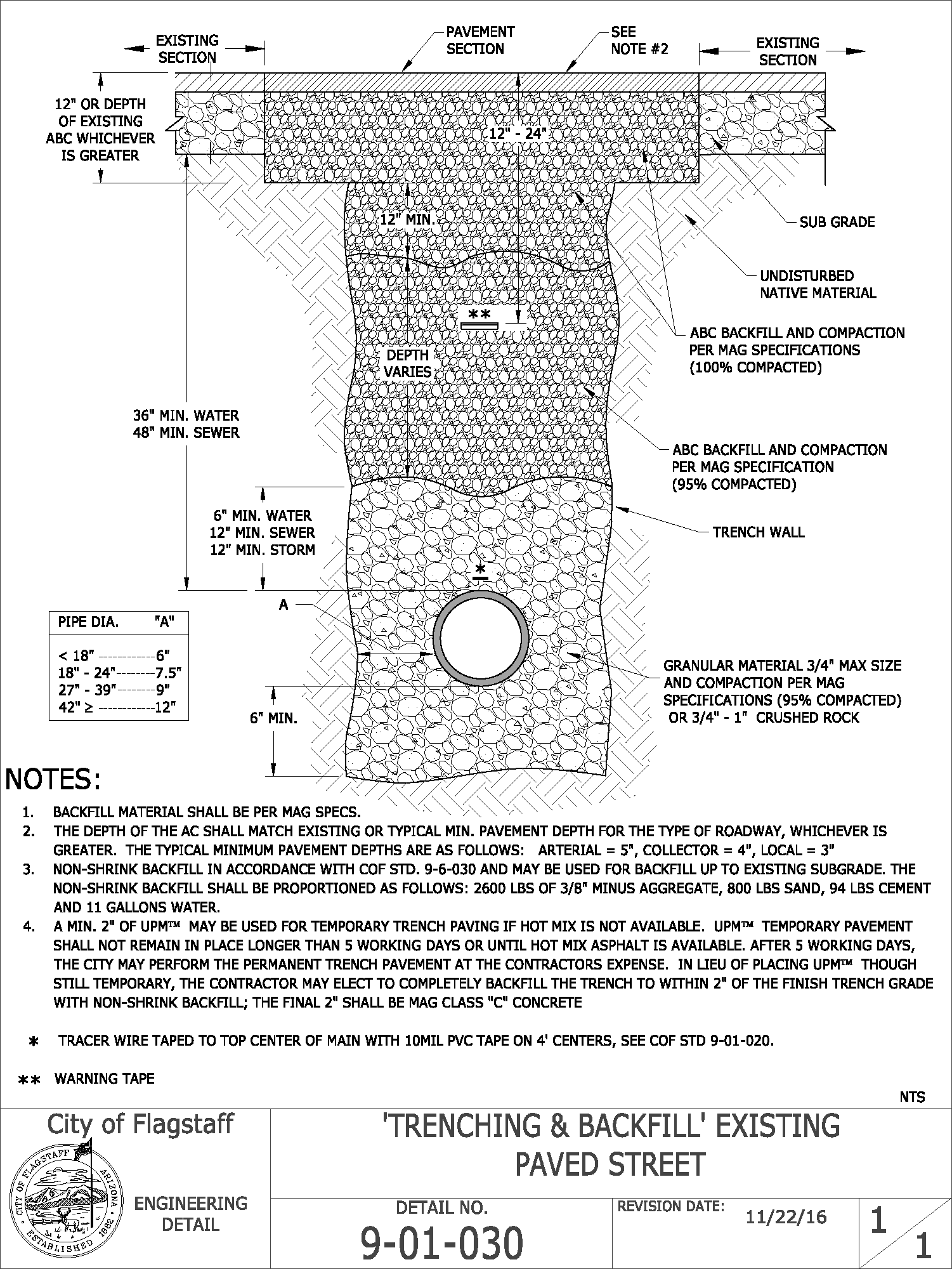

9-01-030 Trenching and Backfill (Existing Paved Street)

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

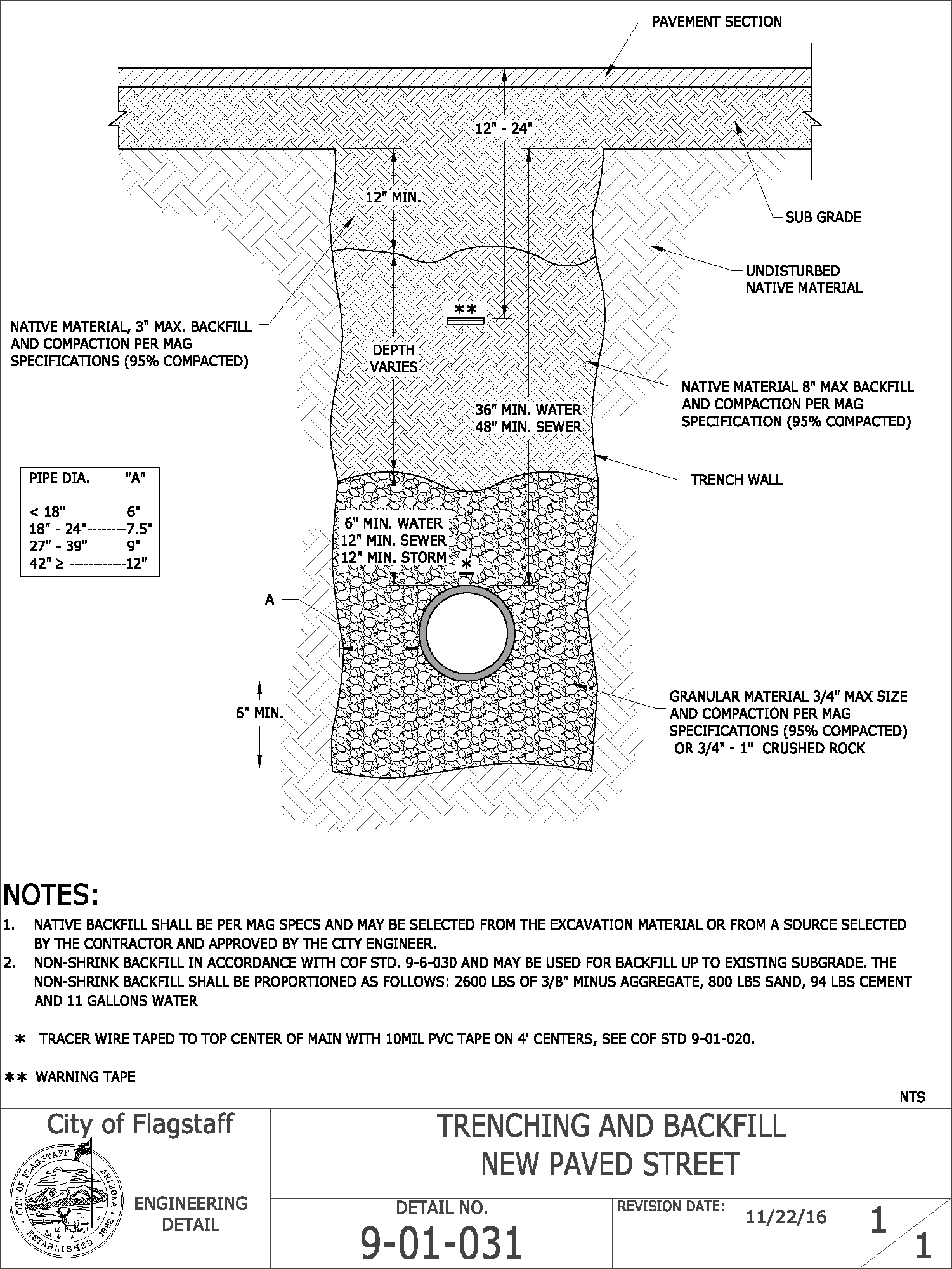

9-01-031 Trenching and Backfill (New Paved Street)

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

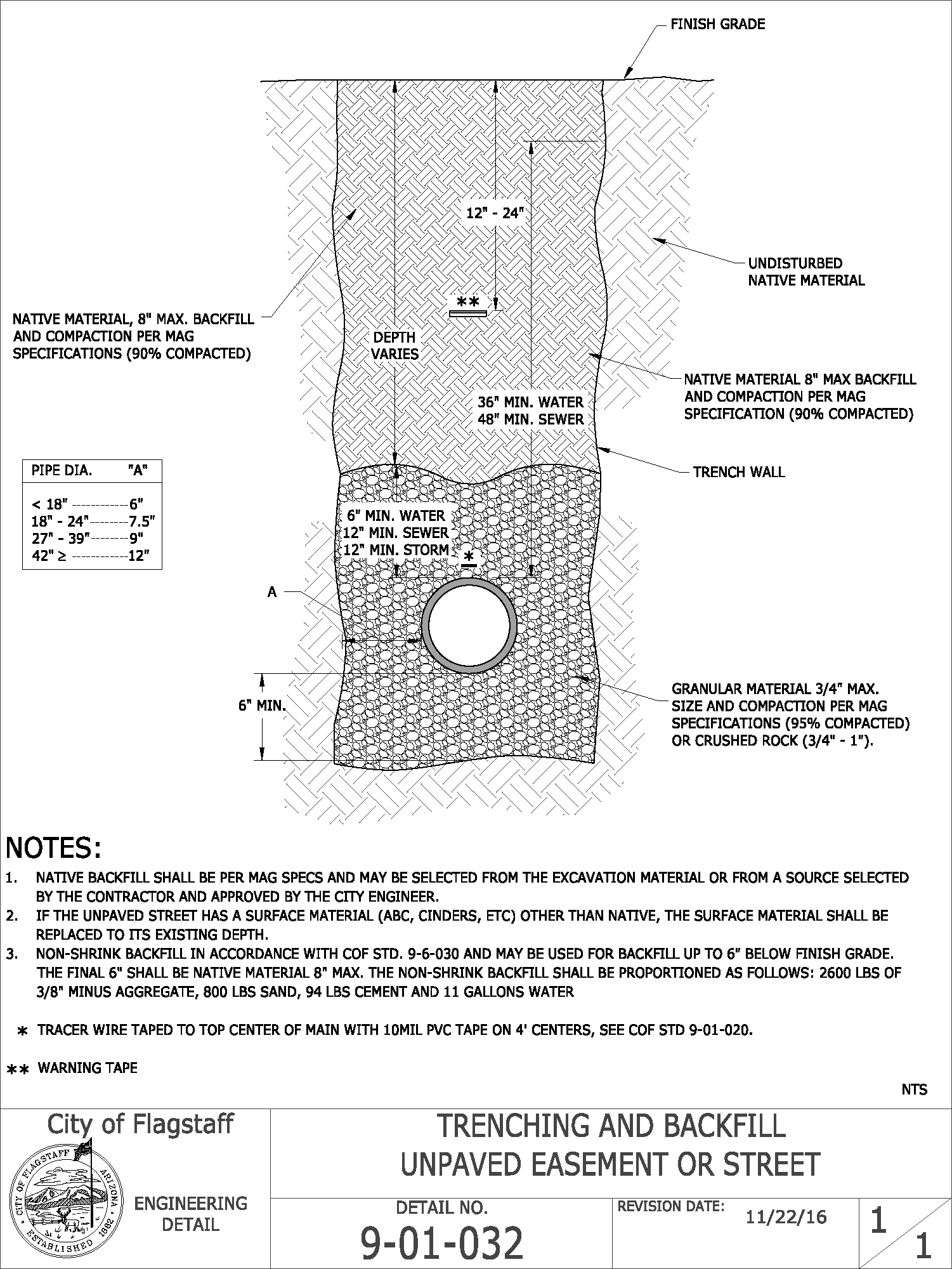

9-01-032 Trenching and Backfill (Unpaved Easement or Street)

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

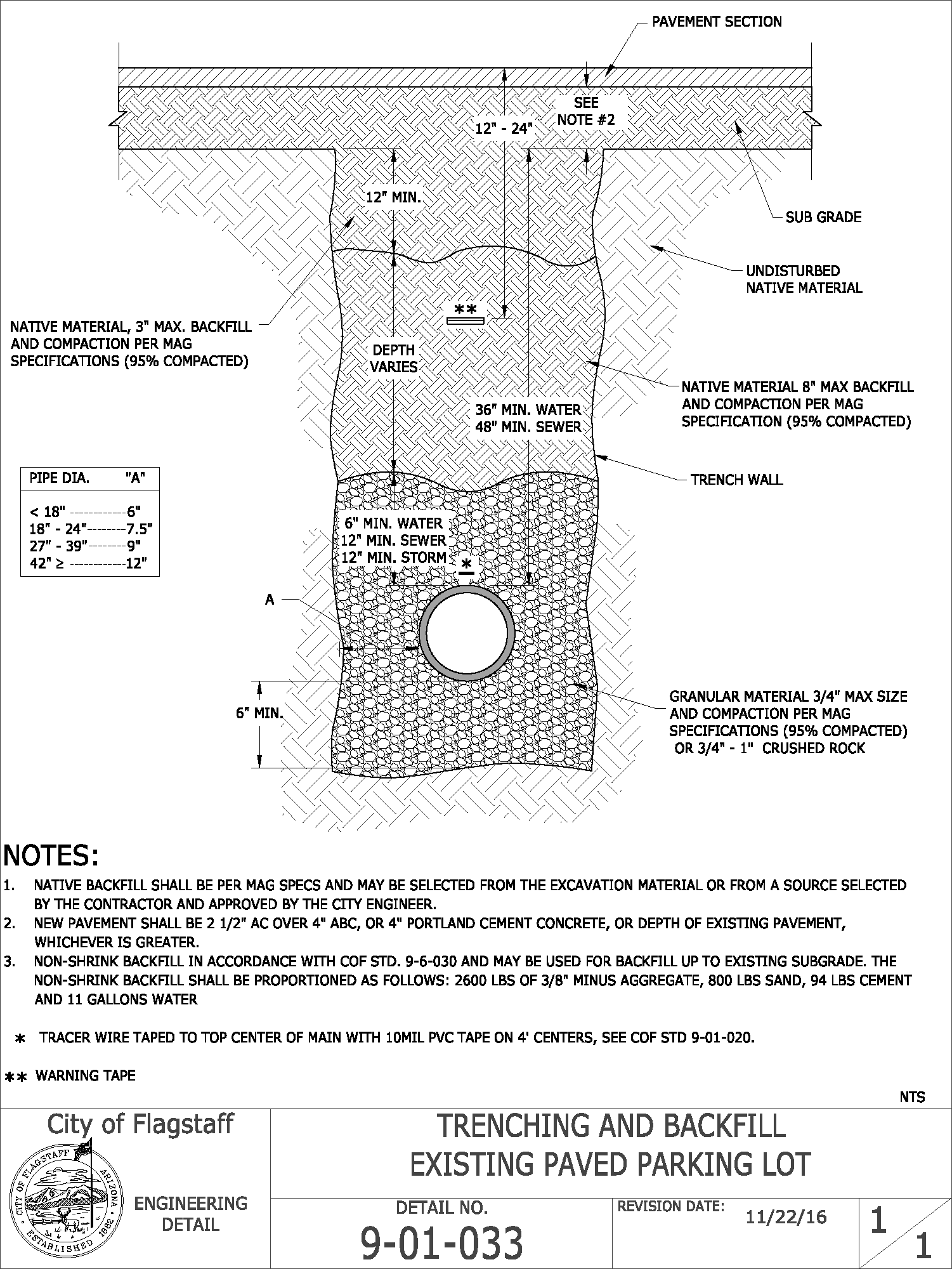

9-01-033 Trenching and Backfill (Existing Paved Parking Lot)

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

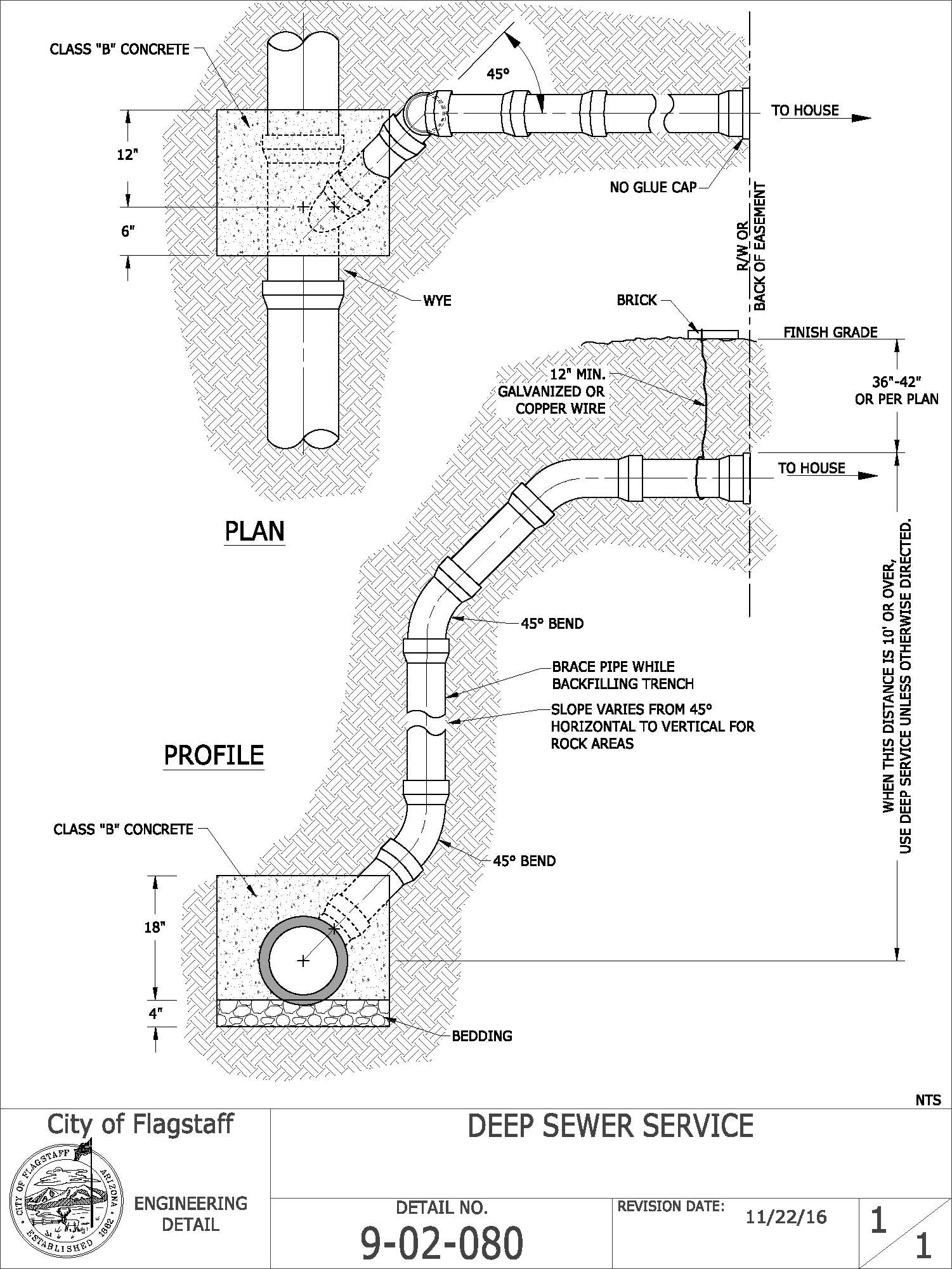

9-02-080 Deep Sewer Service

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

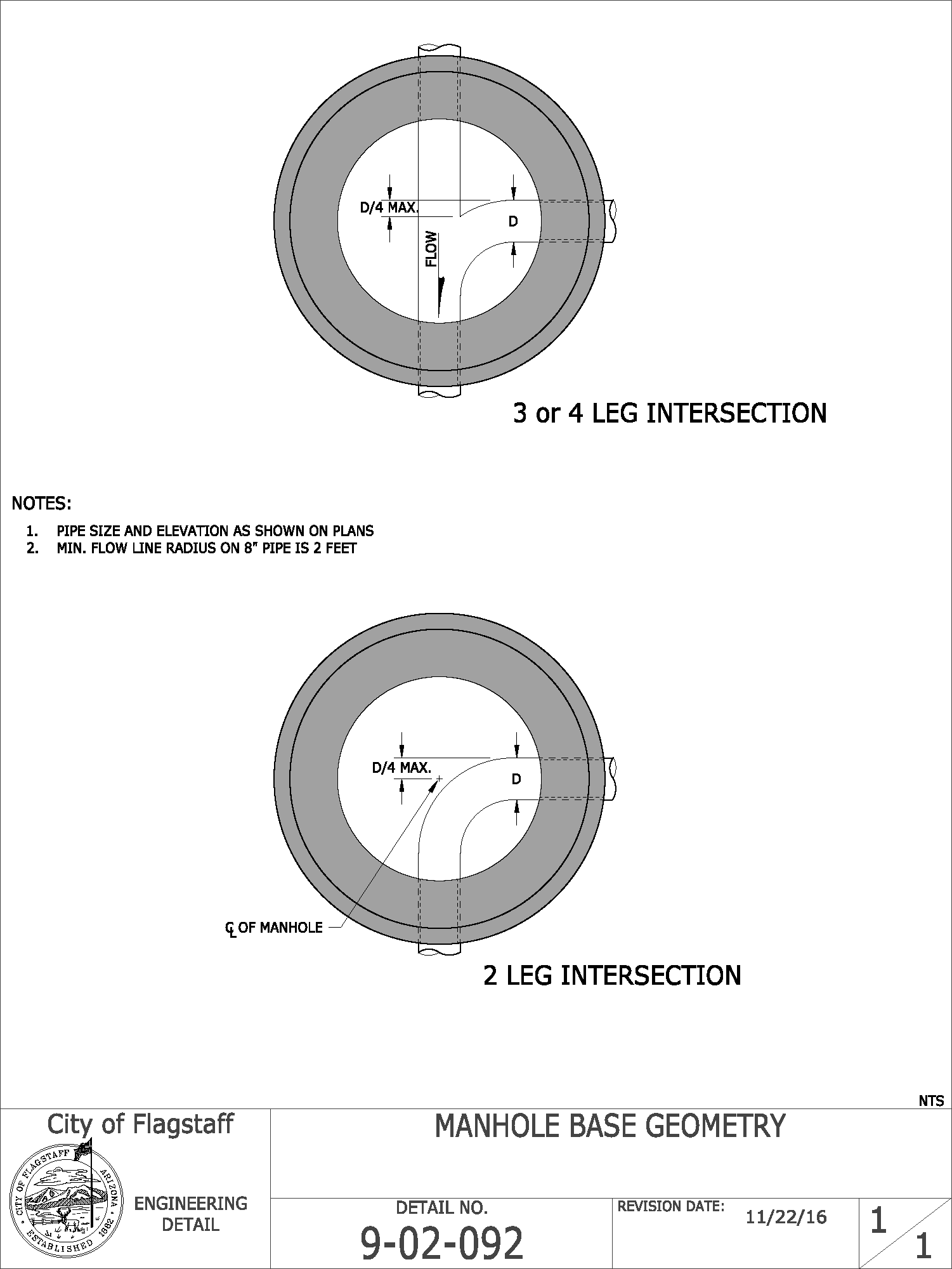

9-02-092 Manhole Base Geometry

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

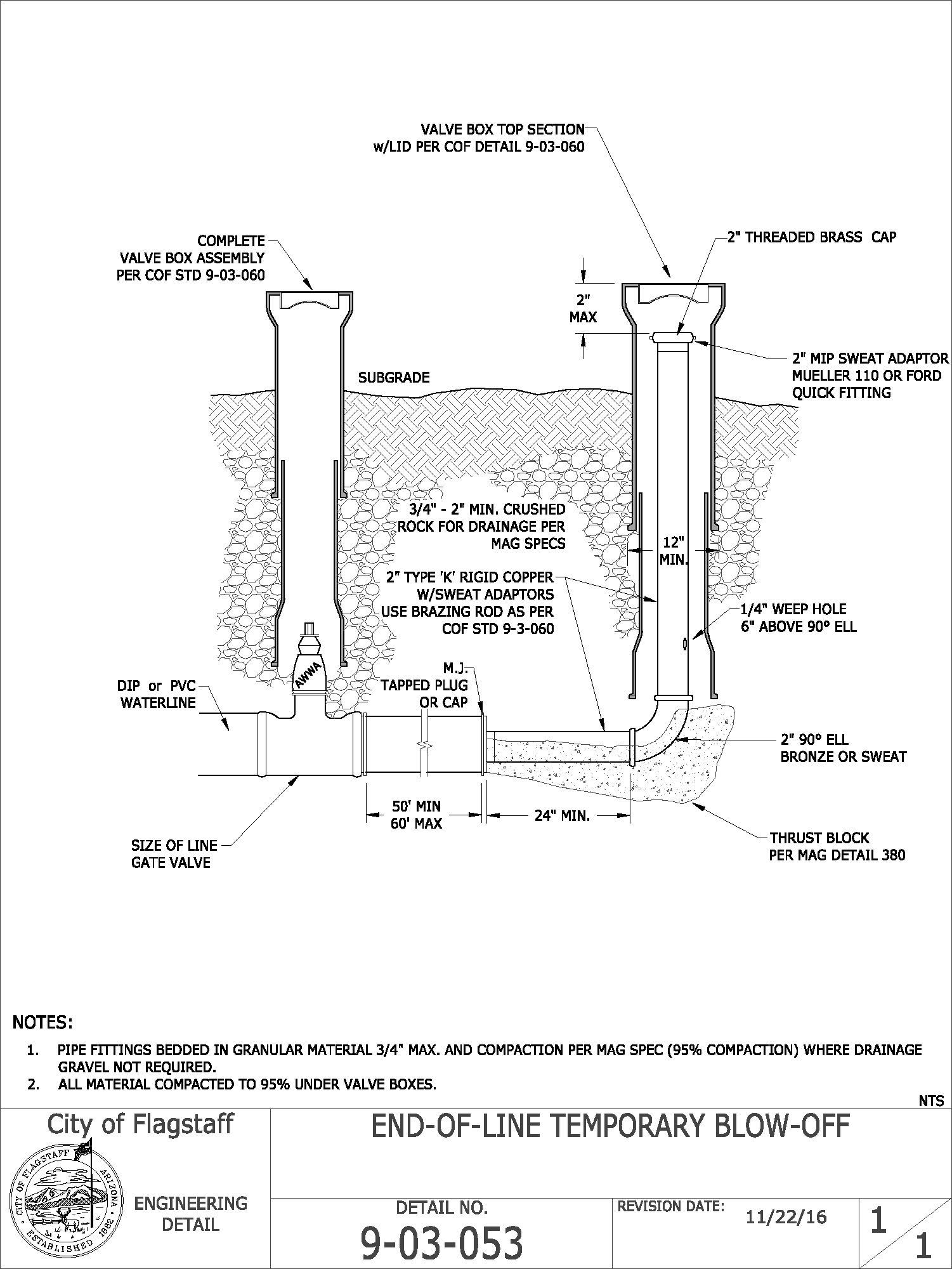

9-03-053 End-of-Line Temporary Blow-Off

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

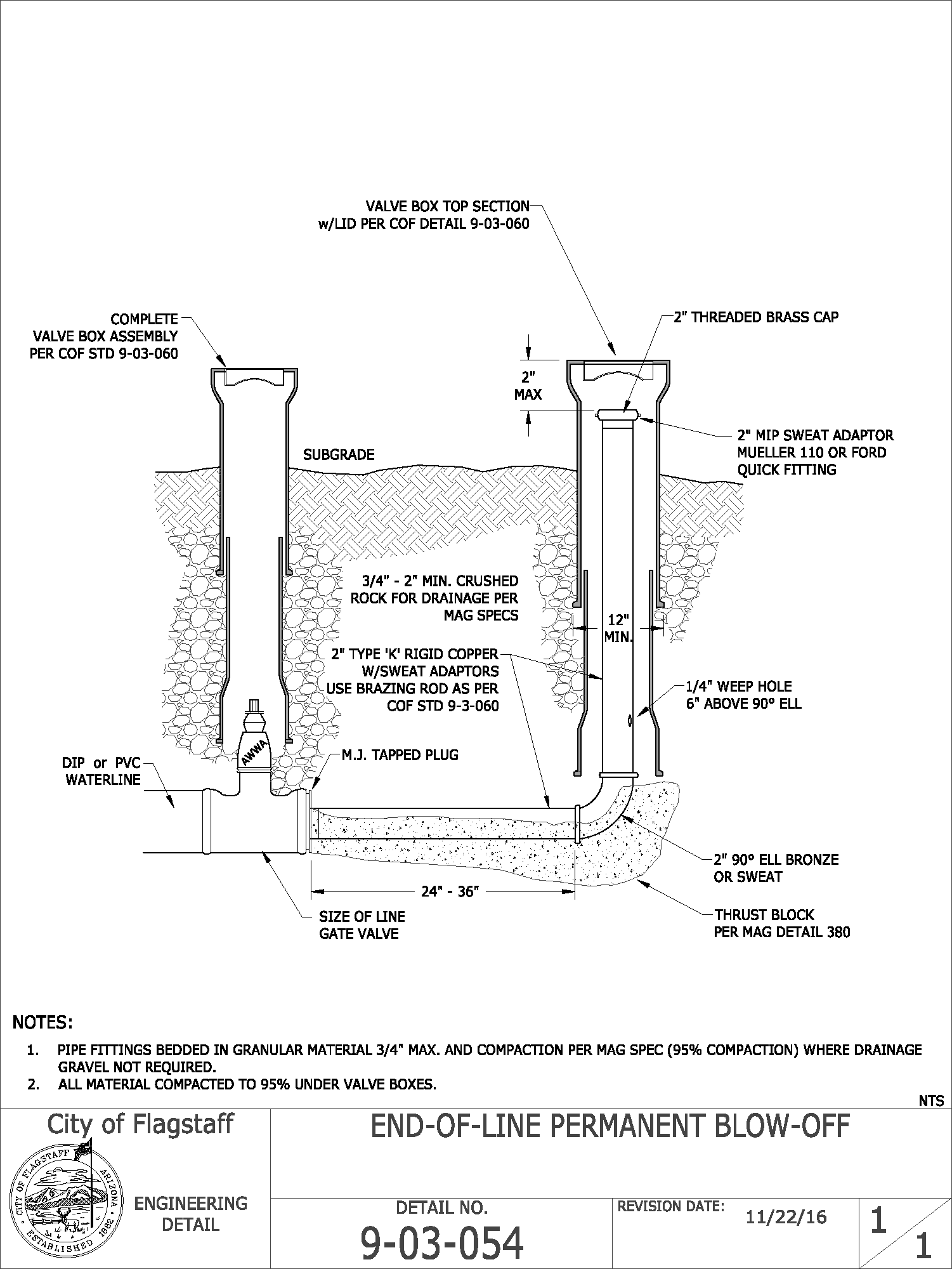

9-03-054 End-of-Line Permanent Blow-Off

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

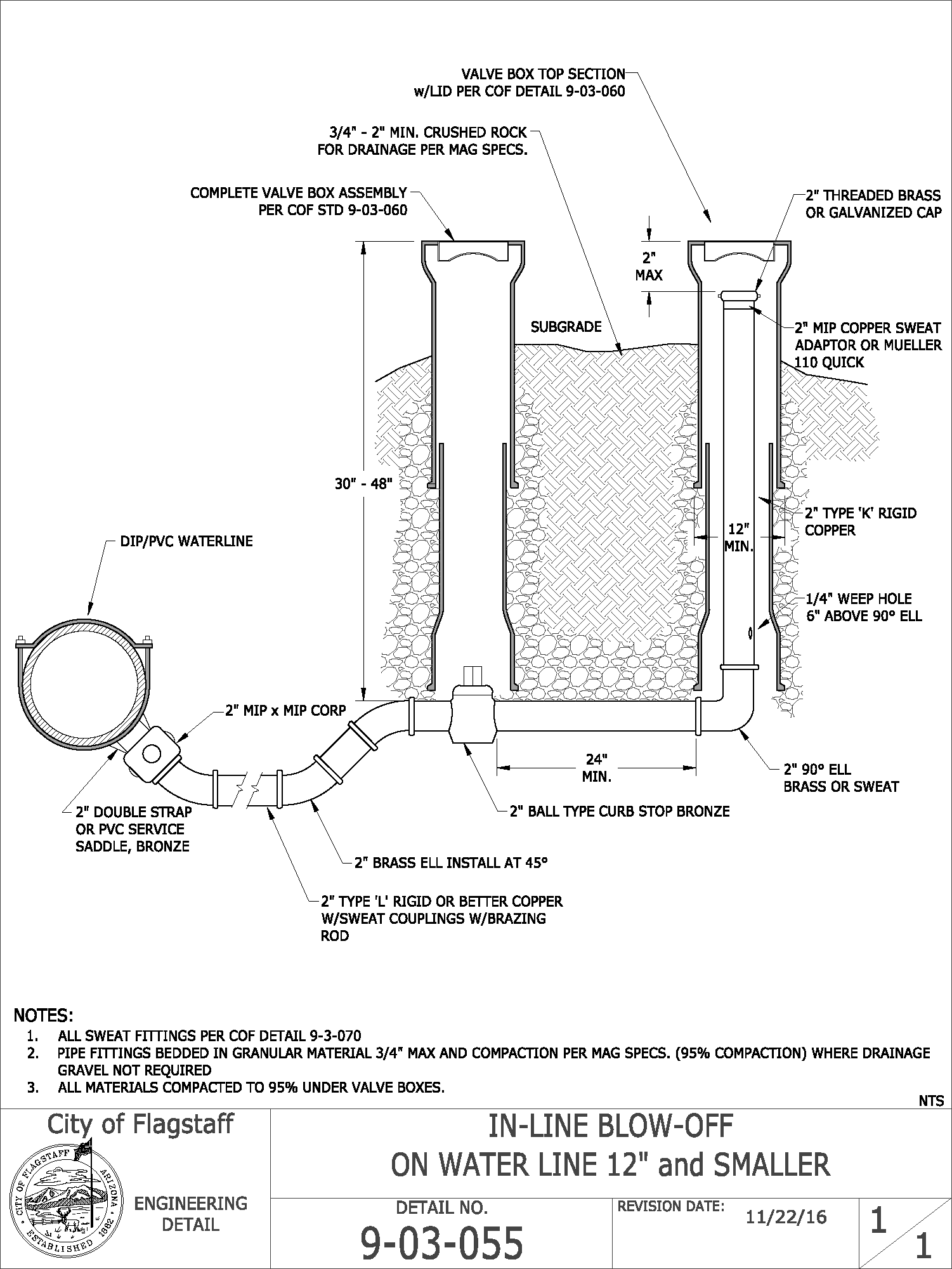

9-03-055 In-Line Blow-Off on Water Line 12" and Smaller

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

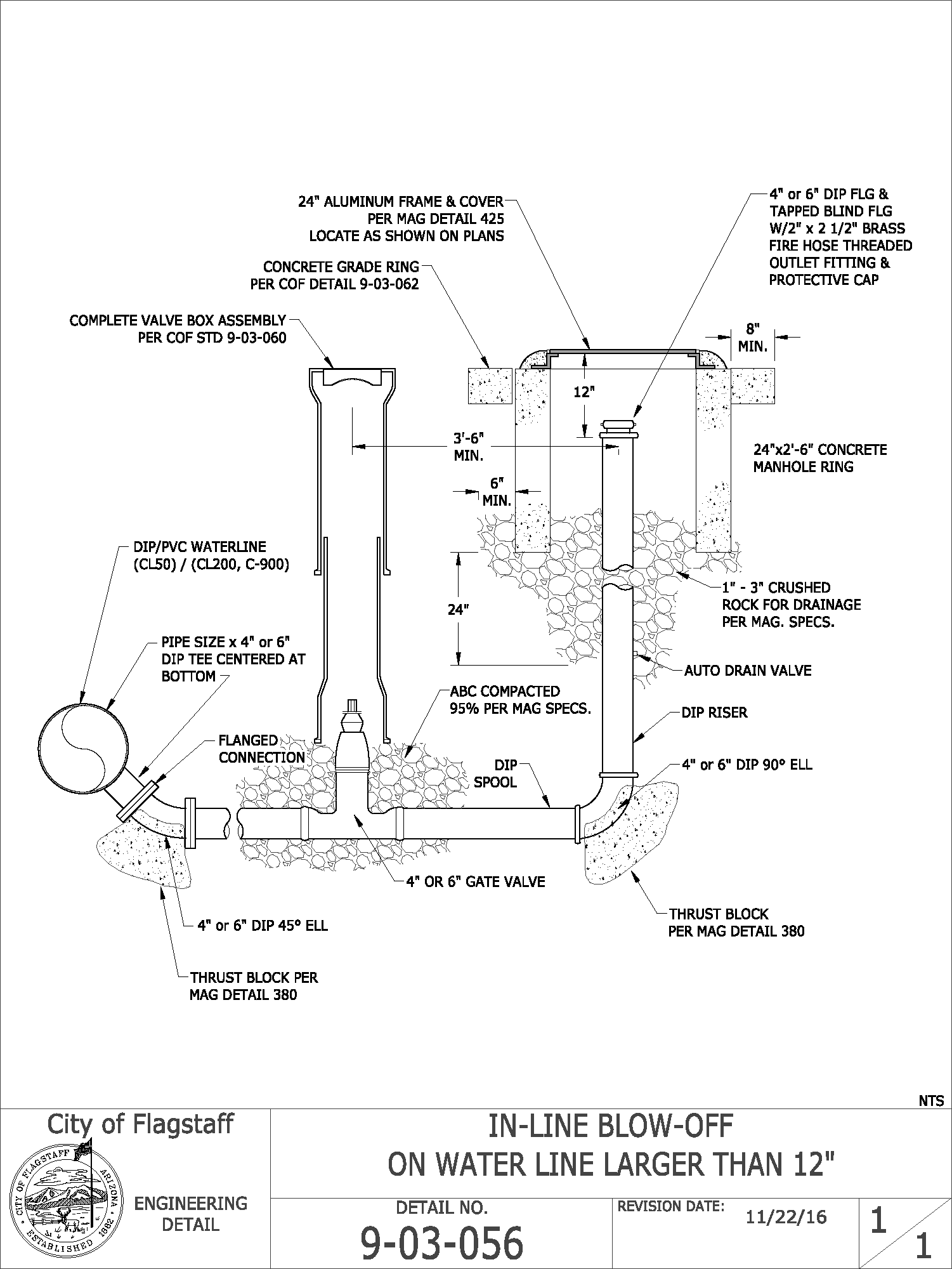

9-03-056 In-Line Blow-Off on Water Line Larger than 12"

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

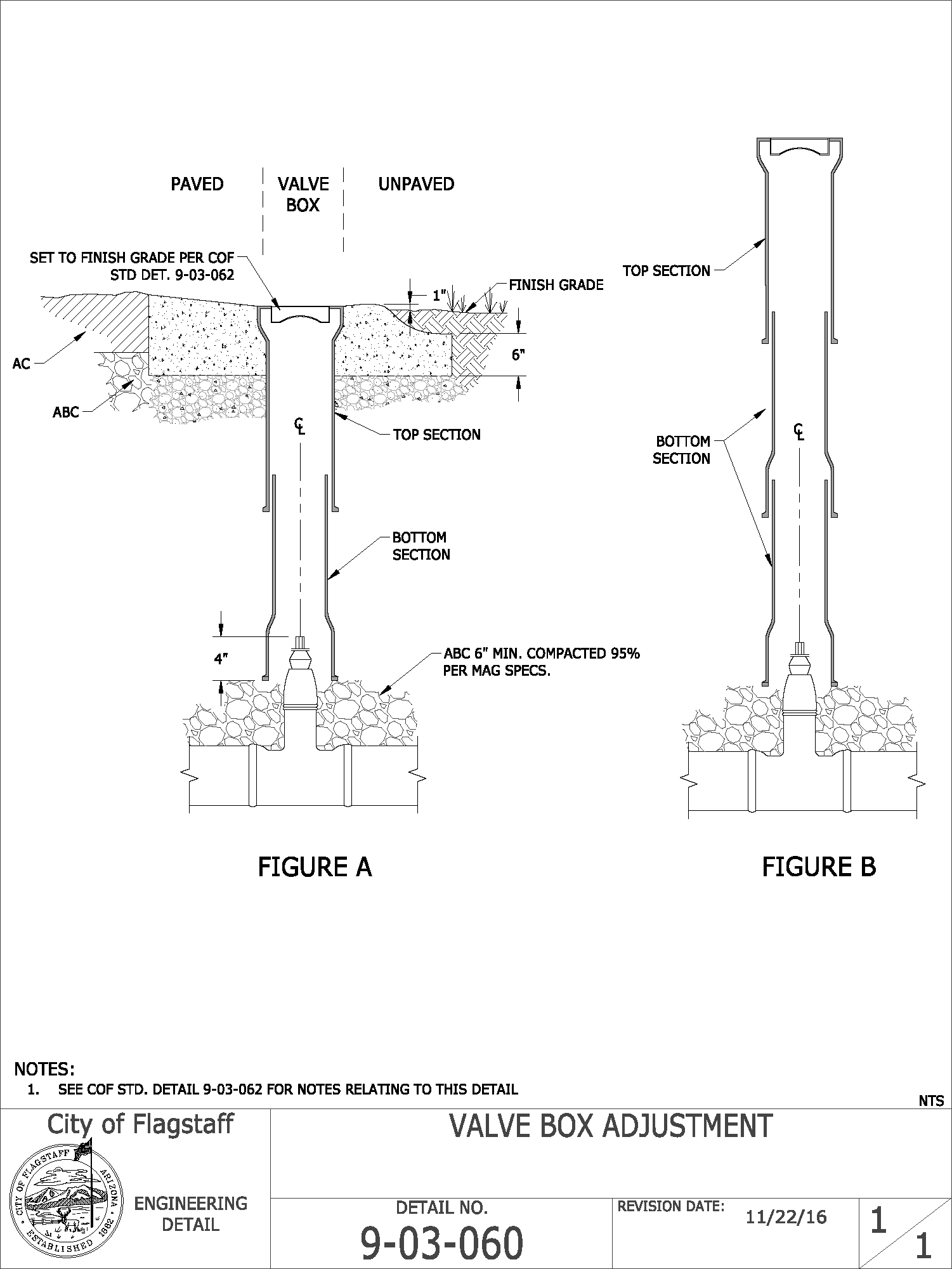

9-03-060 Valve Box Adjustment

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

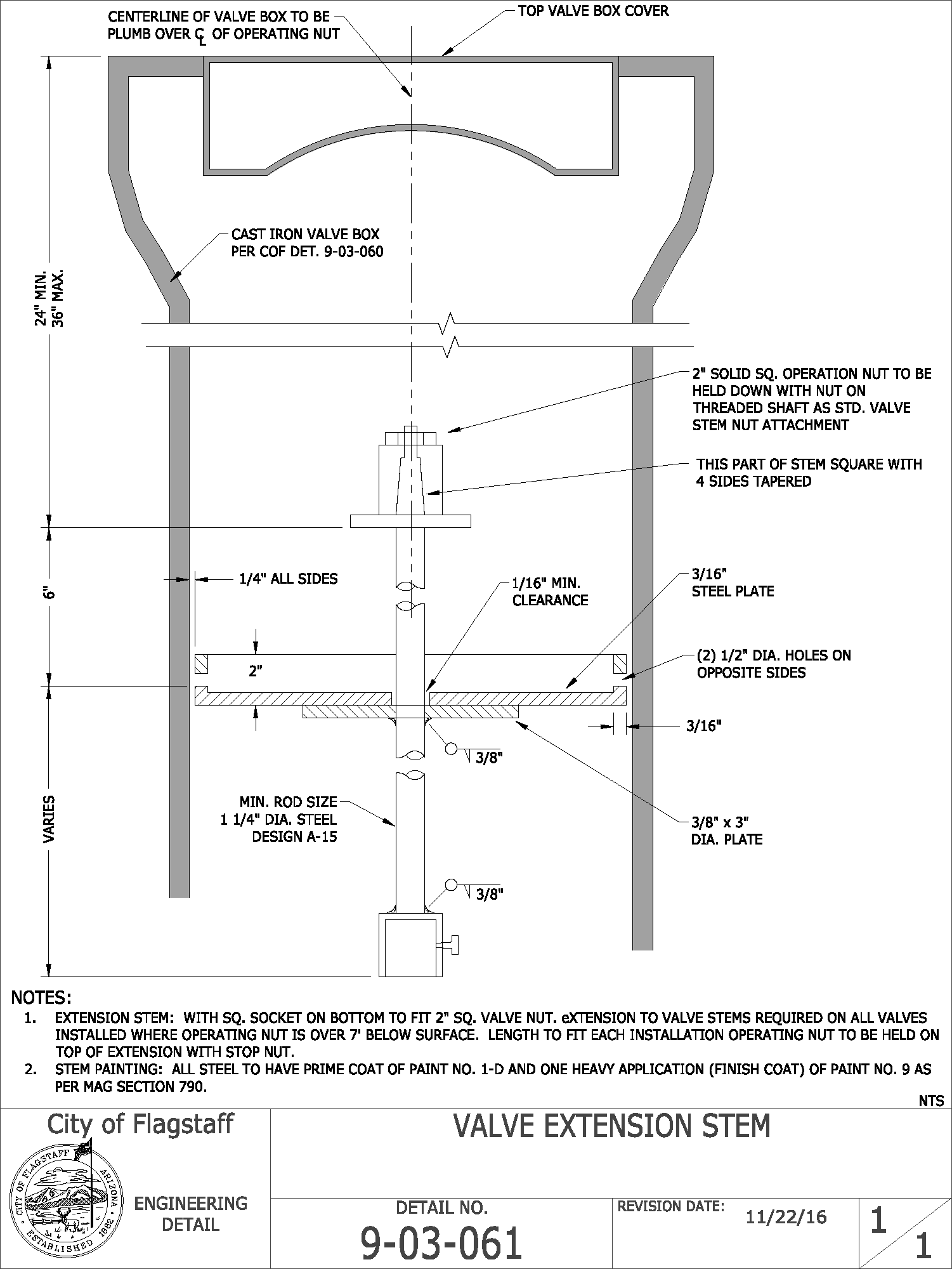

9-03-061 Valve Extension Stem

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

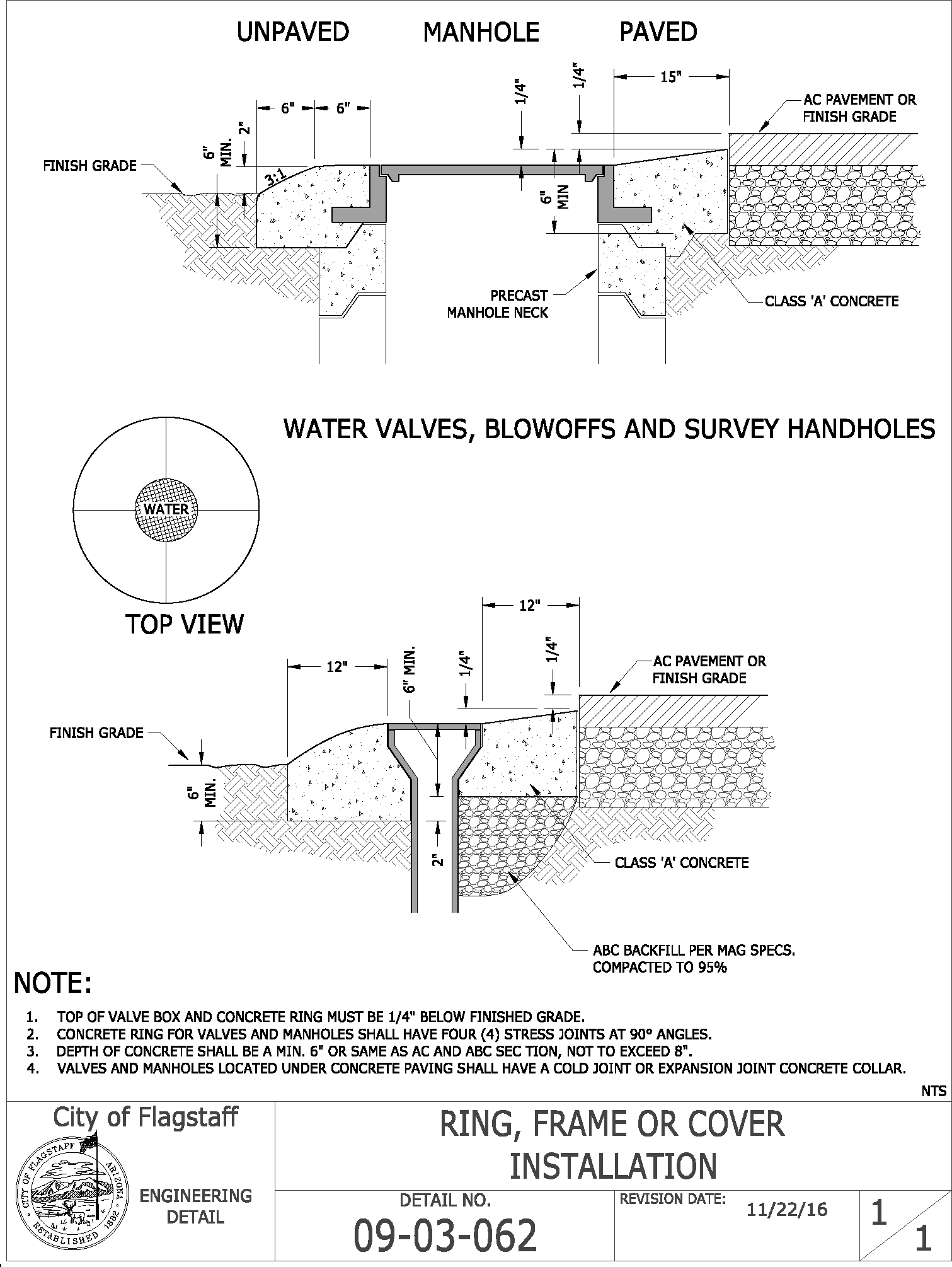

9-03-062 Ring, Frame or Cover Installation

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

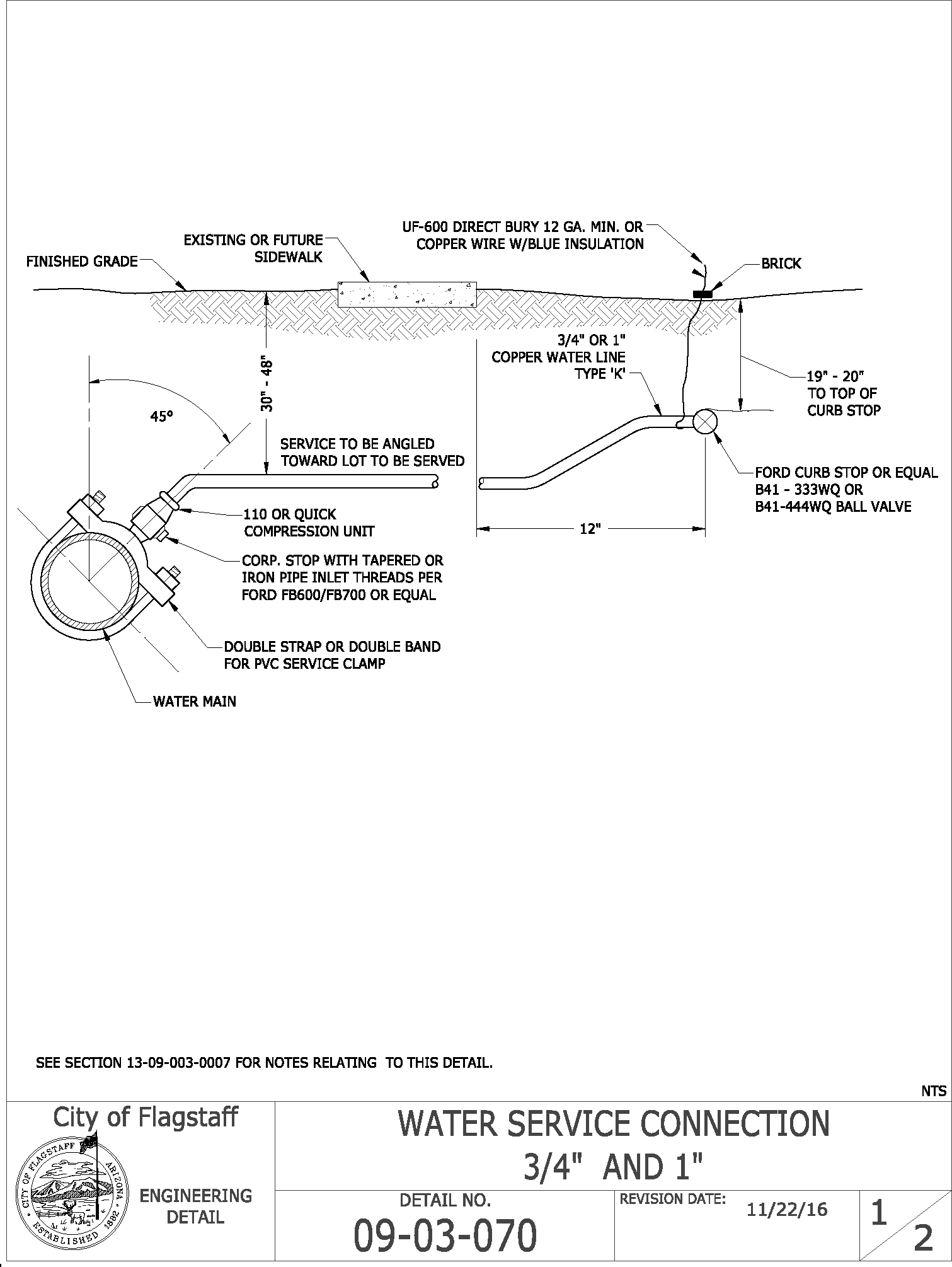

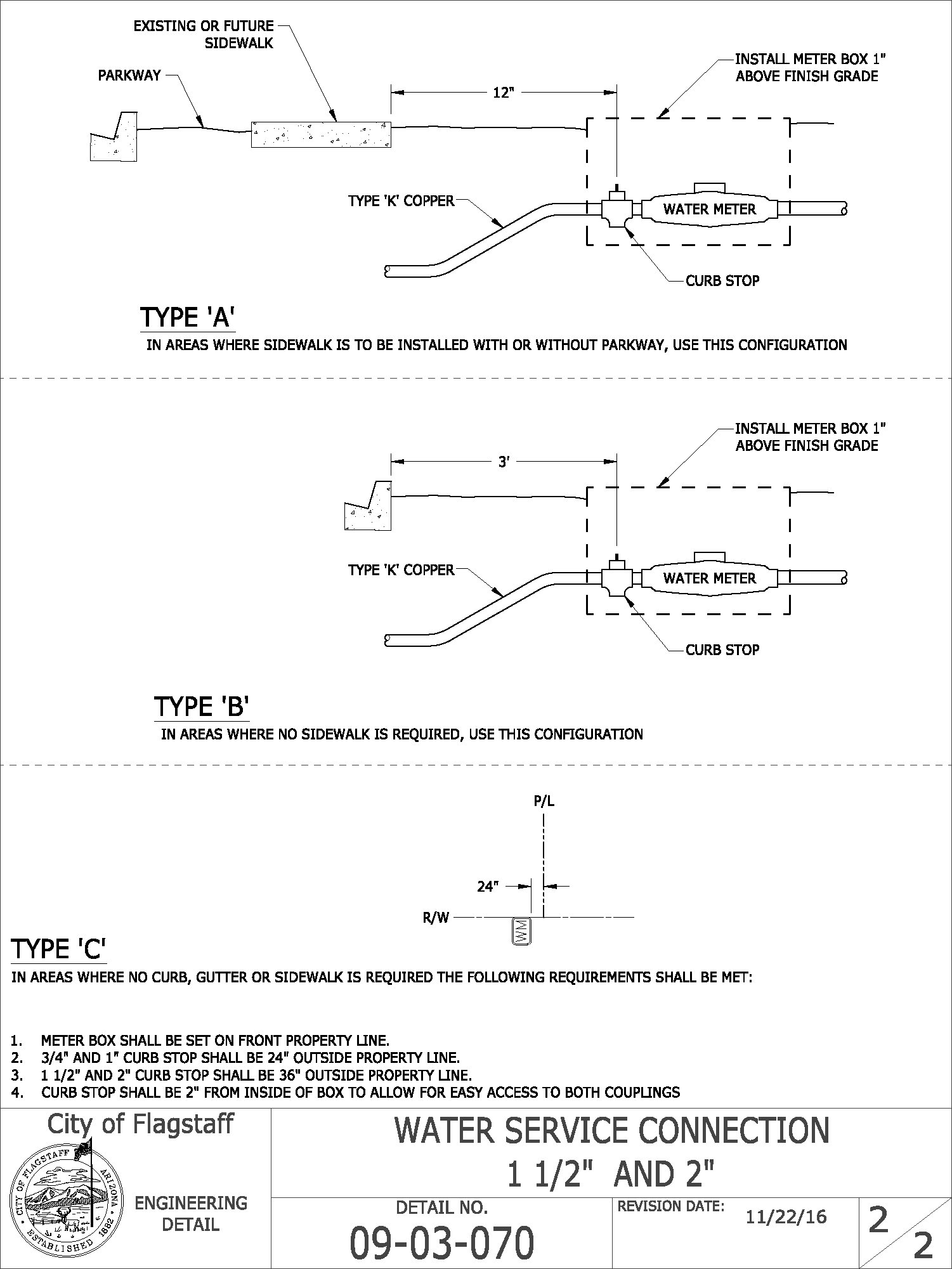

9-03-070 Water Service Connection 3/4" and 1"

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

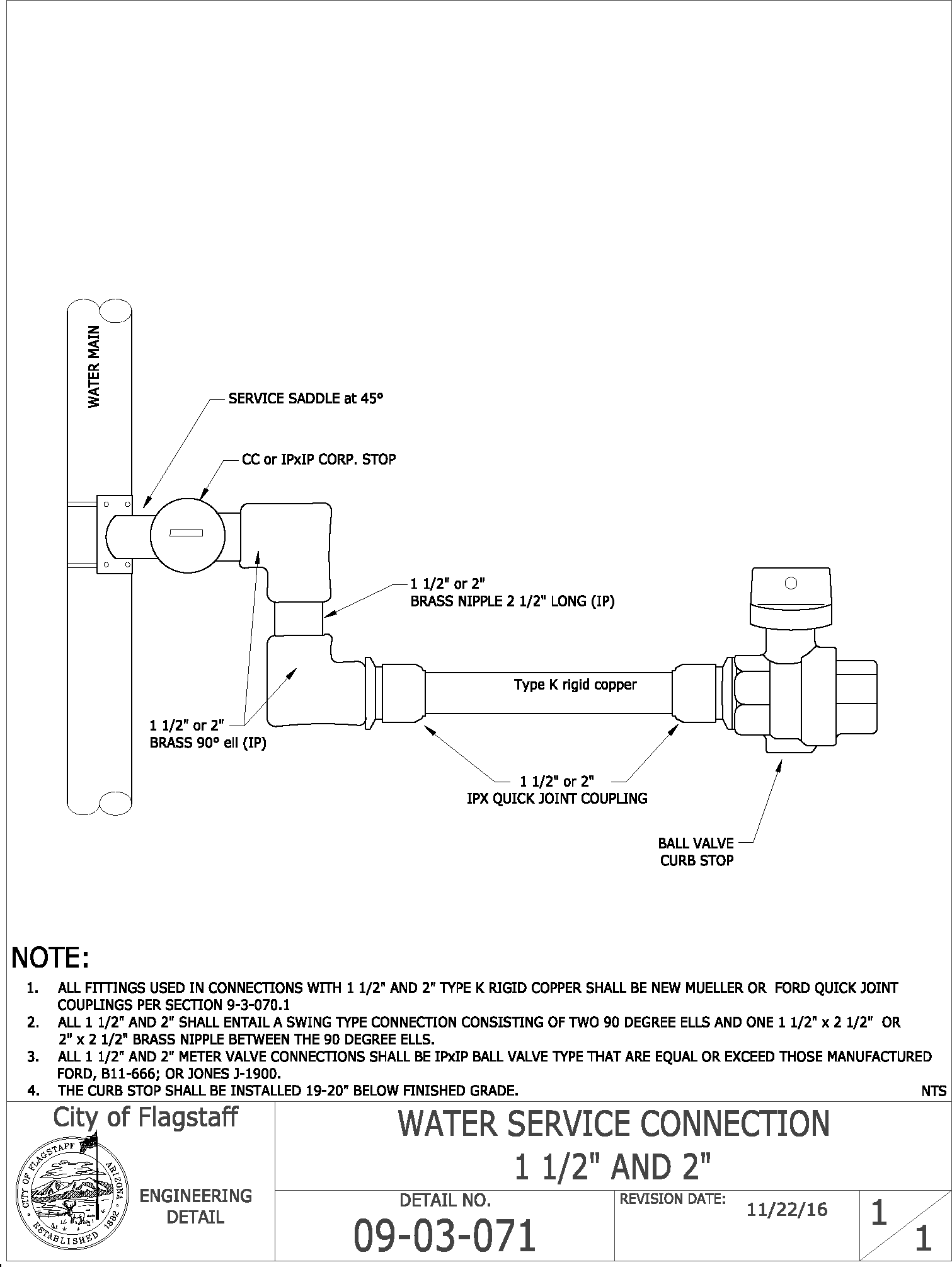

9-03-071 Water Service Connection 1-1/2" and 2"

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

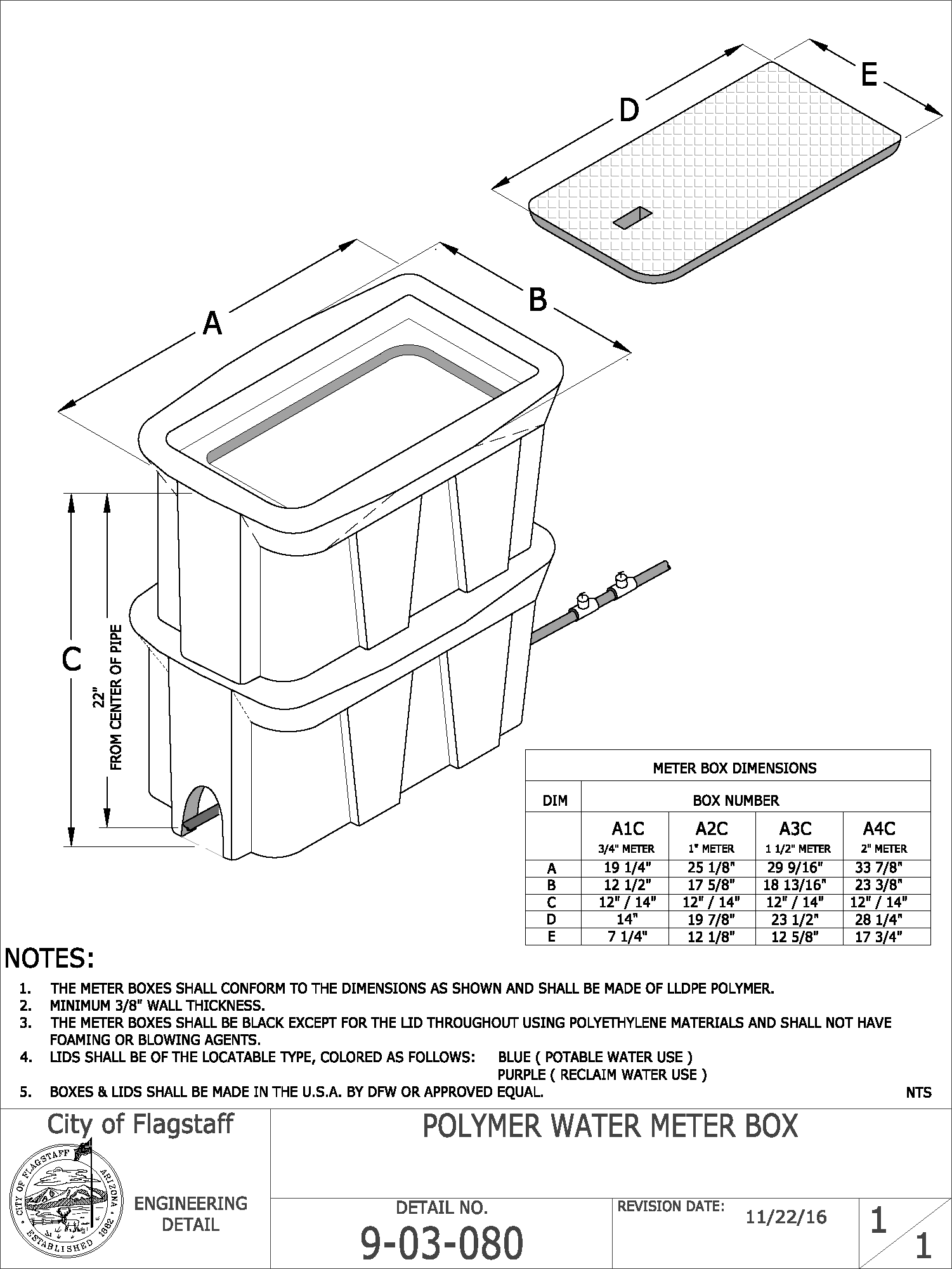

9-03-080 Polymer Water Meter Box

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

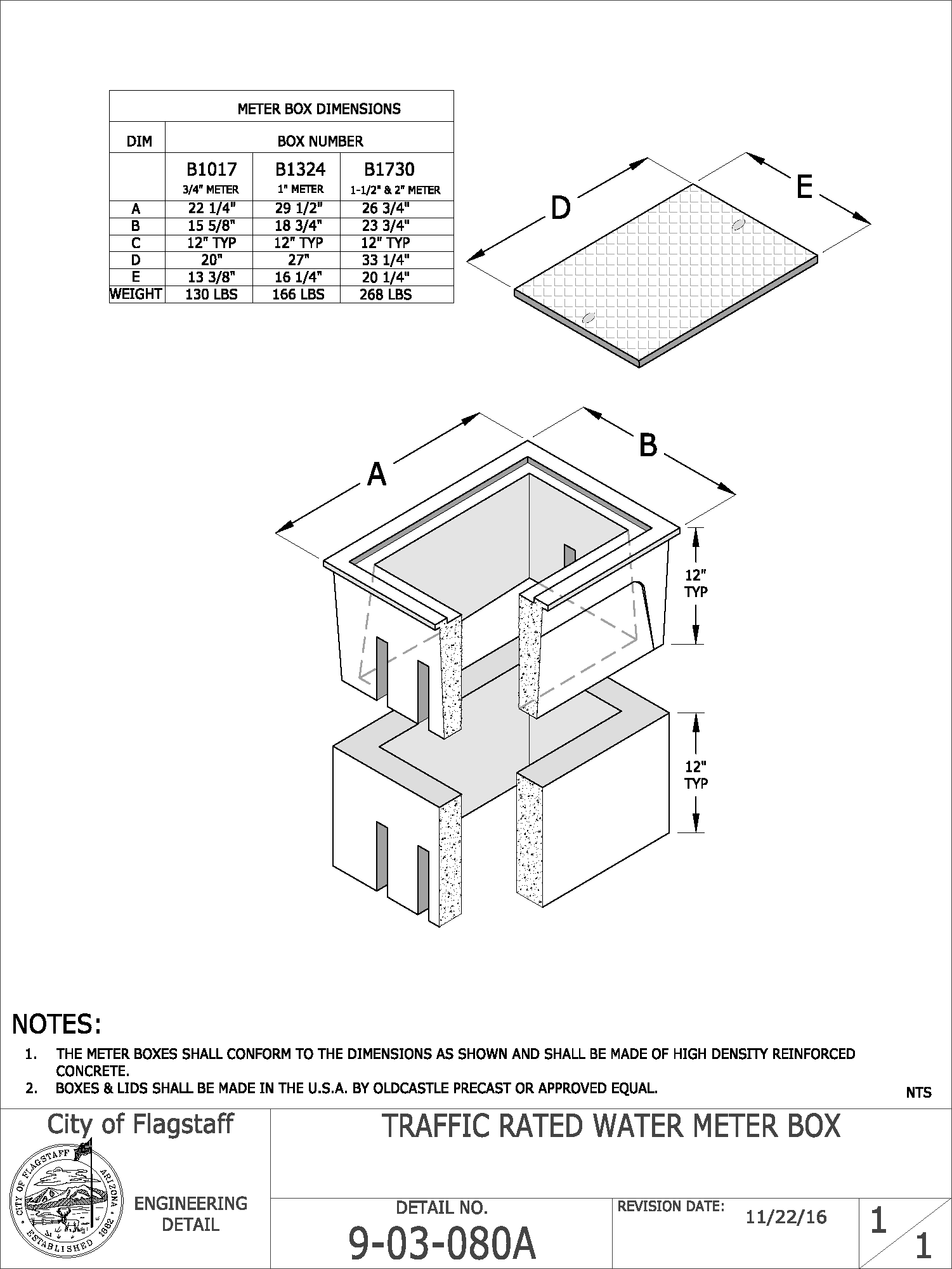

9-03-080A Traffic Rated Water Meter Box

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

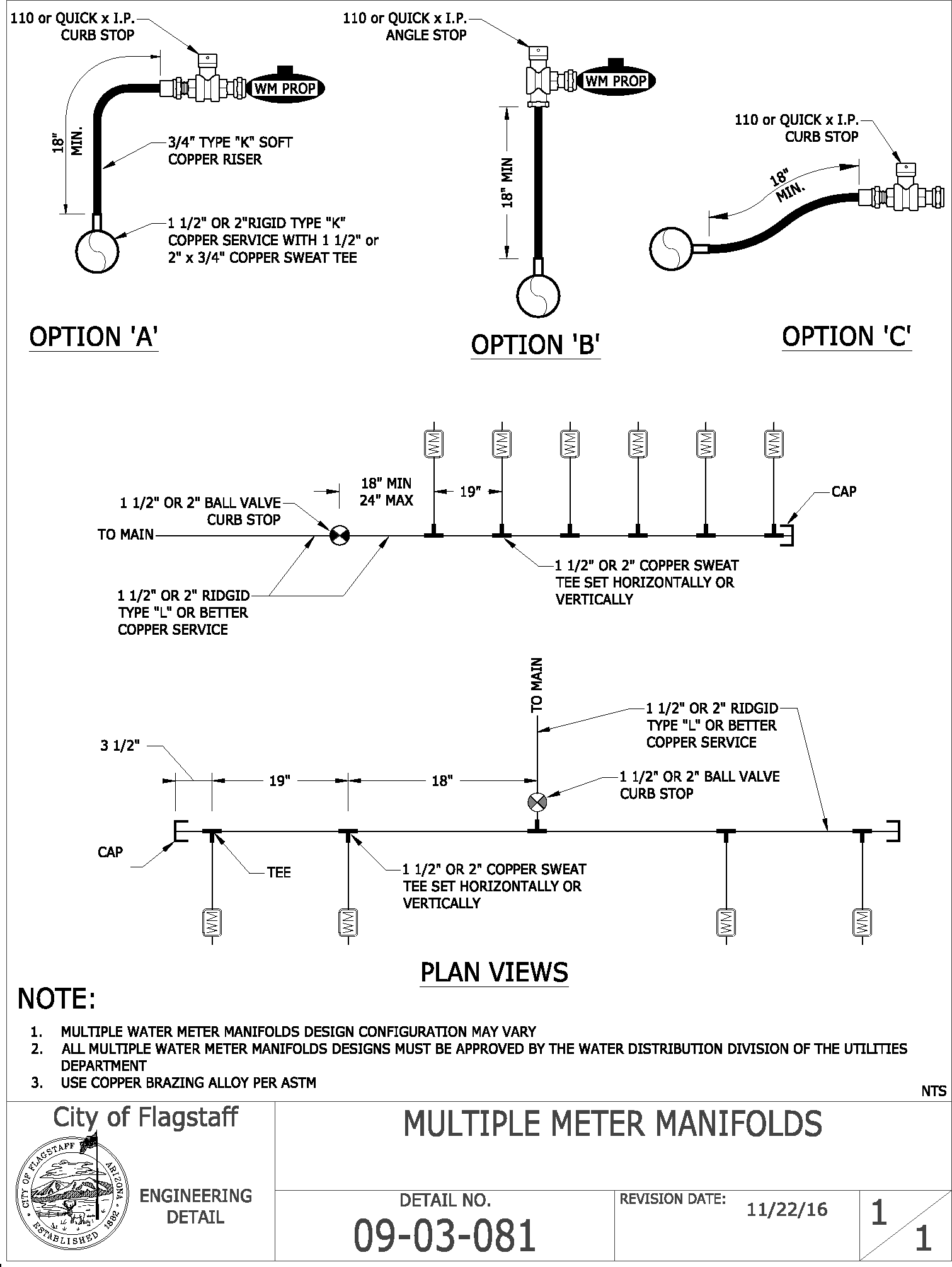

9-03-081 Multiple Meter Manifolds

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

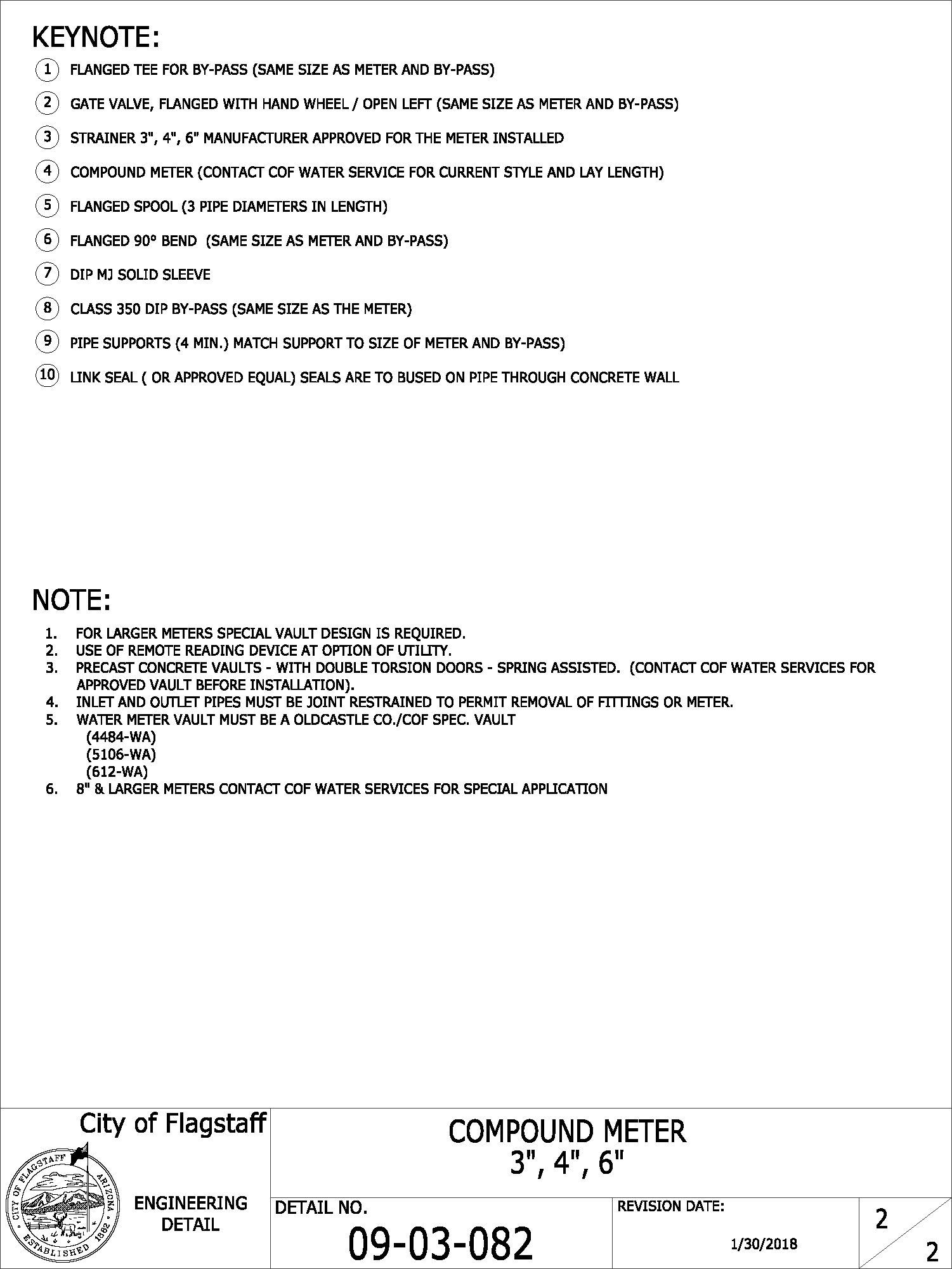

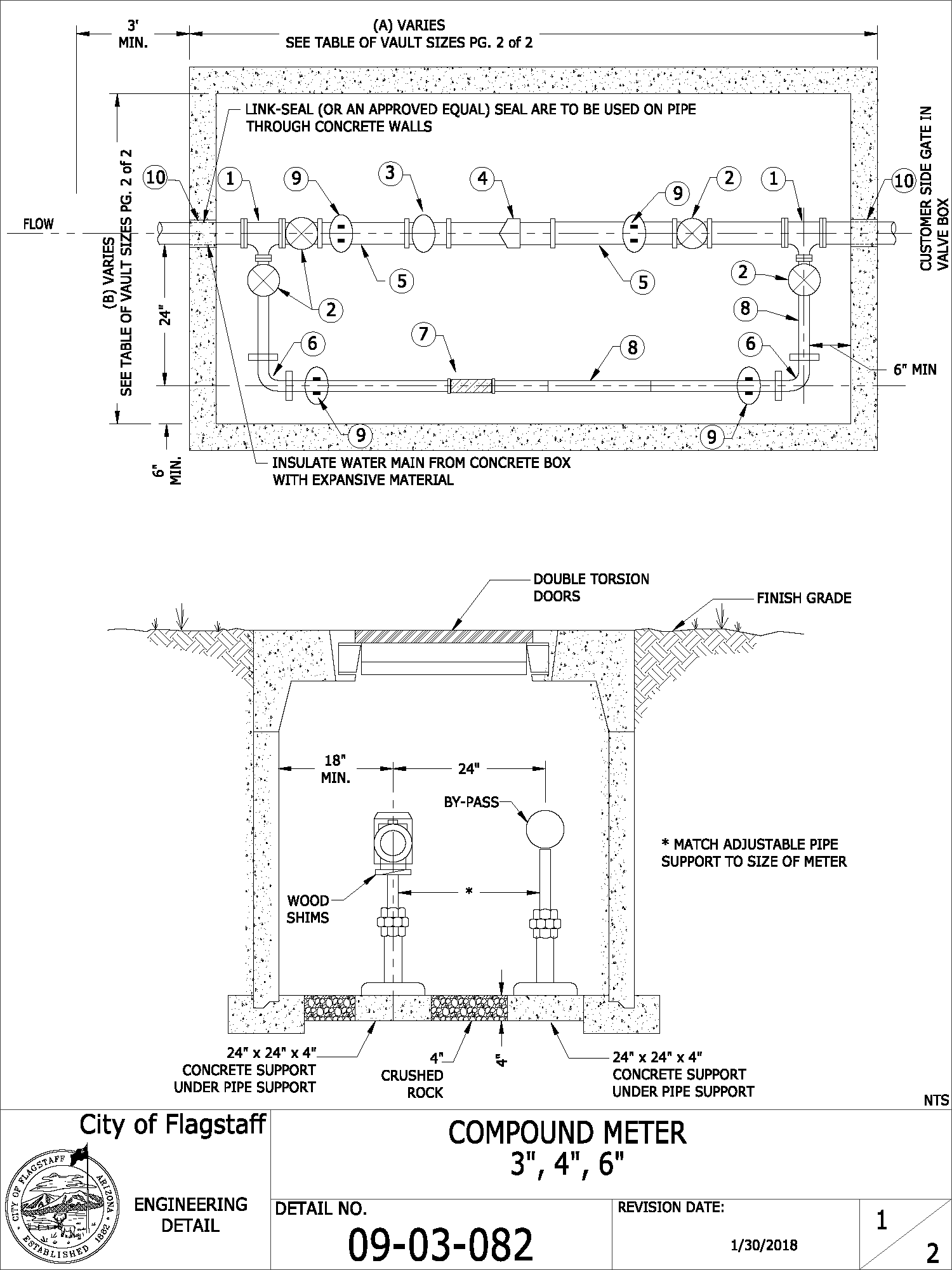

9-03-082 Compound Meter 3", 4", 6"

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

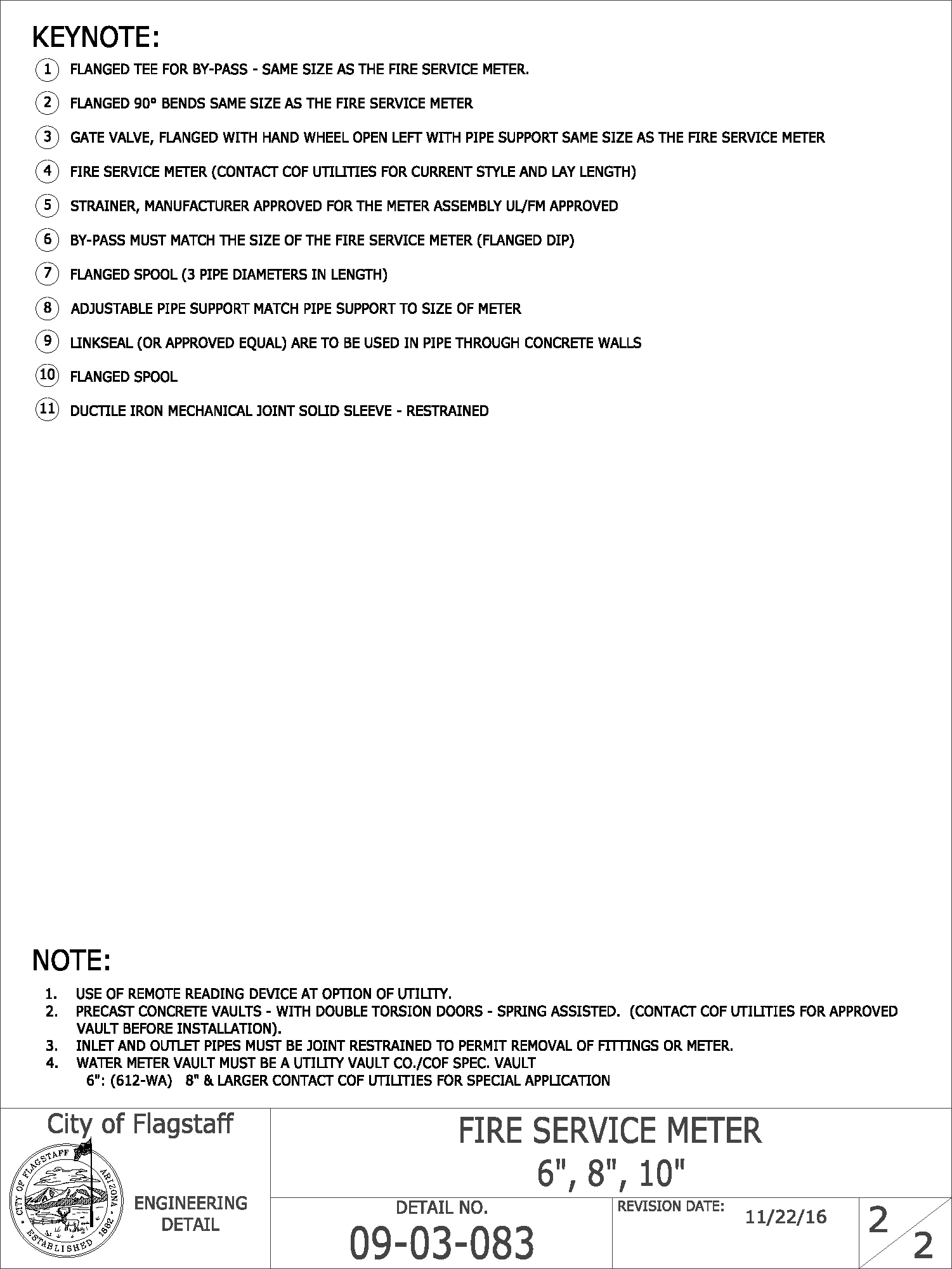

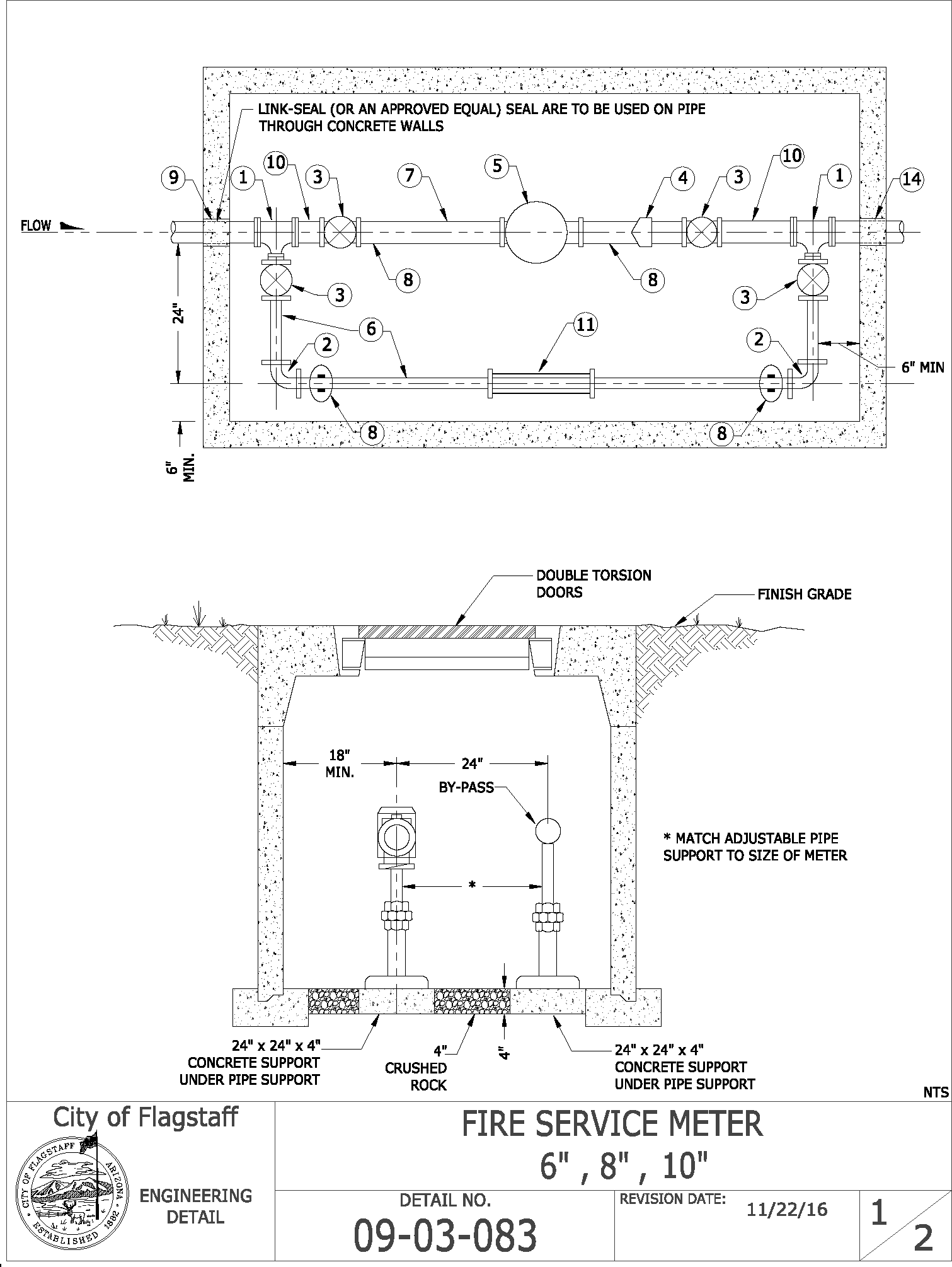

9-03-083 Fire Service Meter 6", 8", 10"

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

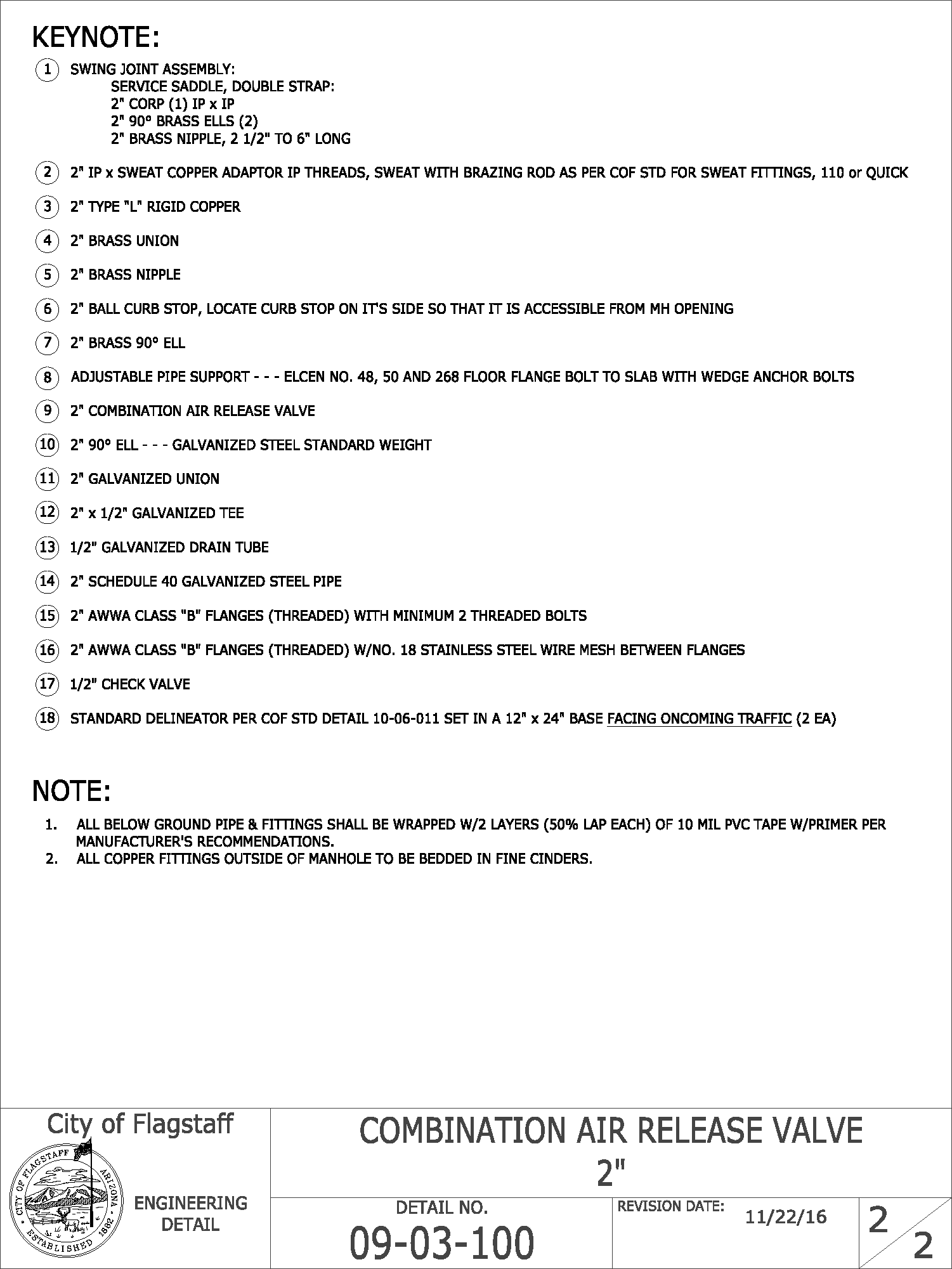

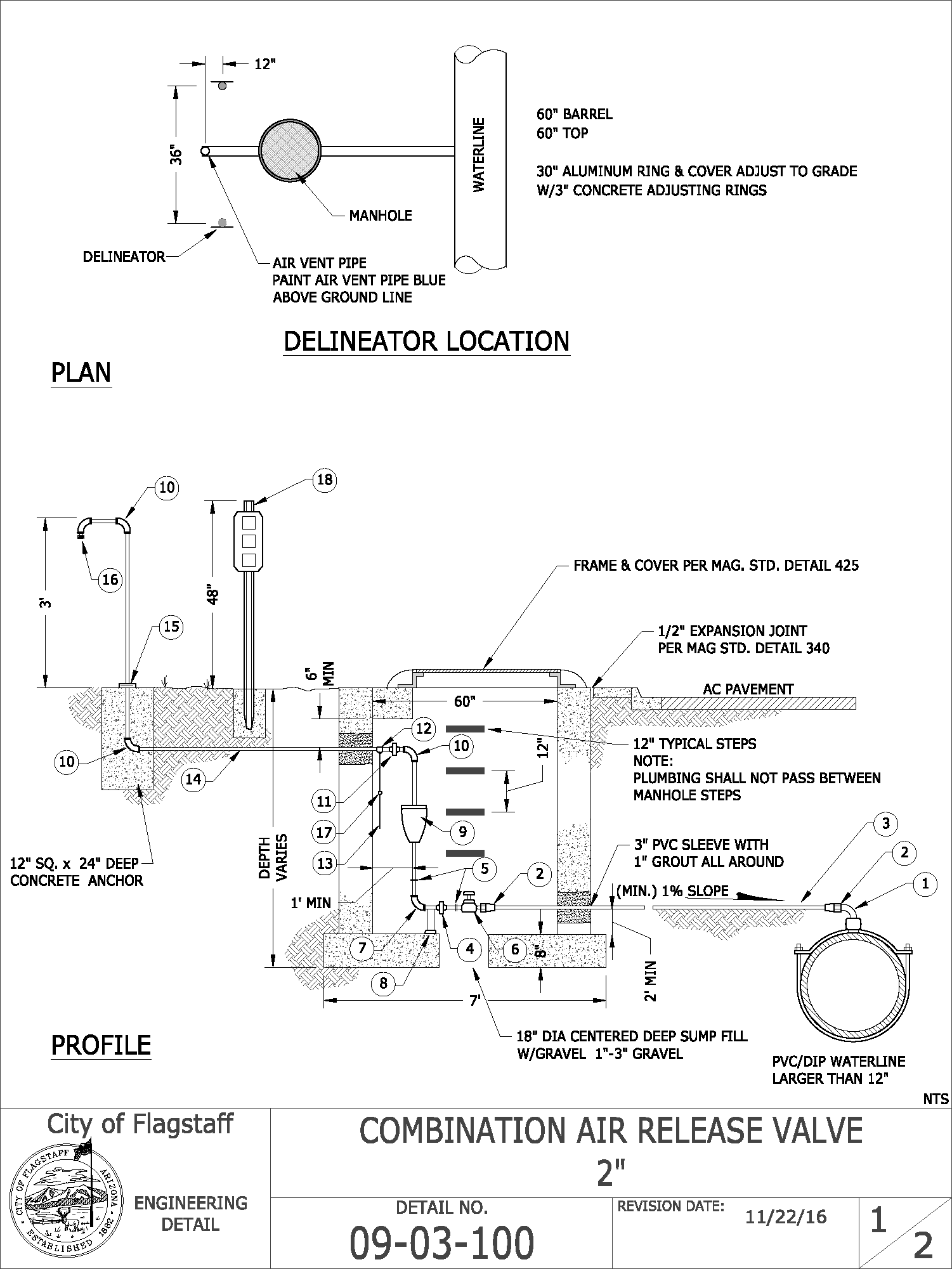

9-03-100 Combination Air Release Valve 2"

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

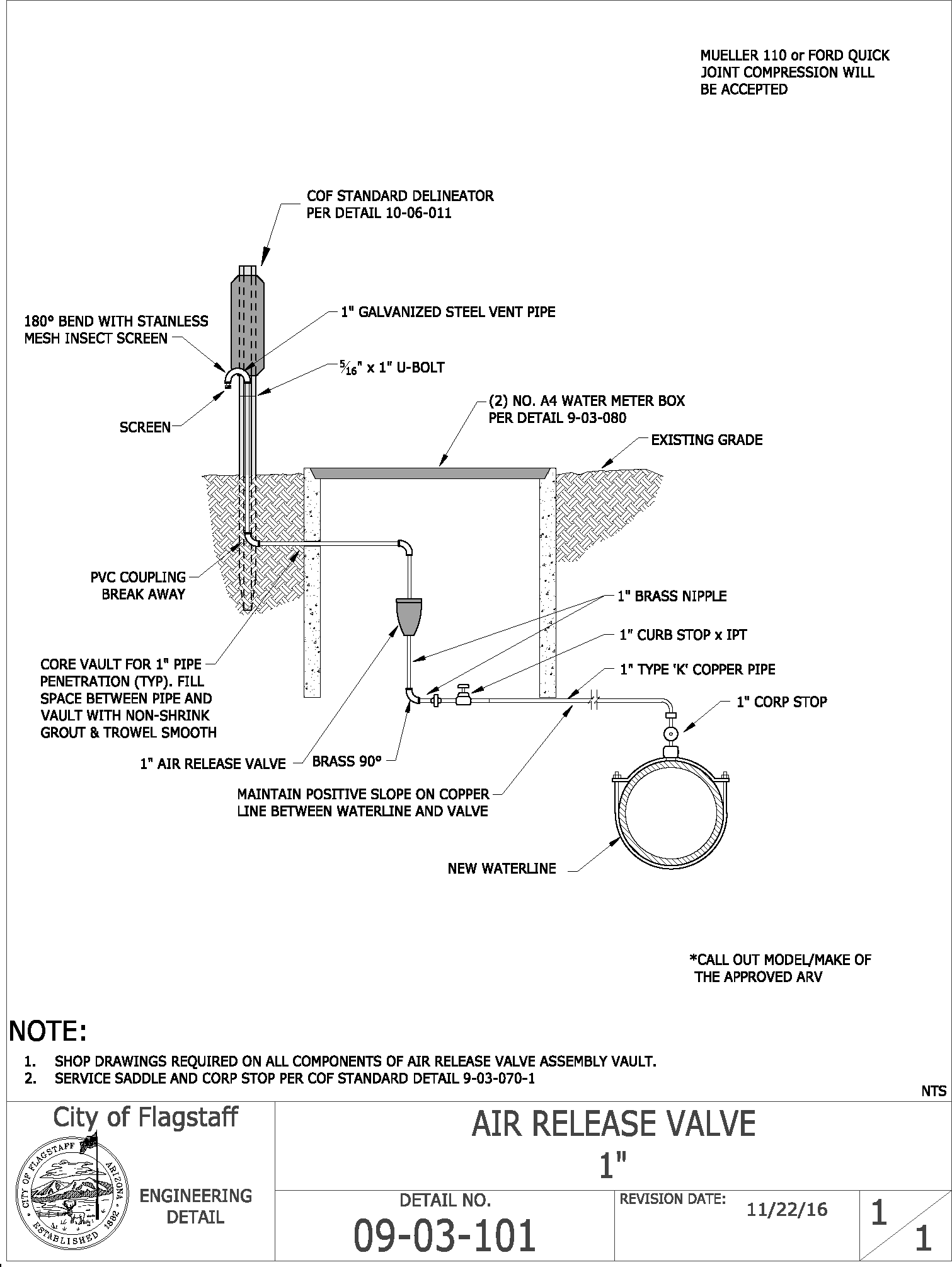

9-03-101 Air Release Valve 1"

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

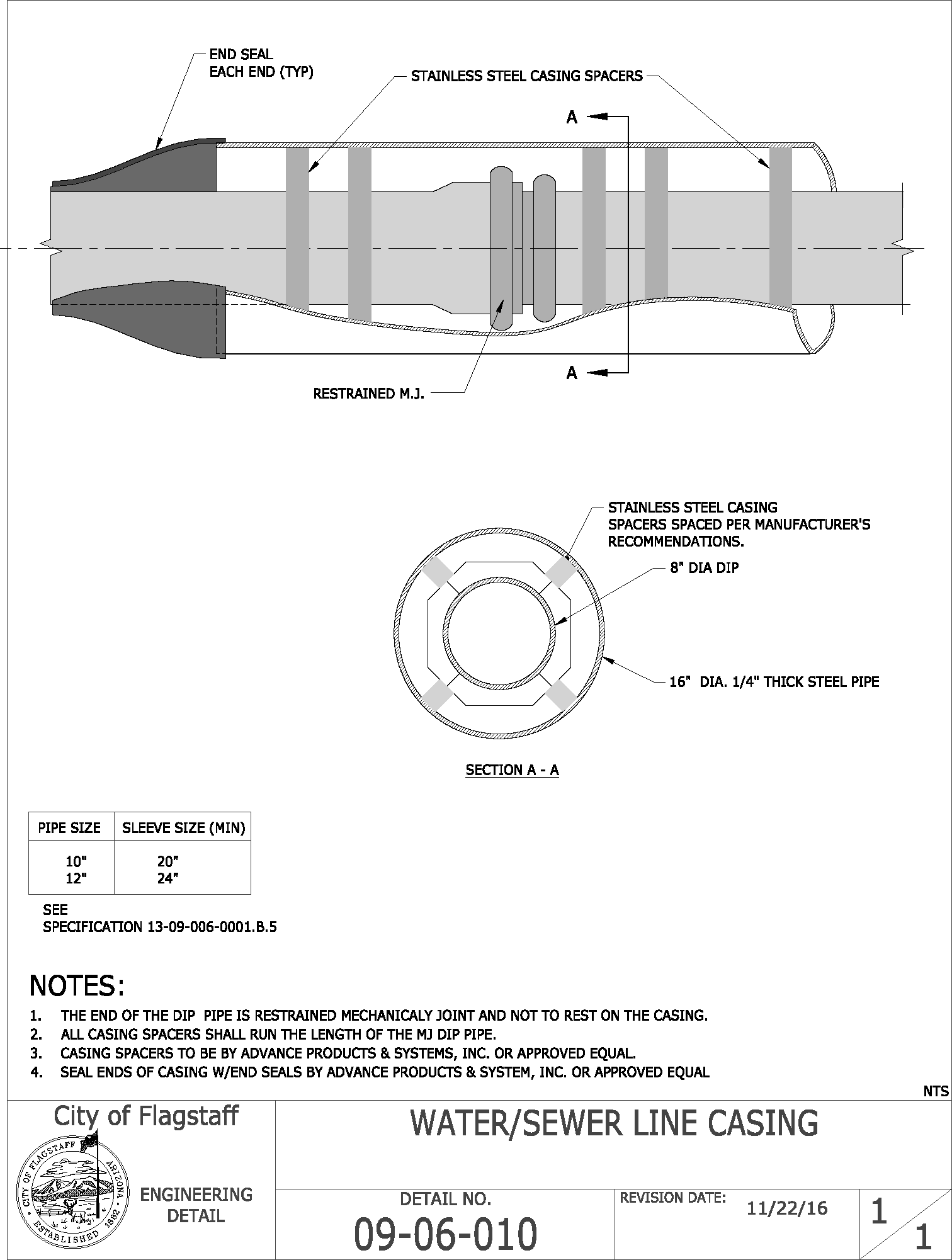

9-06-010 Water/Sewer Line Casing

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

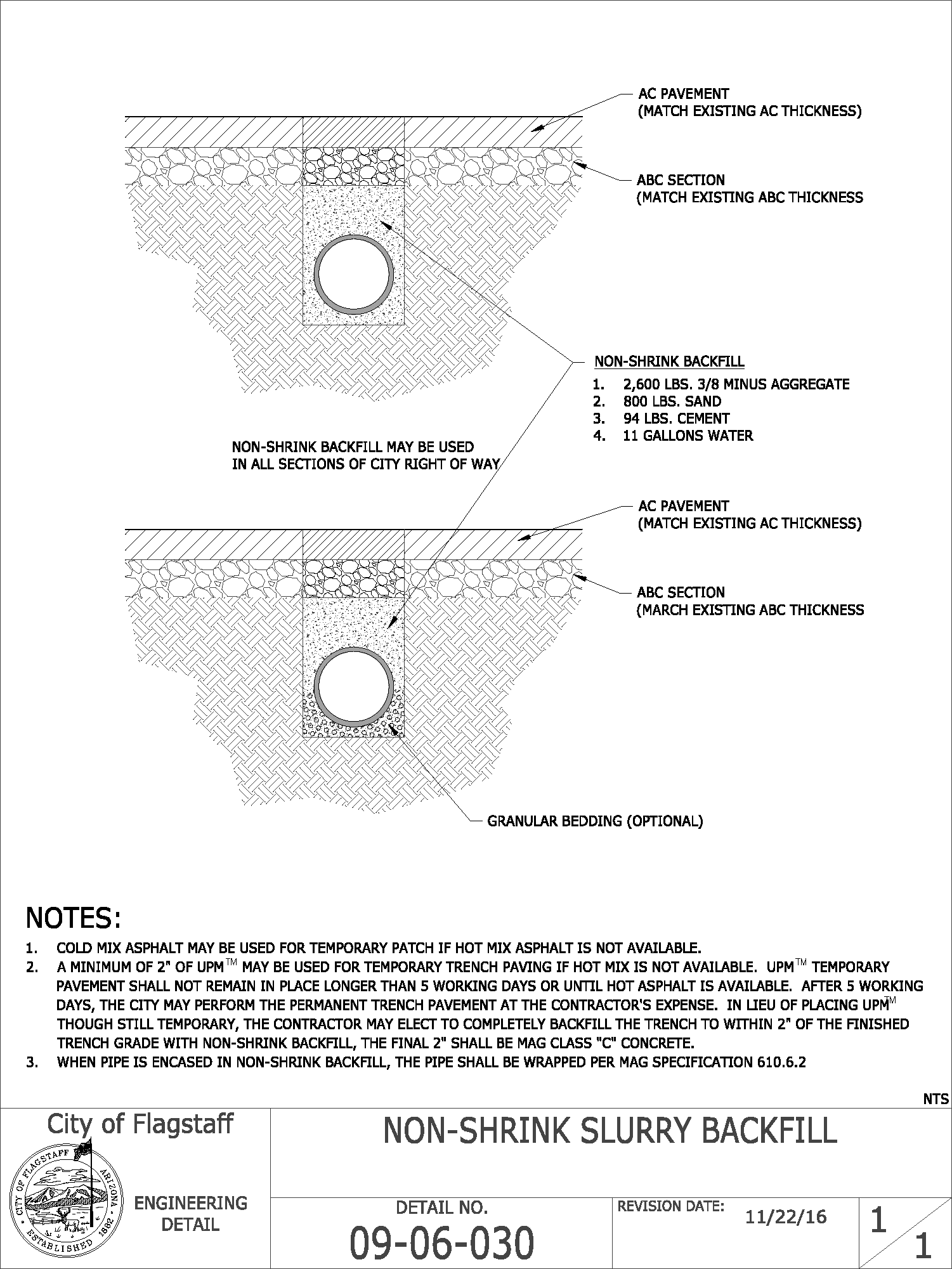

9-06-030 Non-Shrink Slurry Backfill

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

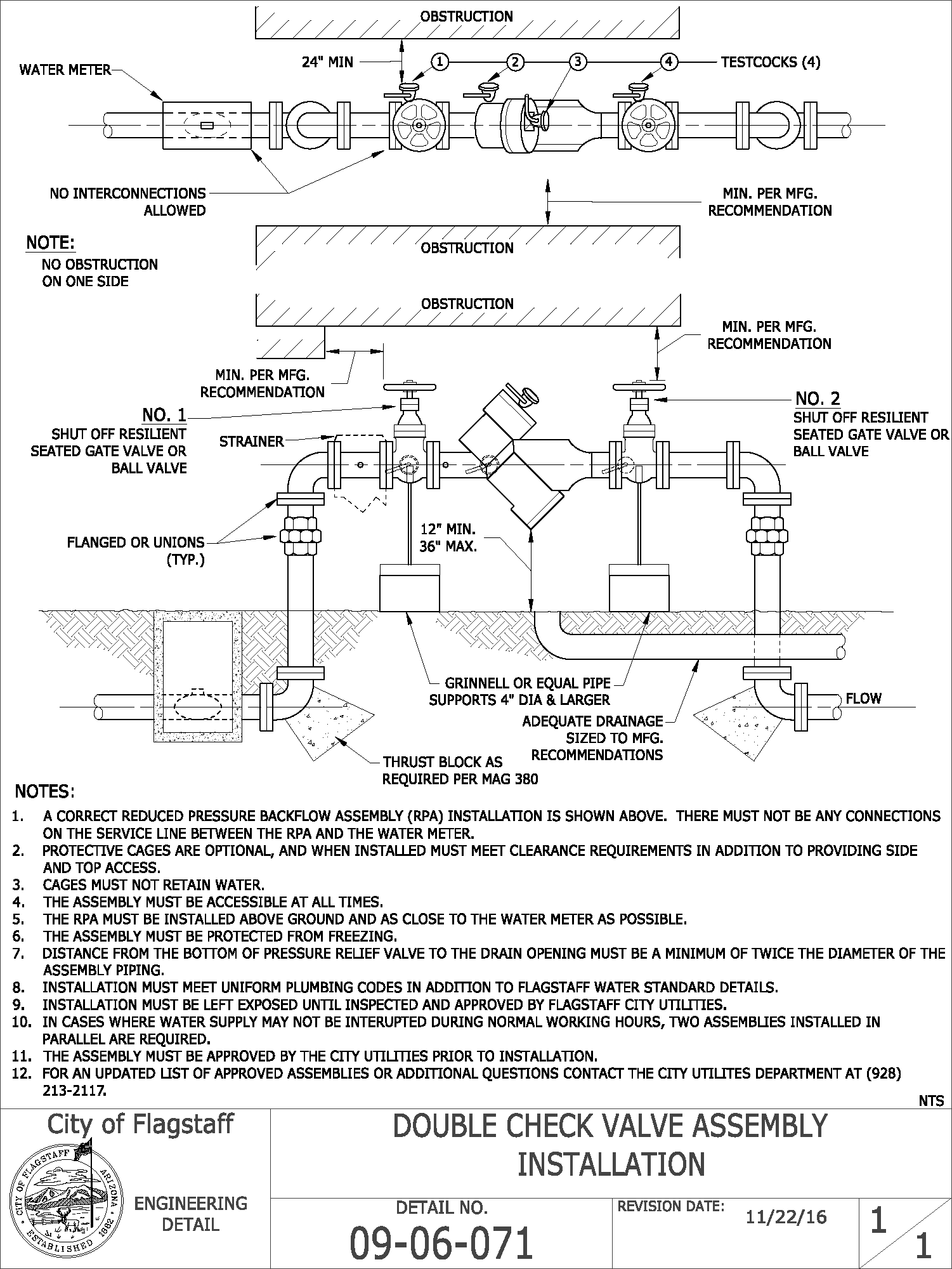

9-06-071 Double Check Valve Assembly Installation

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

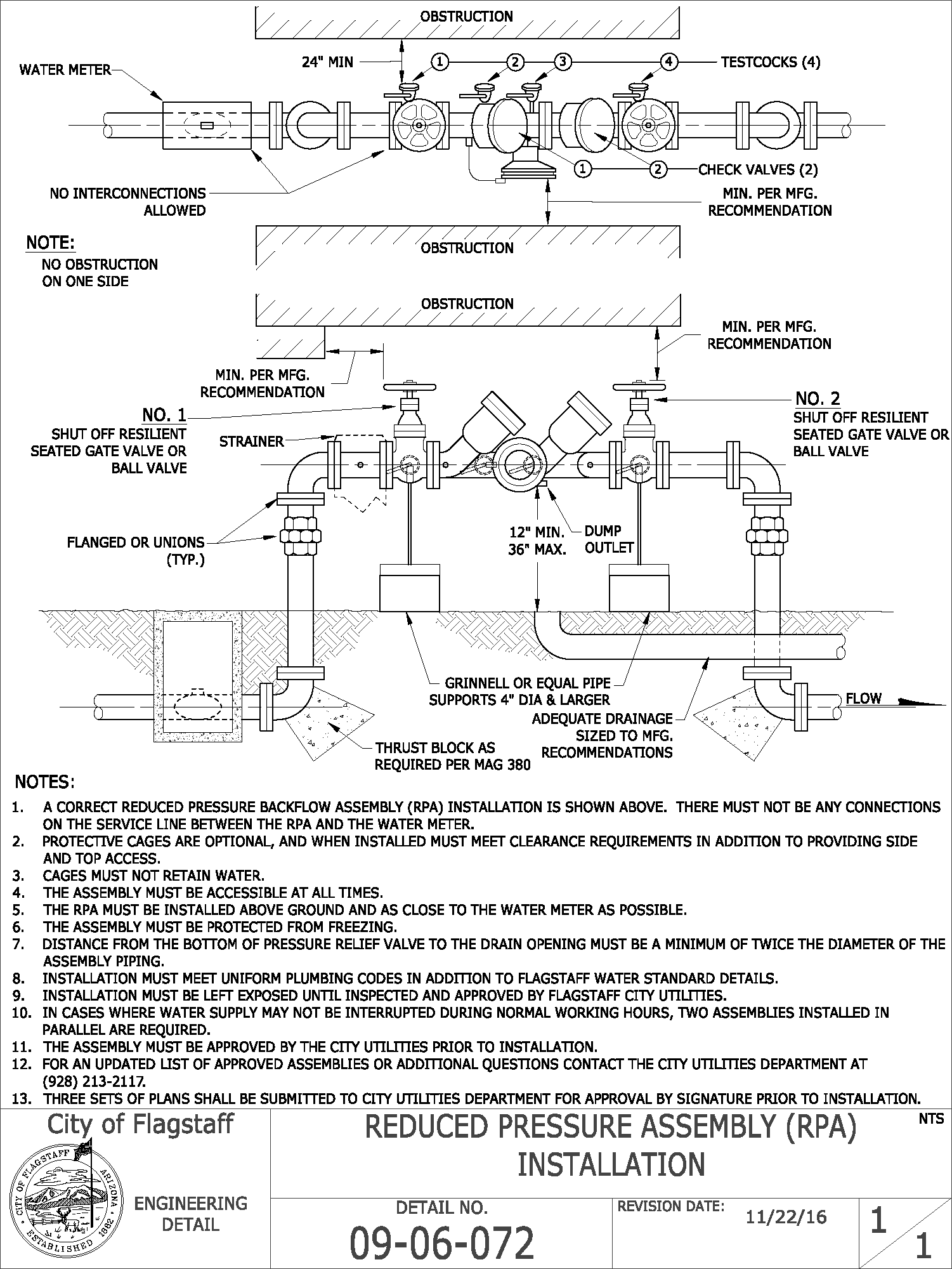

9-06-072 Reduced Pressure Assembly (RPA) Installation

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

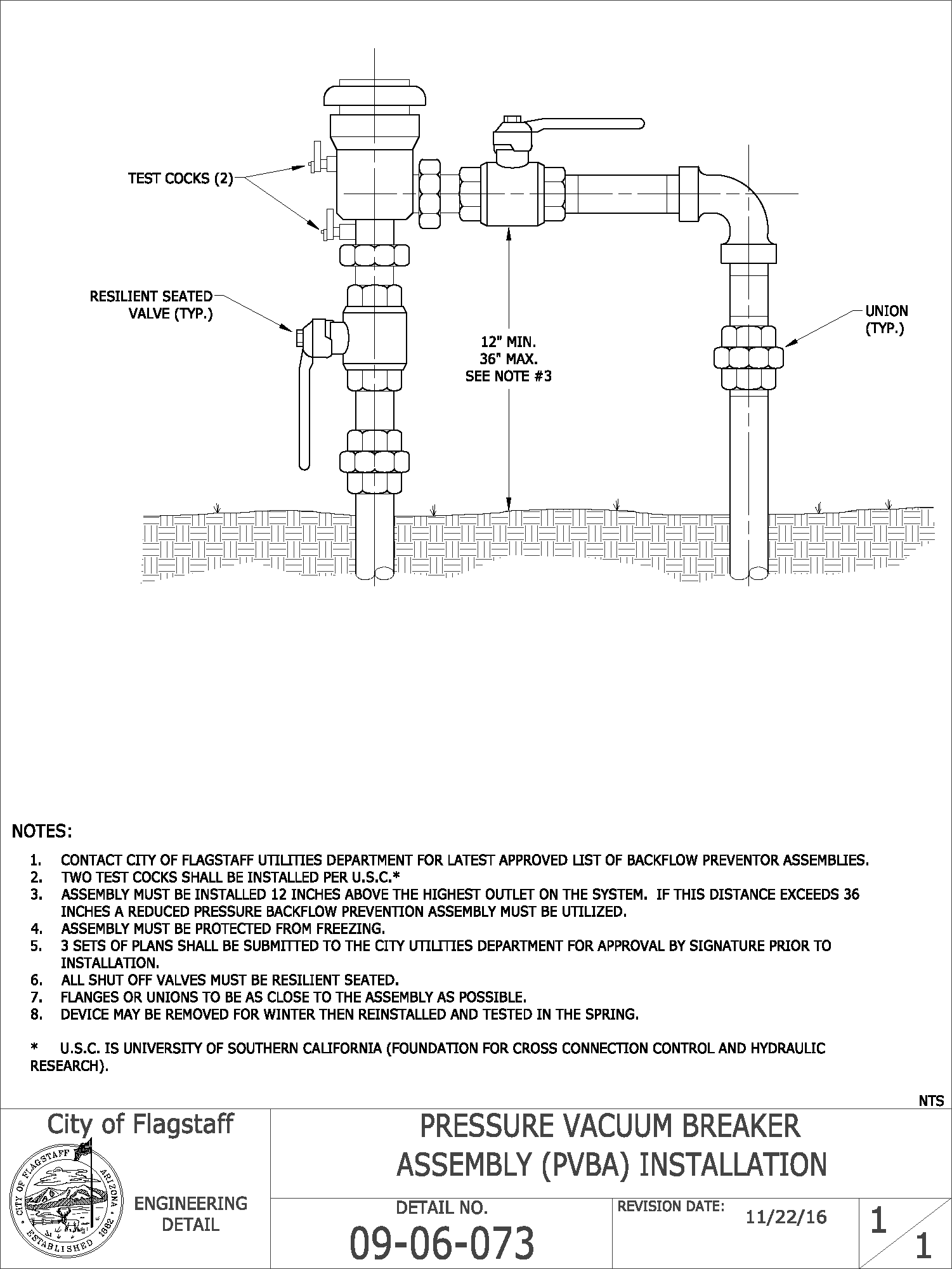

9-06-073 Pressure Vacuum Breaker Assembly (PVBA) Installation

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

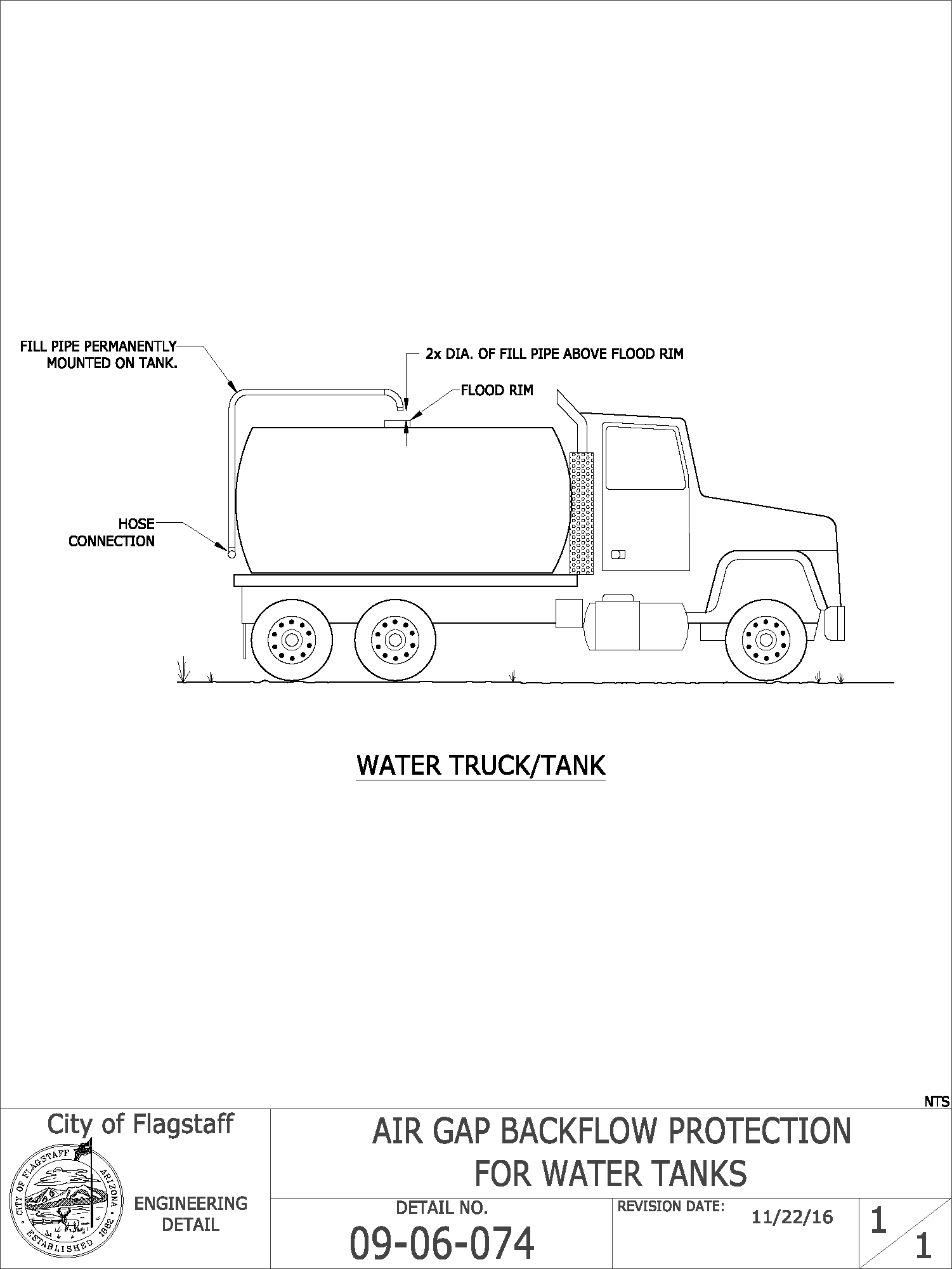

9-06-074 Air Gap Backflow Protection for Water Tanks

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

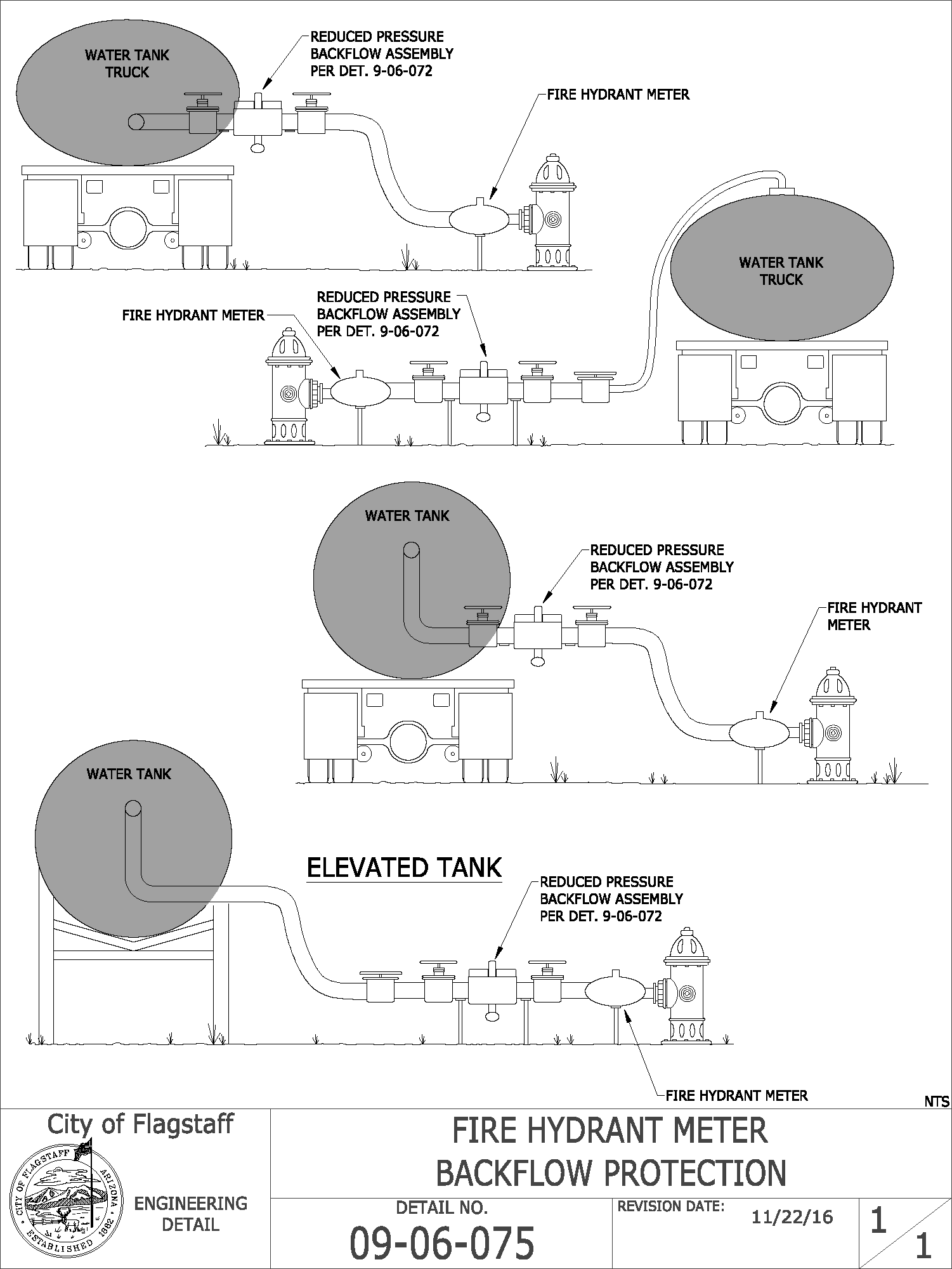

9-06-075 Fire Hydrant Meter Backflow Protection

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

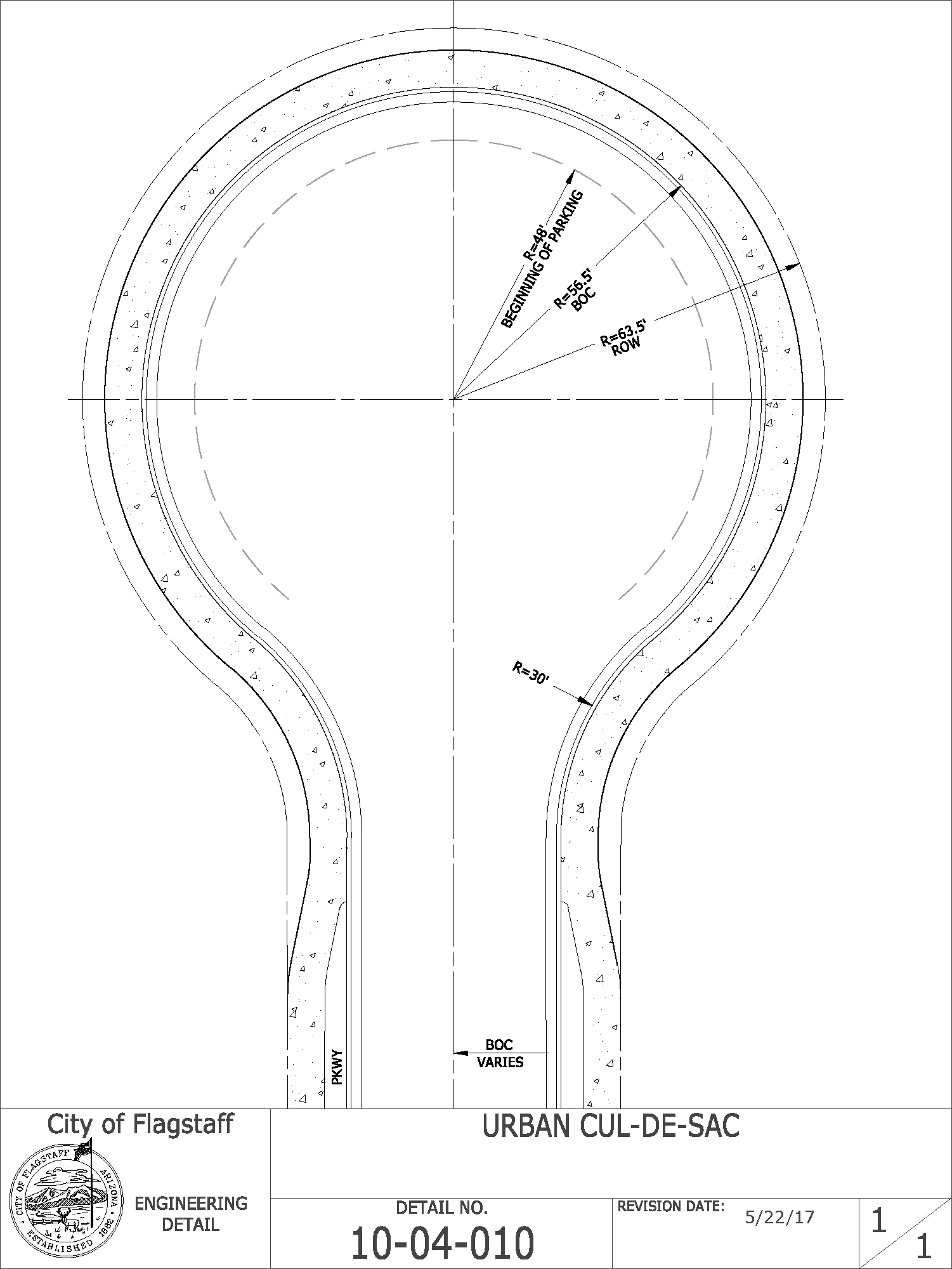

10-04-010 Urban Cul-de-sac

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

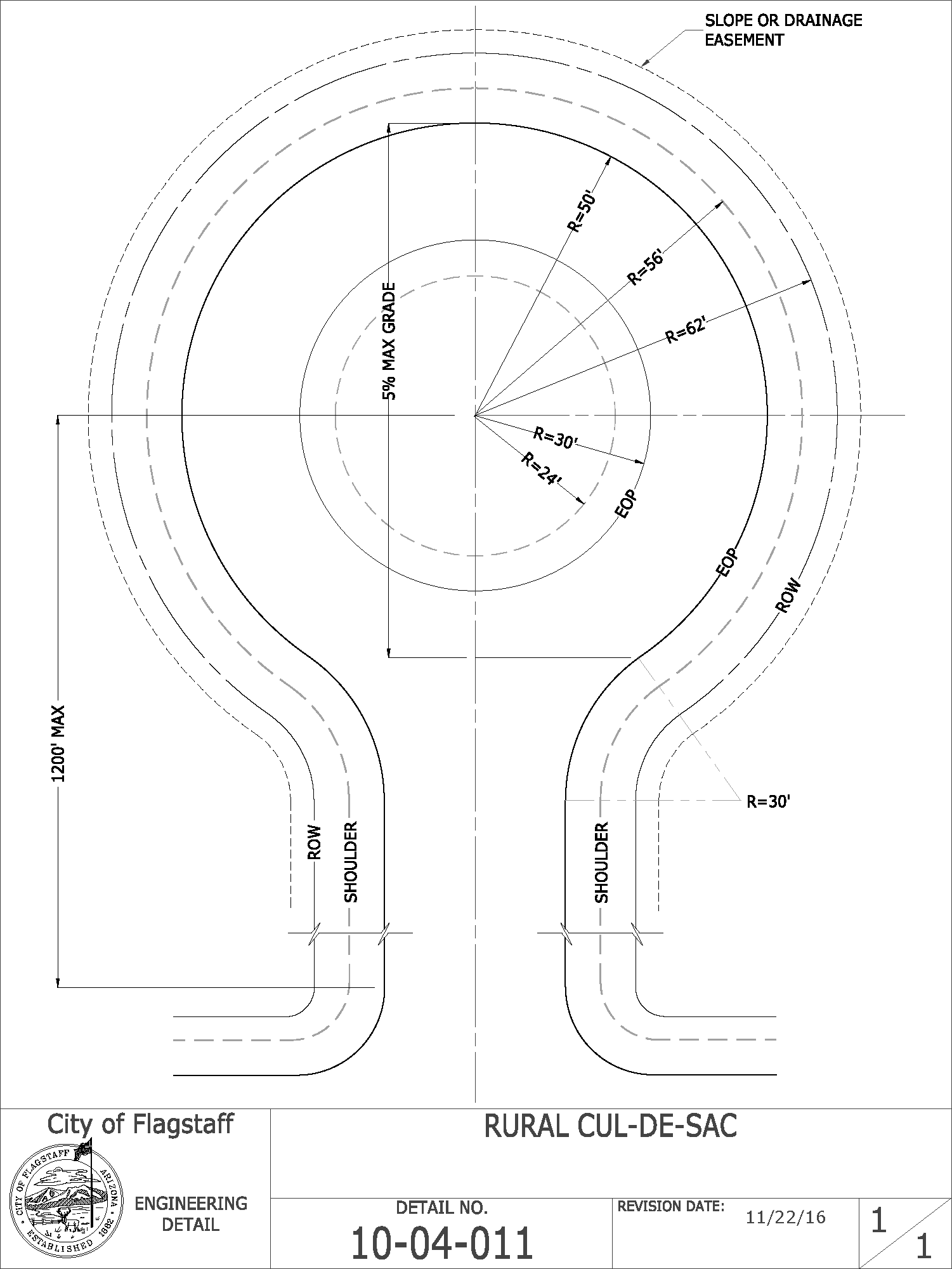

10-04-011 Rural Cul-de-sac

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

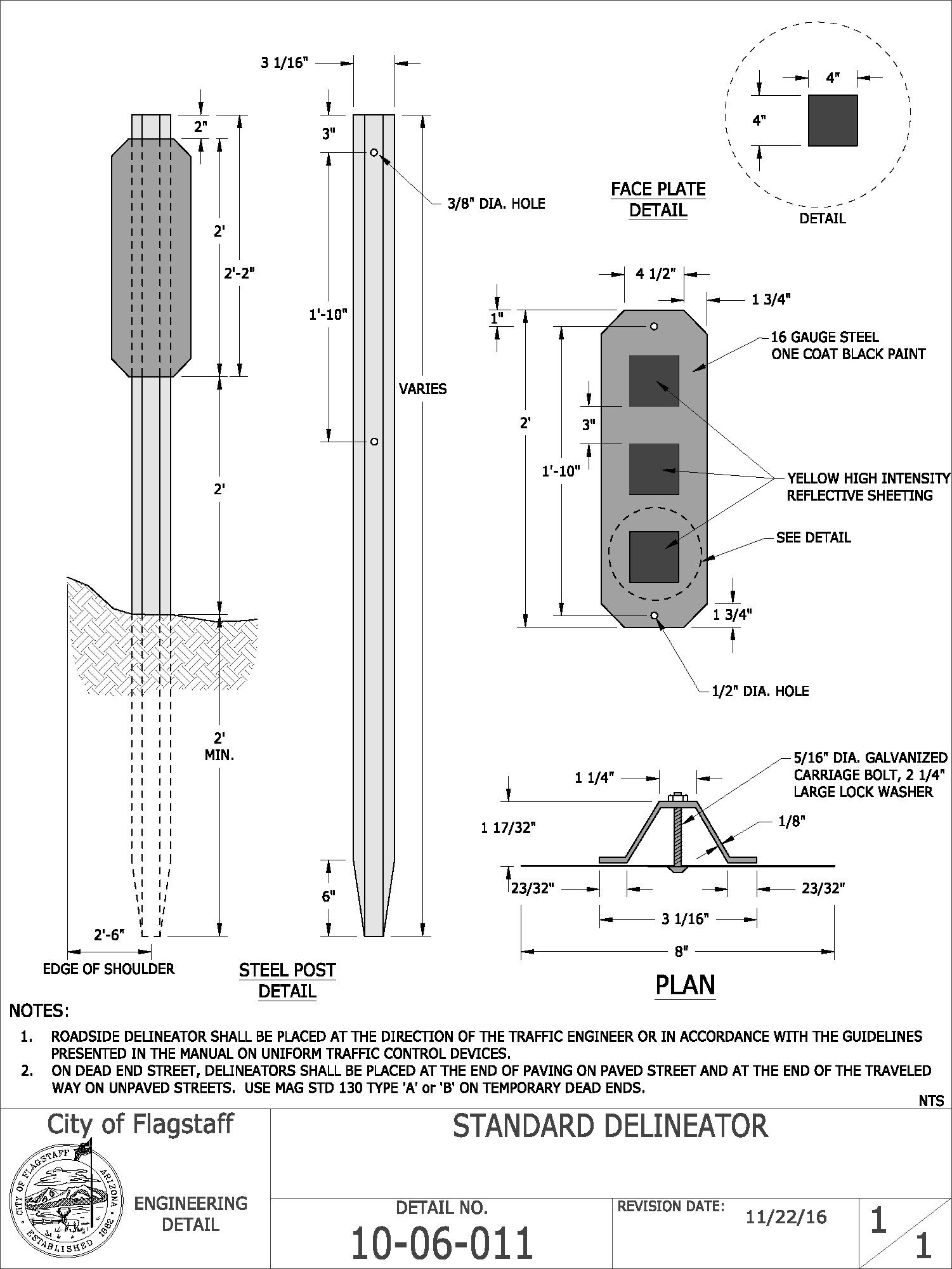

10-06-011 Standard Delineator

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

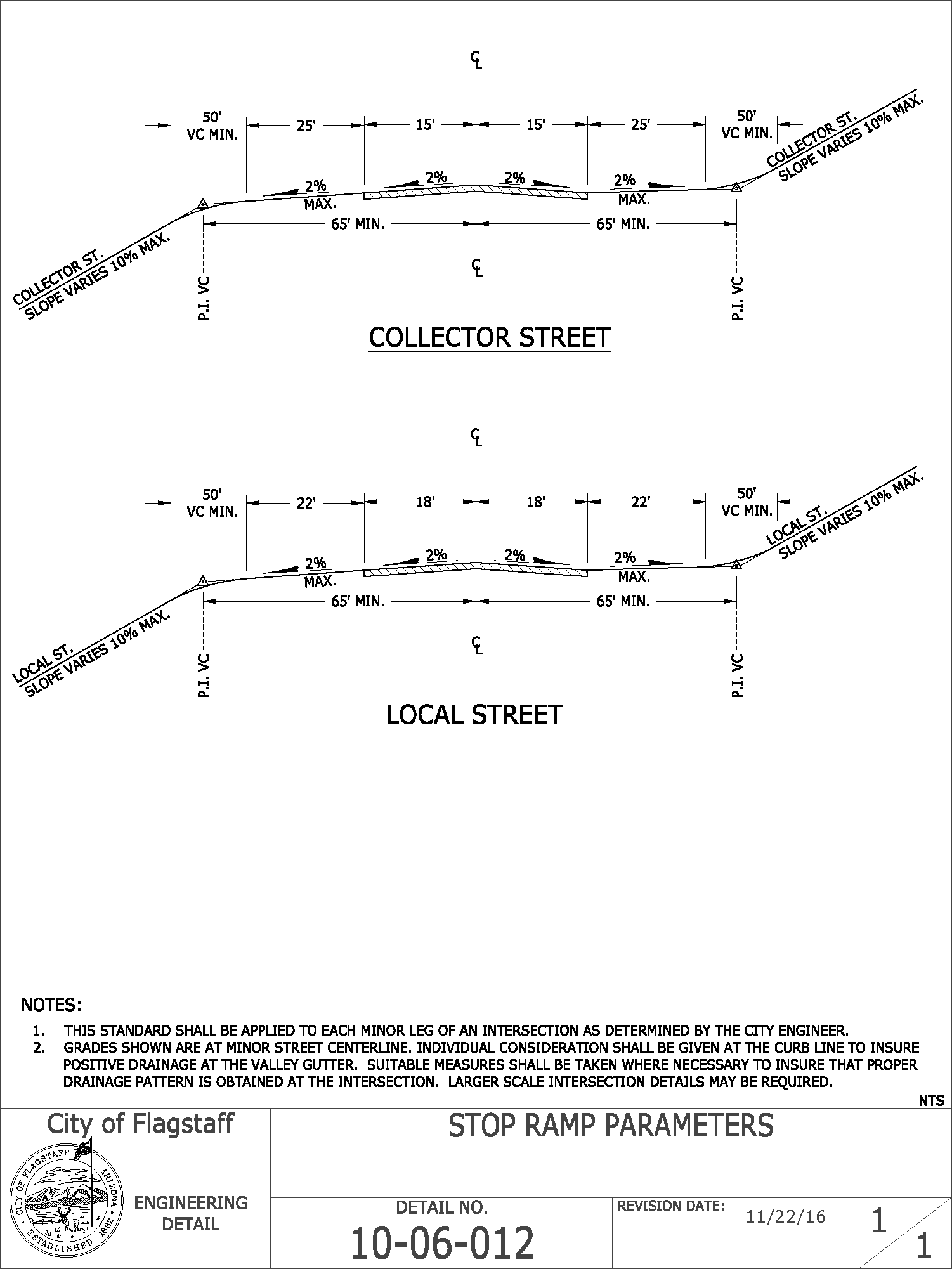

10-06-012 Stop Ramp Parameters

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

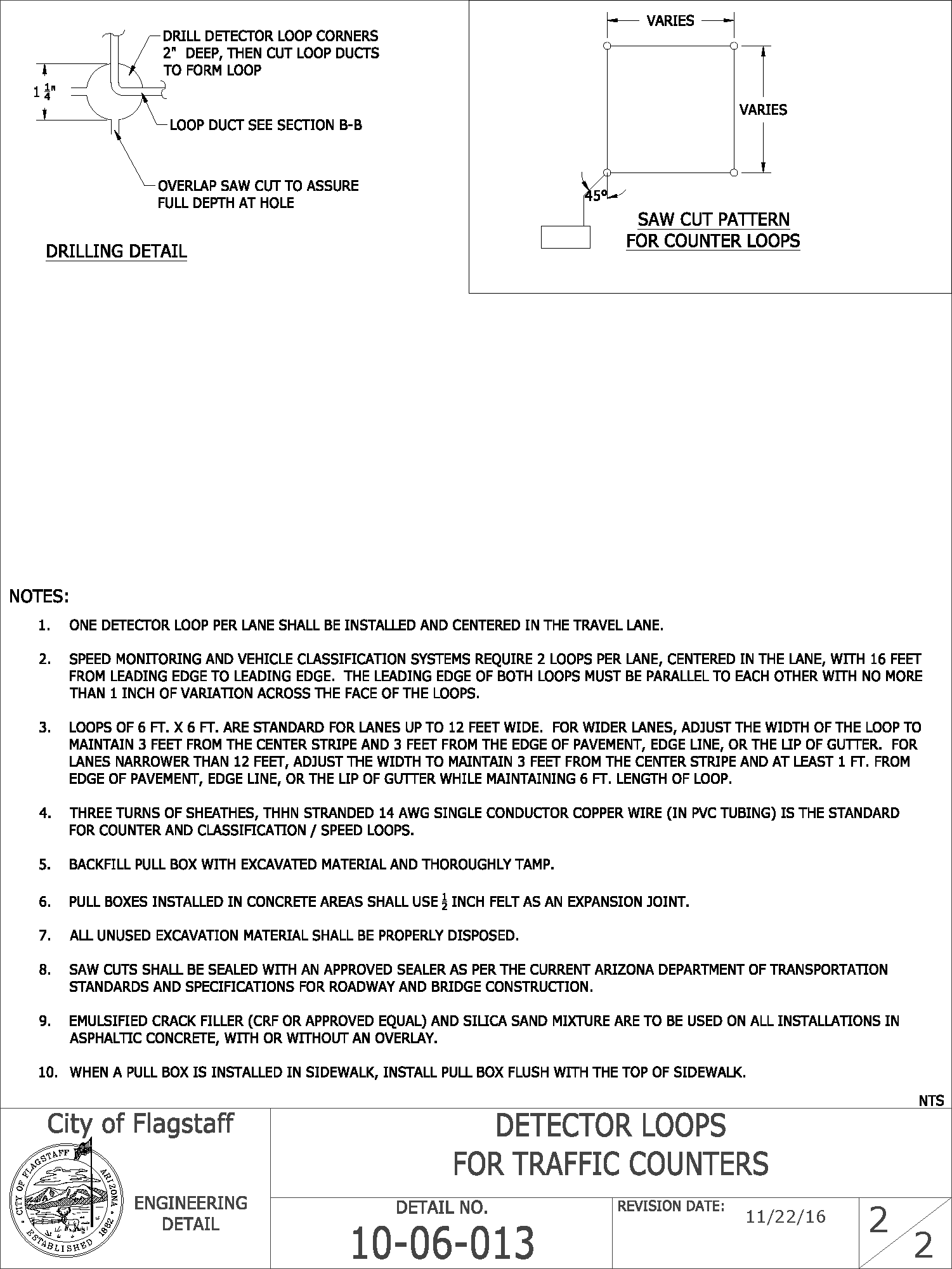

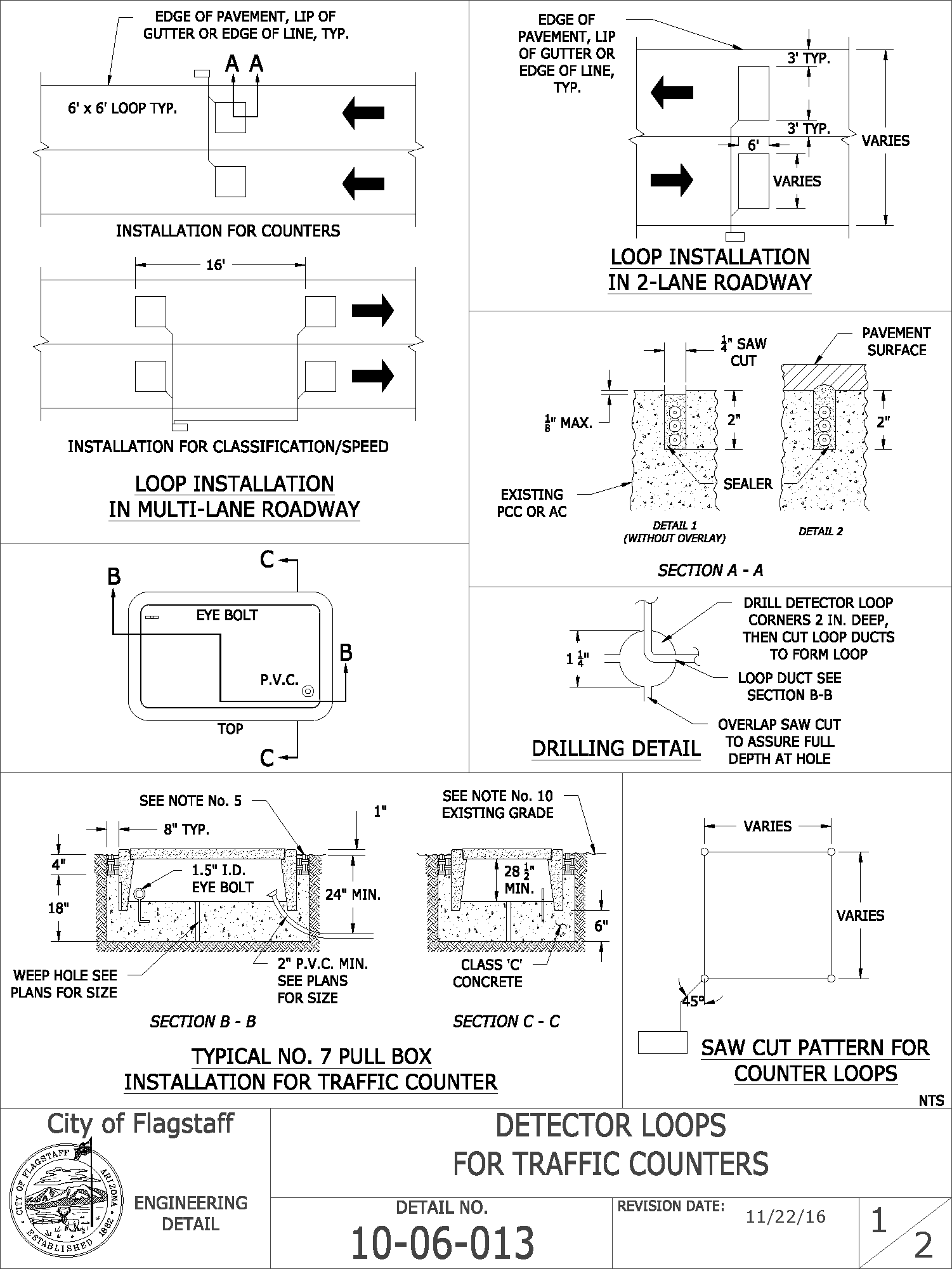

10-06-013 Detector Loops for Traffic Counters

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

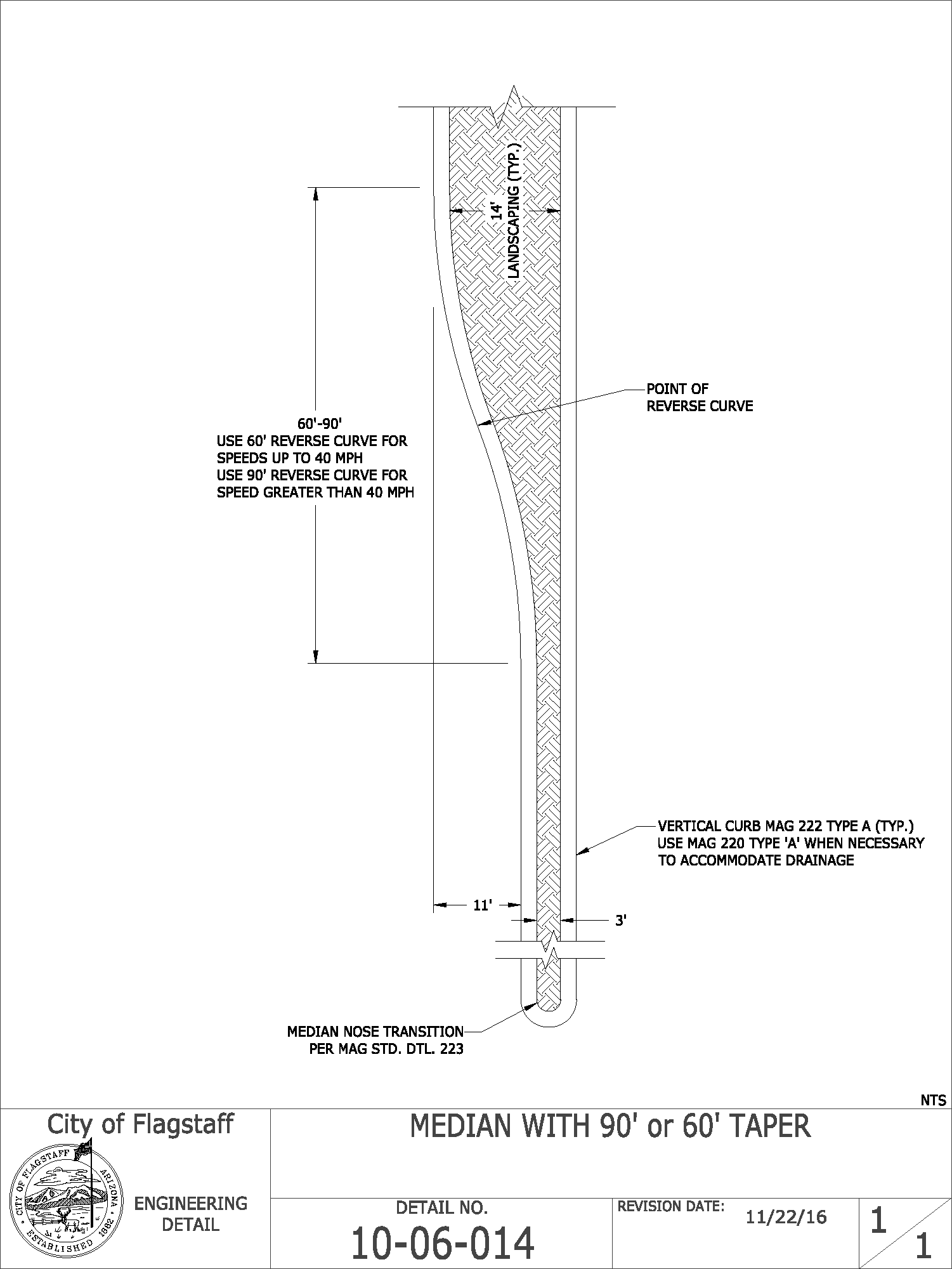

10-06-014 Median with 90' or 60' Taper

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

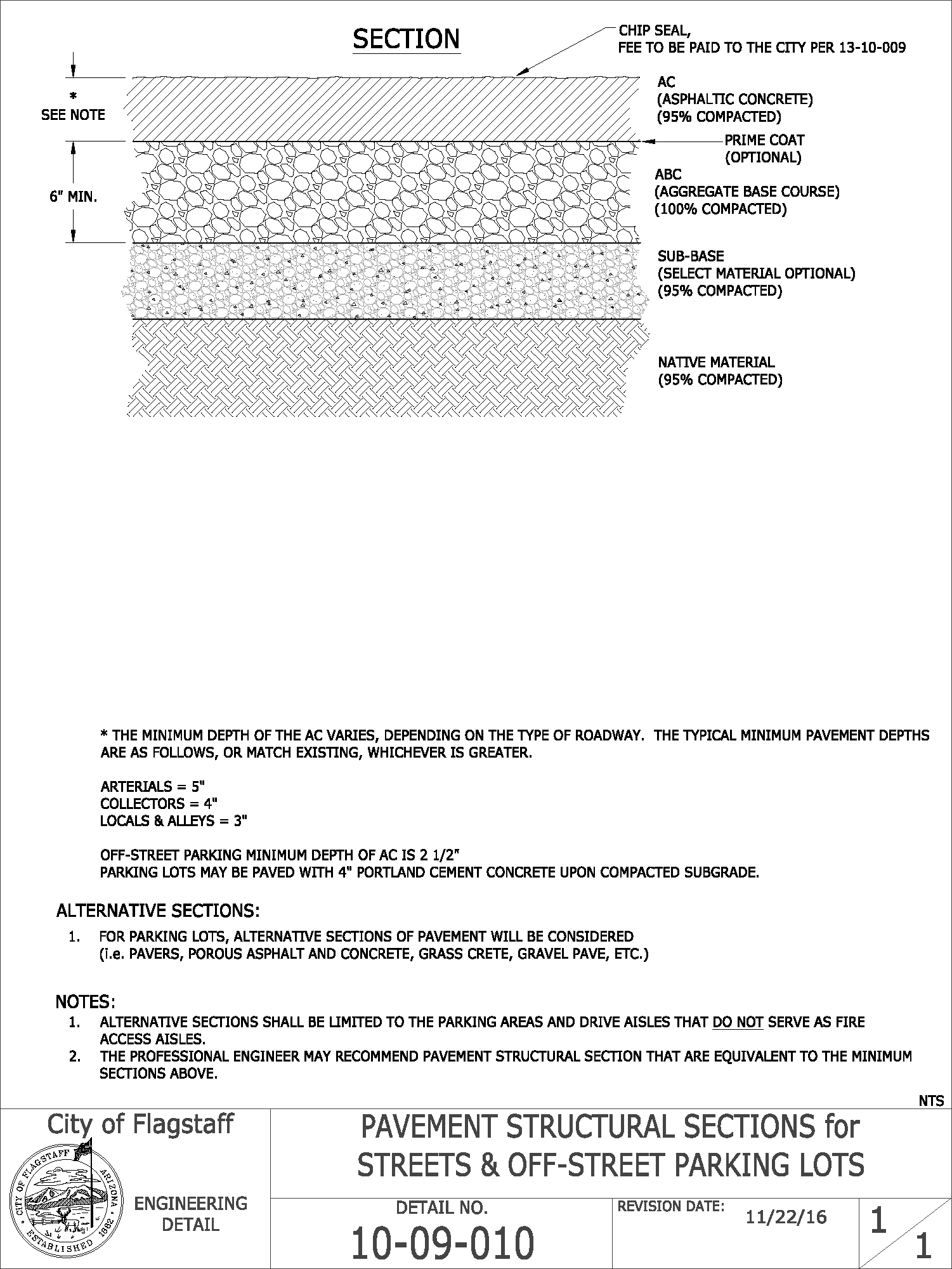

10-09-010 Pavement Structural Section for Streets and Off-Street Parking Lots

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

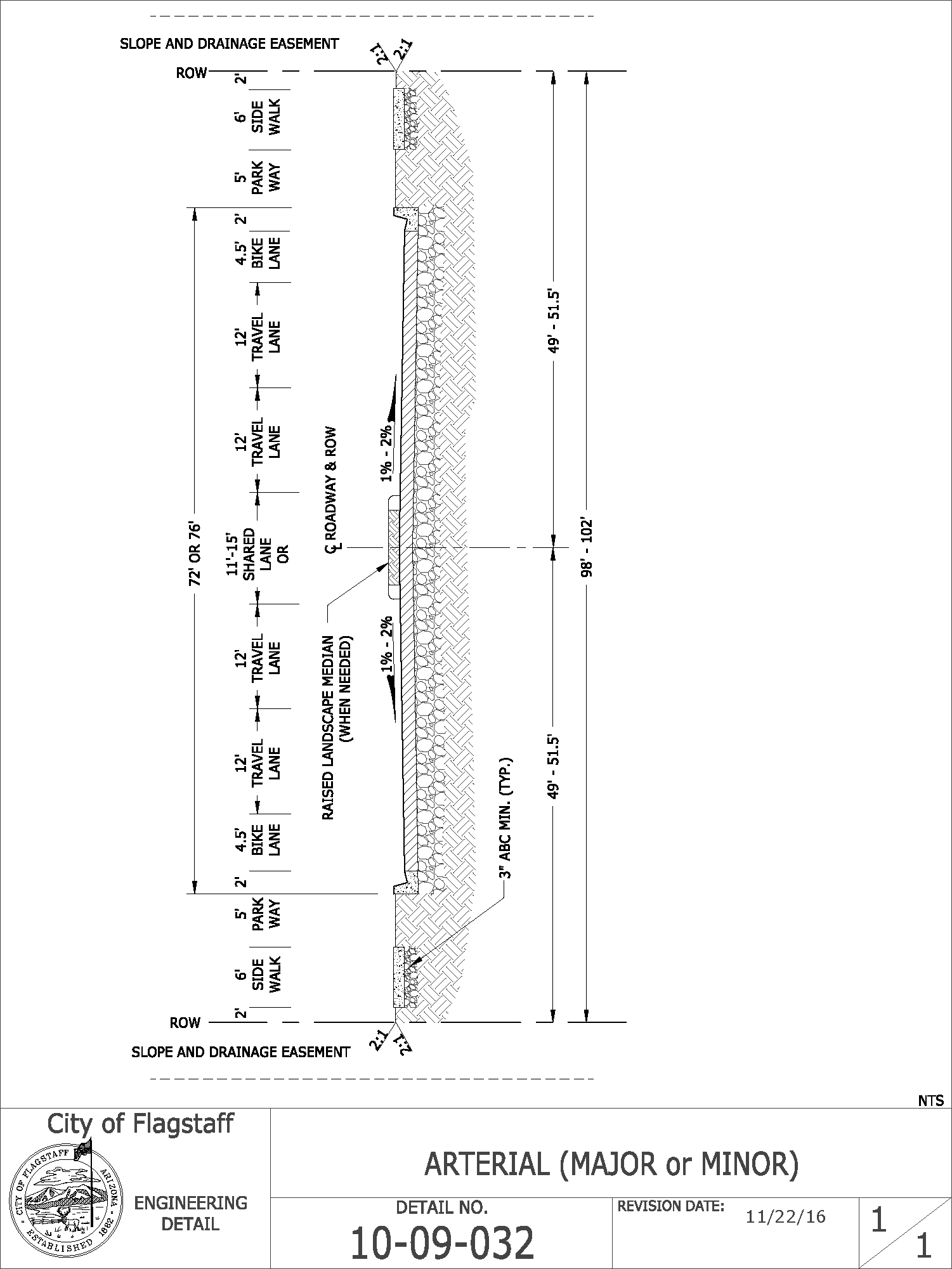

10-09-032 Arterial (Major or Minor)

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

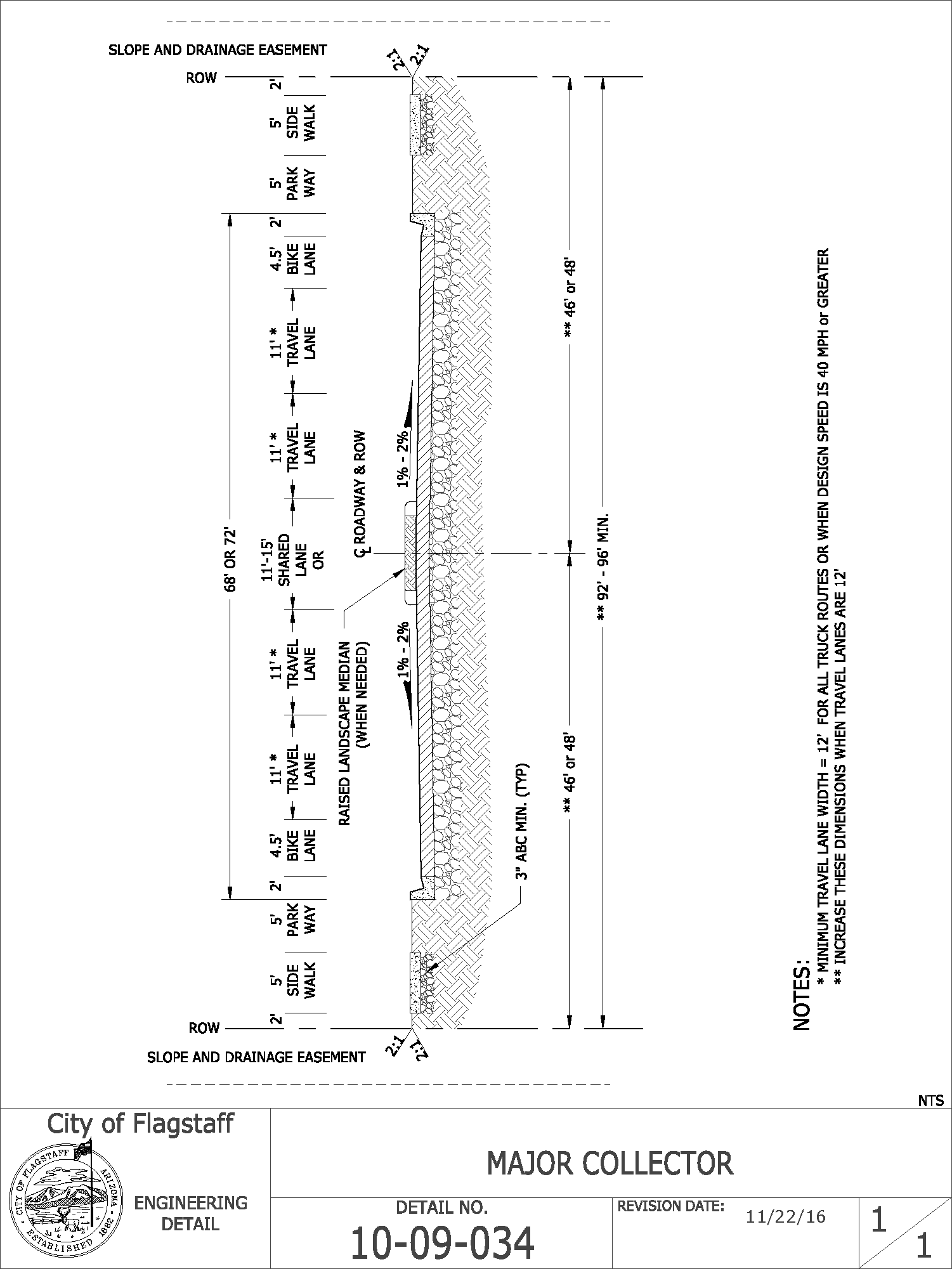

10-09-034 Major Collector

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

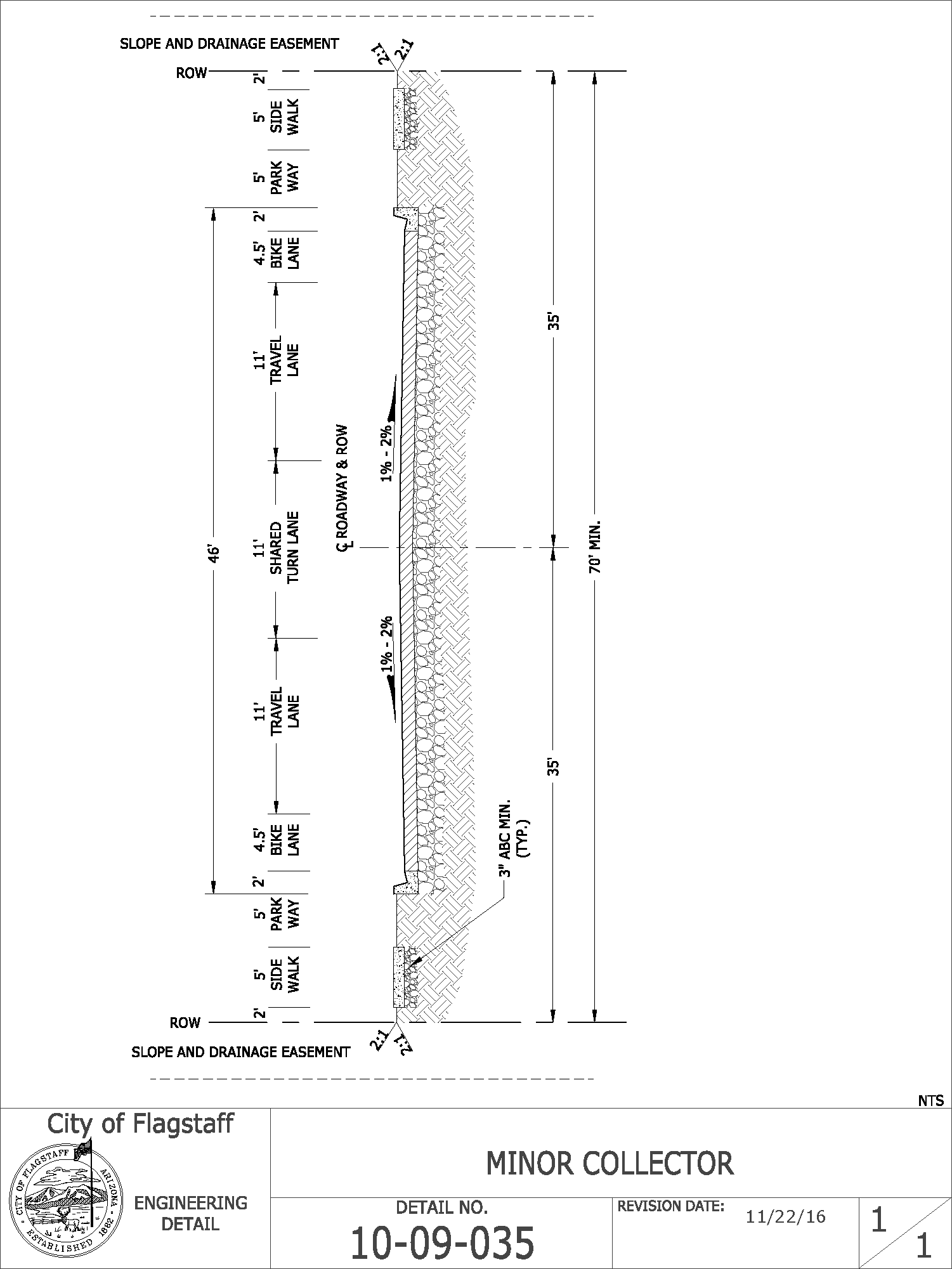

10-09-035 Minor Collector

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

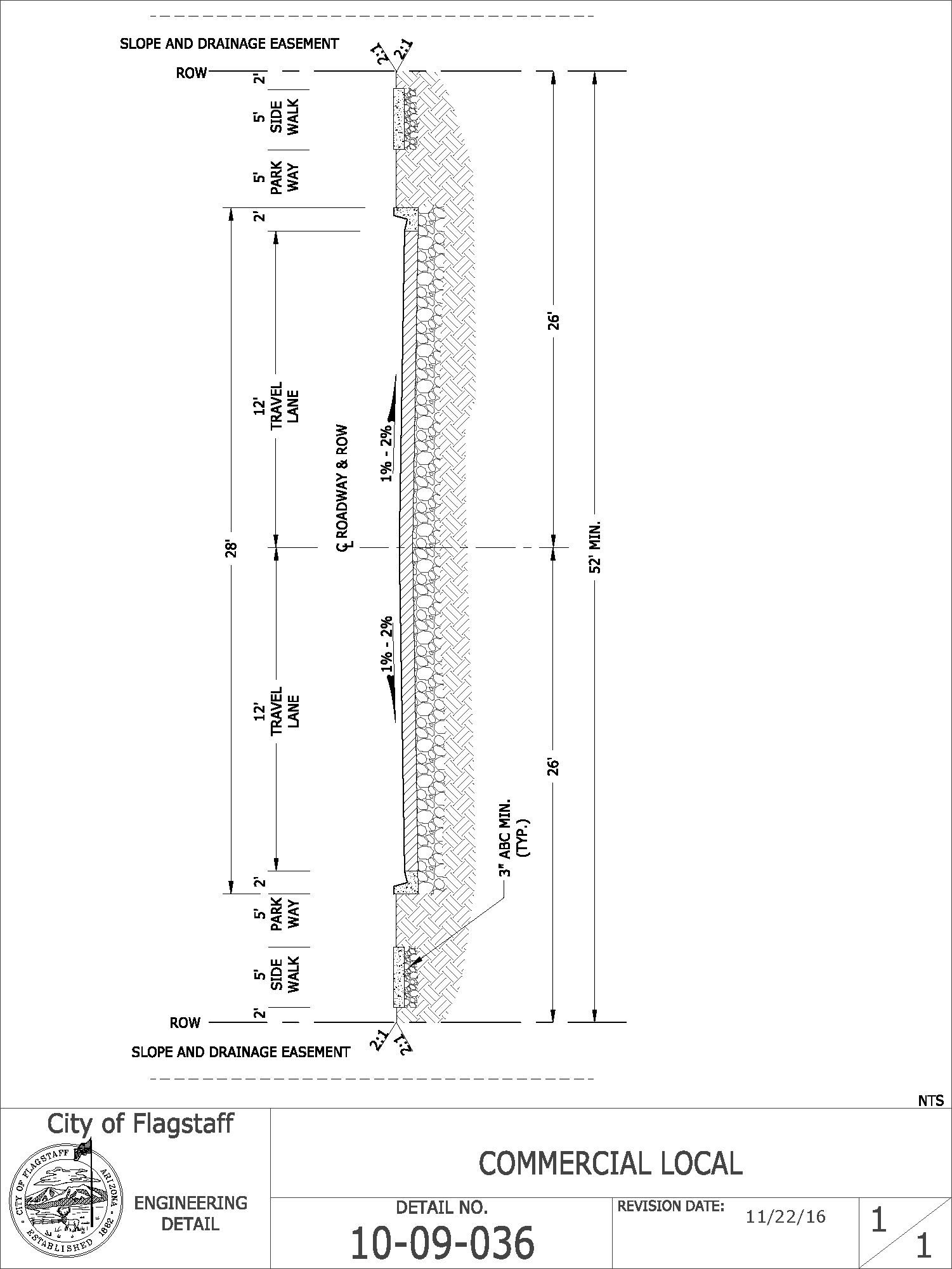

10-09-036 Commercial Local

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

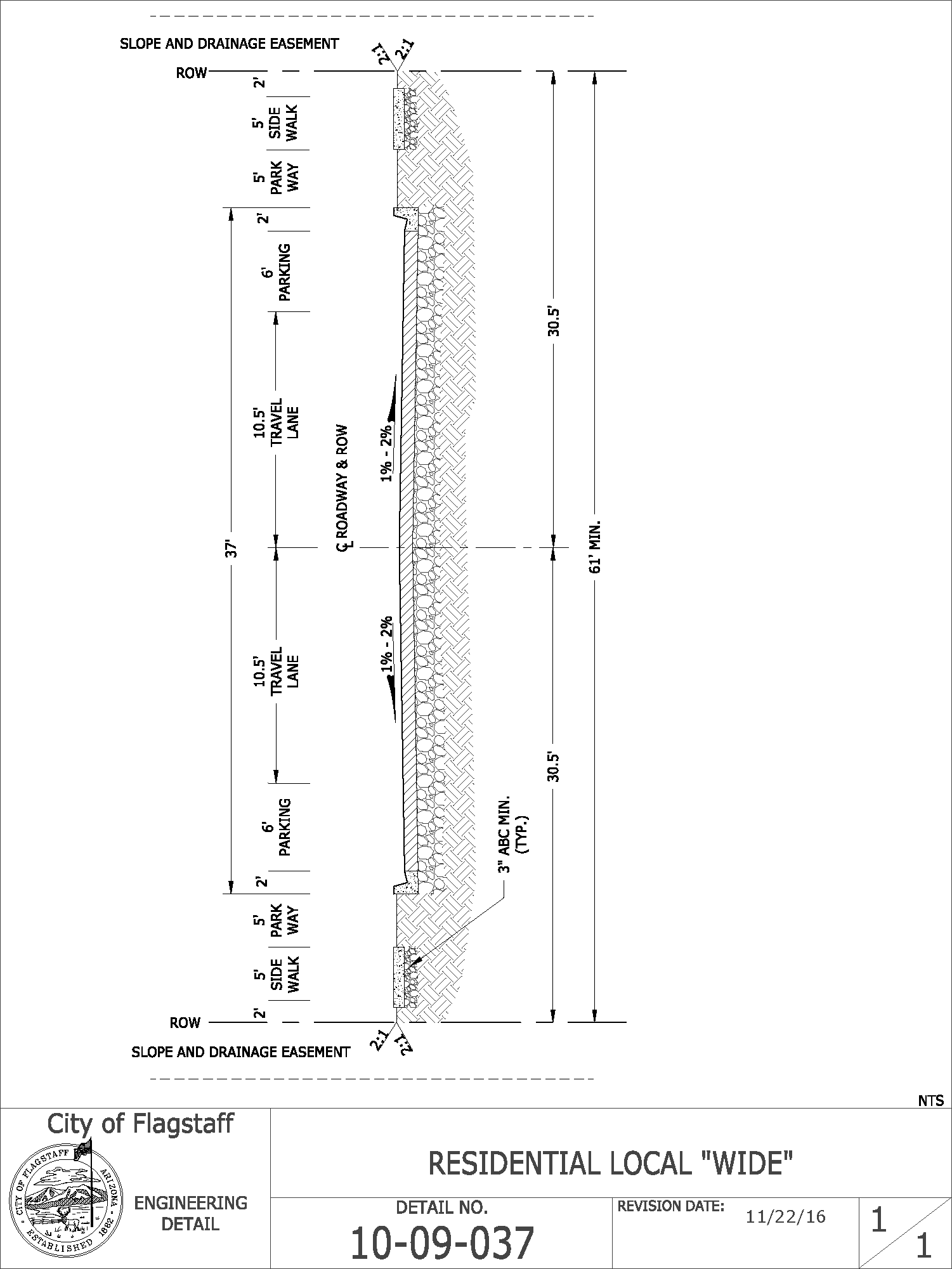

10-09-037 Residential Local "Wide"

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

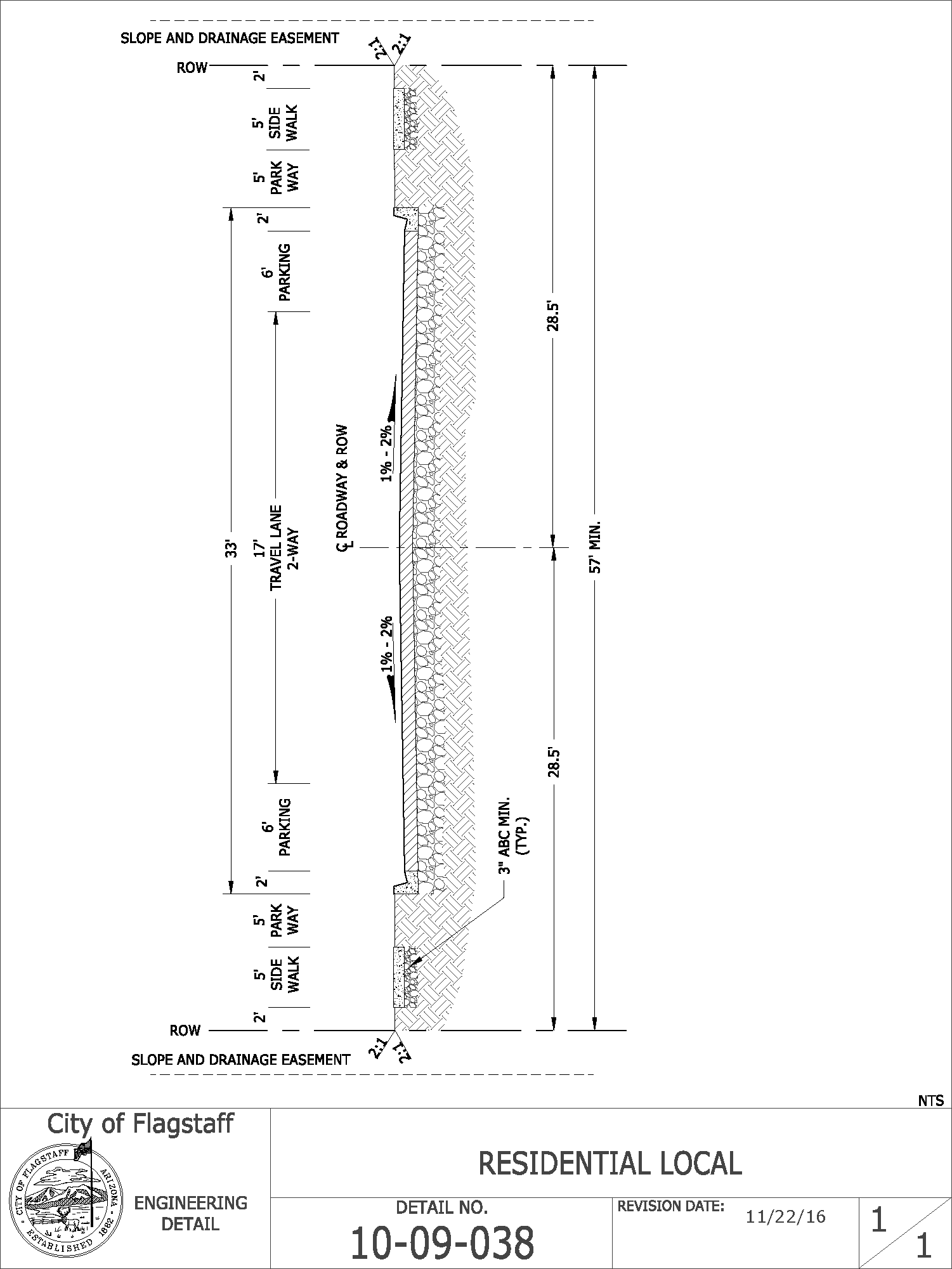

10-09-038 Residential Local

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

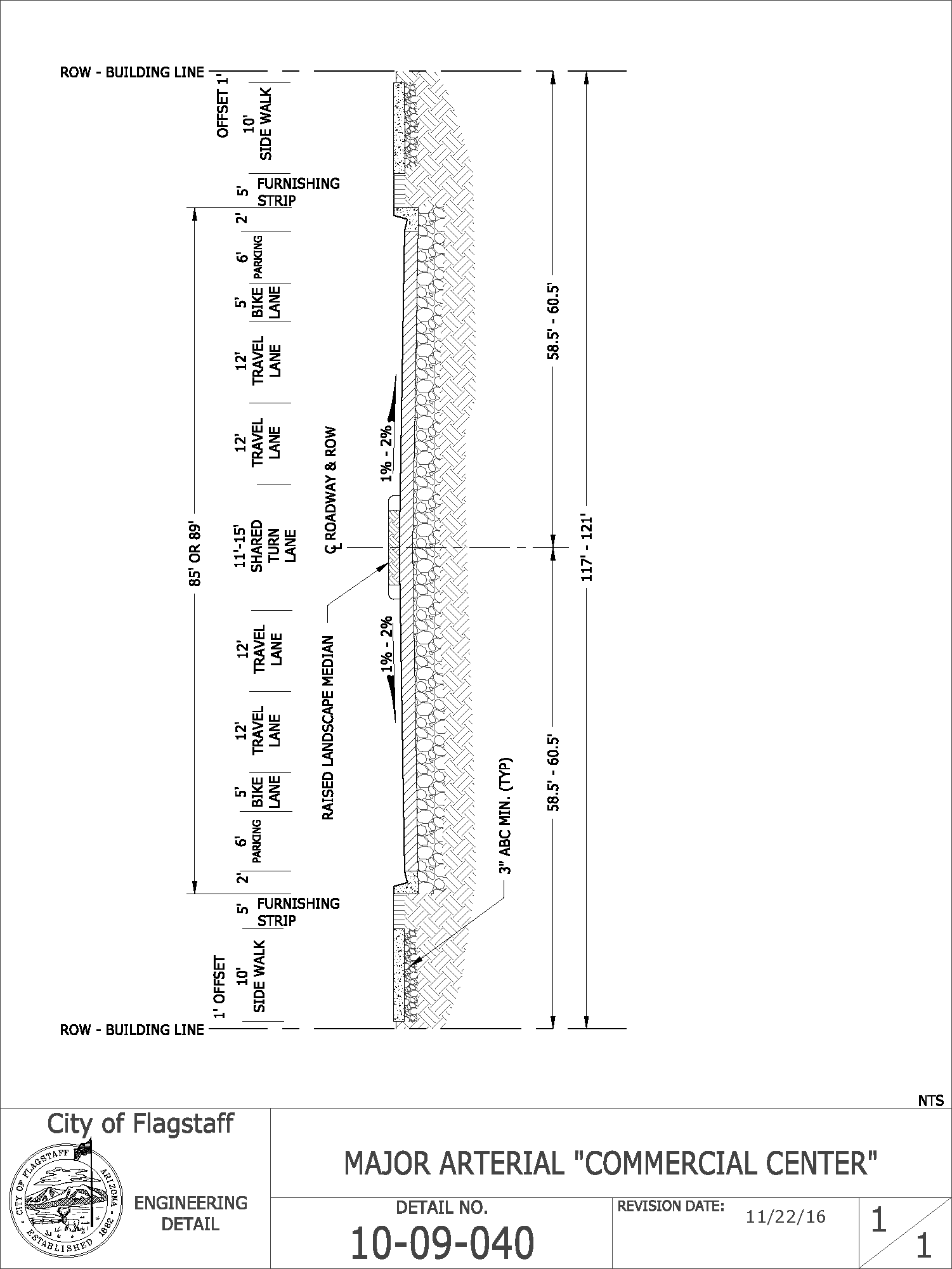

10-09-040 Major Arterial "Commercial Center"

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

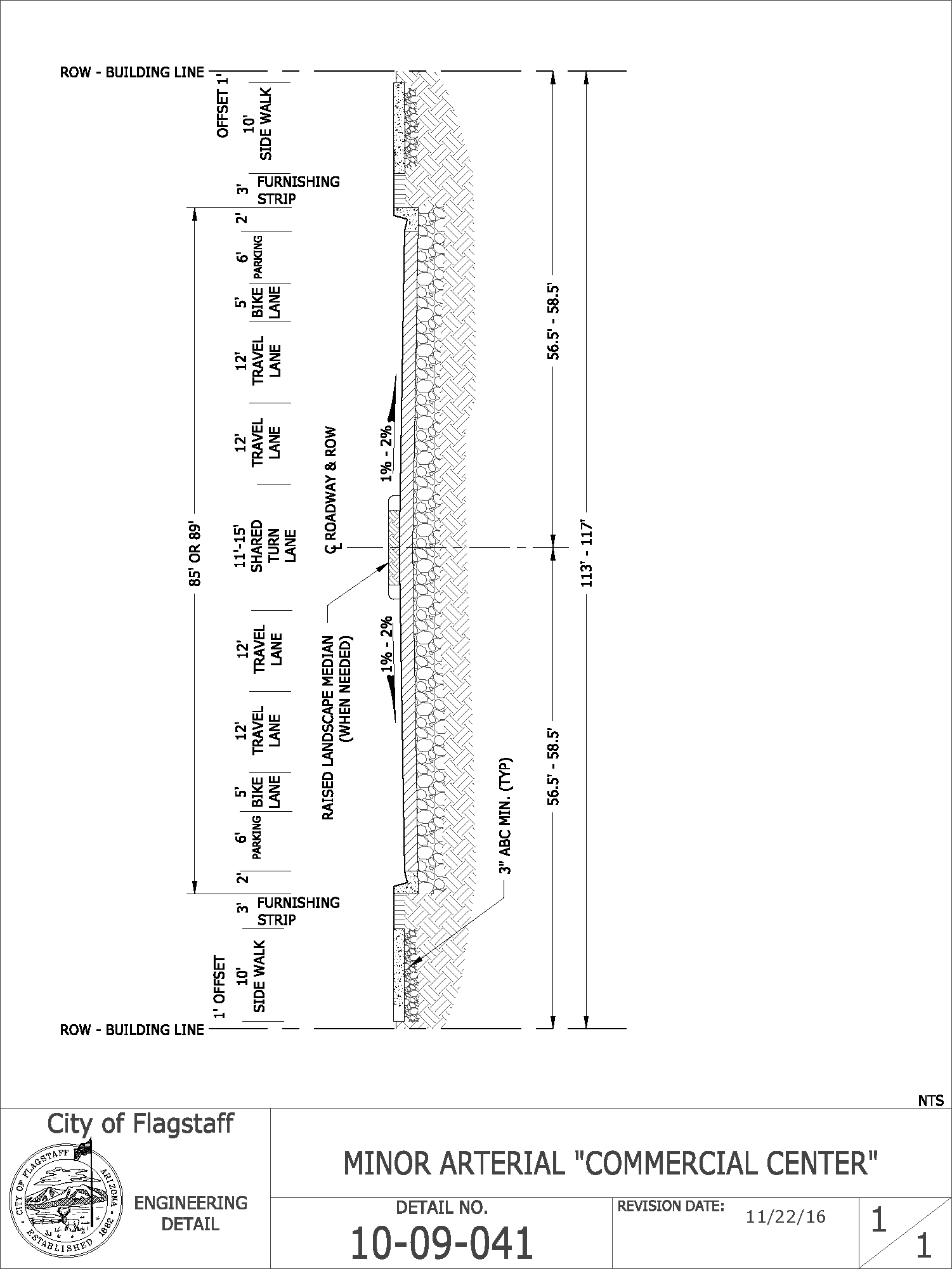

10-09-041 Minor Arterial "Commercial Center"

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

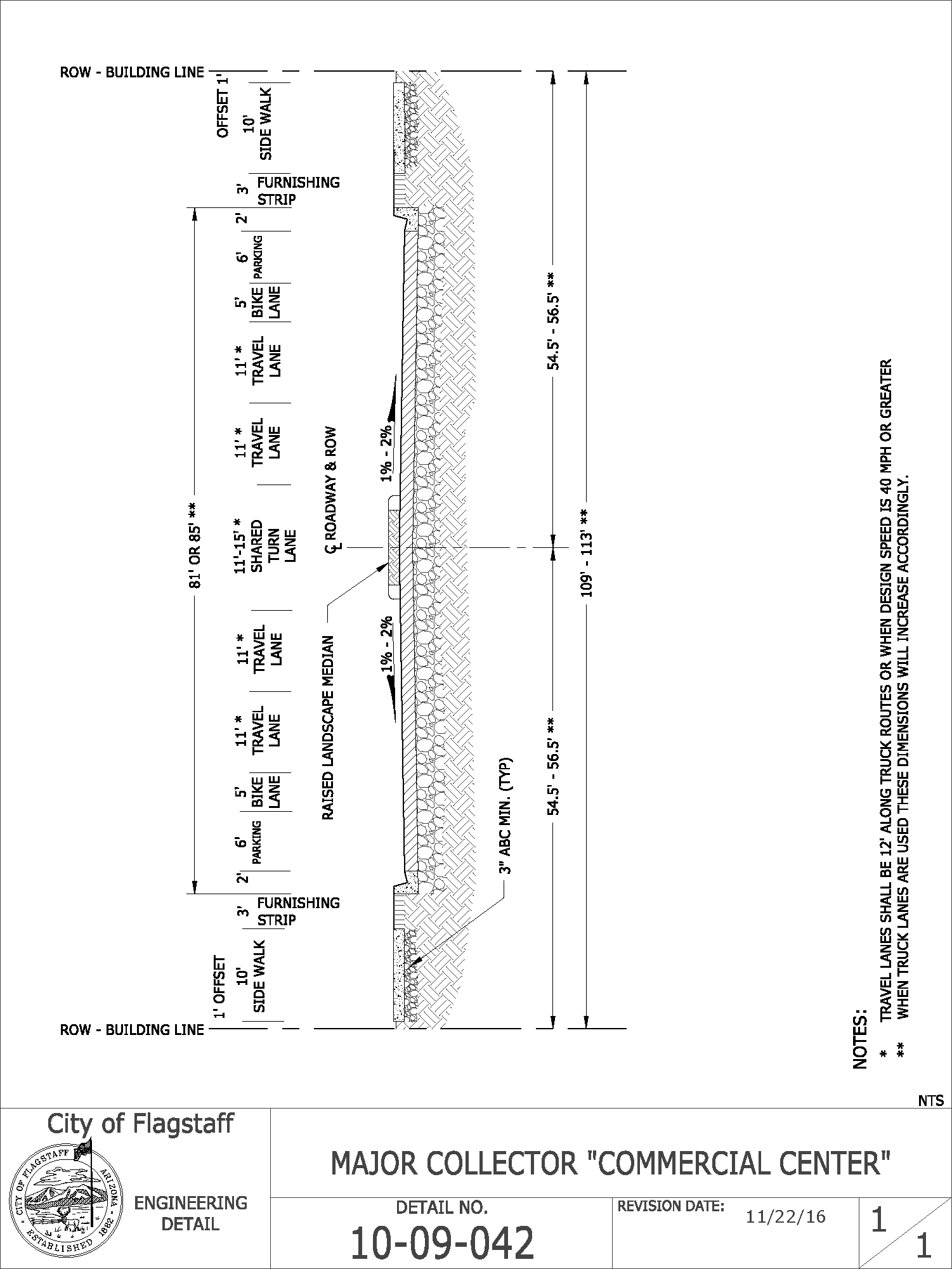

10-09-042 Major Collector "Commercial Center"

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

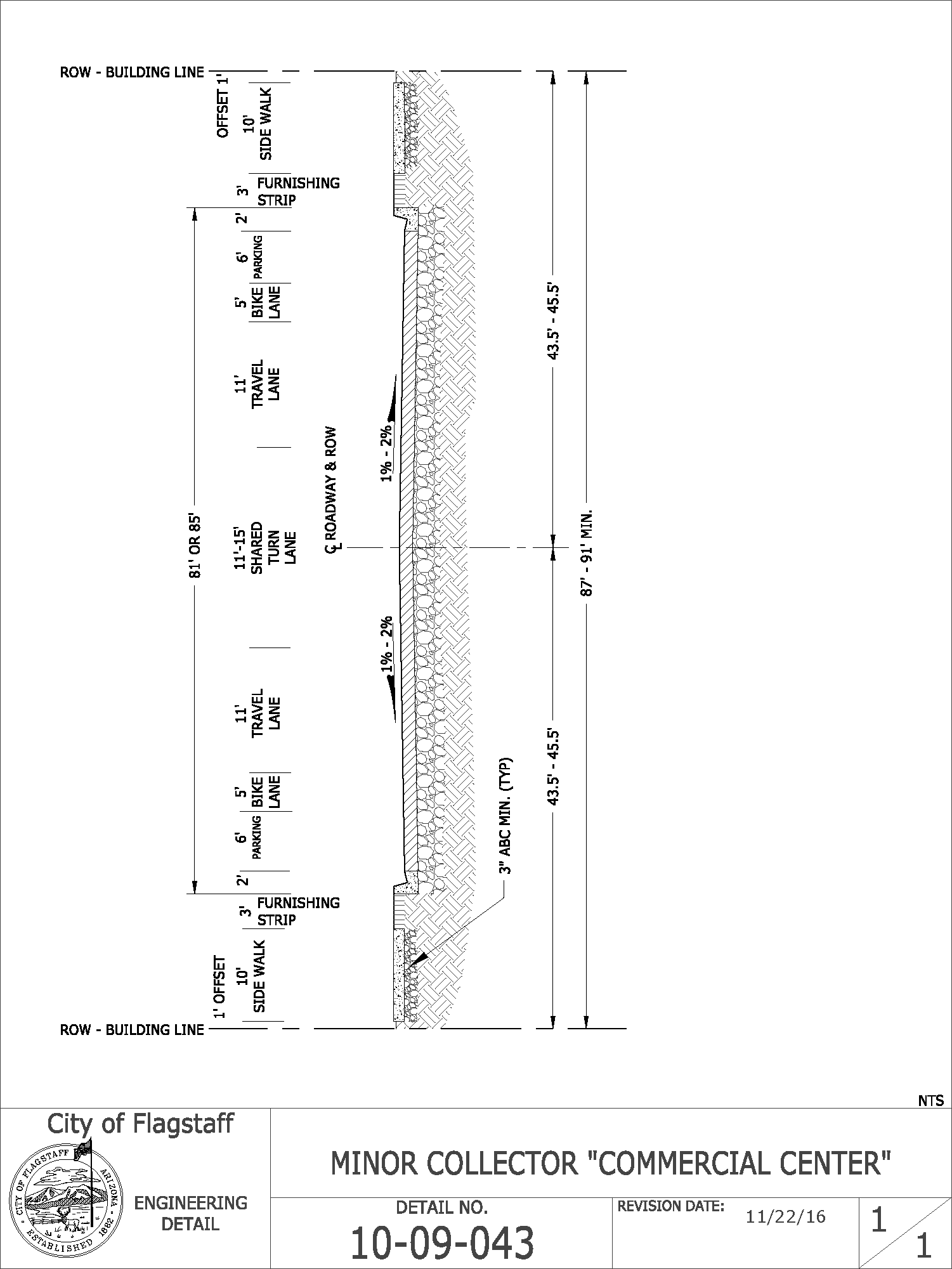

10-09-043 Minor Collector "Commercial Center"

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

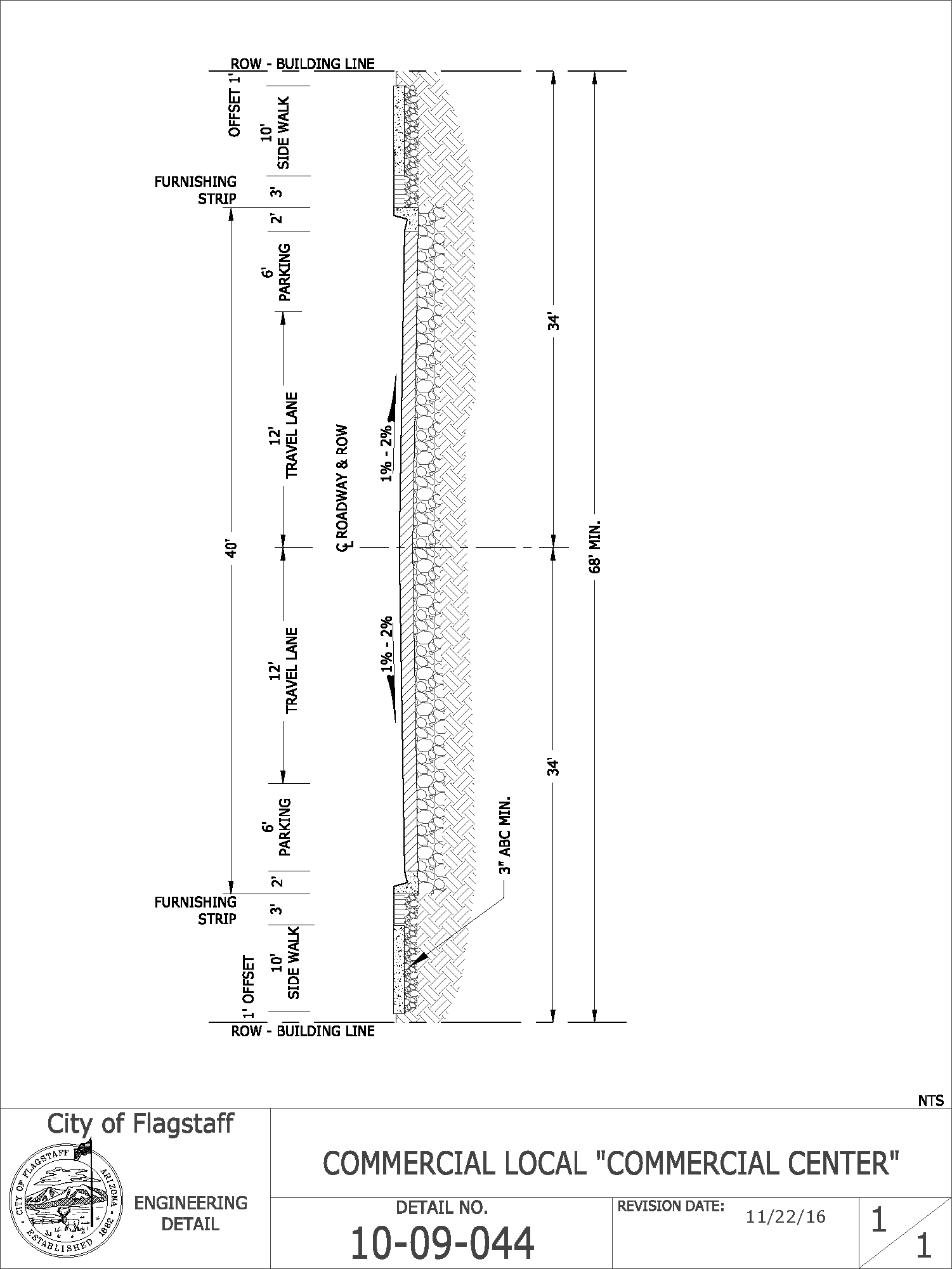

10-09-044 Commercial Local "Commercial Center"

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

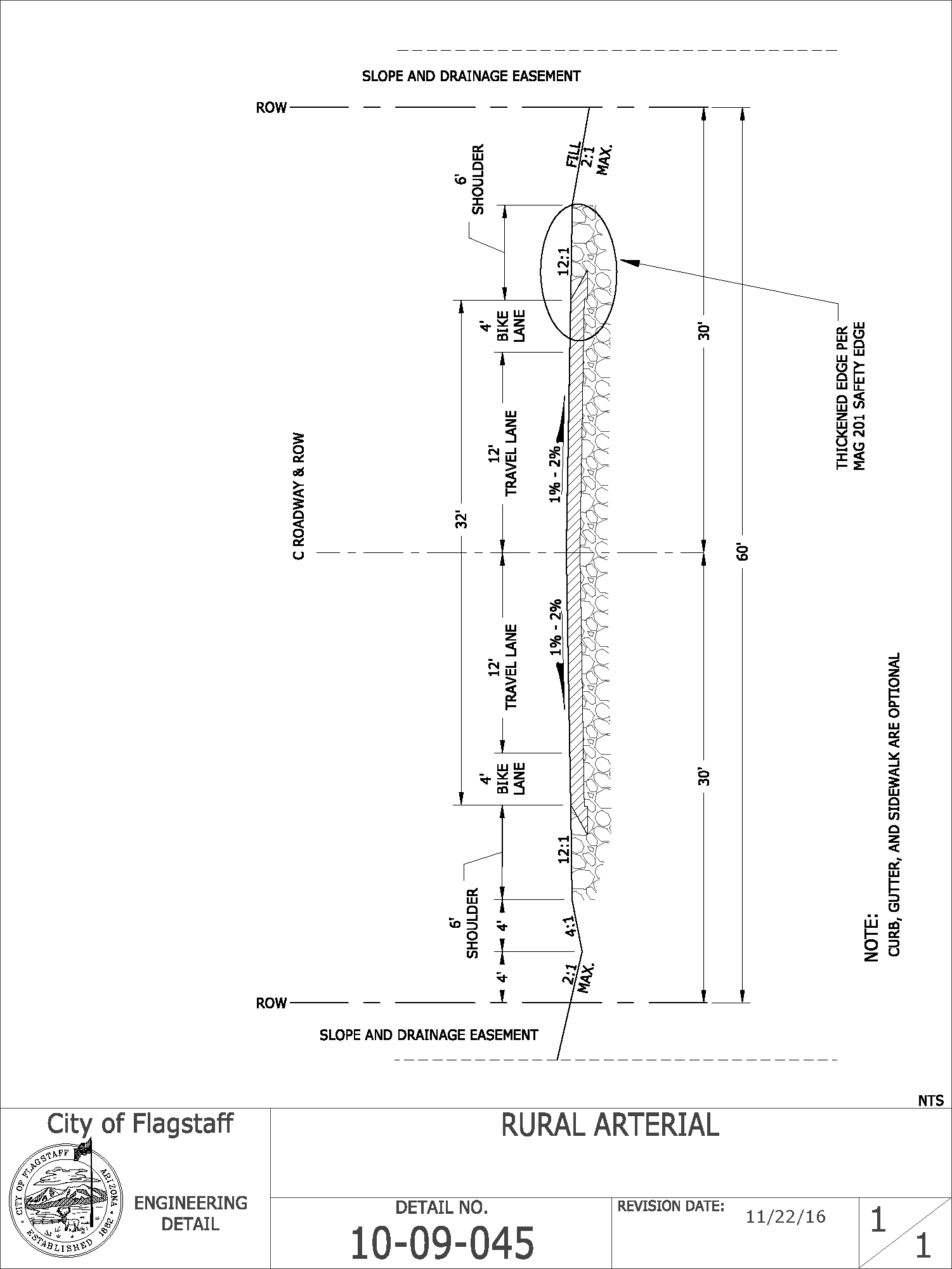

10-09-045 Rural Arterial

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

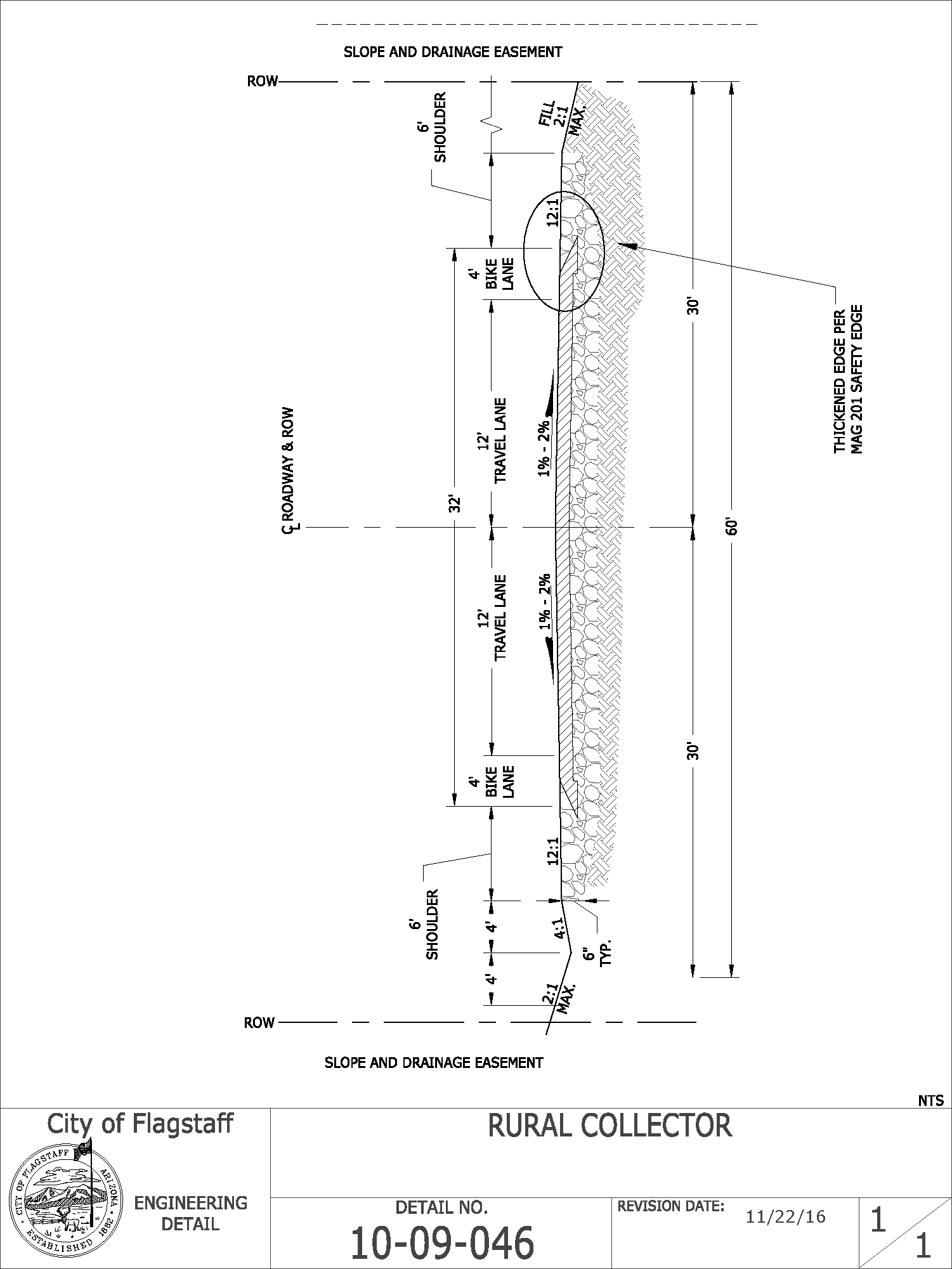

10-09-046 Rural Collector

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

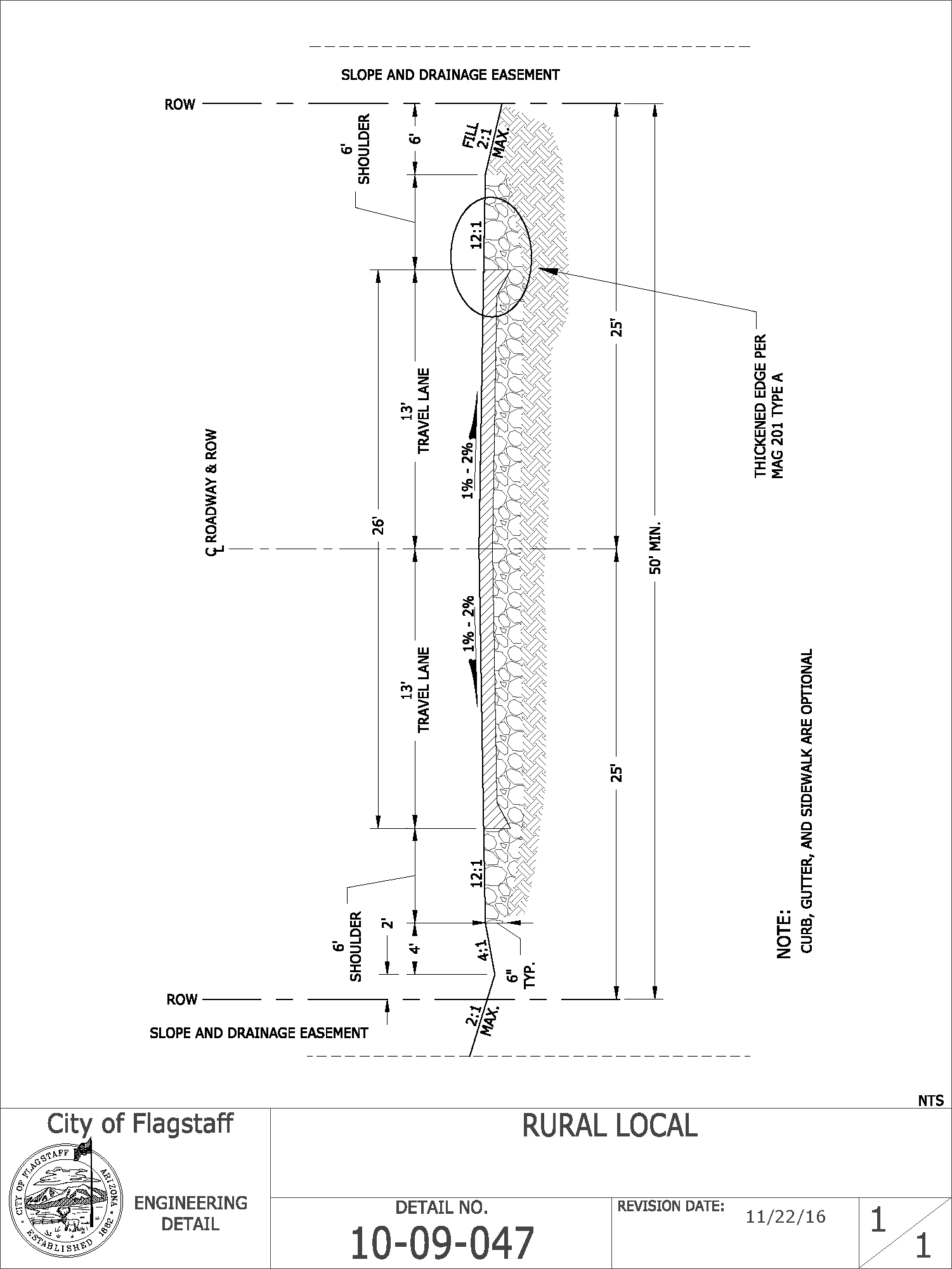

10-09-047 Rural Local

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

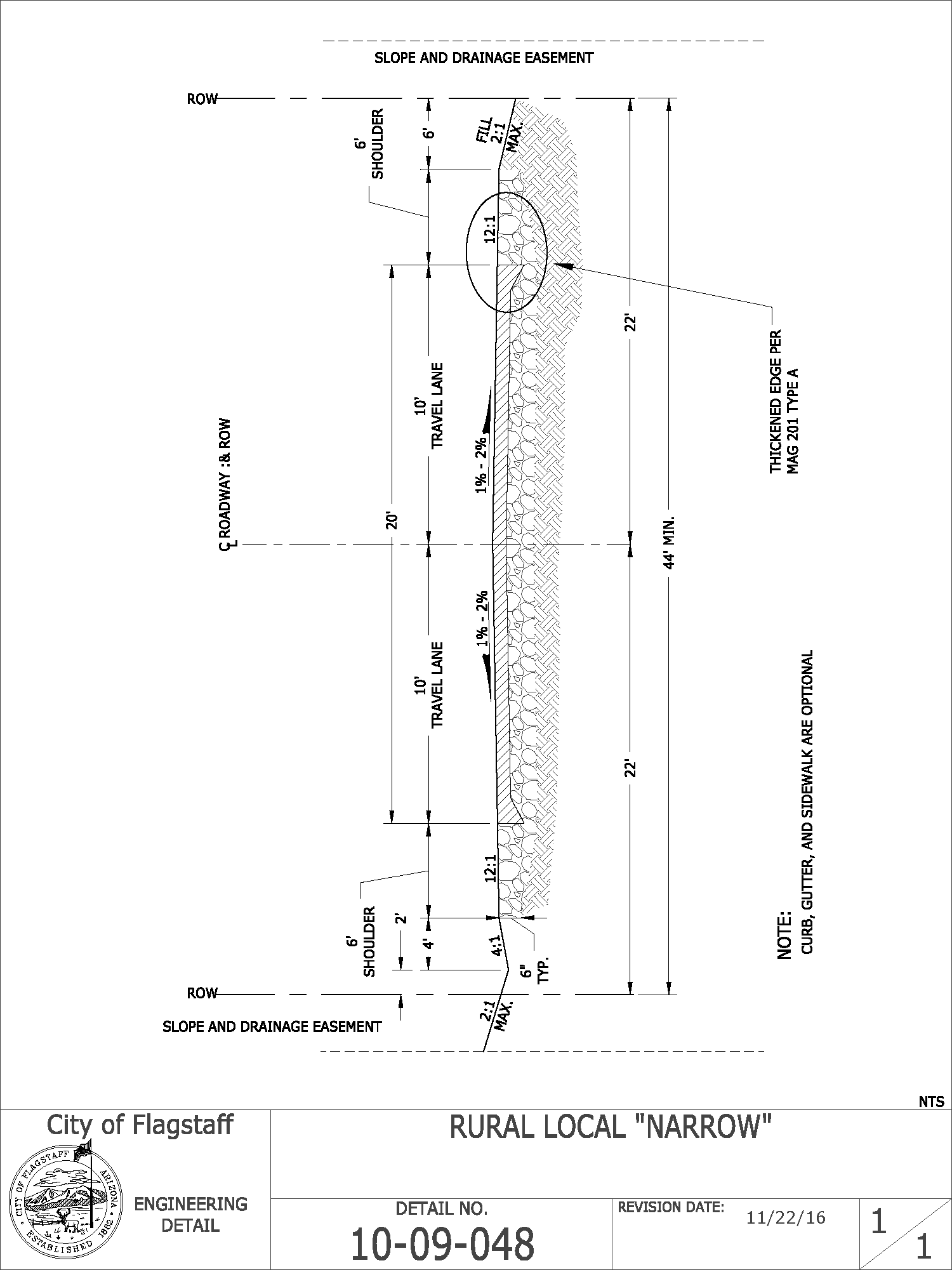

10-09-048 Rural Local "Narrow"

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

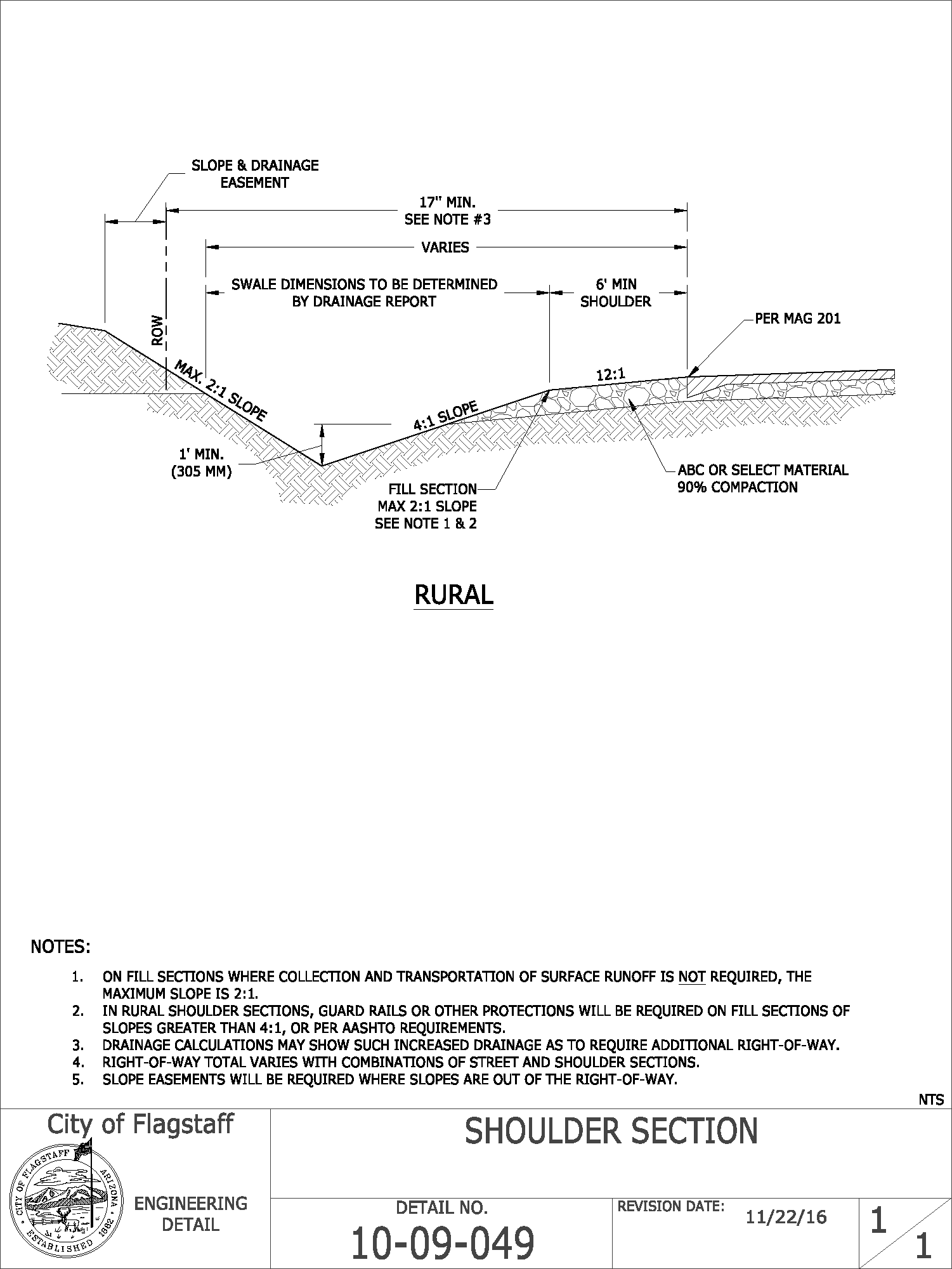

10-09-049 Shoulder Section

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

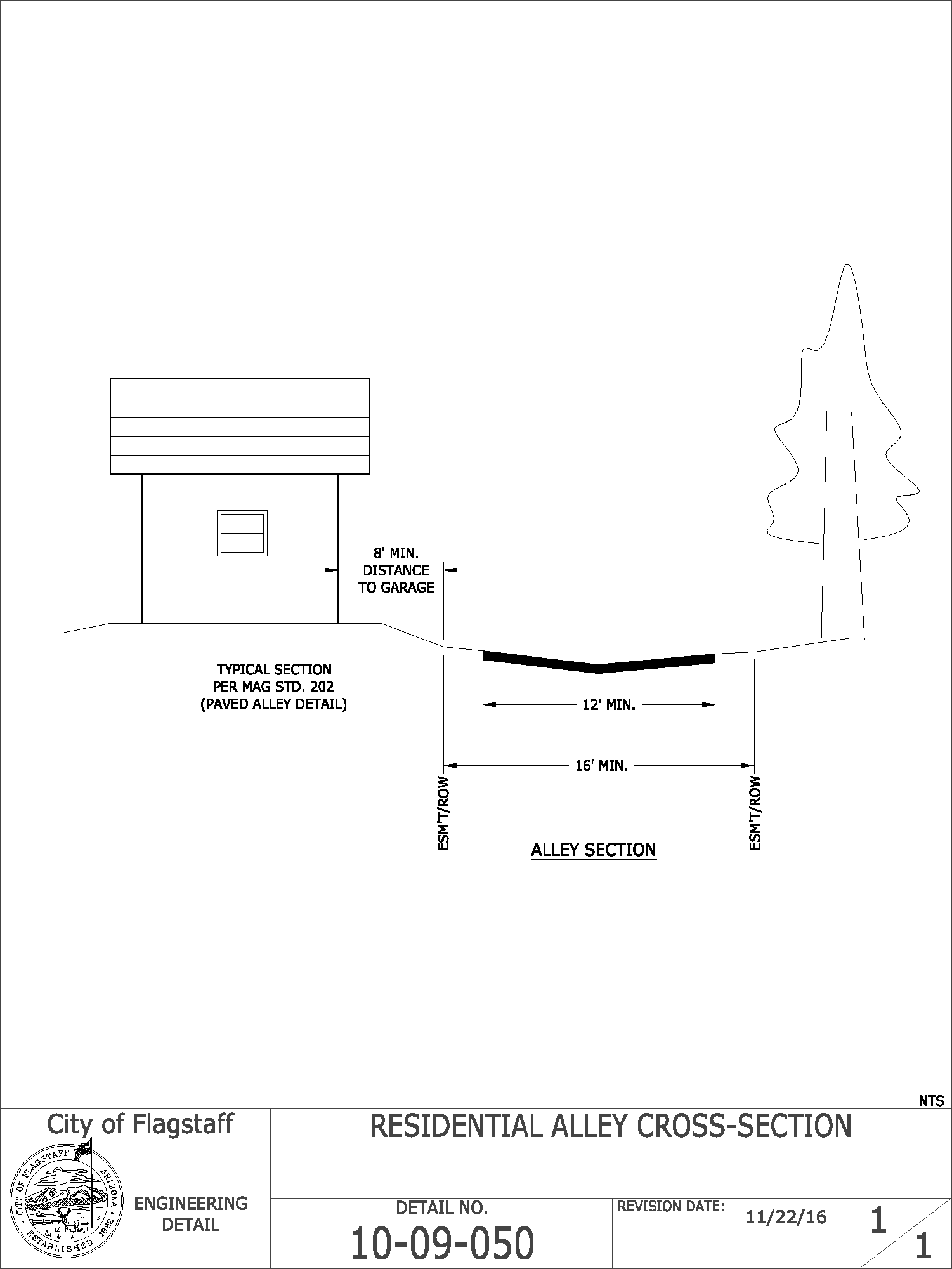

10-09-050 Residential Alley Cross-Section

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

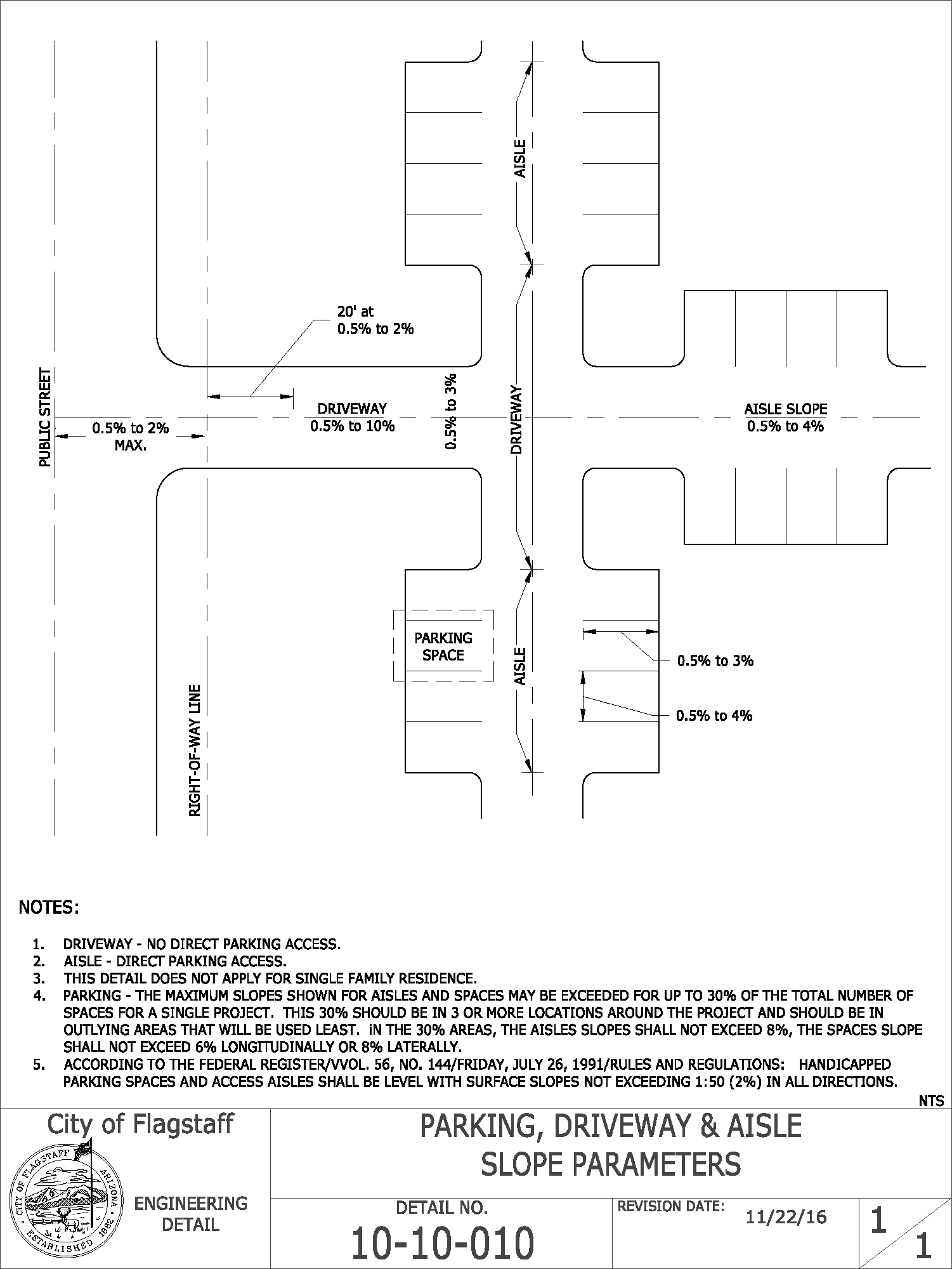

10-10-010 Parking, Driveway and Aisle Slope Parameters

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

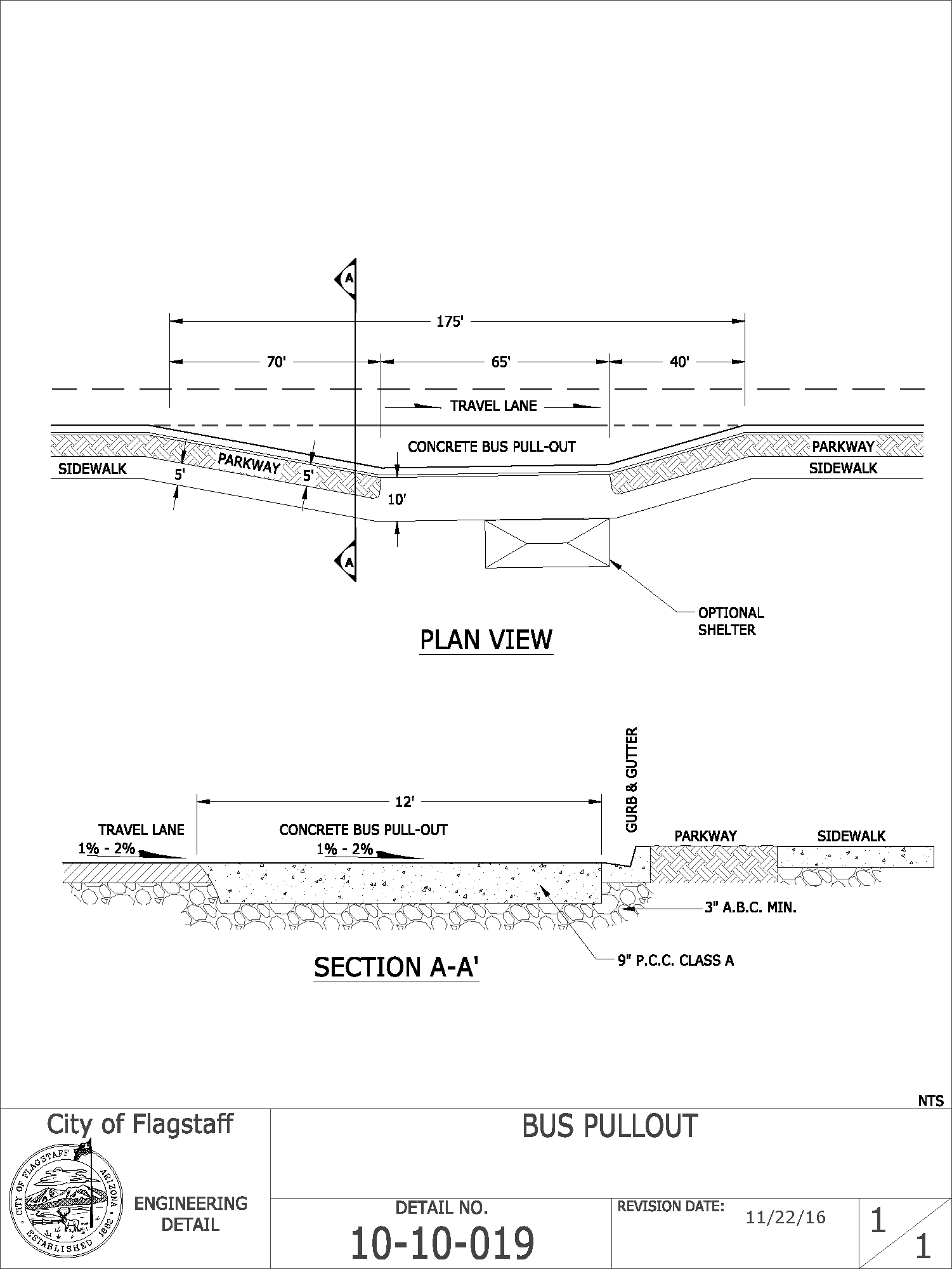

10-10-019 Bus Pullout

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

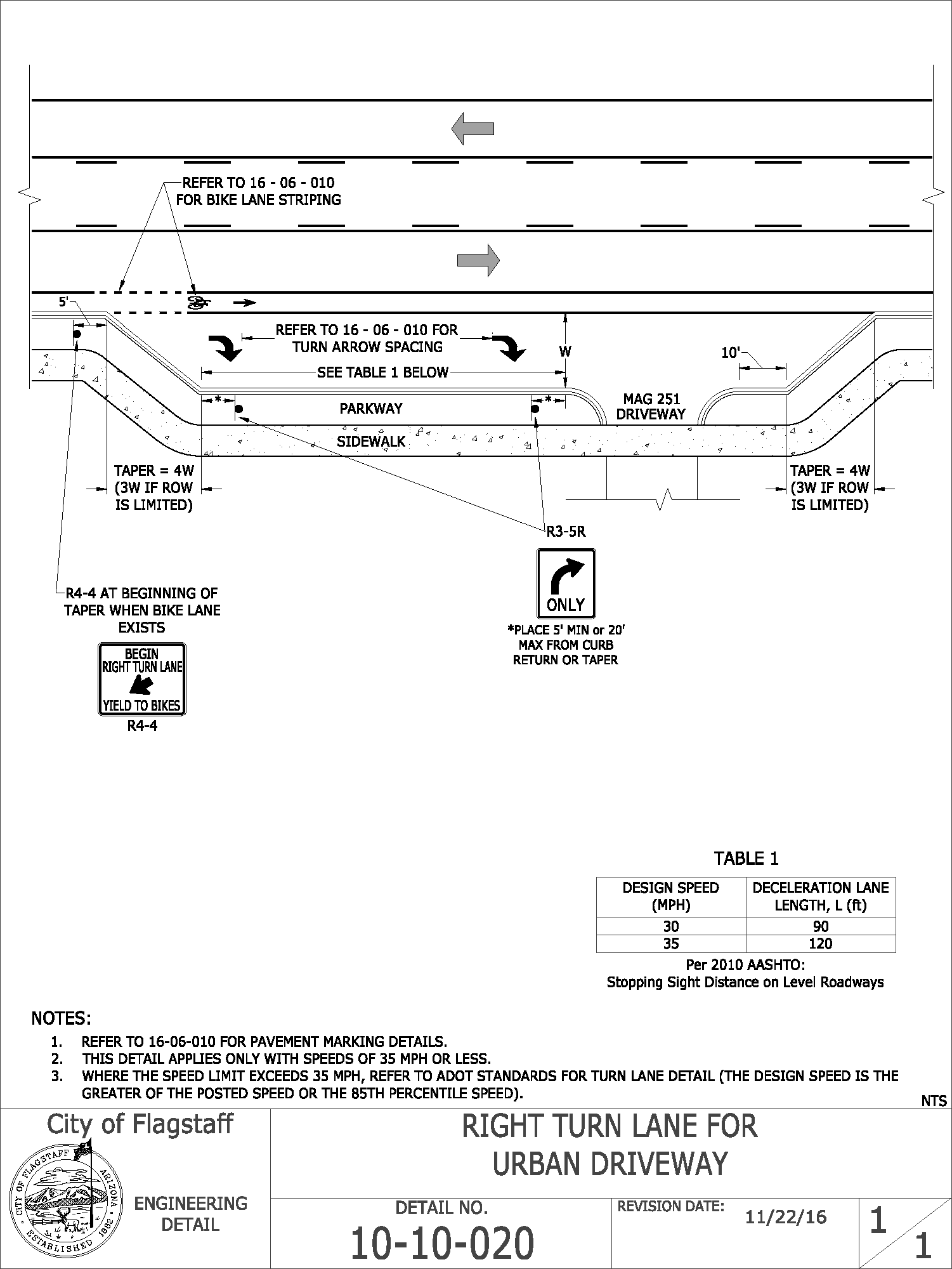

10-10-020 Right Turn Lane for Urban Driveway

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

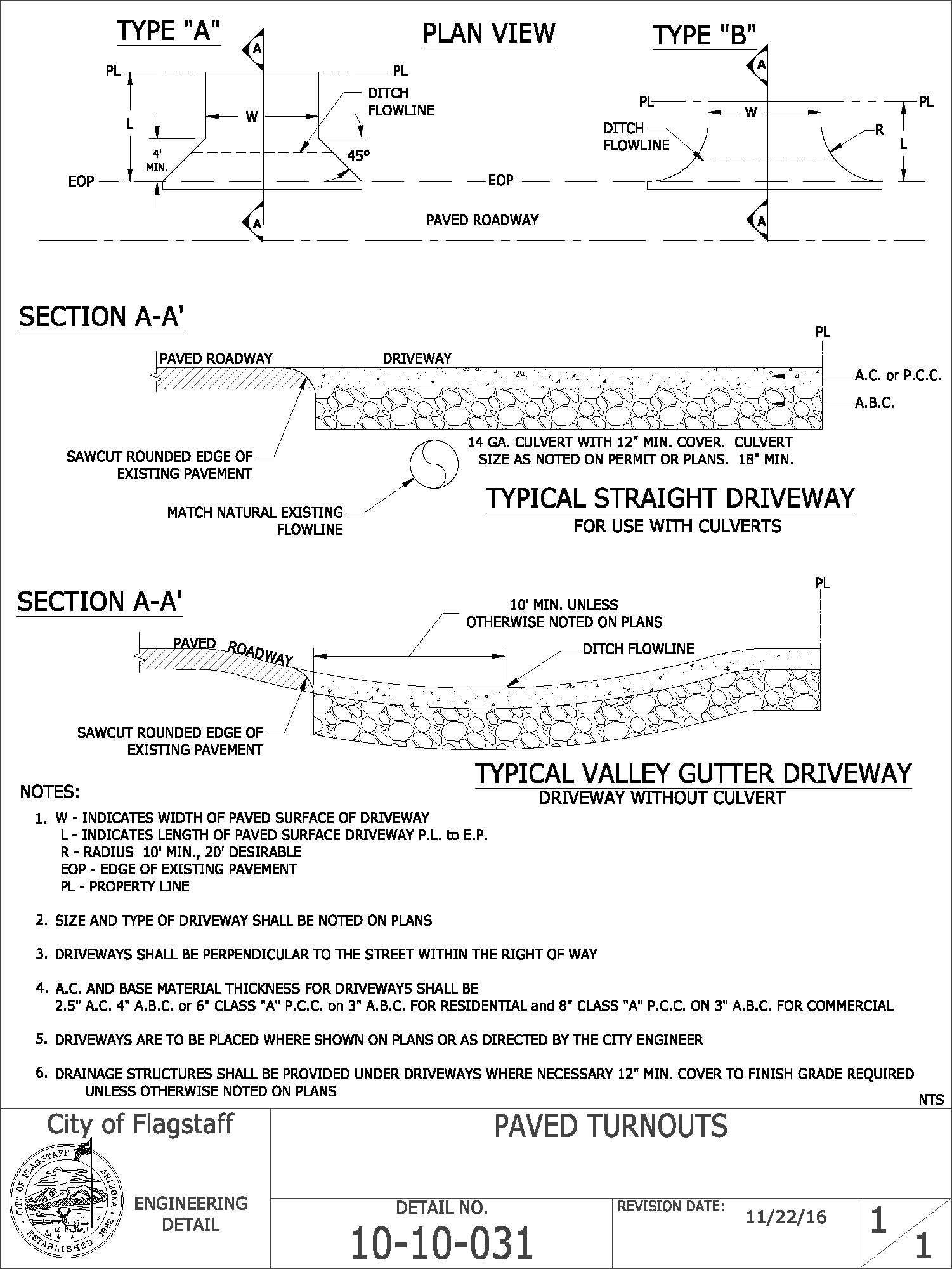

10-10-031 Paved Turnouts

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

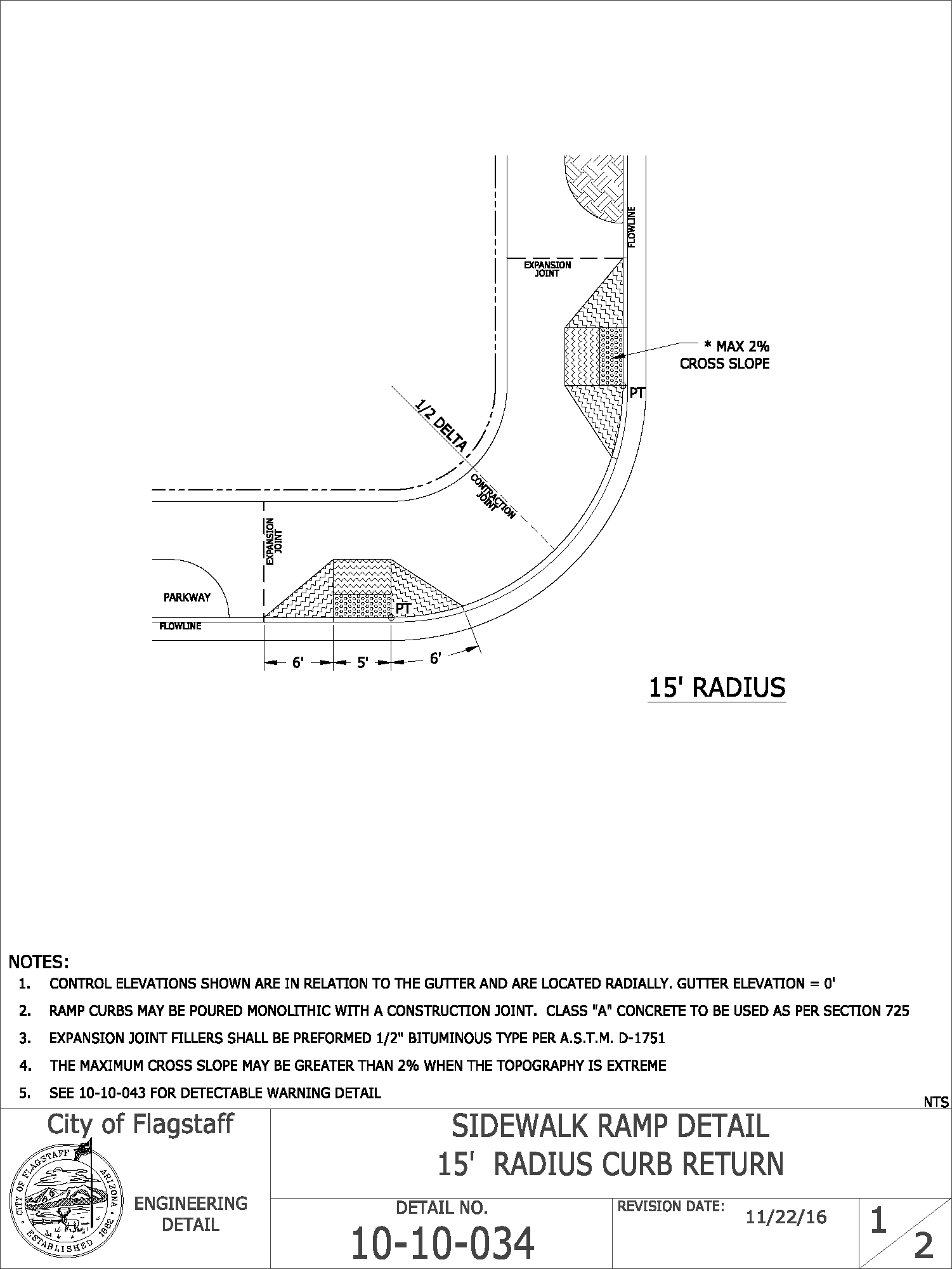

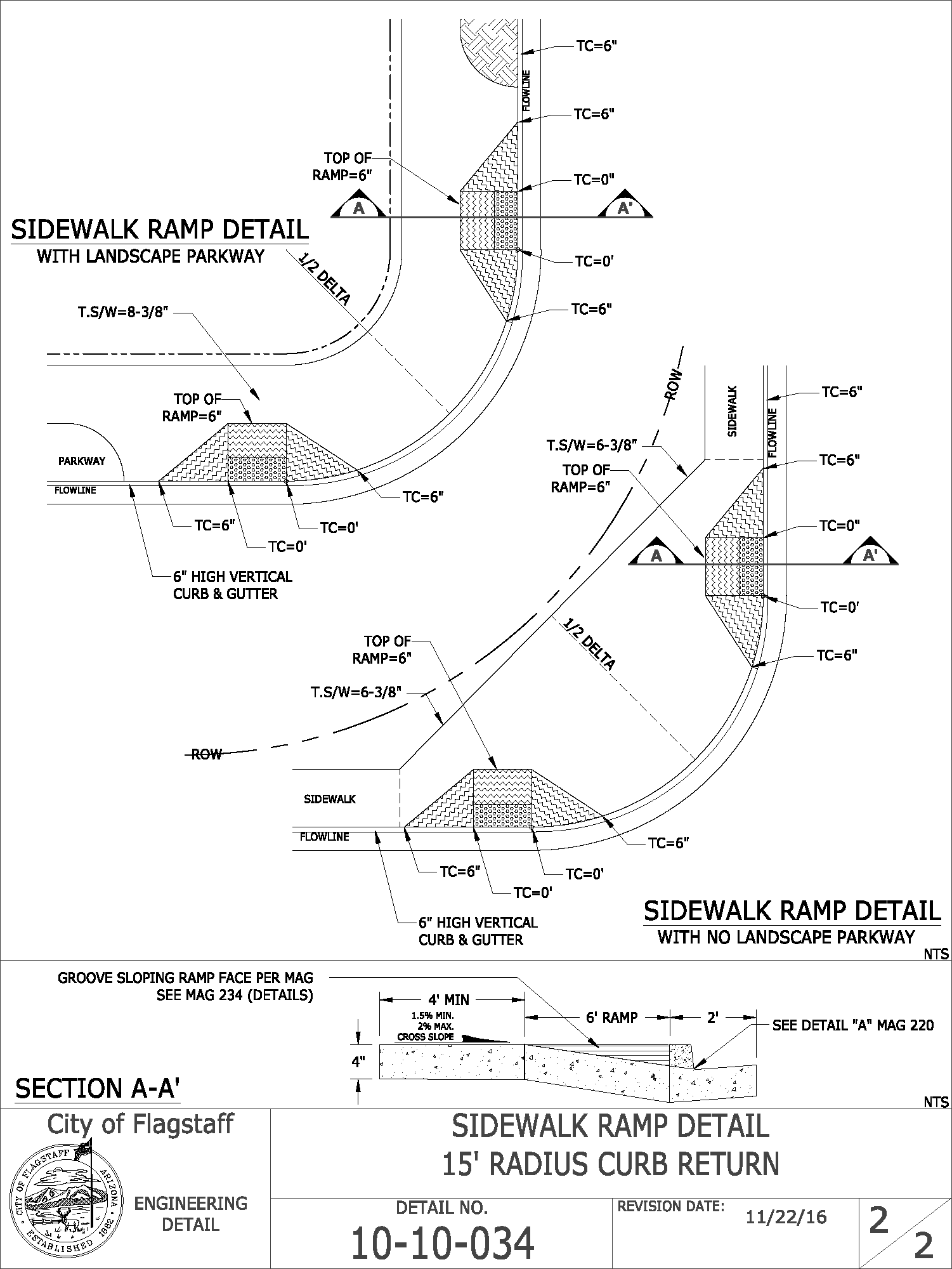

10-10-034 Sidewalk Ramp Detail (15' Radius Curb Return)

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

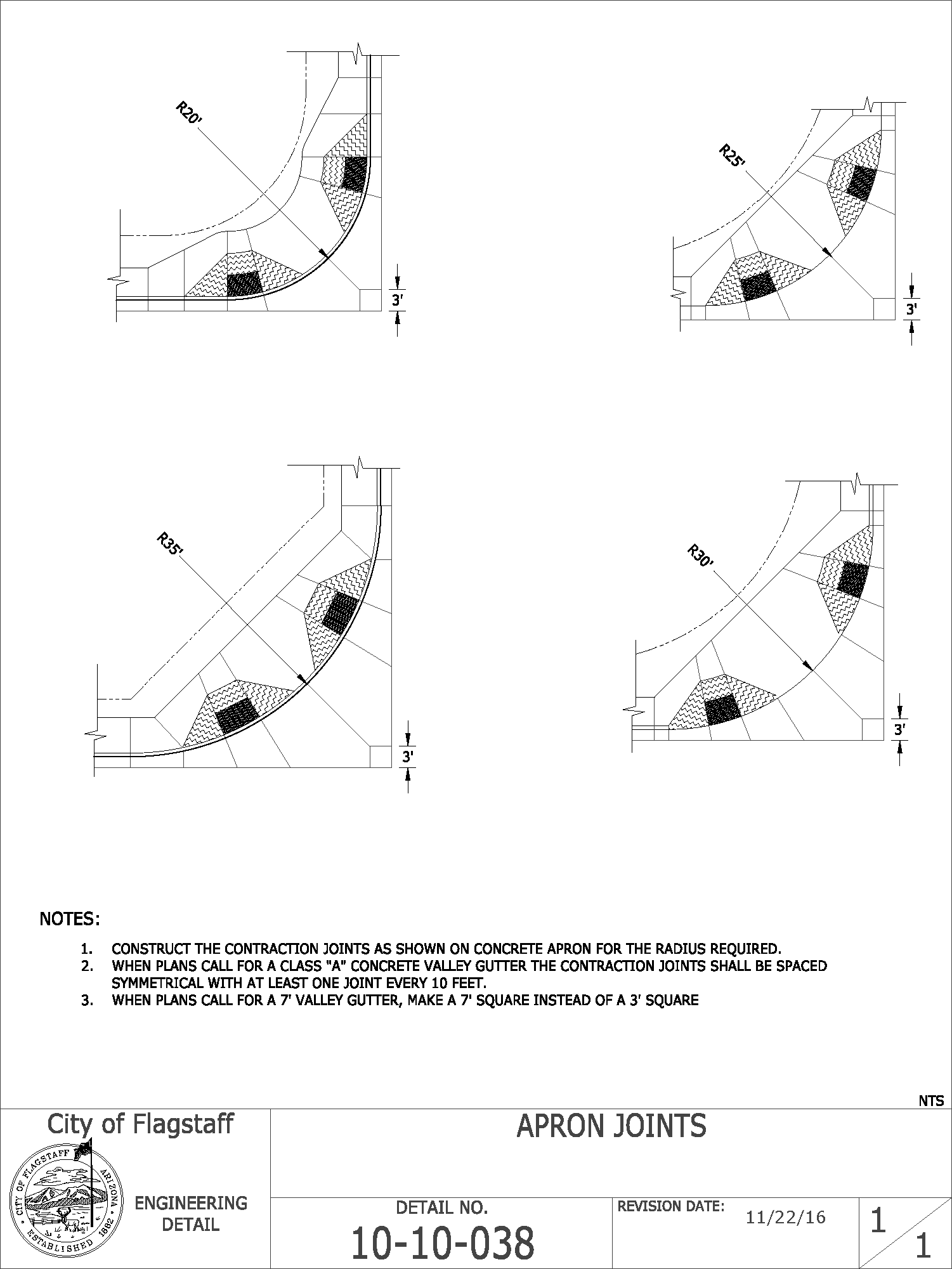

10-10-038 Apron Joints

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

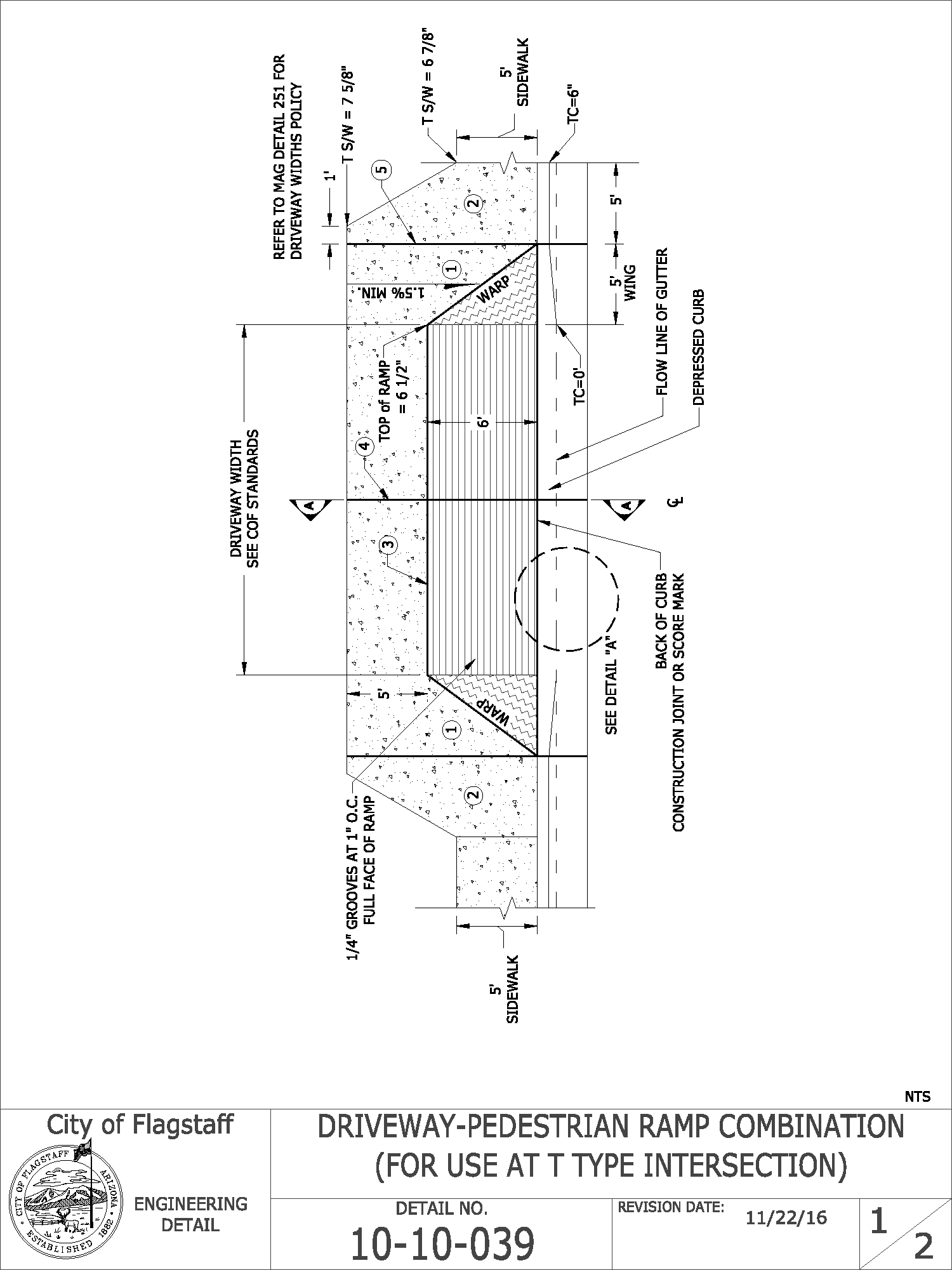

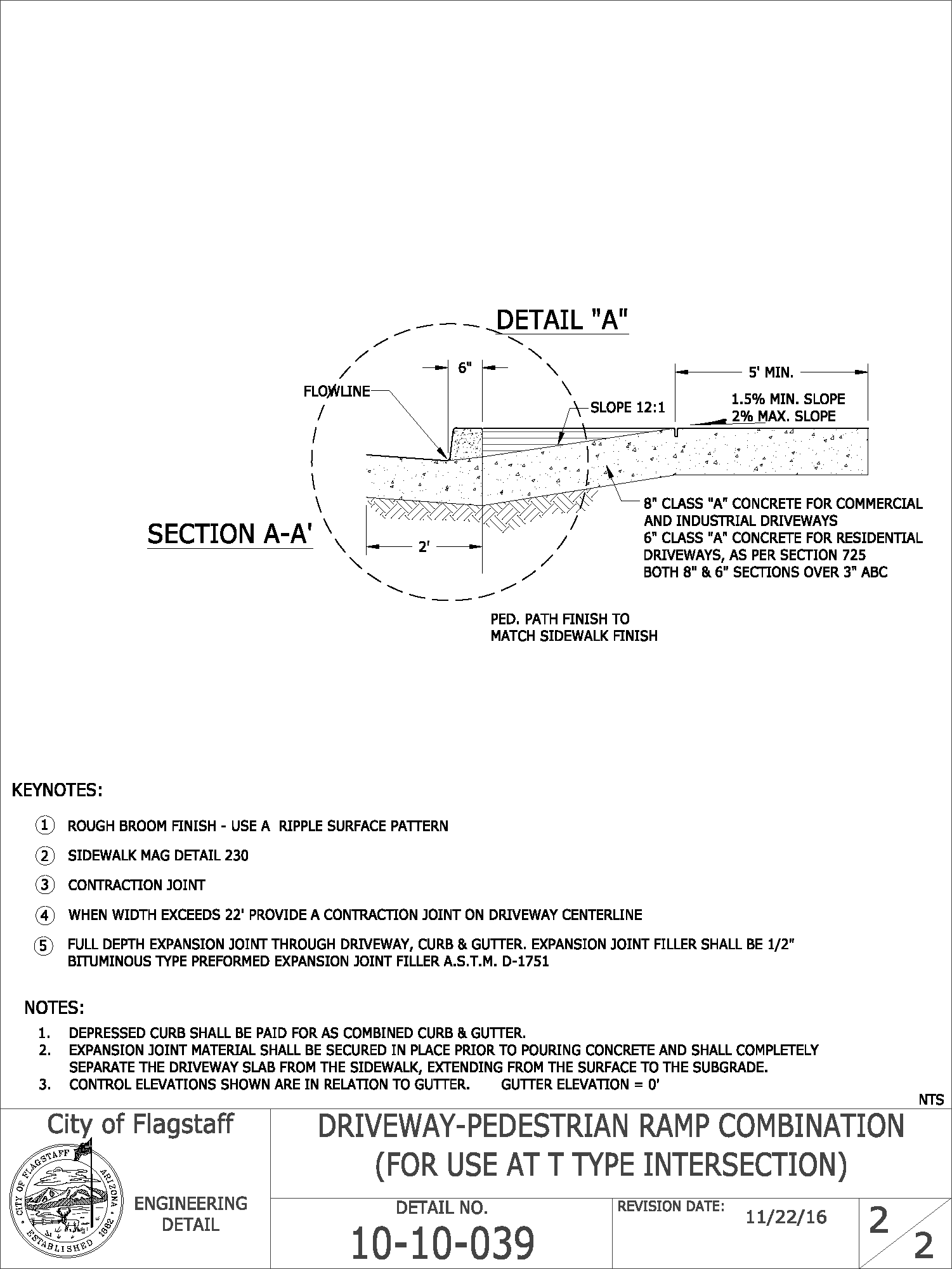

10-10-039 Driveway-Pedestrian Ramp Combination (For Use at T-Type Intersection)

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

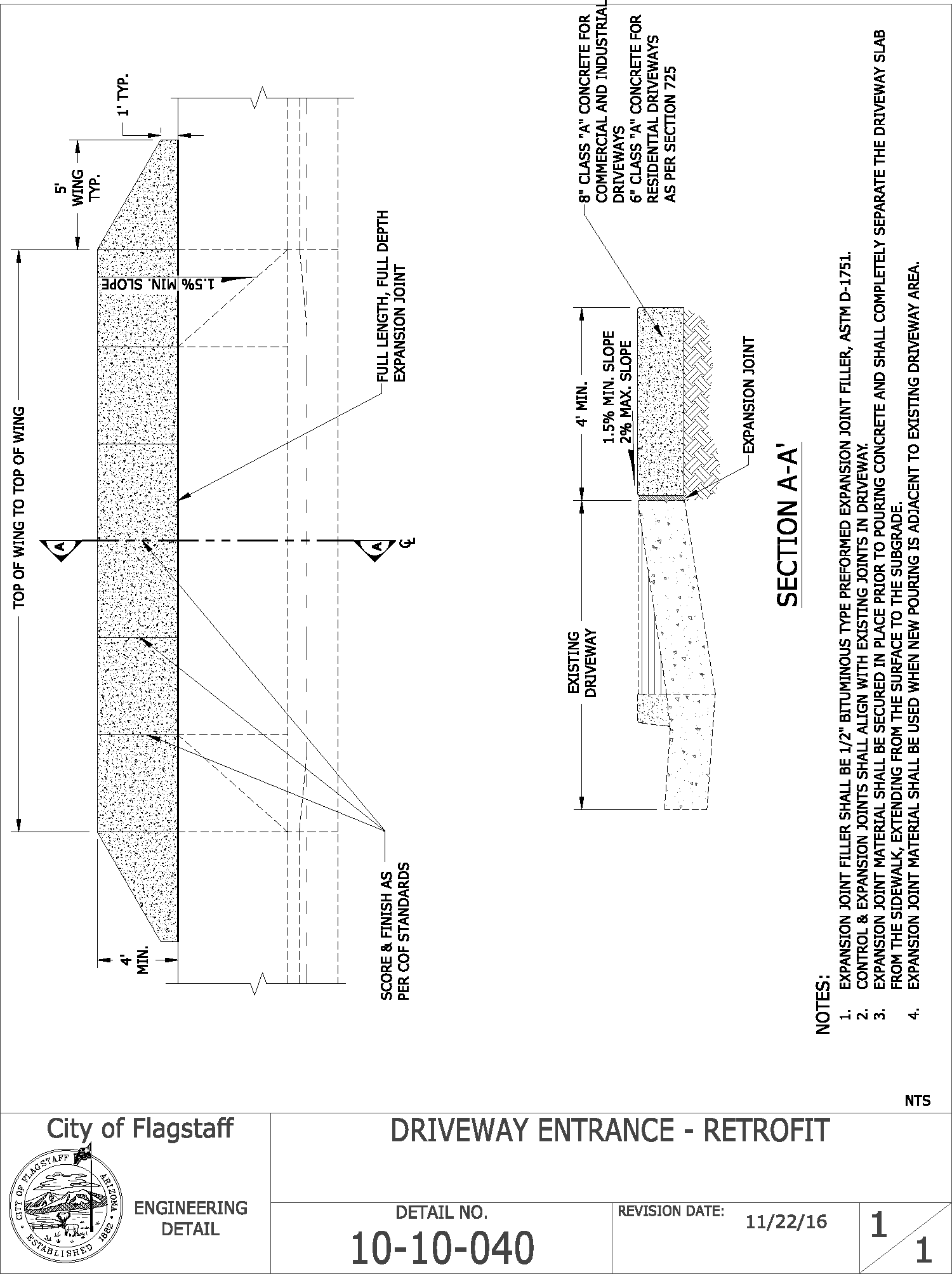

10-10-040 Driveway Entrance – Retrofit

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

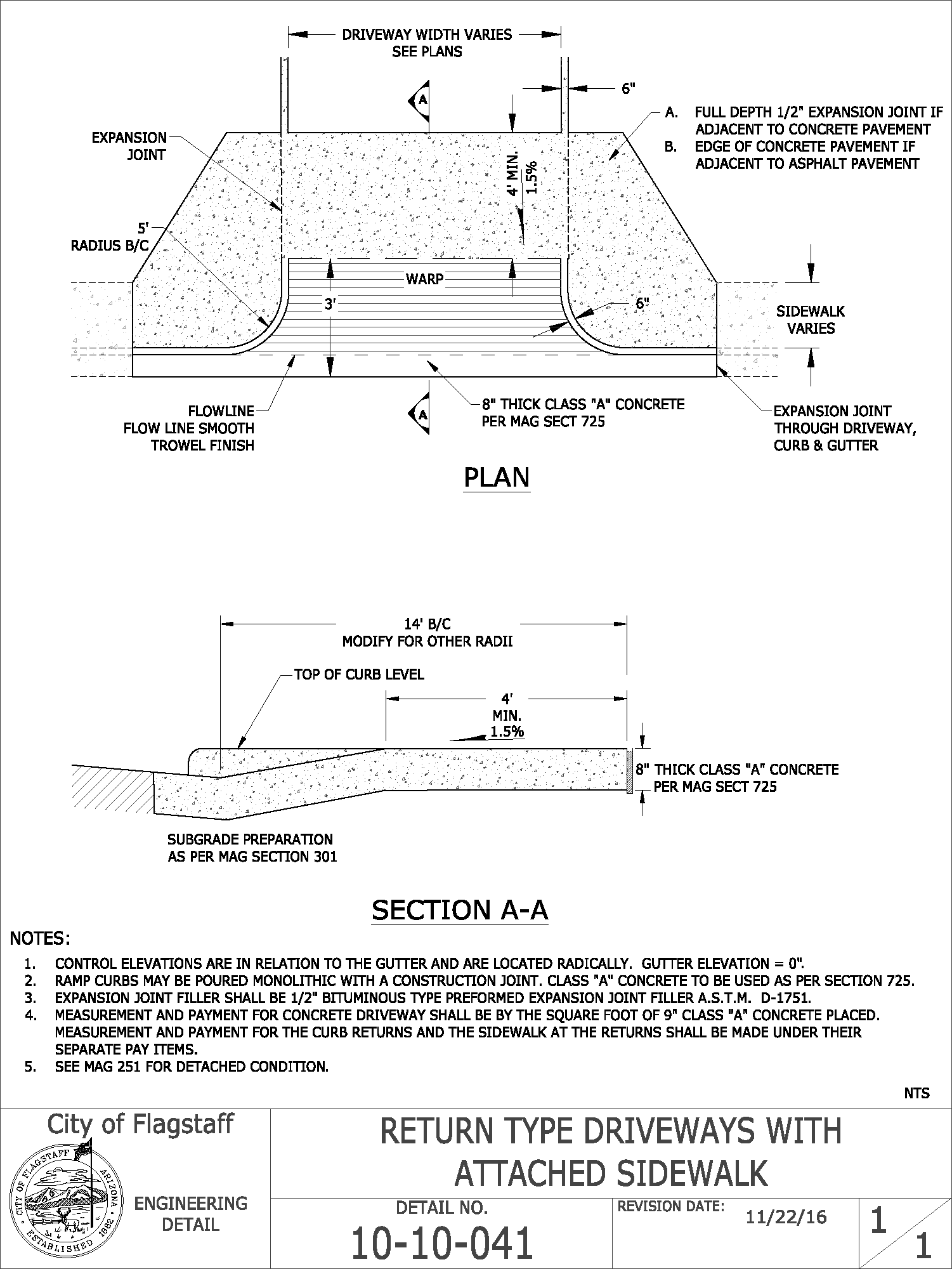

10-10-041 Return Type Driveways with Attached Sidewalk

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

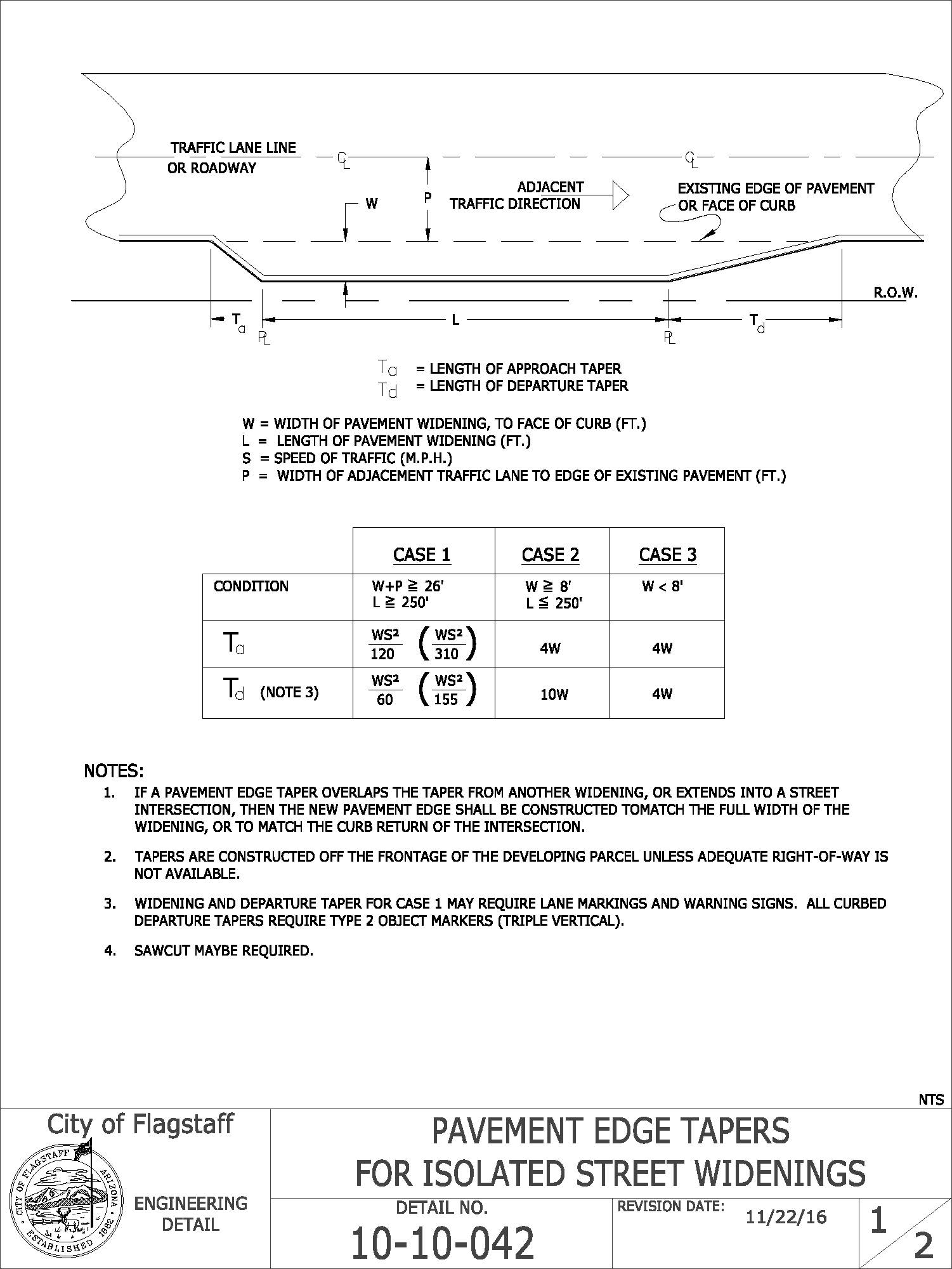

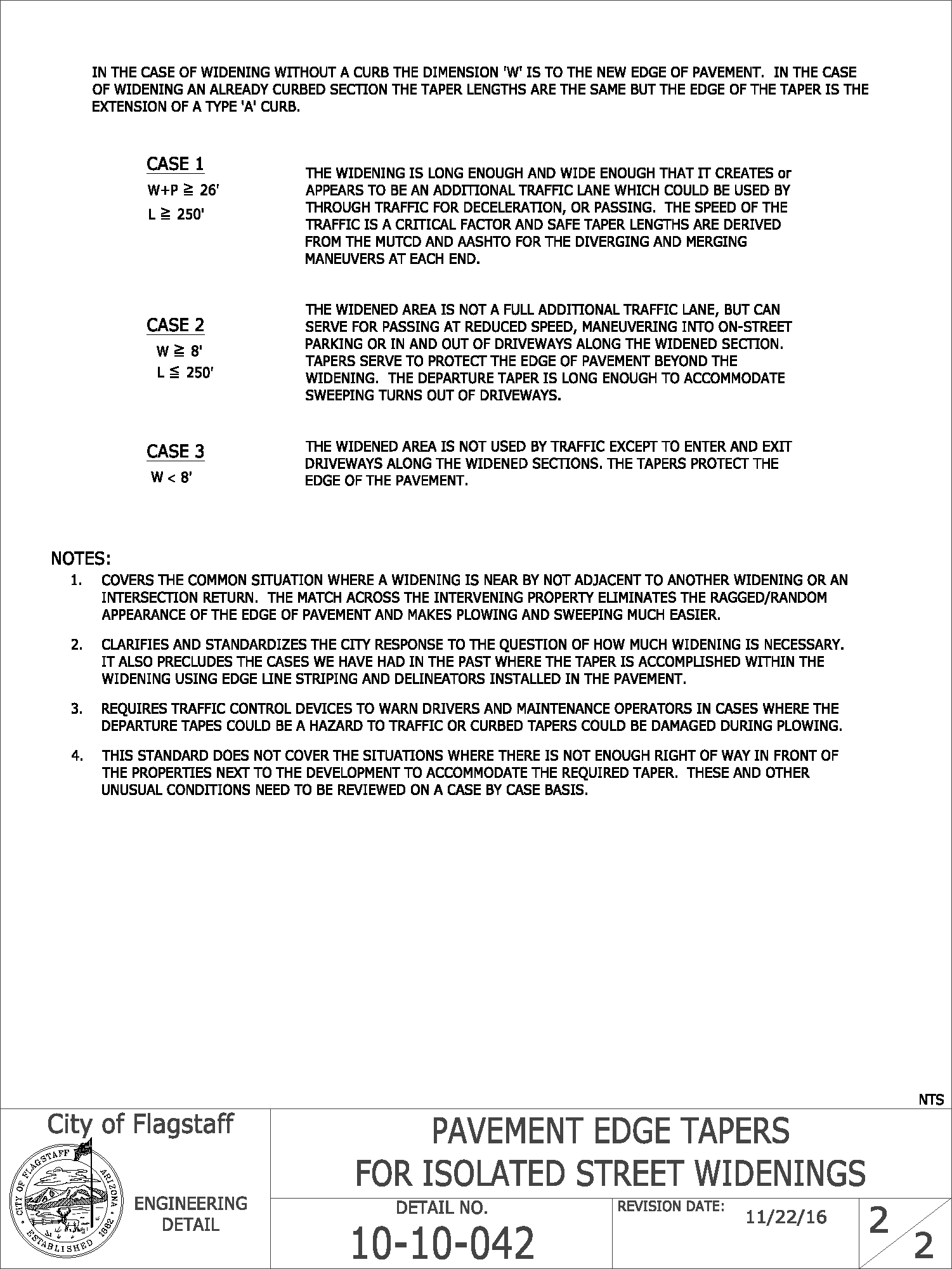

10-10-042 Pavement Edge Tapers for Isolated Street Widenings

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

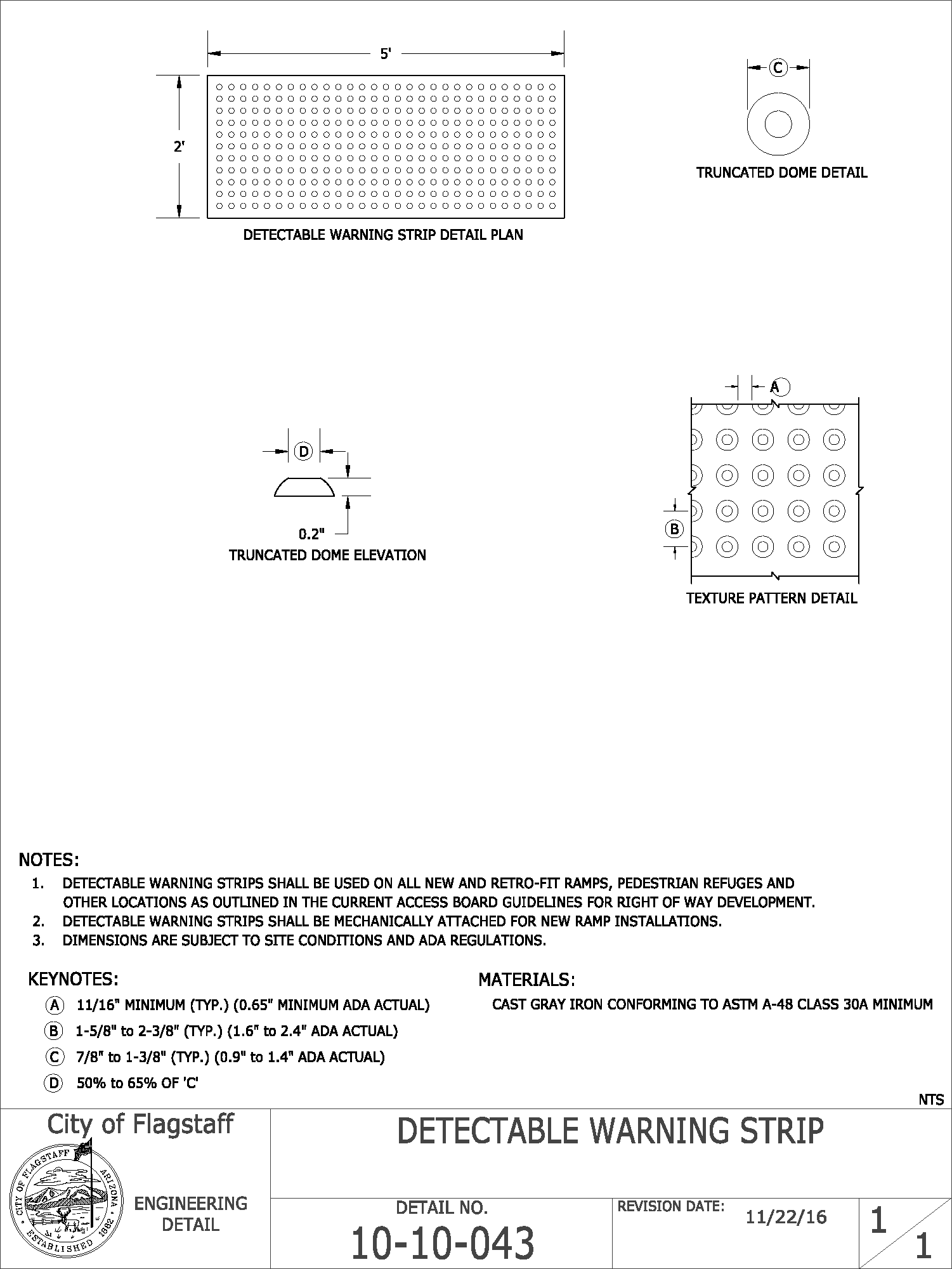

10-10-043 Detectable Warning Strip

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

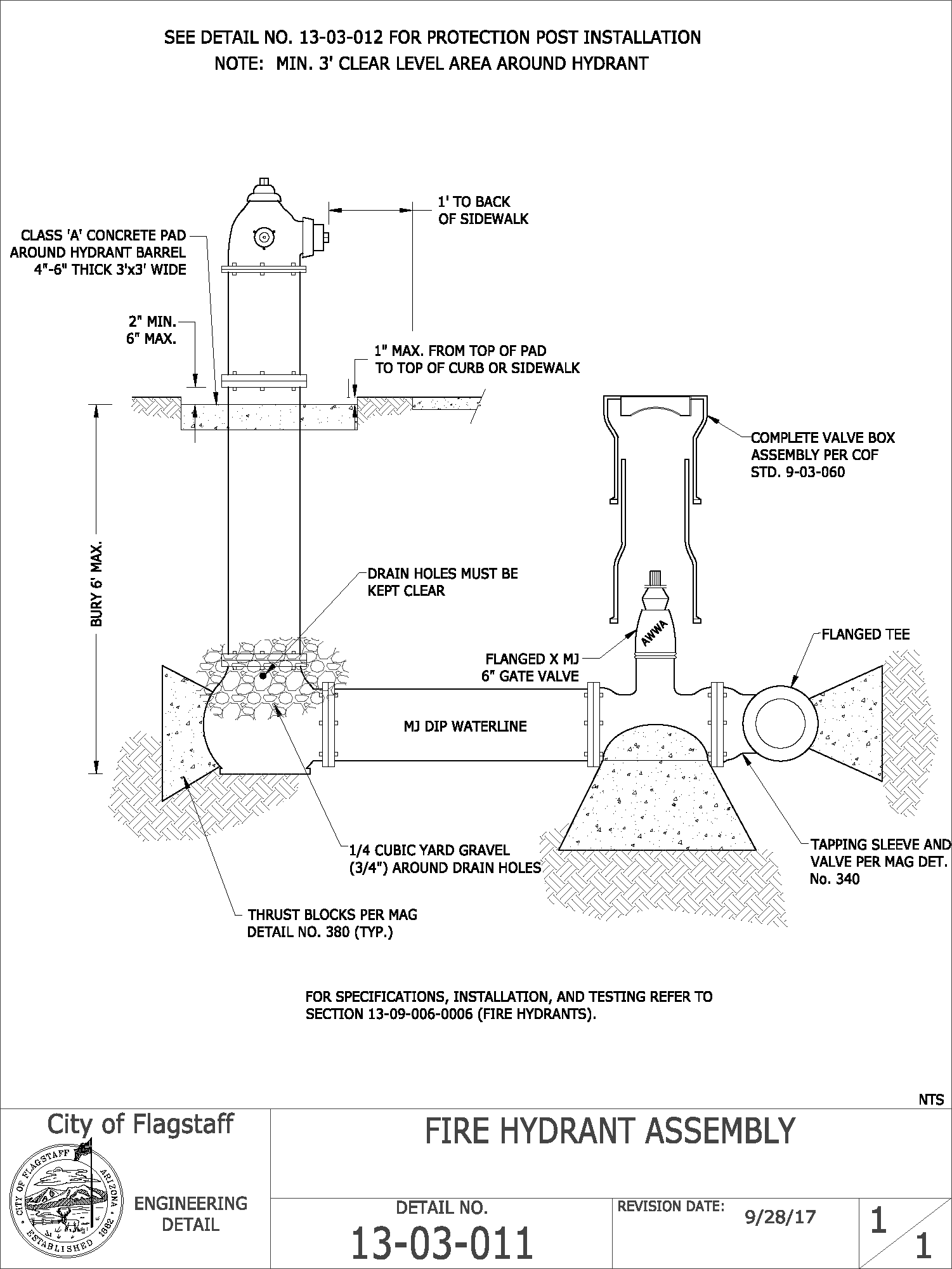

13-03-011 Fire Hydrant Assembly

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

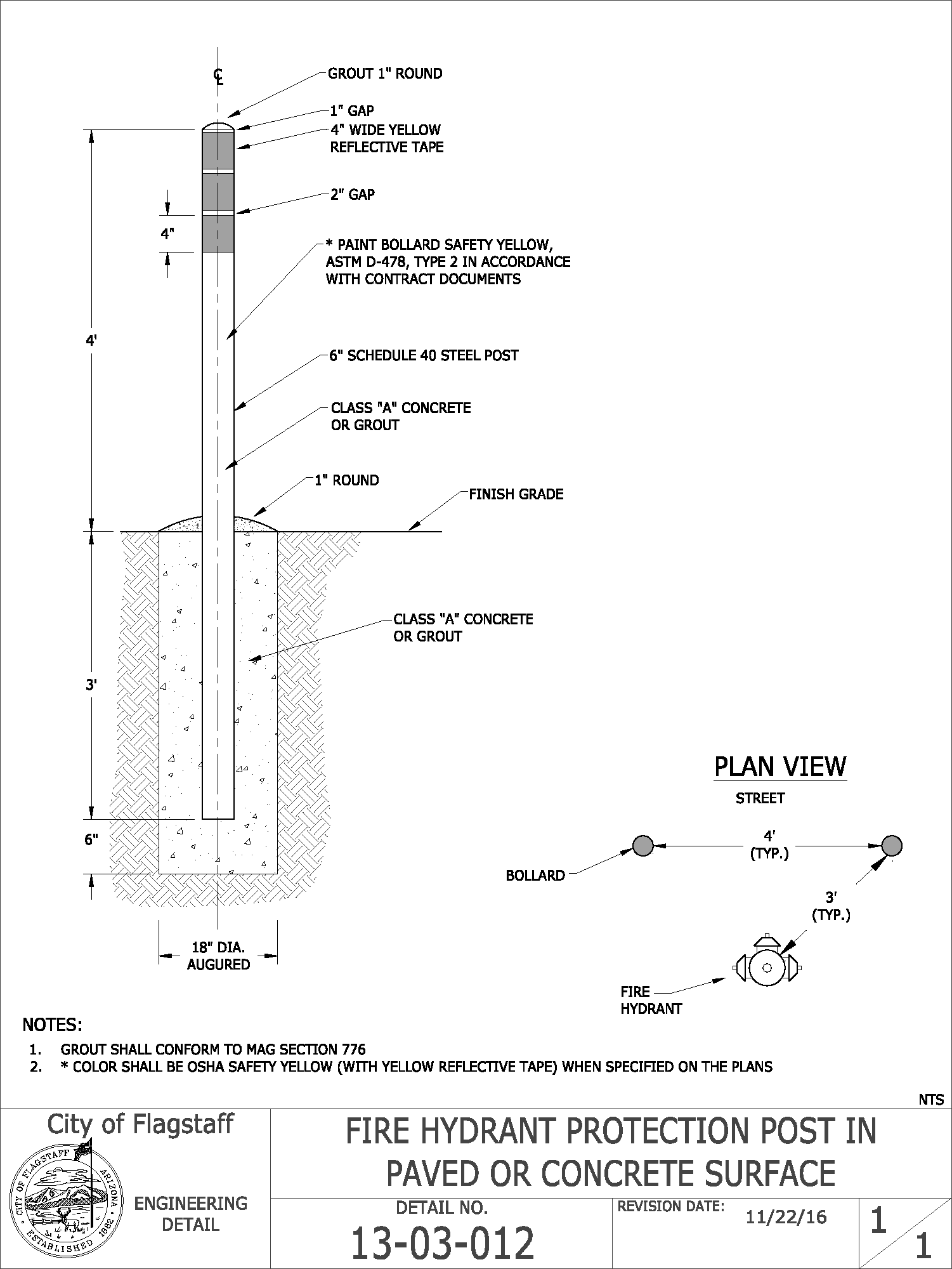

13-03-012 Fire Hydrant Protection Post in Paved or Concrete Surface

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

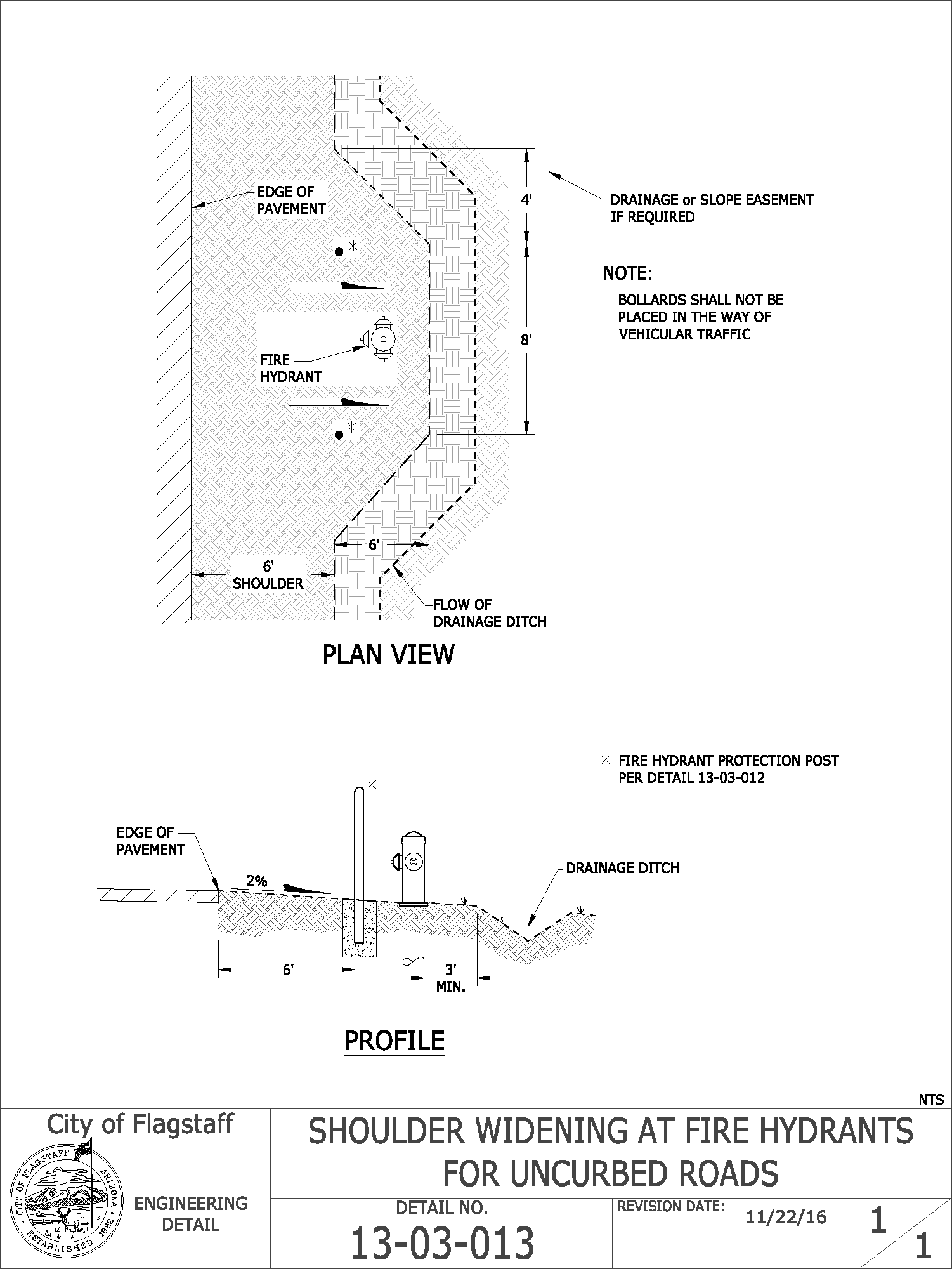

13-03-013 Shoulder Widening at Fire Hydrants for Uncurbed Roads

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

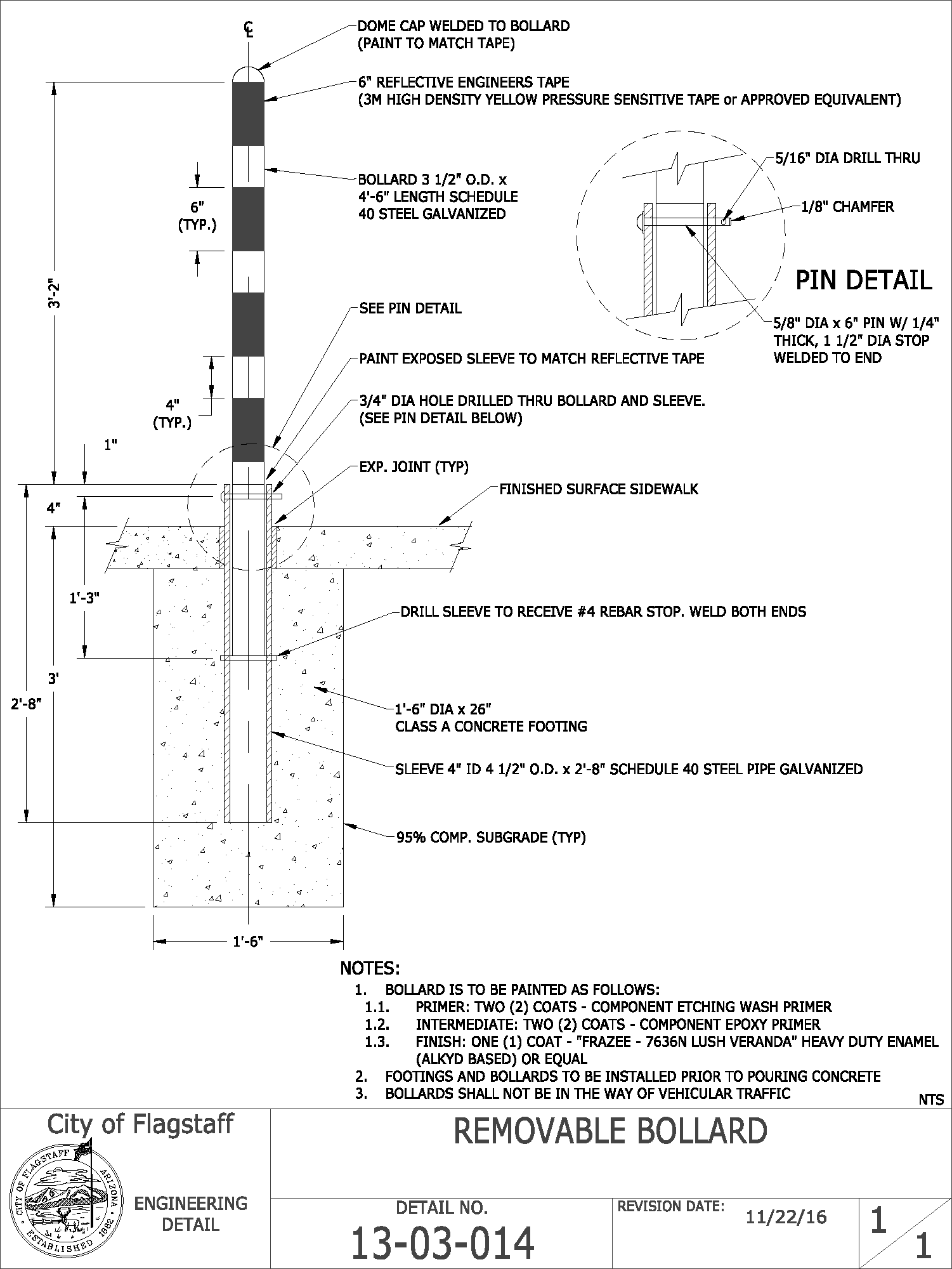

13-03-014 Removable Bollard

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

14-01-010 Flagstaff Urban Trails System Details

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

14-01-011 Pedestrian and Shared Use Path Underpass Dimensions

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

16-01-240 Concrete Paving Stone or Brick Sidewalk

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

16-01-241 Concrete Paving Stone or Brick Driveway

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

16-04-010 Typical Layout of Pedestrian CRFB

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

16-05-010 Street Name Signs

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

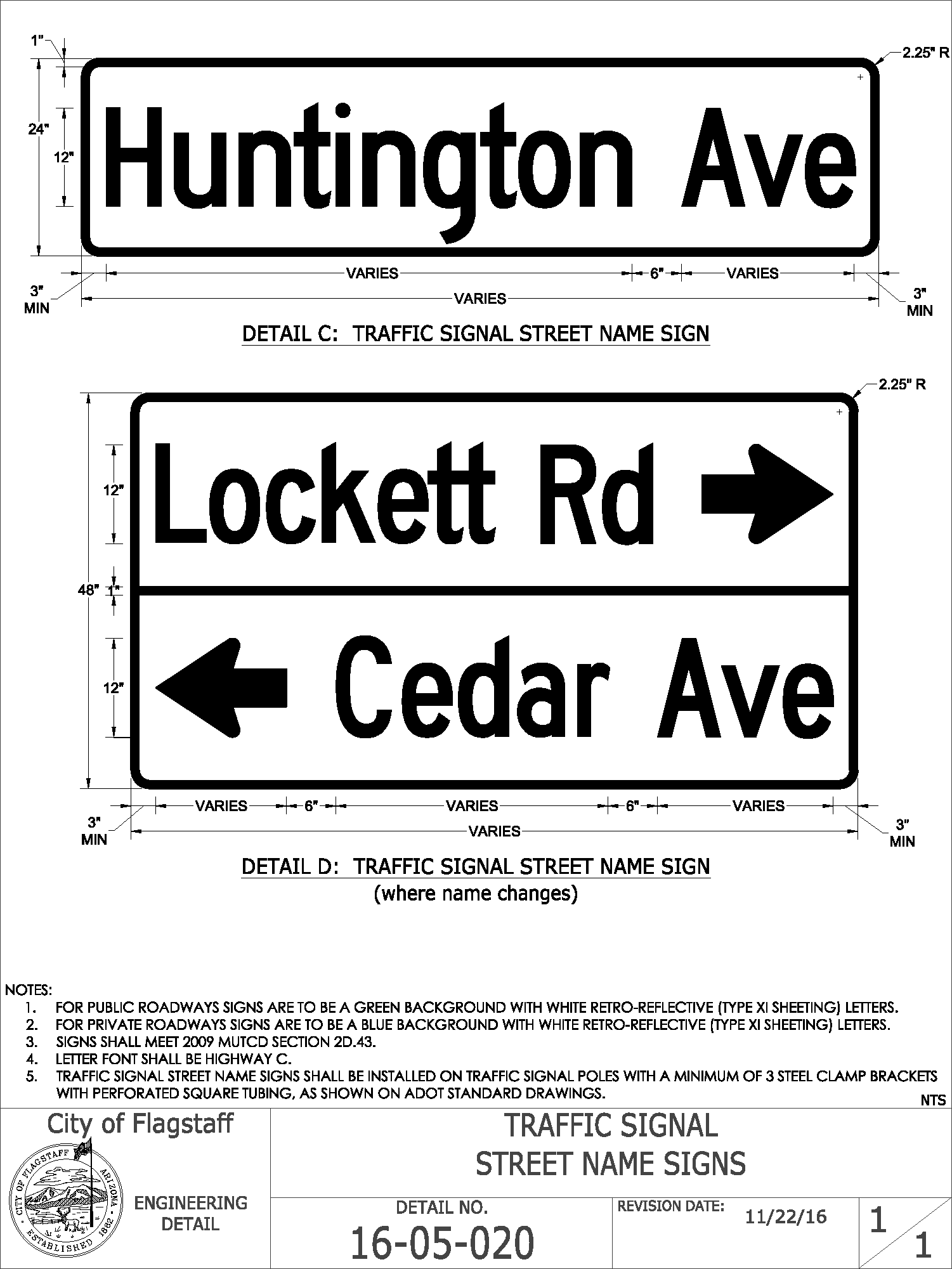

16-05-020 Traffic Signal Street Name Signs

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

16-06-010 Intersection Striping

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

18-03-050 Landscape Details

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

18-04-050 Conifer Tree Planting

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-01-020 Febco Backflow Assembly

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-001 Rotor Sprinkler Assembly

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-002 Pop-Up Sprinkler Assembly

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-003 Shrub Pop-Up Sprinkler Assembly

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-004 Drip Filter and Pressure Regulator

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-005 Emitter Flush Cap Assembly

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-006 Quick Coupler Assembly

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-007 Mainline Ball Valve 1-1/2" and Smaller

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-008 Ball Valve Detail

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-009 Mainline Isolation Gate Valve 3" and Larger

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-010 Master Valve/Flow Meter 3" and Larger

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-011 Irrigation Remote Control Valve

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-012 Single Outlet Emitters All Shrubs and Ground Covers

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-013 Irrigation Emitter Layout

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-014 End Line Flush

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-015 Master Valve/Flow Sensor Assembly 2" or Smaller

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-016 Maxicom Cable Pull Box

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-017 Maxicom Cable Splices

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-019 Drip Irrigation Remote Control Valve Assembly

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-021 Irrigation Wire Connection

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-022 Irrigation Wire Sleeving Chart

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-023 Schematic Layout

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-024 Solar Controller

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-025 Solar Controller and Backflow Preventer Enclosure

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-026 Maxicom CCU (6 or 28) - Wall Mount

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-027 Maxicom Esp-Sat Field Satellite Controller – Wall Mount

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

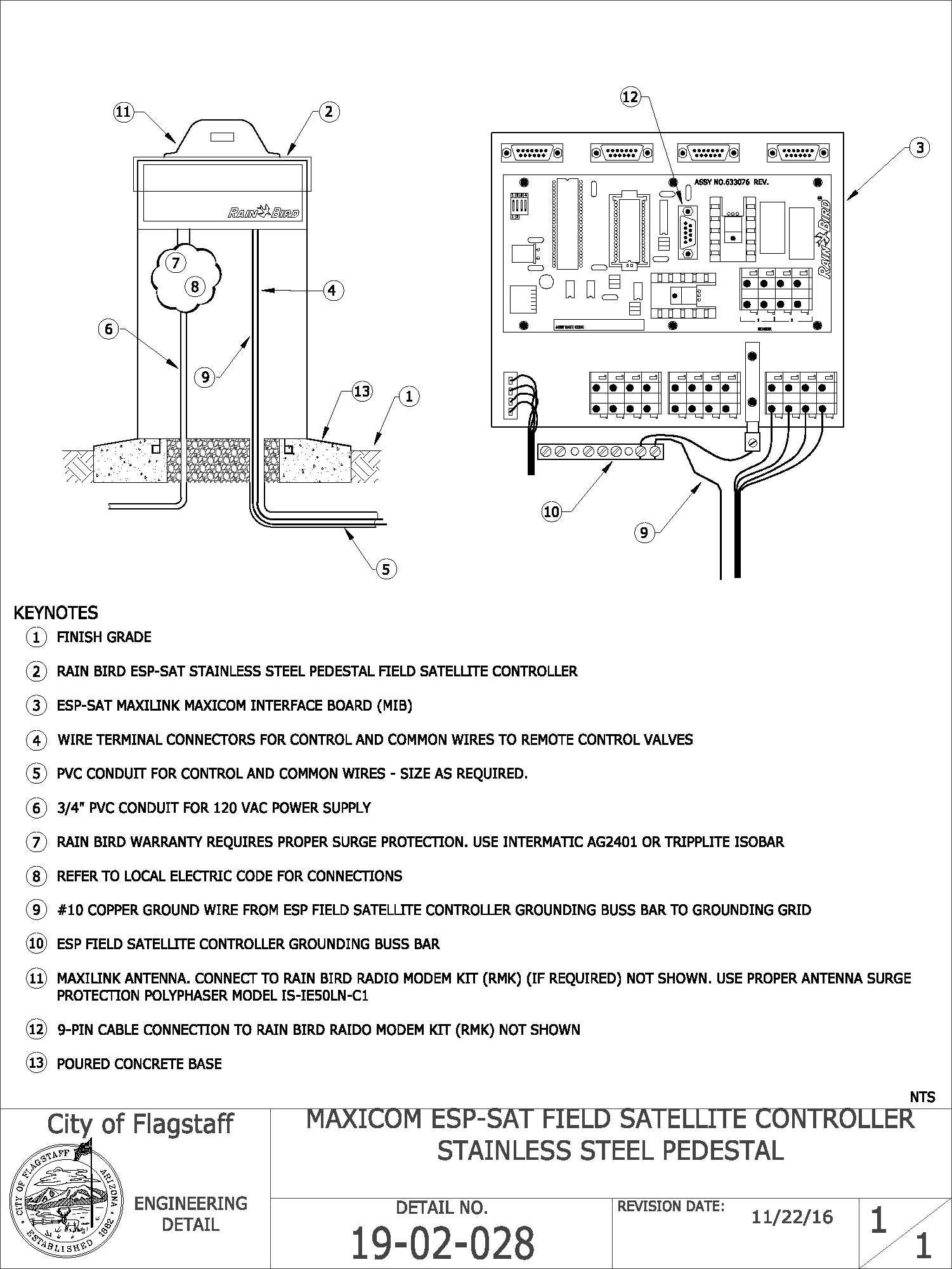

19-02-028 Maxicom Esp-Sat Field Satellite Controller Stainless Steel Pedestal

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

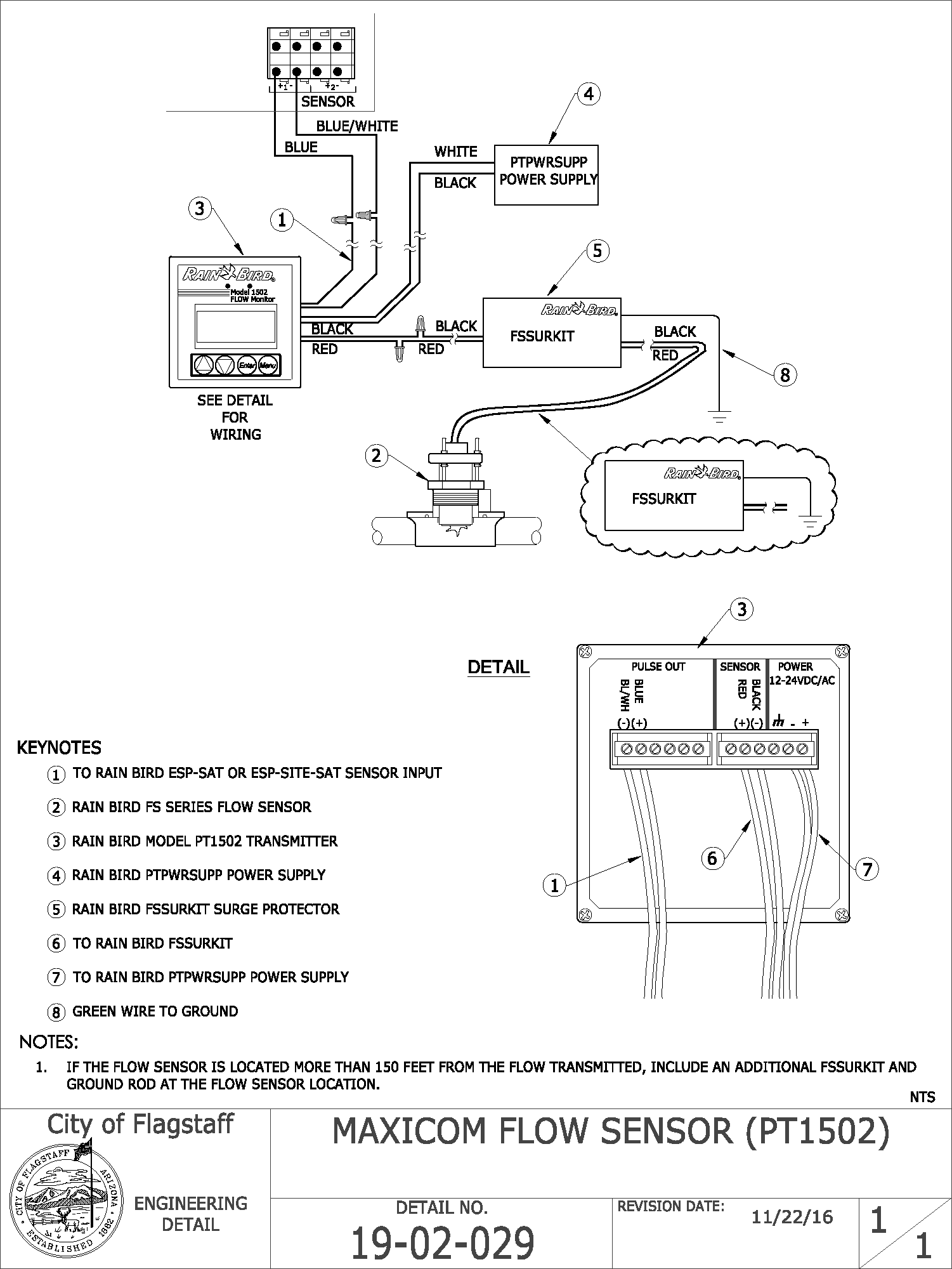

19-02-029 Maxicom Flow Sensor (PT1502)

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-030 Controller Enclosure

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-031 Grounding Rod Grid

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-032 Grounding Plate Design Layout

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-033 Weather Station External Wire Connection

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-034 Maxicom Variable Wind Speed Detection

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-035 Sleeve Trenching Detail

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-036 Irrigation Trenching

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

19-02-037 Irrigation Thrust Block

(Ord. 2017-22, Rep&ReEn, 07/05/2017)

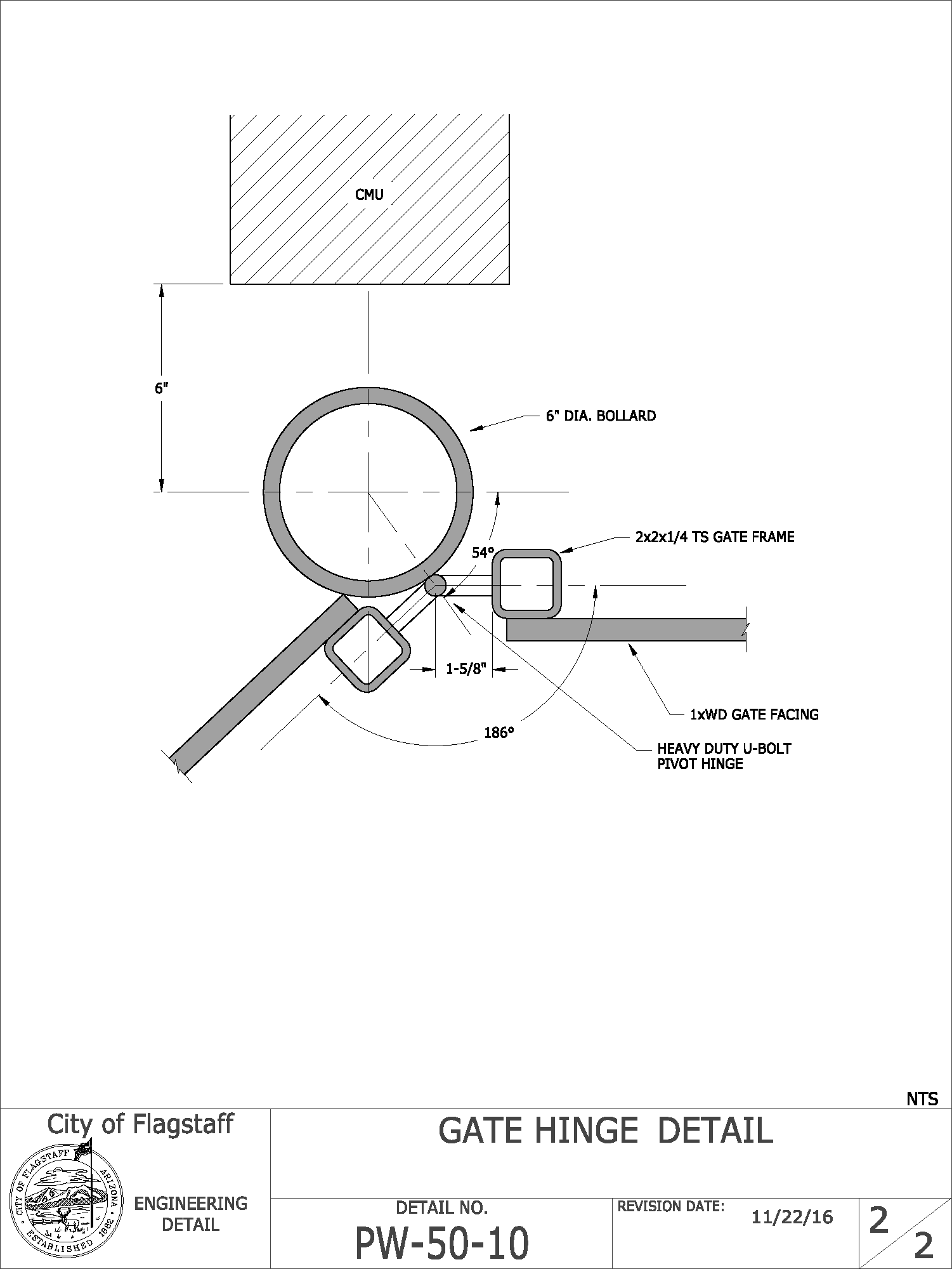

PW 50.10 Single and Double Trash Enclosure

(Ord. 2017-22, Rep&ReEn, 07/05/2017)
